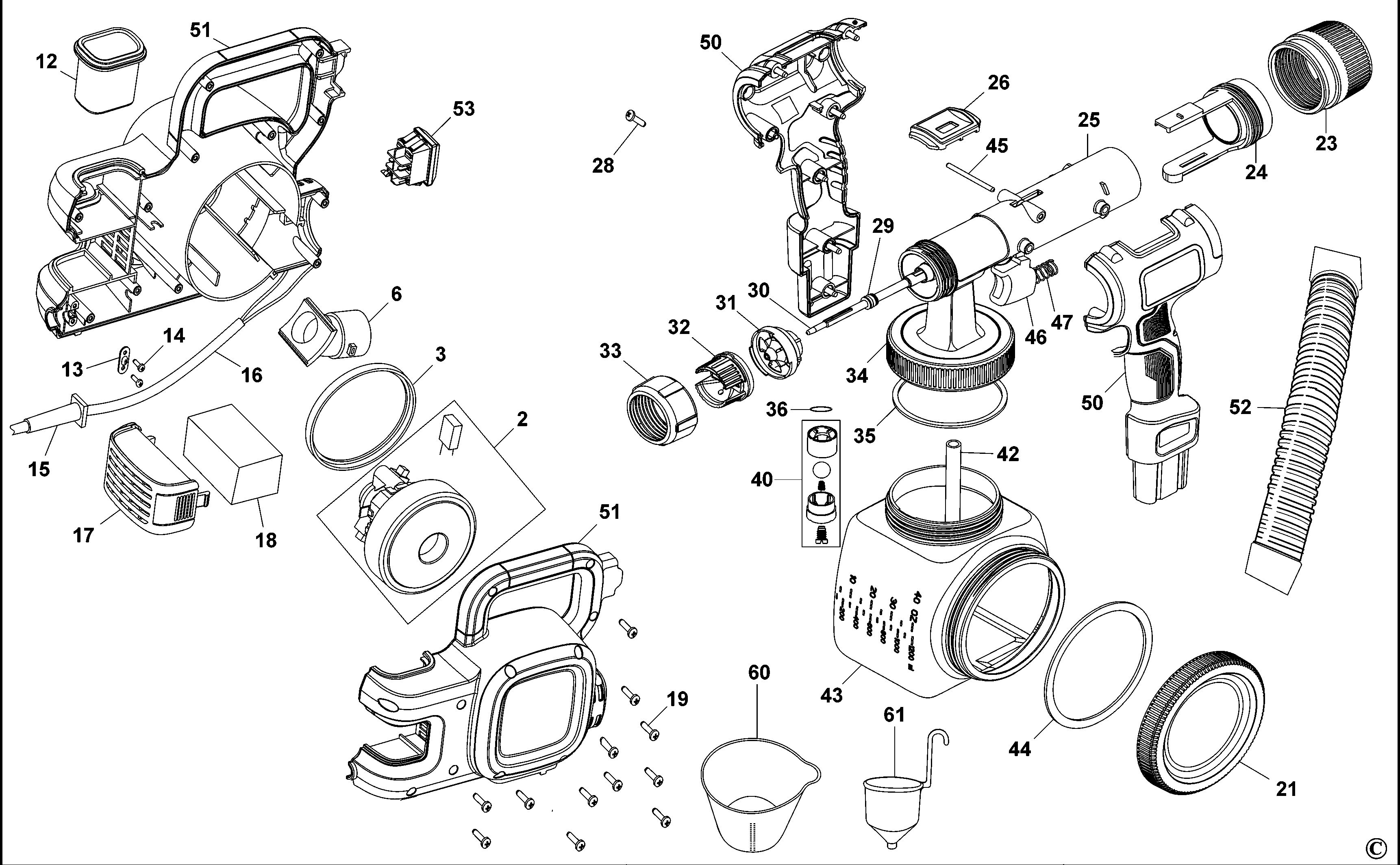

BLACK+DECKER SPRAY GUN (Type 1)
SKU Produs: HVLP400 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 1004571-29 | 1 | MOTOR SA | 300,47 Lei | |
| 3 | 1004571-05 | 1 | SEAL | 4,57 Lei | |
| 6 | 1004571-06 | 1 | COUPLER (SPLASH) | 13,85 Lei | |
| 12 | 1004571-08 | 1 | HOUSING HANDLE | 6,23 Lei | |
| 13 | 1004571-09 | 1 | CLAMP | 4,57 Lei | |
| 14 | 1004570-33 | 2 | SCREW | 4,57 Lei | |
| 15 | 1004570-03 | 1 | SLEEVE | 4,57 Lei | |
| 16 | 1004570-97 | 1 | CORDSET | 80,04 Lei | |
| 17 | 1004571-10 | 1 | COVER | 7,37 Lei | |
| 18 | 1004571-11 | 1 | FILTER | 5,21 Lei | |
| 19 | 1004571-12 | 13 | SCREW | 7,37 Lei | |
| 21 | 1004570-02 | 1 | COVER | 8,64 Lei | |
| 23 | 1004571-13 | 1 | KNOB | 7,37 Lei | |
| 24 | 1004571-14 | 1 | INDICATOR | 7,37 Lei | |
| 25 | 1004571-15 | 1 | HOUSING | 41,93 Lei | |
| 26 | 1004571-16 | 1 | WINDOW | 4,57 Lei | |
| 28 | 1004570-17 | 7 | SCREW | 4,57 Lei | |
| 29 | 1004571-17 | 2 | O RING | 5,21 Lei | |
| 30 | 1004571-18 | 1 | NEEDLE | 4,57 Lei | |
| 31 | 1004570-72 | 1 | NOZZLE | 5,21 Lei | |
| 32 | 1004570-71 | 1 | TIP | 5,21 Lei | |
| 33 | 1004570-70 | 1 | LOCK SCREW | 4,57 Lei | |
| 34 | 1004570-24 | 1 | LID | 7,37 Lei | |
| 35 | 1004570-25 | 1 | O RING | 21,85 Lei | |
| 36 | 1004570-67 | 1 | O RING | 12,71 Lei | |
| 42 | 1004570-61 | 1 | TUBE | 4,57 Lei | |
| 43 | 1004570-00 | 1 | CANISTER | 30,87 Lei | |
| 44 | 1004570-01 | 1 | SEAL | 4,57 Lei | |
| 45 | 1004570-87 | 1 | PIN | 4,57 Lei | |
| 46 | 1004571-19 | 1 | TRIGGER | 5,21 Lei | |
| 47 | 1004571-20 | 1 | SPRING | 5,21 Lei | |
| 50 | 1004571-00 | 1 | HOUSING SA | 41,93 Lei | |
| 51 | 1004571-01 | 1 | HOUSING LOWER | 157,92 Lei | |
| 52 | 1004571-02 | 1 | HOSE SA | 200,99 Lei | |
| 53 | 1004571-03 | 1 | SWITCH SA | 19,95 Lei | |
| 60 | 1004571-21 | 1 | CONTAINER | 21,85 Lei | |
| 61 | 1004571-22 | 1 | CUP | 5,21 Lei |
