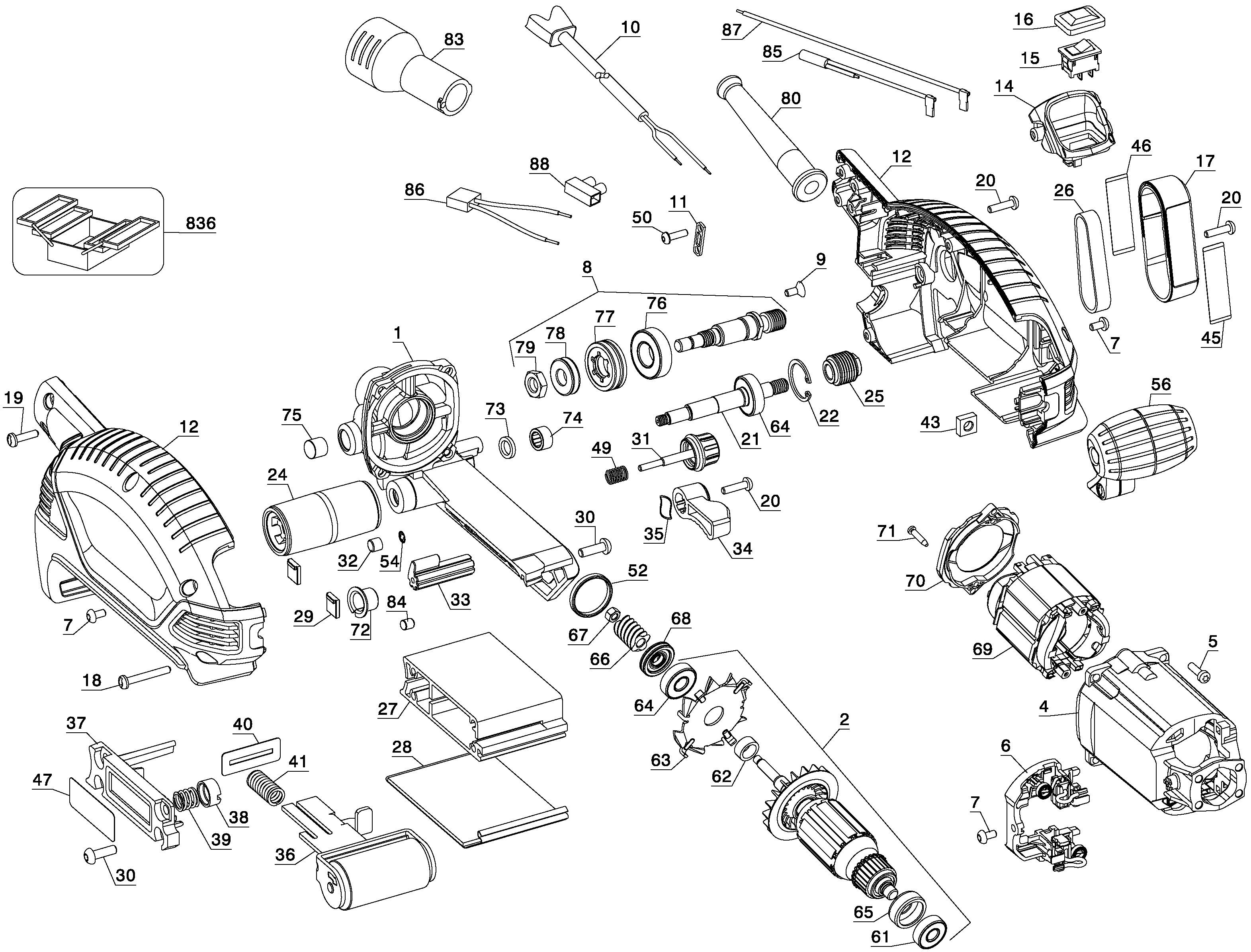

BELT SANDER
SKU Produs: D26480
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 7 | 330065-04 | 3 | SCREW, PLASTIC 4 * 8 | 4,57 Lei | |
| 9 | 098102-10 | 2 | SCREW, FLAT HEAD | 5,21 Lei | |
| 11 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 12 | A17201 | 1 | CLAMSHELL SET | 127,2 Lei | |
| 15 | 887453 | 1 | SWITCH | 13,85 Lei | |
| 16 | A16075 | 1 | SWITCH COVER | 6,1 Lei | |
| 18 | 330065-13 | 3 | SCREW PLASTIC 4 X 30FORM 4X 30 | 4,57 Lei | |
| 19 | 330065-07 | 2 | SCREW | 4,57 Lei | |
| 20 | 330045-06 | 3 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 21 | A11864 | 1 | SHAFT SA | 30,1 Lei | |
| 26 | A13907 | 1 | BELT DRIVE | 52,22 Lei | |
| 30 | 330045-14 | 8 | SCREW M5X16 T25 | 4,57 Lei | |
| 37 | A12761 | 1 | COVER | 8,4 Lei | |
| 41 | A09069 | 1 | SPRING COMPRESSION | 4,5 Lei | |
| 45 | N055163 | 1 | RATING PLATE | 6,1 Lei | |
| 46 | A17206 | 1 | LABEL | 5,1 Lei | |
| 50 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 52 | 397673-00 | 1 | SLEEVE | 4,5 Lei | |
| 61 | N110359 | 1 | BALL BEARING | 8,64 Lei | |
| 64 | 330003-81 | 2 | BEARING, BALL | 21,85 Lei | |
| 65 | 389824-00 | 1 | RUBBER BOOT | 4,57 Lei | |
| 66 | A14576 | 1 | Gear | 68,7 Lei | |
| 67 | 330015-04 | 1 | NUT | 4,57 Lei | |
| 68 | A15268 | 1 | SEAL | 94,2 Lei | |
| 70 | A15198 | 1 | BAFFLE FAN | 6,1 Lei | |
| 71 | 390198-00 | 2 | SCREW | 4,57 Lei | |
| 73 | A13070 | 1 | FELT SEAL | 4,5 Lei | |
| 74 | 684188 | 1 | BEARING | 8,8 Lei | |
| 75 | 391616-00 | 1 | BEARING NEEDLE | 15,12 Lei | |
| 76 | 605040-25 | 1 | BEARING, BALL CW MFG | 17,02 Lei | |
| 79 | 330015-08 | 1 | NUT | 4,7 Lei | |
| 80 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 85 | A19026 | 1 | CHOKE SA | 36,8 Lei | |
| 87 | A18971 | 1 | LEAD SA | 12,4 Lei | |
| 836 | A19549 | 1 | SCREW | 6,1 Lei |
