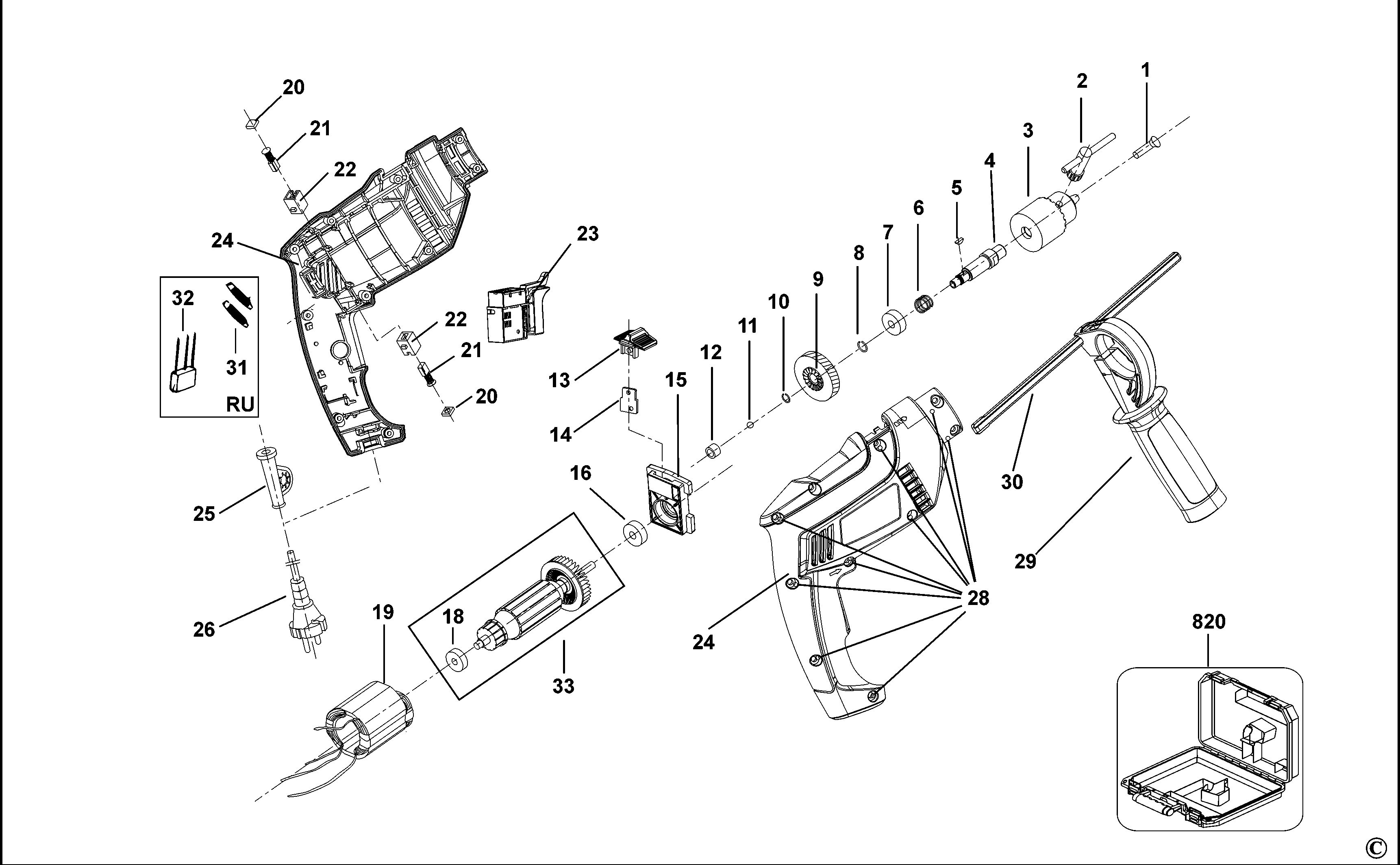

BLACK+DECKER DRILL (Type 1)
SKU Produs: HD555 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 5170017-32 | 1 | SCREW | 4,57 Lei | |
| 2 | 90601641 | 1 | KEY | 10,29 Lei | |
| 3 | 90601168 | 1 | CHUCK | 52,22 Lei | |
| 4 | 5170017-33 | 1 | OUTPUT SHAFT | 15,12 Lei | |
| 5 | 5140050-14 | 1 | KEY | 4,57 Lei | |
| 6 | 5140050-16 | 1 | SPRING | 4,57 Lei | |
| 7 | 1004735-89 | 1 | BEARING | 17,02 Lei | |
| 8 | 5140050-13 | 1 | CIRCLIP | 4,57 Lei | |
| 9 | 5140050-19 | 1 | Gear | 15,12 Lei | |
| 10 | 5140050-15 | 1 | CIRCLIP | 4,57 Lei | |
| 11 | 5140050-21 | 1 | BALL STEEL 5 DIN | 4,57 Lei | |
| 12 | 5170017-35 | 1 | COVER | 5,21 Lei | |
| 13 | 5170017-36 | 1 | KNOB | 4,57 Lei | |
| 14 | 5170017-37 | 1 | PLATE | 4,57 Lei | |
| 15 | 5170017-38 | 1 | SUPPORT | 15,12 Lei | |
| 16 | 1004735-90 | 1 | BEARING | 13,85 Lei | |
| 16 | 5170017-39 | 1 | BEARING 608 | 12,71 Lei | |
| 18 | 1004735-91 | 1 | BEARING | 13,85 Lei | |
| 19 | 5170017-42 | 1 | FIELD 220V | 70,39 Lei | |
| 20 | 5140133-52 | 2 | BRUSH CAP | 4,57 Lei | |
| 21 | 5170017-43 | 1 | BRUSH PAIR | 7,37 Lei | |
| 22 | 5140050-33 | 2 | BRUSH HOLDER | 15,12 Lei | |
| 23 | 5170017-44 | 1 | SWITCH 220V | 57,81 Lei | |
| 24 | 5170017-45 | 1 | HOUSING PAIR | 57,81 Lei | |
| 25 | 5170017-46 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 28 | 5140050-44 | 10 | SCREW | 4,57 Lei | |
| 29 | 5170017-48 | 1 | HANDLE | 21,85 Lei | |
| 30 | 5170014-86 | 1 | SCALE | 4,57 Lei | |
| 33 | 1004735-92 | 1 | ARMATURE SA | 88,55 Lei | |
| 820 | 5170019-38 | 1 | KITBOX | 57,81 Lei |
