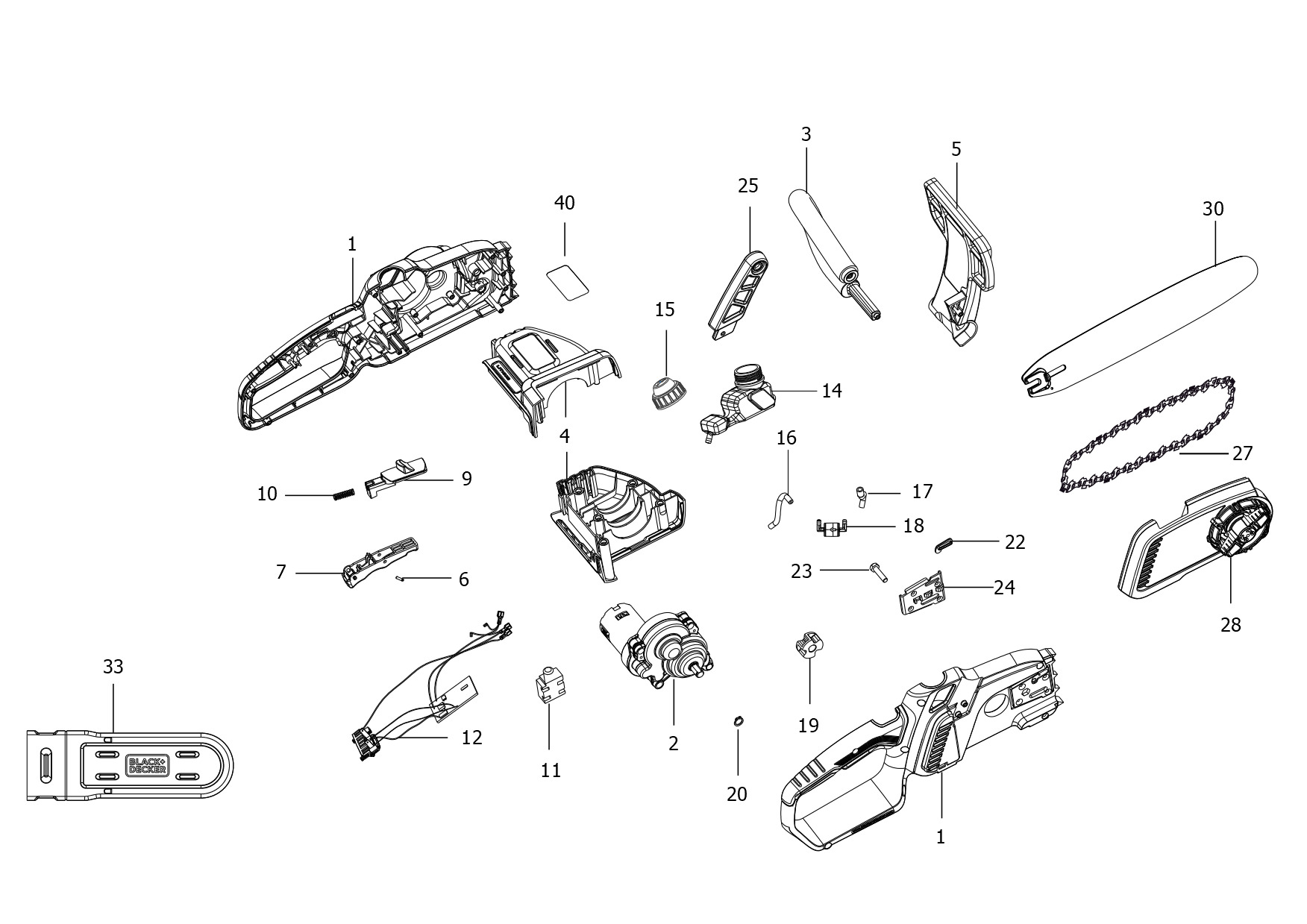

BLACK+DECKER CHAINSAW (Type 2)
SKU Produs: GKC1825LB /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 90595881-01SV | 1 | MOTOR AND GEARCASE | 225,26 Lei | |
| 3 | 90577864 | 1 | HANDLE | 25,54 Lei | |
| 4 | 90605462 | 1 | HOUSING MOTOR | 34,05 Lei | |
| 6 | 90603670 | 1 | PIN | 4,57 Lei | |
| 7 | 90583157 | 1 | TRIGGER | 6,23 Lei | |
| 9 | 90583158 | 1 | BUTTON LOCK-OFF | 5,21 Lei | |
| 10 | 90572096 | 1 | SPRING | 4,57 Lei | |
| 11 | 90583953 | 1 | SWITCH | 37,73 Lei | |
| 14 | 90601423 | 1 | TANK | 19,95 Lei | |
| 14 | 90601483 | 1 | RATING LABEL | 4,57 Lei | |
| 15 | 90605563 | 1 | CAP SA | 7,37 Lei | |
| 16 | 90595110 | 1 | TUBE OIL | 5,21 Lei | |
| 17 | 90617873 | 1 | TUBE OIL | 5,21 Lei | |
| 18 | 90601772 | 1 | HOUSING SA | 25,54 Lei | |
| 19 | 90585879 | 1 | SPROCKET | 15,12 Lei | |
| 20 | 624521-00 | 1 | LOCKING RING | 4,57 Lei | |
| 22 | 90594094 | 1 | SEAL | 4,57 Lei | |
| 23 | 90604103 | 1 | BOLT | 4,57 Lei | |
| 24 | 90577998 | 1 | PLATE | 17,02 Lei | |
| 25 | 90596833 | 1 | STRAP | 12,71 Lei | |
| 28 | 90582114 | 1 | COVER SA | 57,81 Lei | |
| 28 | 90582349 | 1 | GUARD | 24,9 Lei | |
| 33 | 90608529 | 1 | SHEATH | 21,85 Lei |
