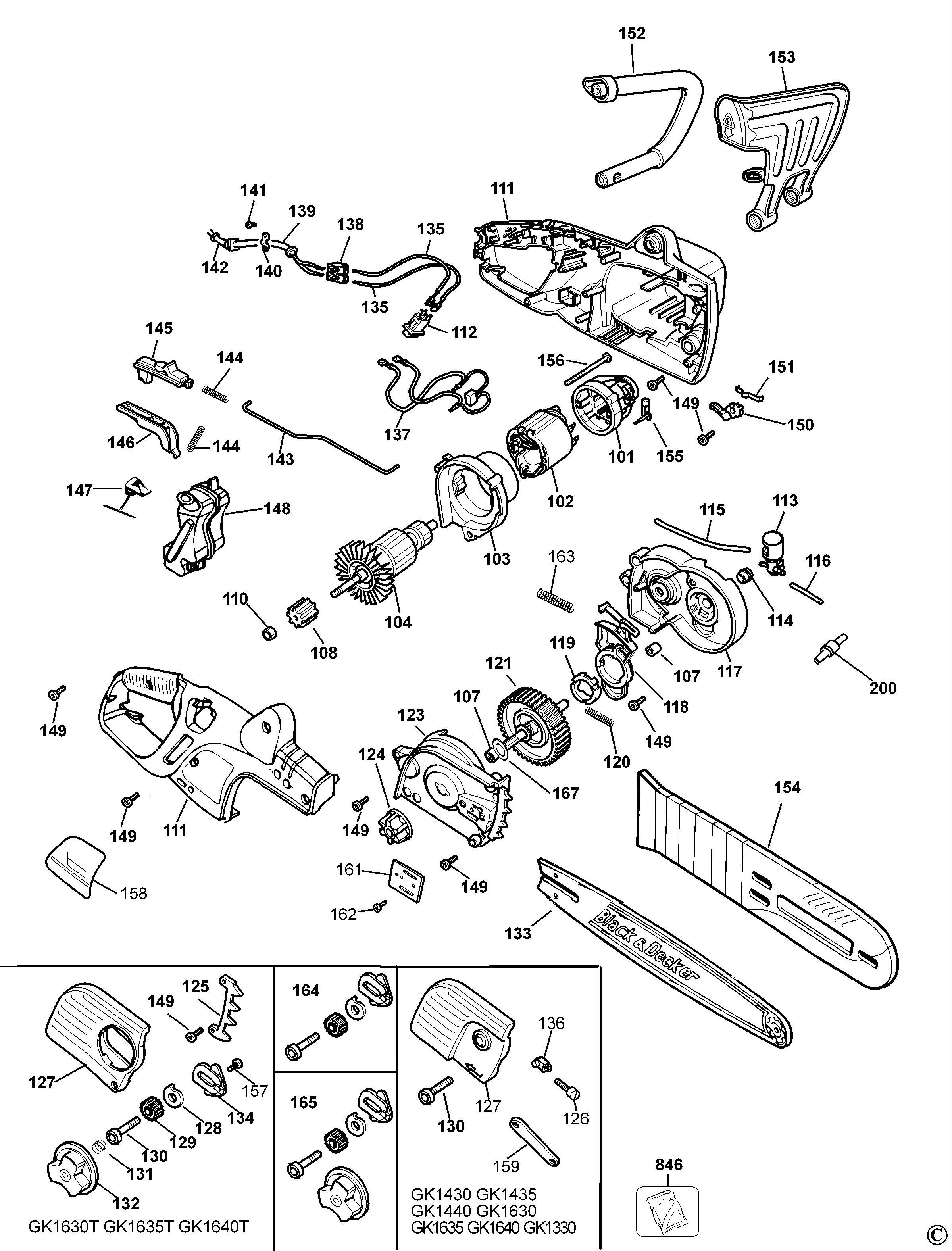

BLACK+DECKER CHAINSAW (Type 3)
SKU Produs: GK1630 /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 101 | 374809-02 | 1 | HOUSING COMM.END | 31,6 Lei | |
| 107 | 330004-06 | 2 | BEARING, NEEDLE | 10,5 Lei | |
| 112 | 579318-00 | 1 | SWITCH SIGNAL LUX L4 | 17,4 Lei | |
| 115 | 374838-03 | 1 | PIPE LONG | 4,7 Lei | |
| 121 | 374830-49 | 1 | GEAR AND SPINDLE | 133,4 Lei | |
| 126 | 376626 | 1 | SCREW M5 X 30 | 4,5 Lei | |
| 138 | 373883 | 1 | TERMINAL BLOCK | 5,3 Lei | |
| 141 | 821057 | 2 | SCREW NO.6 X 12.7 | 4,7 Lei | |
| 142 | 770235 | 1 | CORD PROTECTOR | 4,7 Lei | |
| 146 | 374018 | 1 | TRIGGER, GK | 4,5 Lei | |
| 155 | 370983-02 | 2 | BRUSH 230V SA | 19,5 Lei | |
| 200 | 575707-00 | 1 | CHECK VALVE | 17,4 Lei |
