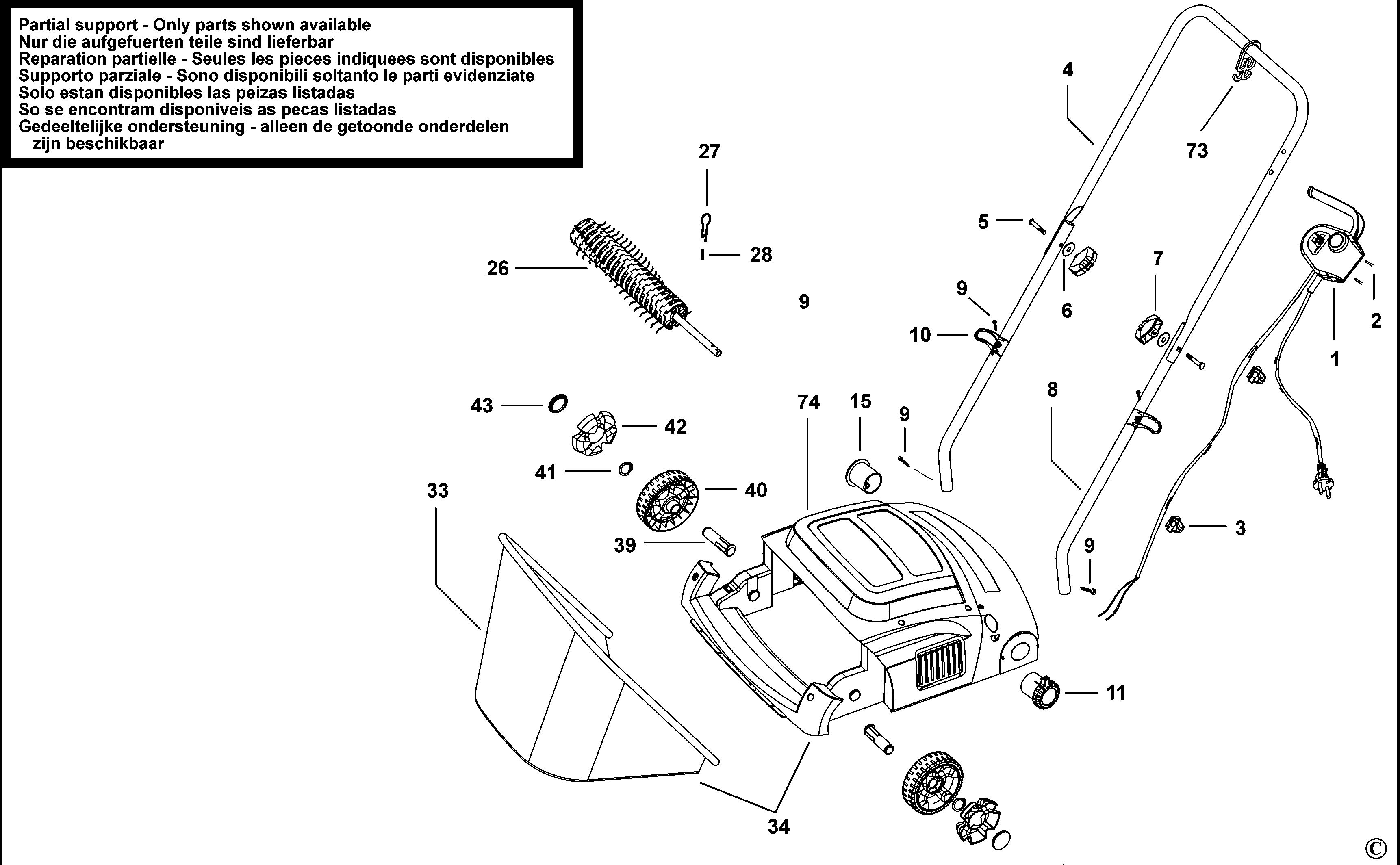

BLACK+DECKER LAWNRAKER (Type 1)
SKU Produs: GD300 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1003772-00 | 1 | SWITCHBOX AND CABLE QS | 96,56 Lei | |
| 2 | 1003773-00 | 2 | SCREW | 4,57 Lei | |
| 3 | 1003813-00 | 2 | CABLE GUIDE | 4,57 Lei | |
| 4 | 1003775-00 | 1 | HANDLE UPPER | 37,73 Lei | |
| 5 | 1003812-00 | 2 | BOLT | 4,57 Lei | |
| 6 | 1003811-00 | 2 | WASHER | 4,57 Lei | |
| 7 | 1004776-61 | 2 | KNOB | 5,21 Lei | |
| 8 | 1003779-00 | 2 | LOWER HANDLE SET | 37,73 Lei | |
| 9 | 1003780-00 | 4 | SCREW | 4,57 Lei | |
| 10 | 1003809-00 | 2 | CABLE GUIDE | 4,57 Lei | |
| 11 | 1003782-00 | 1 | WHEEL ADJUSTER | 21,85 Lei | |
| 15 | 1003783-00 | 1 | WHEEL ADJUSTER | 21,85 Lei | |
| 26 | 1004302-00 | 1 | COMB SA | 145,09 Lei | |
| 27 | 1003785-00 | 1 | SPRING | 4,57 Lei | |
| 28 | 1003786-00 | 1 | PIN | 4,57 Lei | |
| 33 | 1003787-00 | 1 | BAG COLLECTION | 145,09 Lei | |
| 34 | 1004776-62 | 1 | BAG SA | 213,19 Lei | |
| 39 | 1003788-00 | 2 | SHAFT | 37,73 Lei | |
| 40 | 1003789-00 | 2 | WHEEL | 34,05 Lei | |
| 41 | 1003790-00 | 2 | RING | 5,21 Lei | |
| 42 | 1003801-00 | 2 | COVER | 7,37 Lei | |
| 43 | 1003803-00 | 2 | COVER | 4,57 Lei | |
| 73 | 1003821-00 | 1 | HOOK | 4,57 Lei |
