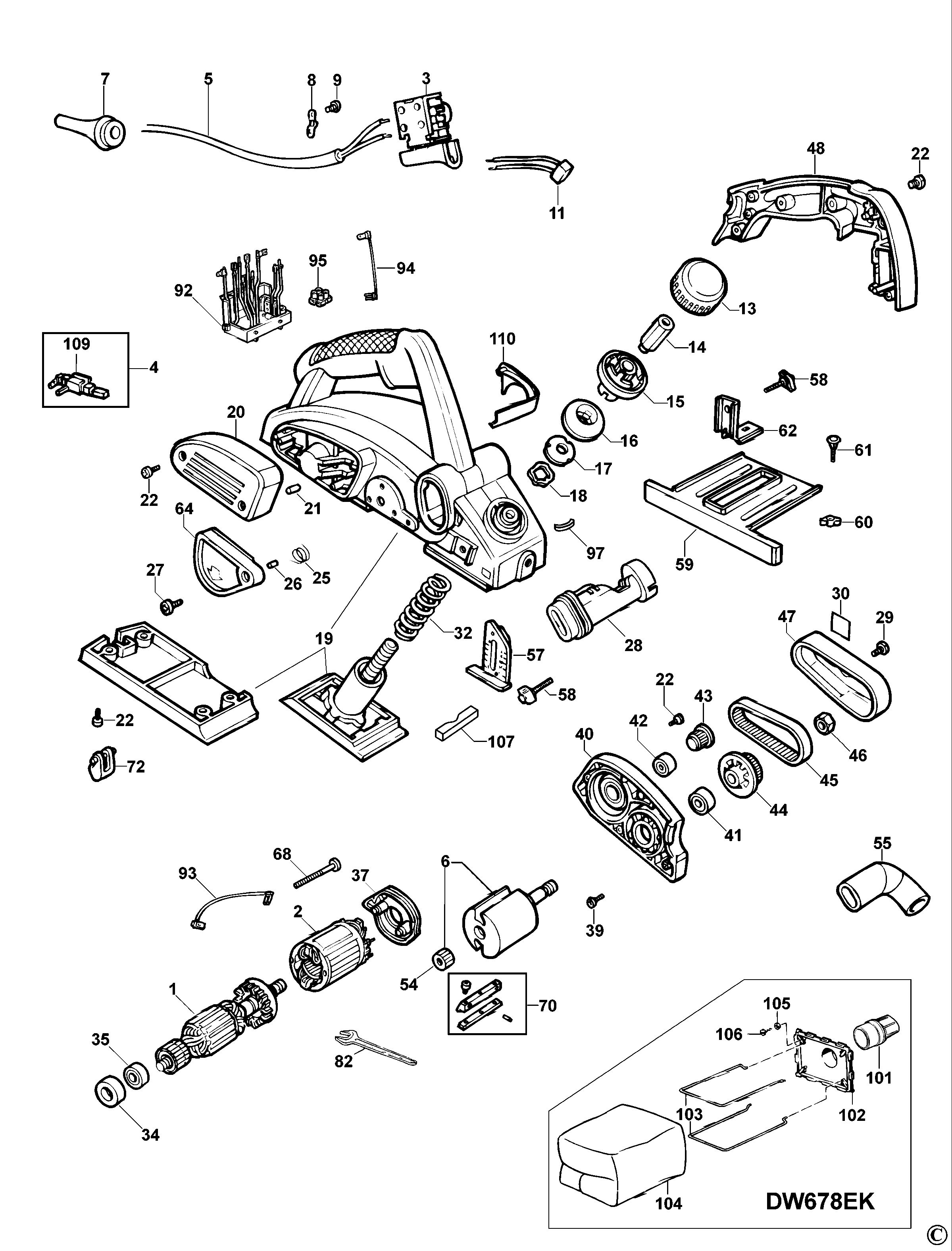

PLANER
SKU Produs: DW678E /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 328251-01 | 1 | CH, BRAKE BLACK | 68,7 Lei | |
| 5 | 330048-12 | 1 | CORD, PWR SPLY H05RN-F 2x1 4200 QS | 81,9 Lei | |
| 6 | 574232-01 | 1 | BLADEDRUM SA, DEWALT ( SERVICE ) | 258,4 Lei | |
| 7 | 320785 | 1 | PROTECTOR, CORD 8.9 | 6,4 Lei | |
| 8 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,7 Lei | |
| 9 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,7 Lei | |
| 11 | 321384 | 1 | CAPACITOR, 0,1UF L108 | 13 Lei | |
| 13 | 326592-00 | 1 | ADJ. KNOB. UP (SUBC) | 22,4 Lei | |
| 14 | 328772-00 | 1 | NUT. ADJUSTMENT M10 X 4 | 6,4 Lei | |
| 15 | 326590-01 | 1 | ADJ. KNOB. DOWN | 10,5 Lei | |
| 16 | 326589-02 | 1 | SCALE. DW678 BLACK | 15,5 Lei | |
| 17 | 326381-00 | 1 | WASHER. CLUTCHING | 6,4 Lei | |
| 18 | 327341-00 | 1 | SPRING. WASHER | 5,3 Lei | |
| 21 | 326636-00 | 2 | RUBBERSTOP | 4,7 Lei | |
| 22 | 330065-08 | 16 | SCREW M4X18 | 4,7 Lei | |
| 25 | 323722-00 | 1 | SPRING. TORSION 1 . 0 | 4,7 Lei | |
| 26 | 326823-01 | 1 | SLEEVE. GUIDE | 5,3 Lei | |
| 27 | 324006-00 | 1 | SCREW, TAPTITE M4 X 12 | 4,7 Lei | |
| 28 | 327387-00 | 1 | S.A. CASSETTE | 21,3 Lei | |
| 29 | 324006-11 | 1 | SCREW,TAPTITE M4 * 18 | 4,7 Lei | |
| 30 | 578758-00 | 1 | LABEL, DEWALT | 4,7 Lei | |
| 32 | 572255-00 | 1 | SPRING, COMPRESSION | 8,8 Lei | |
| 34 | 323481-00 | 1 | RING ISOLATION | 5,3 Lei | |
| 35 | 605040-63 | 1 | BEARING, BALL CW | 14,2 Lei | |
| 41 | 330003-11 | 1 | BEARING, BALL 6201 C3 LHT23 | 31,6 Lei | |
| 42 | N542566 | 1 | BEARING.BALL 102608 (SERVICE) | 53,4 Lei | |
| 43 | 324105-00 | 1 | BELT. PINION (TOOTH) D26500 | 26,1 Lei | |
| 44 | 327065-00 | 1 | BELT. WHEEL (TOOTH) D26500 | 26,1 Lei | |
| 45 | 325106-00 | 1 | BELT. TOOTH | 72 Lei | |
| 46 | 761225-02 | 1 | NUT,HEX MEAN M.12 UNI 5588 ZIN | 4,7 Lei | |
| 57 | 327393-00 | 1 | FENCE. DEPTH | 7,5 Lei | |
| 58 | 326573-01 | 2 | SCREW, WING M6*17 BLACK | 5,3 Lei | |
| 59 | 327391-00 | 1 | FENCE. PARALLEL | 42,9 Lei | |
| 60 | 328834-00 | 1 | NUT. WING M6 | 4,7 Lei | |
| 61 | 911111 | 1 | SCREW. CARRIAGE M6X16 | 4,7 Lei | |
| 62 | 328175-00 | 1 | ELBOW. FENCE | 10,5 Lei | |
| 64 | 326637-00 | 1 | COVER, RABBET | 7,5 Lei | |
| 68 | 330065-10 | 2 | SCREW, PLASTIC 4X55 | 4,7 Lei | |
| 70 | N542564 | 2 | BLADE CLAMPING SYSTEM (SERVICE) | 59,2 Lei | |
| 72 | N381124 | 1 | SUPPORT PARKPOSITION | 34,8 Lei | |
| 82 | 868148-00 | 1 | KEY,8MM | 15,5 Lei | |
| 95 | 326057-00 | 1 | TERMINAL BLOCK [RATED 25A 600V] | 6,4 Lei | |
| 97 | 329145-00 | 1 | SLIDE | 4,7 Lei | |
| 105 | 249233-00 | 4 | WASHER | 4,7 Lei |
