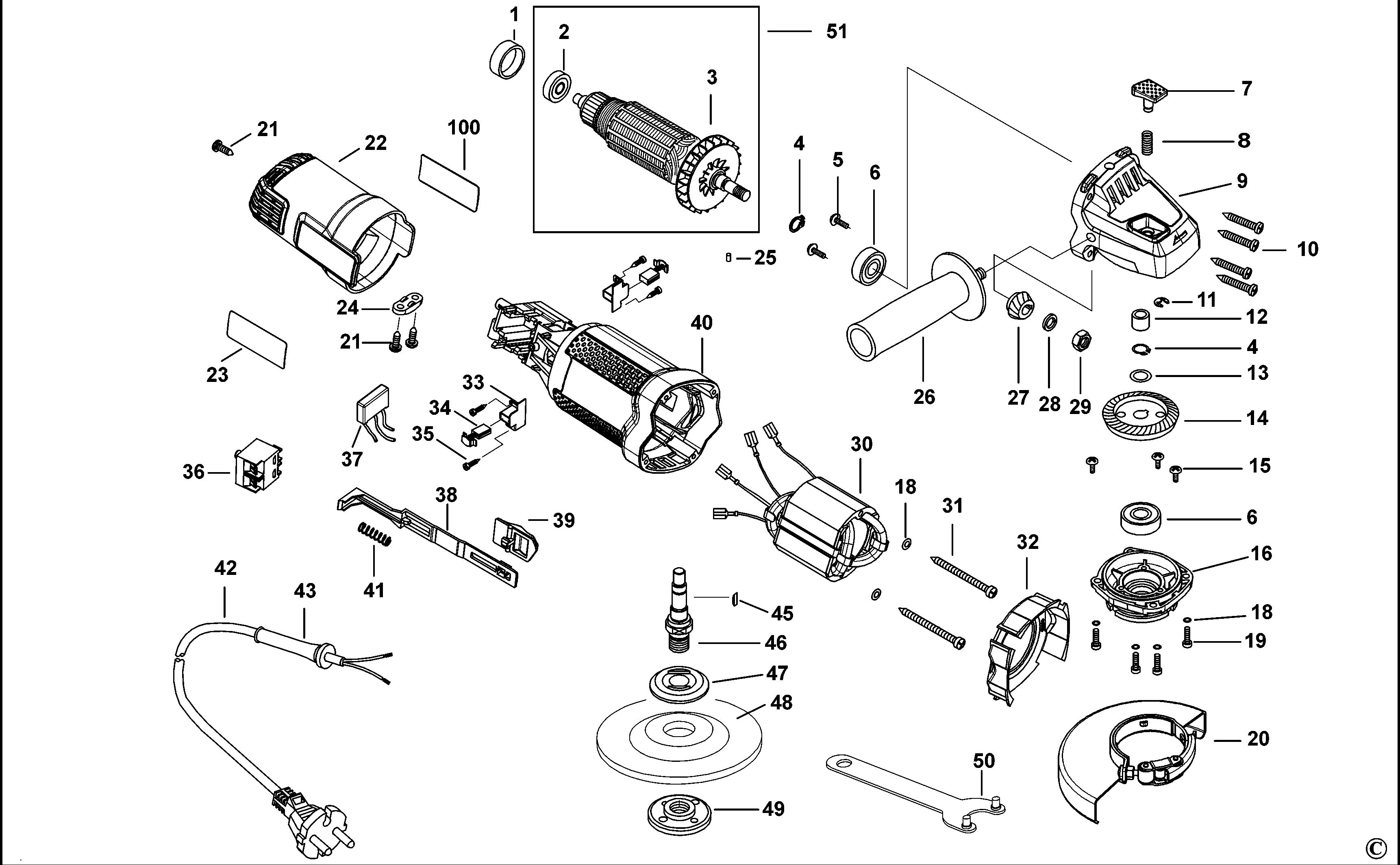

BLACK+DECKER SMALL ANGLE GRINDER (Type 1)
SKU Produs: G720G /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 5140003-59 | 1 | BEARING HOLDER | 4,57 Lei | |
| 2 | 5140003-60 | 1 | BEARING | 13,85 Lei | |
| 3 | 1004734-10 | 1 | ARMATURE SA | 181,55 Lei | |
| 4 | 5140003-64 | 2 | LOCKING RING | 4,57 Lei | |
| 5 | 5140003-89 | 2 | SCREW | 4,57 Lei | |
| 6 | 5140003-66 | 2 | BEARING | 17,02 Lei | |
| 7 | 5140121-89 | 1 | LOCK PIN | 4,57 Lei | |
| 8 | 5140065-70 | 1 | SPRING | 4,57 Lei | |
| 9 | 5140121-90 | 1 | GEARCASE | 41,93 Lei | |
| 10 | 5140065-72 | 4 | SCREW | 4,57 Lei | |
| 11 | 5140003-64 | 1 | LOCKING RING | 4,57 Lei | |
| 12 | 5140003-72 | 1 | BEARING | 5,21 Lei | |
| 13 | 5140003-73 | 1 | WASHER | 4,57 Lei | |
| 14 | 5140003-75 | 1 | Gear | 37,73 Lei | |
| 15 | 5140003-94 | 3 | SCREW | 4,57 Lei | |
| 16 | 5140121-91 | 1 | HOUSING FRONT | 17,02 Lei | |
| 20 | 5140003-81 | 1 | GUARD | 15,12 Lei | |
| 21 | 5140003-99 | 3 | SCREW | 4,57 Lei | |
| 22 | 5140121-94 | 1 | END CAP | 25,54 Lei | |
| 27 | 5140003-91 | 1 | PINION | 37,73 Lei | |
| 28 | 5140003-92 | 1 | WASHER SPRING | 4,57 Lei | |
| 29 | 5140003-93 | 1 | NUT | 4,57 Lei | |
| 30 | 5140003-95 | 1 | FIELD G720K FIELD G720K | 120,82 Lei | |
| 31 | 5140004-04 | 2 | SCREW | 4,57 Lei | |
| 33 | 5140002-37 | 2 | BRUSH HOLDER | 6,23 Lei | |
| 34 | 90601642 | 1 | BRUSH PAIR | 7,37 Lei | |
| 38 | 5140122-05 | 1 | LEVER | 4,57 Lei | |
| 39 | 5140122-06 | 1 | BUTTON | 4,57 Lei | |
| 40 | 5140122-01 | 1 | HOUSING | 52,22 Lei | |
| 43 | 5140002-29 | 1 | SLEEVE | 4,57 Lei | |
| 45 | 5140004-05 | 1 | WOODRUFF KEY | 4,57 Lei | |
| 46 | 5140004-06 | 1 | SPINDLE | 7,37 Lei | |
| 47 | 5140002-52 | 1 | FLANGE | 13,85 Lei | |
| 49 | 5140004-07 | 1 | NUT | 12,71 Lei | |
| 51 | 1004734-10 | 1 | ARMATURE SA | 181,55 Lei |
