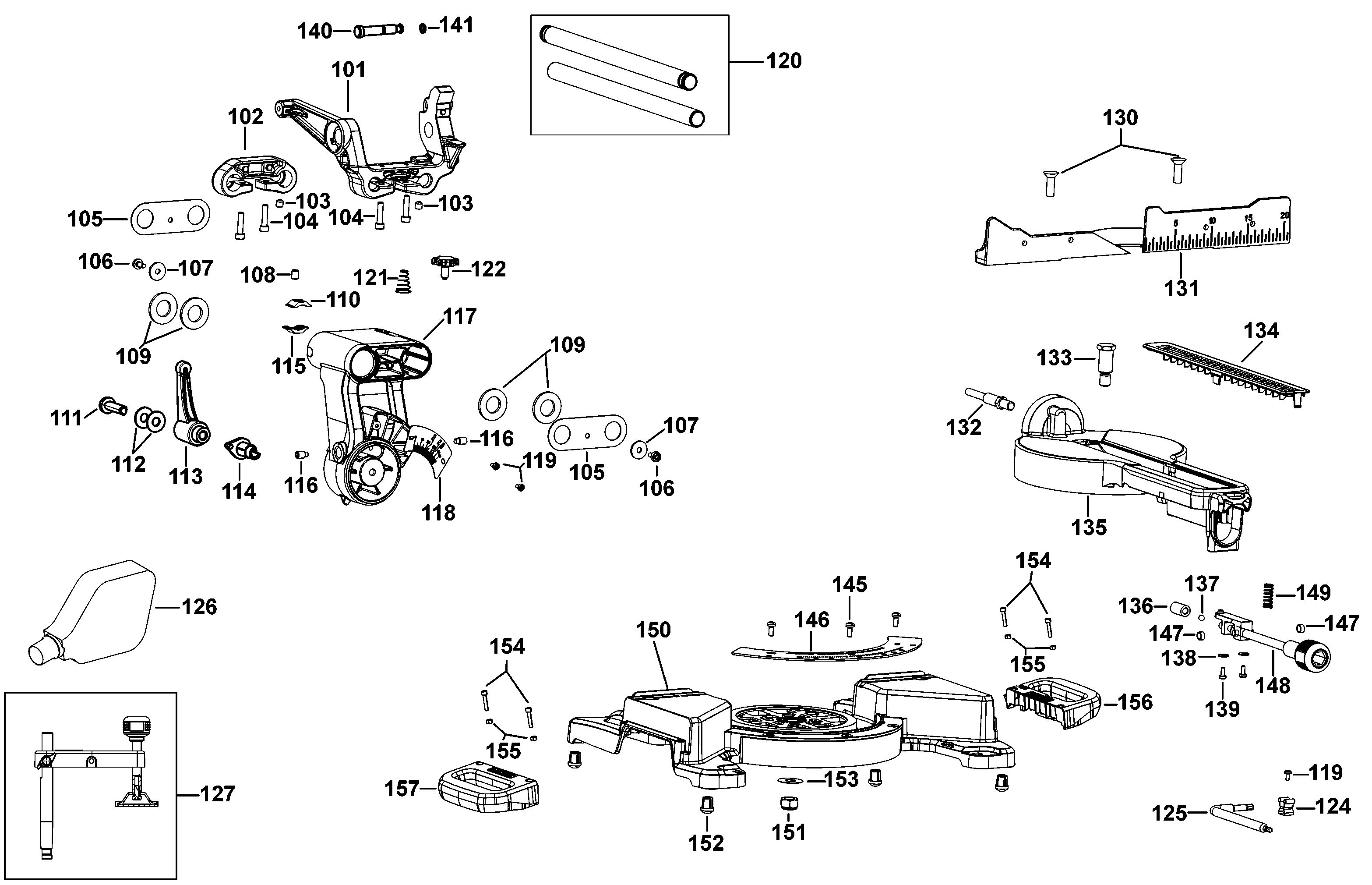

18V MITER SAW
SKU Produs: DCS365N
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 330045-26 | 1 | SCREW | 6,23 Lei | |
| 2 | N300179 | 1 | CARRY HANDLE, TOP | 57,81 Lei | |
| 3 | 330019-22 | 1 | SCREW (CARRY HANDLE) | 4,57 Lei | |
| 4 | 330045-17 | 7 | SCREW | 12,5 Lei | |
| 5 | 330019-32 | 6 | SCREW,PLASTITE | 4,57 Lei | |
| 6 | N736822 | 1 | HANDLE SA | 150,05 Lei | |
| 7 | N300152 | 1 | RUBBER BOOT, WORKLIGHT ACTIVATION SWITC | 10,29 Lei | |
| 8 | 330045-14 | 1 | SCREW M5X16 T25 | 4,57 Lei | |
| 9 | N466092 | 1 | CONTROL MODULE SA | 375,31 Lei | |
| 10 | 330019-12 | 1 | SCREW | 4,57 Lei | |
| 14 | 330045-45 | 10 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 15 | N473984 | 1 | ARM | 451,79 Lei | |
| 16 | 150075-00 | 2 | SCREW | 5,21 Lei | |
| 30 | N449835 | 1 | GEARCASE SA | 169,36 Lei | |
| 31 | 386780-00 | 1 | BEARING | 13,85 Lei | |
| 32 | 605094-00 | 1 | WIPER, RUBBER | 4,57 Lei | |
| 33 | 058698-00 | 1 | SPRING | 3,78 Lei | |
| 34 | 629444-00 | 1 | SPINDLE LOCK | 7,37 Lei | |
| 39 | N771116 | 1 | LED LIGHT | 79,8 Lei | |
| 41 | 330003-64 | 1 | BEARING, BALL | 30,87 Lei | |
| 42 | N415903 | 1 | ARMATURE SA | 181,55 Lei | |
| 44 | N333139 | 1 | 4P58 CIRC SAW BAFFLE | 13,85 Lei | |
| 45 | N389143 | 2 | SCREW, PLASTIC THD FORM | 4,57 Lei | |
| 46 | N436044 | 1 | SSA MAGNET RING | 52,22 Lei | |
| 47 | N412223 | 1 | BRUSH HOLDER SA | 52,22 Lei | |
| 49 | N300071 | 1 | MOTOR HOUSING DCS365 | 34,05 Lei | |
| 51 | N300072 | 1 | END CAP MOTOR DCS365 | 34,05 Lei | |
| 52 | 330019-03 | 2 | Screw M3.5X16 T15 | 4,57 Lei | |
| 53 | N513369 | 1 | RATING PLATE DCS365-QW | 10,29 Lei | |
| 54 | N094673 | 1 | LABEL ID DCS391 (EURO) CIRC SAW | 4,57 Lei | |
| 55 | N300153 | 1 | SA LOWER GUARD | 375,31 Lei | |
| 56 | 142273-00 | 1 | RING | 4,57 Lei | |
| 57 | 625825-00 | 1 | ROLLER | 5,21 Lei | |
| 58 | 385915-04 | 3 | SCREW S | 4,57 Lei | |
| 59 | 399182-00 | 1 | RETAINING PLATE SPRING S | 17,02 Lei | |
| 60 | 612923-00 | 1 | PLASTIC WASHER | 4,57 Lei | |
| 61 | 603440-00 | 1 | GUIDE SLEEVE | 4,57 Lei | |
| 62 | 603439-00 | 1 | TORSION SPRING SC | 7,37 Lei | |
| 63 | N431197 | 1 | LABEL ARM DCS365 | 10,29 Lei | |
| 101 | N299993 | 1 | TRUNNION Mach | 120,82 Lei | |
| 102 | N745194 | 1 | GUIDE SUPPORT | 79,8 Lei | |
| 103 | 153666-00 | 2 | SCREW | 4,57 Lei | |
| 104 | 603390-00 | 4 | SCREW | 4,57 Lei | |
| 105 | N300145 | 2 | COVER PLATE DCS365 | 13,85 Lei | |
| 106 | 616001-00 | 2 | SCREW SHOULDER M5X12 T25 | 4,57 Lei | |
| 107 | 153586-00 | 2 | RUBBER WASHER | 5,21 Lei | |
| 108 | 153576-04 | 1 | SCREW M8X10 | 13,85 Lei | |
| 109 | N300196 | 4 | WIPER FELT DCS361 | 4,57 Lei | |
| 110 | 628591-00 | 1 | WEAR GUIDE | 17,02 Lei | |
| 111 | 612008-00 | 1 | SCREW | 7,37 Lei | |
| 112 | 933168-00 | 2 | WASHER | 5,21 Lei | |
| 113 | 861840-03 | 1 | LEVER SC | 19,95 Lei | |
| 114 | 868680-00 | 1 | BEVEL CLAMP DW777 | 13,85 Lei | |
| 115 | 397118-00 | 1 | WEAR GUIDE | 10,29 Lei | |
| 116 | 949743-02 | 2 | SCREW | 4,57 Lei | |
| 117 | N454878 | 1 | SA SUPP.HSG+BRG DCS365, SERVICE | 451,79 Lei | |
| 118 | N399655 | 1 | BEVEL SCALE | 19,95 Lei | |
| 119 | 949894-12 | 3 | SCREW | 4,57 Lei | |
| 120 | N454876 | 1 | SA RAILS DCS365, SERVICE | 613,14 Lei | |
| 121 | 659919-00 | 1 | SPRING | 6,23 Lei | |
| 122 | N080677 | 1 | KNOB | 15,12 Lei | |
| 124 | 391358-01 | 1 | HOLDER | 7,37 Lei | |
| 125 | N040940 | 1 | WRENCH | 25,54 Lei | |
| 126 | N126162 | 1 | DUST BAG | 41,93 Lei | |
| 127 | N294299 | 1 | CLAMP DW770 | 80,04 Lei | |
| 130 | 098105-03 | 2 | Screw Flat Head M8X1.25 | 14,07 Lei | |
| 131 | N454877 | 1 | FIX FENCE DWS774, SERVICE | 252,58 Lei | |
| 132 | N115187 | 1 | SHAFT, BEVEL DWS778 | 25,54 Lei | |
| 133 | N312779 | 1 | TABLE PIN DWS774 | 25,54 Lei | |
| 134 | N380813 | 1 | KERF PLATE DWS774 | 8,64 Lei | |
| 135 | N493430 | 1 | TABLE DWS774, SERVICE | 383,69 Lei | |
| 136 | 868707-01 | 1 | SPACER FOR LOCKING SYSTEM DW777 | 4,57 Lei | |
| 137 | 868708-00 | 1 | BALL 6,3 mm | 4,57 Lei | |
| 138 | 941633-00 | 2 | WASHER | 4,57 Lei | |
| 139 | 330045-05 | 2 | SCREW.TEMP | 4,57 Lei | |
| 140 | 387130-00 | 1 | PIN, LOCKING | 17,02 Lei | |
| 145 | 330045-49 | 3 | SCREW | 4,57 Lei | |
| 146 | N493151 | 1 | MITER SCALE DWS774 | 30,87 Lei | |
| 147 | N299799 | 2 | BUSHING | 4,57 Lei | |
| 148 | N315680 | 1 | SA TABLE LOCKING DW777 | 52,22 Lei | |
| 149 | 868778-00 | 1 | SPRING | 4,57 Lei | |
| 150 | N443388 | 1 | BASE DWS774, SERVICE | 399,45 Lei | |
| 151 | 860092-07 | 1 | NUT,LOCKING M12X1,25 | 4,57 Lei | |
| 152 | 868777-00 | 4 | FOOT | 4,57 Lei | |
| 153 | 949705-01 | 1 | WASHER | 4,57 Lei | |
| 154 | 860093-08 | 4 | SCREW,SOCKET M.5X25 UNI 5931 | 4,57 Lei | |
| 155 | 860083-02 | 4 | NUT,HEX THICK M.5 UNI 5587 | 4,57 Lei | |
| 156 | N381932 | 1 | TOP TABLE EXTENSION DWS774 | 30,87 Lei | |
| 157 | N412530 | 1 | TOP TABLE EXTENSION RH DWS774 | 30,87 Lei | |
| 217 | 610707-00 | 2 | WARNING LABEL | 4,57 Lei |
