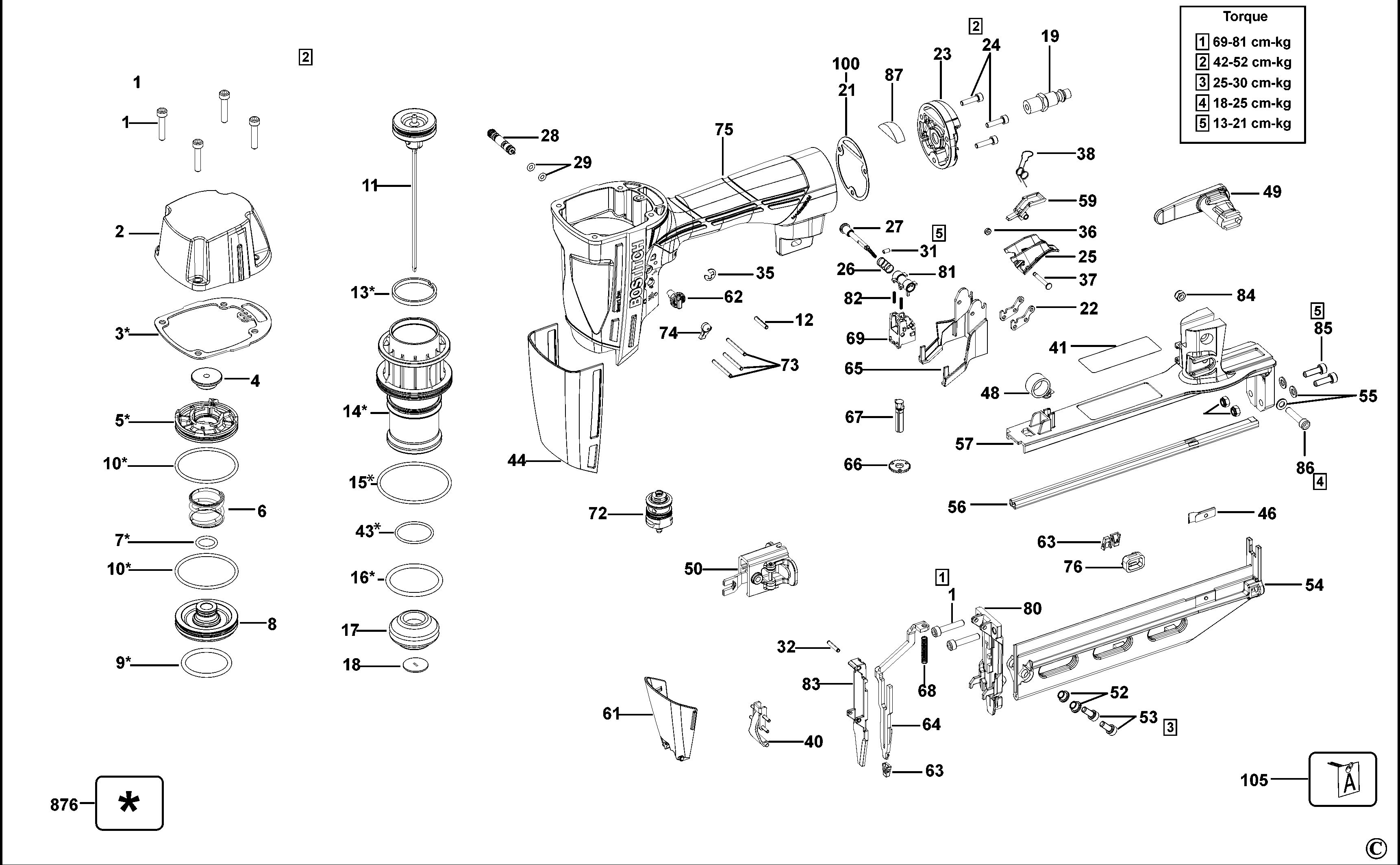

BOSTITCH NAILER (Type Rev 1)
SKU Produs: FN1664SP /Type: REV 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | MSC5080-25 | 1 | SCREW | 5,15 Lei | |
| 2 | 9R198749 | 1 | CAP | 79,8 Lei | |
| 3 | 9R198753 | 1 | GASKET | 11,45 Lei | |
| 4 | 180533 | 1 | SEAL | 5,15 Lei | |
| 5 | N895050 | 1 | SEAL | 11,45 Lei | |
| 6 | 180532 | 1 | SPRING | 5,15 Lei | |
| 7 | 100843 | 1 | O RING | 5,15 Lei | |
| 8 | 180537 | 1 | VALVE | 43,16 Lei | |
| 9 | 182253 | 1 | O RING | 5,15 Lei | |
| 10 | 850605 | 1 | O RING | 5,15 Lei | |
| 11 | 9R204250 | 1 | PISTON SA | 58,17 Lei | |
| 12 | 107583 | 1 | SPIROL PIN | 5,15 Lei | |
| 13 | 180543 | 1 | PISTON RING | 5,15 Lei | |
| 14 | 180538 | 1 | SLEEVE | 14,07 Lei | |
| 15 | 166047 | 1 | O RING | 5,15 Lei | |
| 16 | 180540 | 1 | O RING | 5,15 Lei | |
| 18 | 180293 | 1 | GUIDE | 5,15 Lei | |
| 19 | 159977 | 1 | ADAPTOR | 8,51 Lei | |
| 21 | 180463 | 1 | GASKET | 5,15 Lei | |
| 22 | 9R201812 | 1 | BRACKET | 4,31 Lei | |
| 23 | 180465 | 1 | CAP | 16,49 Lei | |
| 24 | MSC4070-16 | 1 | SCREW | 16,49 Lei | |
| 25 | 9R205611 | 1 | TRIGGER | 25,52 Lei | |
| 26 | 180481 | 1 | SPRING | 5,15 Lei | |
| 27 | 9R205605 | 1 | PIN | 15,12 Lei | |
| 29 | 9R196690 | 1 | O RING | 3,78 Lei | |
| 31 | 9R198788 | 1 | GRUB SCREW | 3,78 Lei | |
| 32 | 181920 | 1 | PIN | 3,78 Lei | |
| 35 | 9R200515 | 1 | CIRCLIP | 3,78 Lei | |
| 36 | 391814-00 | 1 | GROMMET | 4,57 Lei | |
| 37 | 9R196682 | 1 | PIN | 3,78 Lei | |
| 38 | 9R205607 | 1 | SPRING | 3,78 Lei | |
| 40 | 9R196742 | 1 | LATCH | 34,65 Lei | |
| 43 | 180544 | 1 | O RING | 5,15 Lei | |
| 44 | 9R198752 | 1 | COVER | 6,09 Lei | |
| 46 | 180564 | 1 | STOP | 5,15 Lei | |
| 48 | 9R205585 | 1 | SPRING | 12,5 Lei | |
| 49 | 180515 | 1 | ASSY,BELT HOOK SX1838 | 18,06 Lei | |
| 50 | 9R205613 | 1 | PUSHER | 18,06 Lei | |
| 52 | 180235 | 1 | BUSHING | 5,15 Lei | |
| 53 | 9R199720 | 1 | SCREW | 4,31 Lei | |
| 54 | 181916 | 1 | MAGAZINE, BOTTOM | 28,14 Lei | |
| 55 | 180569 | 1 | WASHER | 5,15 Lei | |
| 56 | 180560 | 1 | LINER | 12,5 Lei | |
| 57 | 180236 | 1 | CASING UPPER | 34,65 Lei | |
| 59 | 9R205614 | 1 | ROCKER | 34,65 Lei | |
| 61 | 9R198750 | 1 | COVER | 6,09 Lei | |
| 62 | 9R195254 | 1 | BUTTON | 4,31 Lei | |
| 63 | 9R198756 | 1 | FOOT | 3,78 Lei | |
| 64 | 9R198754 | 1 | CONTACT | 25,52 Lei | |
| 65 | 9R198751 | 1 | COVER | 5,15 Lei | |
| 66 | 9R198779 | 1 | WHEEL ADJUSTER | 3,78 Lei | |
| 67 | 9R205583 | 1 | CONTACT | 28,14 Lei | |
| 68 | 9R205580 | 1 | SPRING | 3,78 Lei | |
| 69 | 9R205579 | 1 | GUIDE | 4,31 Lei | |
| 72 | 9R196764 | 1 | VALVE | 34,65 Lei | |
| 73 | 174345 | 1 | PIN | 5,15 Lei | |
| 74 | 184518 | 1 | BUTTON, TRIGGER LOCK | 5,15 Lei | |
| 75 | 9R198748 | 1 | FRAME | 263,03 Lei | |
| 76 | 9R205581 | 1 | ADAPTOR | 3,78 Lei | |
| 80 | 9R198726 | 1 | NOSE | 99,86 Lei | |
| 81 | 9R201813 | 1 | PAWL | 16,49 Lei | |
| 82 | 9R201809 | 1 | SPRING | 3,78 Lei | |
| 83 | 9R198730 | 1 | DOOR | 43,16 Lei | |
| 84 | MHE5080-100 | 1 | LOCK-NUT | 5,15 Lei | |
| 85 | MSC5080-16 | 1 | SCREW | 5,15 Lei | |
| 86 | MSC5080-22 | 1 | SCREW | 5,15 Lei | |
| 87 | 180577 | 1 | MUFFLER | 5,15 Lei | |
| 105 | 9R196764 | 1 | VALVE | 34,65 Lei | |
| 876 | FN1664-RK | 1 | FN1664 REBUILD KIT | 66,15 Lei |
