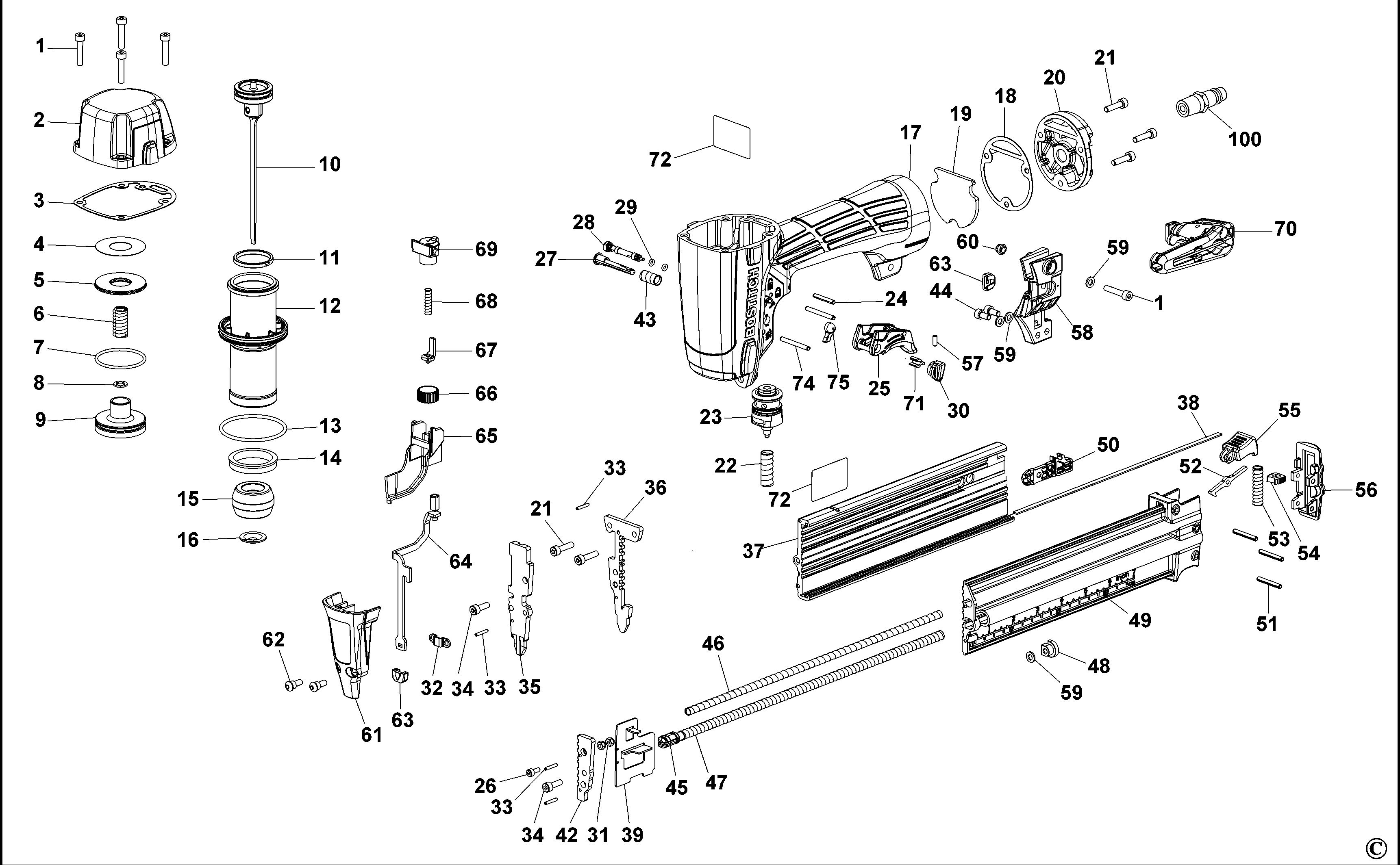

BOSTITCH NAILER (Type REV A)
SKU Produs: FN1650K /Type: REV A
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 182237 | 5 | SCREW | 5,15 Lei | |
| 2 | 9R207412 | 1 | CAP SA | 47,78 Lei | |
| 3 | 175682 | 1 | GASKET | 5,15 Lei | |
| 5 | 180446 | 1 | SEAL | 5,15 Lei | |
| 6 | 180447 | 1 | SPRING | 5,15 Lei | |
| 7 | 180448 | 1 | O RING | 5,15 Lei | |
| 8 | 180449 | 1 | WASHER | 5,15 Lei | |
| 9 | 180450-S | 1 | BODY, HEAD VALVE (NEW 05/AP/2011) | 5,15 Lei | |
| 10 | 180670 | 1 | ASSEMBLY, PISTON/DRIVER | 99,86 Lei | |
| 12 | 180458 | 1 | CYLINDER | 7,14 Lei | |
| 13 | 180459 | 1 | O RING | 5,15 Lei | |
| 14 | 180460 | 1 | SEAL | 5,15 Lei | |
| 15 | 180461 | 1 | BUMPER | 5,15 Lei | |
| 16 | 180661 | 1 | DRIVER GUIDE | 5,15 Lei | |
| 17 | 175656-2 | 1 | HOUSING | 248,33 Lei | |
| 18 | 180463 | 1 | GASKET | 5,15 Lei | |
| 19 | 182235 | 1 | FILTER | 5,15 Lei | |
| 20 | 180465 | 1 | CAP | 16,49 Lei | |
| 21 | MSC4070-16 | 5 | SCREW | 16,49 Lei | |
| 22 | 180476 | 1 | SPRING | 5,15 Lei | |
| 24 | 180475 | 1 | PIN | 5,15 Lei | |
| 25 | 184513 | 1 | ASSEMBLY, TRIGGER | 18,06 Lei | |
| 27 | 184507 | 1 | PIN | 10,5 Lei | |
| 28 | 184519 | 1 | PIN, TRIGGER LOCK | 6,09 Lei | |
| 29 | MRG002514 | 2 | O-RING,.098X.055 | 5,15 Lei | |
| 30 | 184506 | 1 | BUTTON | 5,15 Lei | |
| 31 | MHE3050-100 | 2 | NUT,ESN,M3X0.5 | 5,15 Lei | |
| 32 | 180207 | 1 | BRACKET, TRIP | 5,15 Lei | |
| 33 | 180490 | 4 | PIN | 5,15 Lei | |
| 34 | MSC4070-12 | 2 | SCREW | 5,15 Lei | |
| 38 | 182251 | 1 | GUIDE ROD | 6,09 Lei | |
| 39 | 180498 | 1 | PUSHER | 5,15 Lei | |
| 42 | 175662 | 1 | PLATE | 8,51 Lei | |
| 43 | 180481 | 1 | SPRING | 5,15 Lei | |
| 44 | MSC4070-8 | 2 | SCREW | 5,15 Lei | |
| 45 | 180499 | 1 | ROLLER, PUSHER | 21,11 Lei | |
| 46 | 182255 | 1 | ROD | 6,09 Lei | |
| 47 | 182252 | 1 | ROD | 6,09 Lei | |
| 48 | 180238 | 1 | NUT | 5,15 Lei | |
| 49 | 181959 | 1 | MAGAZINE, SLIDING | 34,65 Lei | |
| 51 | 180503 | 3 | PIN | 5,15 Lei | |
| 52 | 180501 | 1 | LATCH | 5,15 Lei | |
| 53 | 180502 | 1 | SPRING | 5,15 Lei | |
| 54 | 180319 | 1 | SUPPORT | 5,15 Lei | |
| 55 | 175666 | 1 | COVER, LATCH | 5,15 Lei | |
| 56 | 175665 | 1 | END CAP | 5,15 Lei | |
| 57 | 180484 | 1 | SCREW | 5,15 Lei | |
| 58 | 175664 | 1 | BRACKET, MAGAZINE | 5,15 Lei | |
| 60 | MHE4070-100 | 1 | NUT | 5,15 Lei | |
| 61 | 175663 | 1 | COVER, NOSE | 5,15 Lei | |
| 62 | 180505 | 2 | SHOULDER SCREW | 5,15 Lei | |
| 63 | 179760 | 1 | FOOT, CONTACT (NO-MAR) | 5,15 Lei | |
| 64 | 180314 | 1 | ASSEMBLY, TRIP | 18,06 Lei | |
| 65 | 180508 | 1 | GUIDE, LOWER CONTACT ARM | 5,15 Lei | |
| 66 | 180509 | 1 | ADJUSTER | 5,15 Lei | |
| 68 | 180513 | 1 | SPRING | 5,15 Lei | |
| 70 | 182272 | 1 | HOOK | 14,07 Lei | |
| 71 | 184508 | 1 | BUSHING | 5,15 Lei | |
| 74 | 174345 | 2 | PIN | 5,15 Lei | |
| 75 | 184518 | 1 | BUTTON, TRIGGER LOCK | 5,15 Lei | |
| 100 | 159977 | 1 | ADAPTOR | 8,51 Lei |
