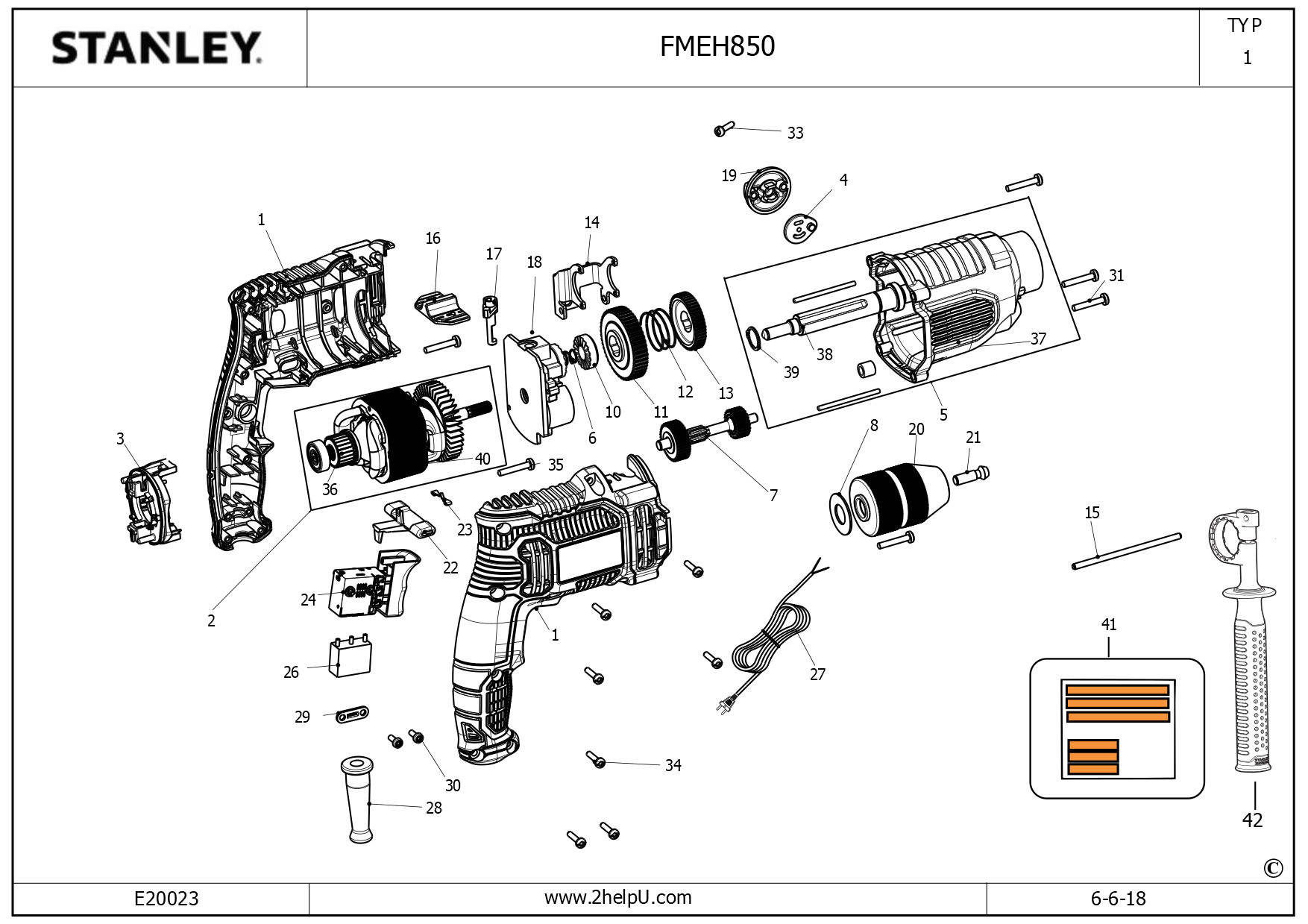

STANLEY HAMMER DRILL (Type 1)
SKU Produs: FMEH850 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N510381 | 1 | HOUSING SA | 57,81 Lei | |
| 2 | N663234 | 1 | MOTOR SA | 181,55 Lei | |
| 3 | N508445 | 1 | BRUSH SA | 37,73 Lei | |
| 4 | 90567833 | 1 | PLATE | 5,21 Lei | |
| 7 | N786873 | 1 | INTER SHAFT SA | 80,04 Lei | |
| 8 | N573696 | 1 | WASHER | 4,57 Lei | |
| 10 | 622172-00 | 1 | RATCHET | 7,37 Lei | |
| 11 | 90563338 | 1 | Gear | 21,85 Lei | |
| 12 | 90563340 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 13 | 90563339 | 1 | Gear | 17,02 Lei | |
| 14 | 90566845 | 1 | PLATE | 13,85 Lei | |
| 15 | N498175 | 1 | GUIDE ROD | 5,21 Lei | |
| 16 | N507192 | 1 | SELECTOR | 8,64 Lei | |
| 17 | 90641385 | 1 | PIN SA | 8,64 Lei | |
| 18 | 90567892 | 1 | BEARING PLATE | 57,81 Lei | |
| 19 | N500757 | 1 | KNOB | 10,29 Lei | |
| 20 | N582979 | 1 | CHUCK | 130,35 Lei | |
| 22 | N526456 | 1 | BAR | 4,57 Lei | |
| 23 | 90560638 | 1 | SPRING | 4,57 Lei | |
| 24 | 90581326 | 1 | SWITCH SA | 52,22 Lei | |
| 26 | 90574765 | 1 | CAPACITOR | 17,02 Lei | |
| 27 | N505450 | 1 | CORDSET | 41,93 Lei | |
| 28 | 90567404 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 29 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 30 | 330019-01 | 1 | Screw M3.5 X9.5 | 4,57 Lei | |
| 31 | 330019-14 | 1 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 33 | 330019-02 | 1 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 34 | 330019-03 | 1 | Screw M3.5X16 T15 | 4,57 Lei | |
| 35 | 330019-63 | 1 | Screw M3.15 X42 | 4,57 Lei | |
| 36 | N663476 | 1 | ARMATURE | 106,98 Lei | |
| 37 | N663243 | 1 | GEARCASE | 41,93 Lei | |
| 38 | 90640071 | 1 | SPINDLE | 52,22 Lei | |
| 39 | 144803-00 | 1 | SEAL RING | 4,57 Lei | |
| 40 | 90640146 | 1 | FIELD SA | 106,98 Lei | |
| 41 | NA090903 | 1 | RATING LABEL | 4,57 Lei | |
| 42 | N523921 | 1 | SIDE HANDLE | 37,73 Lei |
