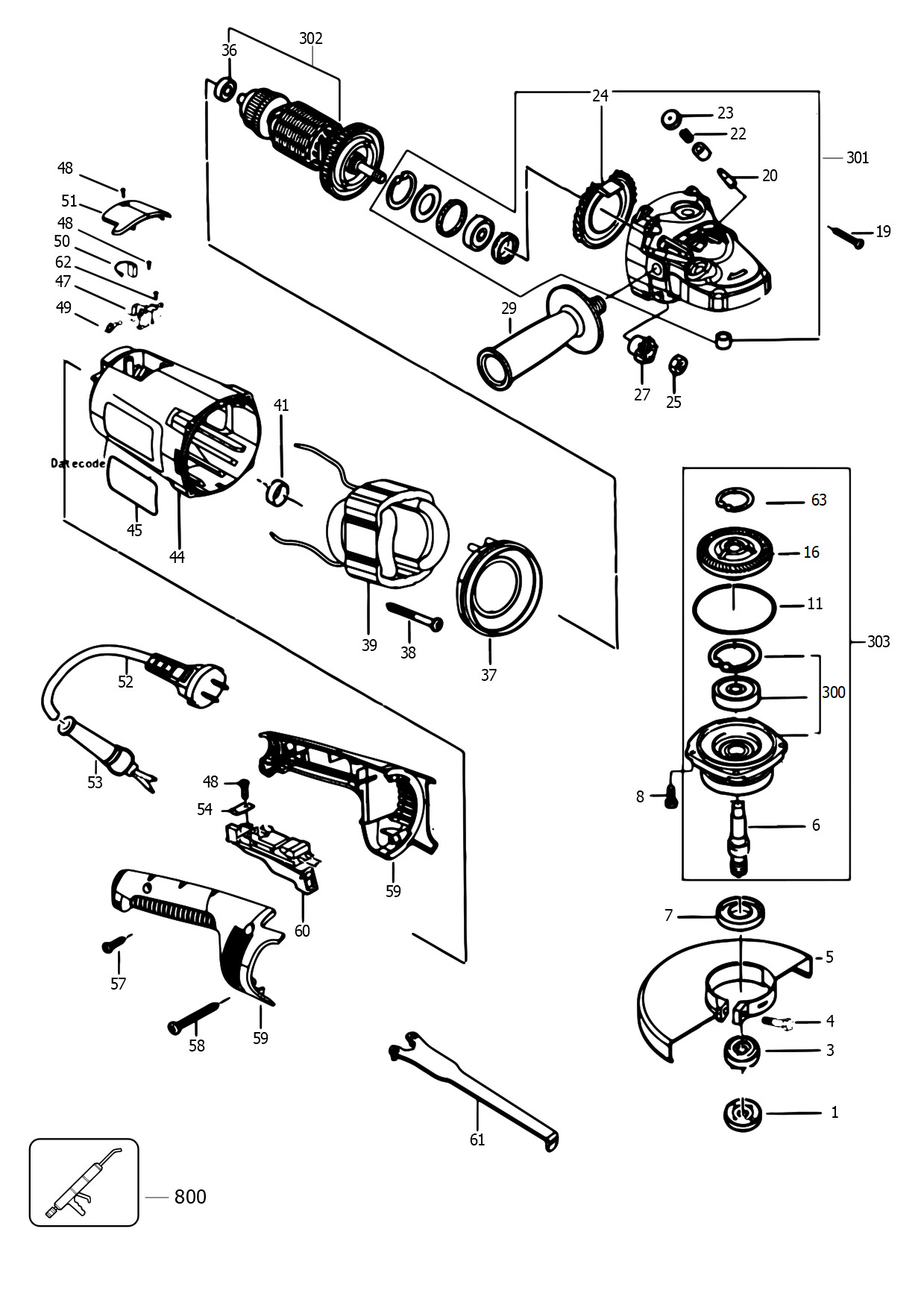

STANLEY ANGLE GRINDER (Type 1)
SKU Produs: FMEG232 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N862877 | 1 | OUTER FLANGE | 17,02 Lei | |
| 2 | N803471 | 1 | Inner Flange | 12,71 Lei | |
| 4 | N688666 | 1 | SCREW | 6,23 Lei | |
| 5 | 4149104001 | 1 | GUARD | 52,22 Lei | |
| 6 | NA012437 | 1 | SPINDLE | 25,54 Lei | |
| 7 | 4149101605 | 1 | SEAL | 4,57 Lei | |
| 8 | 49203009 | 4 | SCREW | 4,57 Lei | |
| 11 | N929391 | 1 | O RING | 4,57 Lei | |
| 16 | N642054 | 1 | Gear | 96,56 Lei | |
| 19 | 49206048 | 4 | SCREW | 4,57 Lei | |
| 20 | 4148004007 | 1 | LOCKING PIN | 4,7 Lei | |
| 22 | 4148008003 | 1 | SPRING | 4,57 Lei | |
| 23 | 4149101606 | 1 | CAP | 4,57 Lei | |
| 24 | 4149101607 | 1 | DEFLECTOR | 5,21 Lei | |
| 25 | 49205025 | 1 | NUT | 4,57 Lei | |
| 27 | N642055 | 1 | PINION | 30,87 Lei | |
| 29 | N929392 | 1 | SIDE HANDLE | 19,95 Lei | |
| 36 | 49111010 | 1 | BEARING | 7,37 Lei | |
| 37 | 4149101604 | 1 | DEFLECTOR | 7,37 Lei | |
| 38 | N677638 | 2 | SCREW | 4,57 Lei | |
| 38 | N677738 | 2 | PINION | 7,37 Lei | |
| 39 | N642051 | 1 | FIELD | 181,55 Lei | |
| 41 | N929394 | 1 | COVER | 5,21 Lei | |
| 44 | N682393 | 1 | HOUSING MOTOR | 70,39 Lei | |
| 45 | N929070 | 1 | RATING PLATE | 4,57 Lei | |
| 47 | N652422 | 1 | BRUSH HOLDER PAIR | 15,12 Lei | |
| 48 | 49206019 | 5 | SCREW | 4,57 Lei | |
| 49 | N659145 | 2 | SPRING TORSION | 4,57 Lei | |
| 50 | N690992 | 1 | BRUSH PAIR | 52,22 Lei | |
| 52 | NA039267 | 1 | CORDSET | 57,81 Lei | |
| 53 | N929404 | 1 | CORD PROTECTOR | 5,3 Lei | |
| 54 | N632811 | 1 | CORD CLAMP | 4,57 Lei | |
| 57 | 49206020 | 2 | SCREW | 4,57 Lei | |
| 58 | 49206004 | 2 | SCREW | 4,57 Lei | |
| 59 | 4149101602 | 1 | HOUSING PAIR | 30,87 Lei | |
| 60 | 4149105606 | 1 | SWITCH | 41,93 Lei | |
| 61 | 4148004004 | 1 | WRENCH SET | 17,02 Lei | |
| 62 | 49203008 | 8 | SCREW | 4,57 Lei | |
| 63 | NA010321 | 1 | CIRCLIP | 4,57 Lei | |
| 301 | NA039265 | 1 | GEARBOX SA | 181,55 Lei | |
| 302 | N690985 | 1 | ARMATURE SA | 307,5 Lei | |
| 303 | NA039266 | 1 | SPINDLE SA | 205,7 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei |
