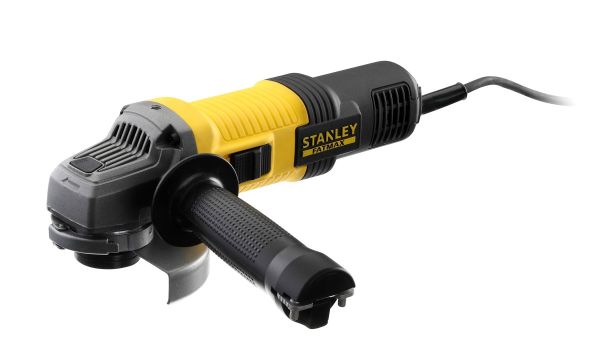

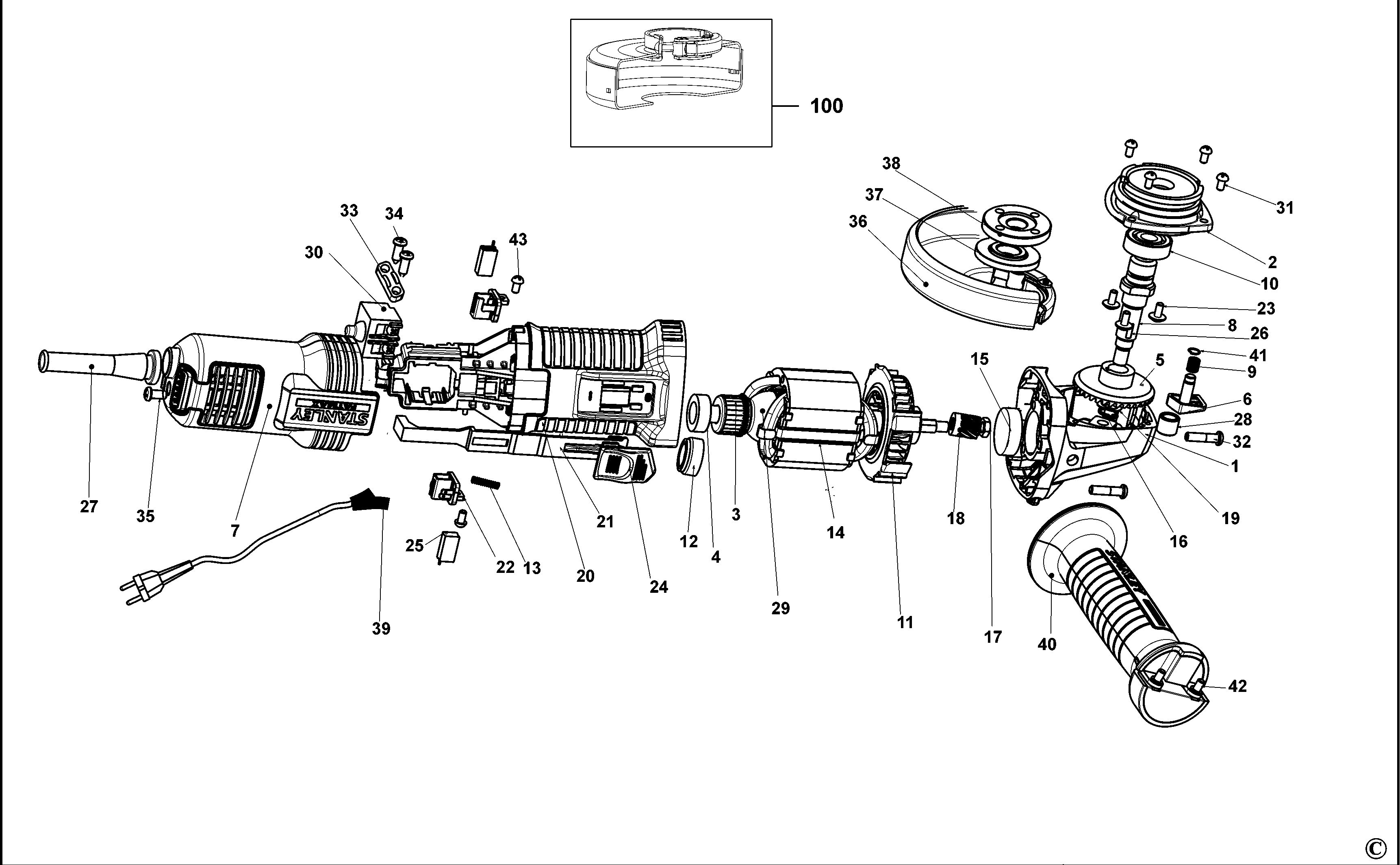

STANLEY ANGLE GRINDER (Type 1)
SKU Produs: FMEG210 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N529043 | 1 | GEARCASE | 25,54 Lei | |
| 2 | N523621 | 1 | COVER | 17,02 Lei | |
| 3 | N522950 | 1 | ARMATURE AND FAN | 80,04 Lei | |
| 4 | 90609688 | 1 | BEARING,BALL | 8,64 Lei | |
| 5 | N505684 | 1 | GEAR Output | 15,12 Lei | |
| 6 | N505677 | 1 | LOCK BUTTON | 5,21 Lei | |
| 7 | N528731 | 1 | COVER | 17,02 Lei | |
| 8 | N549779 | 1 | OUTPUT SHAFT SA | 15,12 Lei | |
| 9 | N522581 | 1 | SPRING | 4,57 Lei | |
| 10 | N529734 | 1 | BEARING BALL | 10,29 Lei | |
| 11 | N534611 | 1 | BAFFLE FAN | 4,57 Lei | |
| 12 | N541114 | 1 | SLEEVE | 4,57 Lei | |
| 13 | 90606067 | 1 | SPRING | 4,57 Lei | |
| 14 | N512999 | 1 | FIELD SA | 57,81 Lei | |
| 15 | 90532404 | 1 | BALL BEARING 608-2RS | 7,37 Lei | |
| 16 | N529735 | 1 | RING | 4,57 Lei | |
| 17 | N528683 | 1 | NUT | 4,57 Lei | |
| 18 | N505694 | 1 | PINION | 6,23 Lei | |
| 19 | 90604831 | 1 | WASHER | 4,57 Lei | |
| 20 | N528730 | 1 | HOUSING SA | 34,05 Lei | |
| 21 | 90604790 | 1 | LINK | 4,57 Lei | |
| 22 | N532429 | 2 | HOLDER | 4,57 Lei | |
| 23 | N118088 | 3 | SCREW , SHOULDER M3X0,5 | 4,57 Lei | |
| 24 | N505675 | 1 | BUTTON RELEASE | 6,23 Lei | |
| 25 | N520407 | 2 | BRUSH | 15,12 Lei | |
| 26 | N532793 | 1 | KEY | 4,57 Lei | |
| 27 | 90604794 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 28 | N529722 | 1 | BEARING | 4,57 Lei | |
| 29 | N534576 | 1 | ARMATURE SA | 145,09 Lei | |
| 30 | N550561 | 1 | SWITCH | 53,4 Lei | |
| 31 | 90568551 | 4 | SCREW | 4,57 Lei | |
| 32 | N529725 | 4 | SCREW | 4,57 Lei | |
| 33 | N529726 | 1 | CLAMP | 4,57 Lei | |
| 34 | N529727 | 2 | SCREW | 4,57 Lei | |
| 35 | N546037 | 1 | SCREW | 4,57 Lei | |
| 36 | N530141 | 1 | GUARD Assembly 115 recon Metalic | 21,85 Lei | |
| 37 | 90604847 | 1 | Connection for grinding wheel | 7,37 Lei | |
| 38 | N547712 | 1 | OUTER FLANGE | 6,23 Lei | |
| 39 | N530144 | 1 | CORDSET (EURO) | 41,93 Lei | |
| 40 | N544300 | 1 | HANDLE SA | 17,02 Lei | |
| 41 | N529723 | 1 | CLIP | 4,57 Lei | |
| 42 | 90604852 | 1 | WRENCH SPECIAL | 7,37 Lei | |
| 43 | N529730 | 2 | SCREW | 4,57 Lei | |
| 100 | N551980 | 1 | GUARD CUT OFF | 34,05 Lei |
