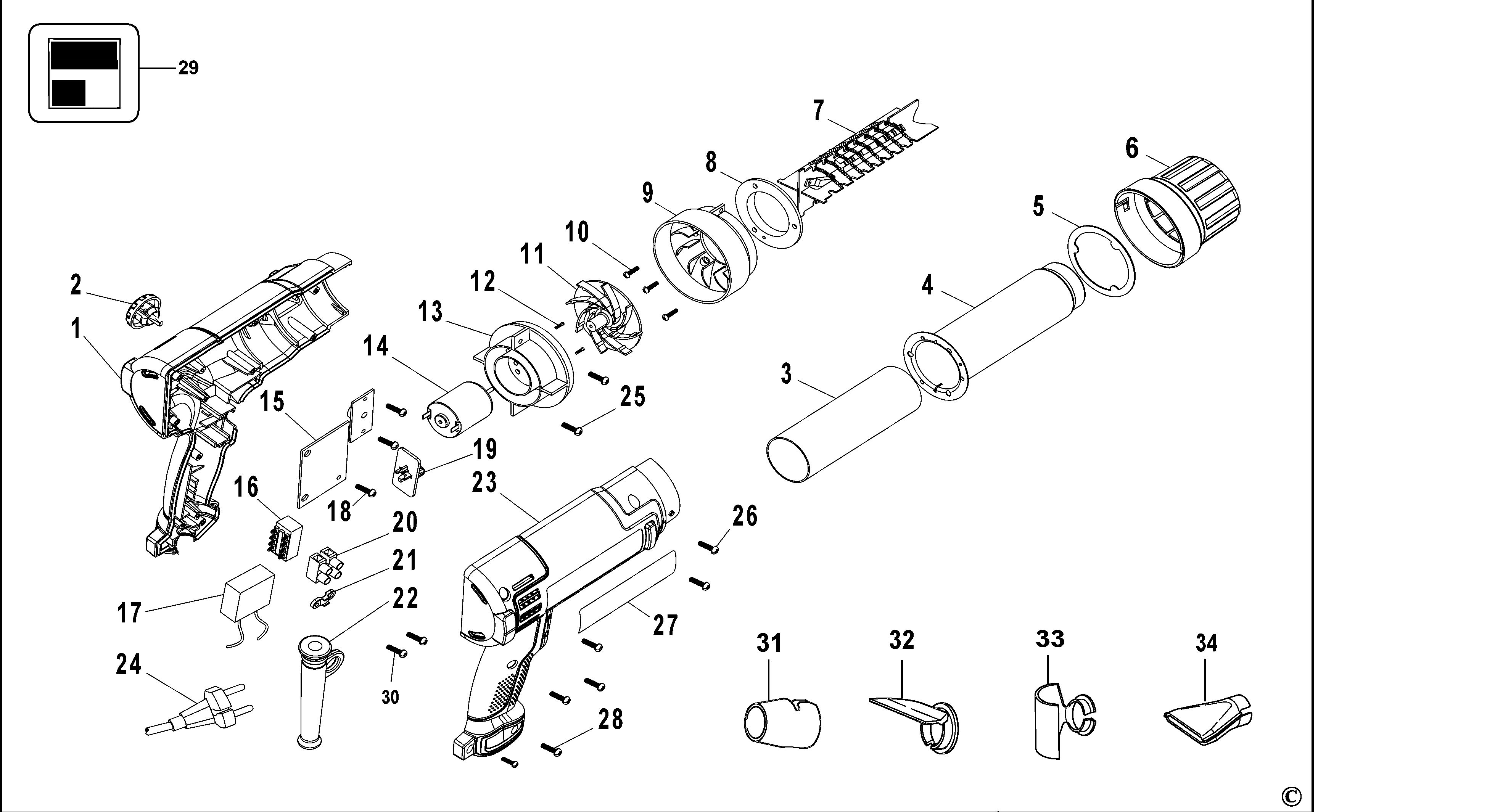

STANLEY HEATGUN (Type 1)
SKU Produs: FME670 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004594-14 | 1 | HOUSING LH | 41,93 Lei | |
| 2 | 1004594-15 | 1 | KNOB | 5,21 Lei | |
| 3 | 1004594-16 | 2 | HEATSHIELD | 7,37 Lei | |
| 4 | 1004594-17 | 1 | TUBE METAL | 25,54 Lei | |
| 5 | 1004594-18 | 1 | RING | 5,21 Lei | |
| 6 | 1004594-19 | 1 | COLLAR | 7,37 Lei | |
| 7 | 1004594-20 | 1 | HEATING ELEMENT | 41,93 Lei | |
| 8 | 1004594-21 | 1 | INSULATOR | 6,23 Lei | |
| 9 | 1004594-22 | 1 | COVER | 8,64 Lei | |
| 10 | 1004594-23 | 3 | SCREW | 4,57 Lei | |
| 11 | 1004594-24 | 1 | FAN | 7,37 Lei | |
| 12 | 1004594-25 | 2 | SCREW | 4,57 Lei | |
| 13 | 1004594-26 | 1 | MOUNTING BRACKET | 7,37 Lei | |
| 14 | 1004594-27 | 1 | MOTOR | 25,54 Lei | |
| 15 | 1004594-28 | 1 | PCB | 57,81 Lei | |
| 16 | 1004594-29 | 1 | SWITCH | 15,12 Lei | |
| 17 | 1004594-30 | 1 | CAPACITOR | 5,21 Lei | |
| 18 | 1004594-31 | 3 | SCREW | 4,57 Lei | |
| 19 | 1004594-32 | 1 | SWITCH COVER | 4,57 Lei | |
| 20 | 1004594-33 | 1 | TERMINAL BLOCK | 7,37 Lei | |
| 21 | 1004594-34 | 1 | CORD CLAMP | 4,57 Lei | |
| 22 | 1004594-35 | 1 | CORD PROTECTOR | 6,23 Lei | |
| 23 | 1004594-36 | 1 | HOUSING RH | 41,93 Lei | |
| 24 | 1004594-37 | 1 | CORDSET | 106,98 Lei | |
| 25 | 1004594-39 | 4 | SCREW | 4,57 Lei | |
| 26 | 1004594-40 | 6 | SCREW | 4,57 Lei | |
| 27 | 1004594-41 | 1 | LABEL | 4,57 Lei | |
| 28 | 1004594-42 | 3 | SCREW | 4,57 Lei | |
| 29 | 1004594-43 | 1 | RATING PLATE | 4,57 Lei | |
| 30 | 1004594-45 | 2 | SCREW | 4,57 Lei | |
| 31 | 90562883 | 1 | HEAT GUN FAN NOZZLE | 30,87 Lei | |
| 32 | 90562884 | 1 | HEAT GUN SPOOL REFLECTOR | 19,95 Lei | |
| 33 | 90562885 | 1 | HEAT GUN GLASS PROTECTOR | 25,54 Lei | |
| 34 | 90562886 | 1 | HEAT GUN CONE NOZZLE | 19,95 Lei |
