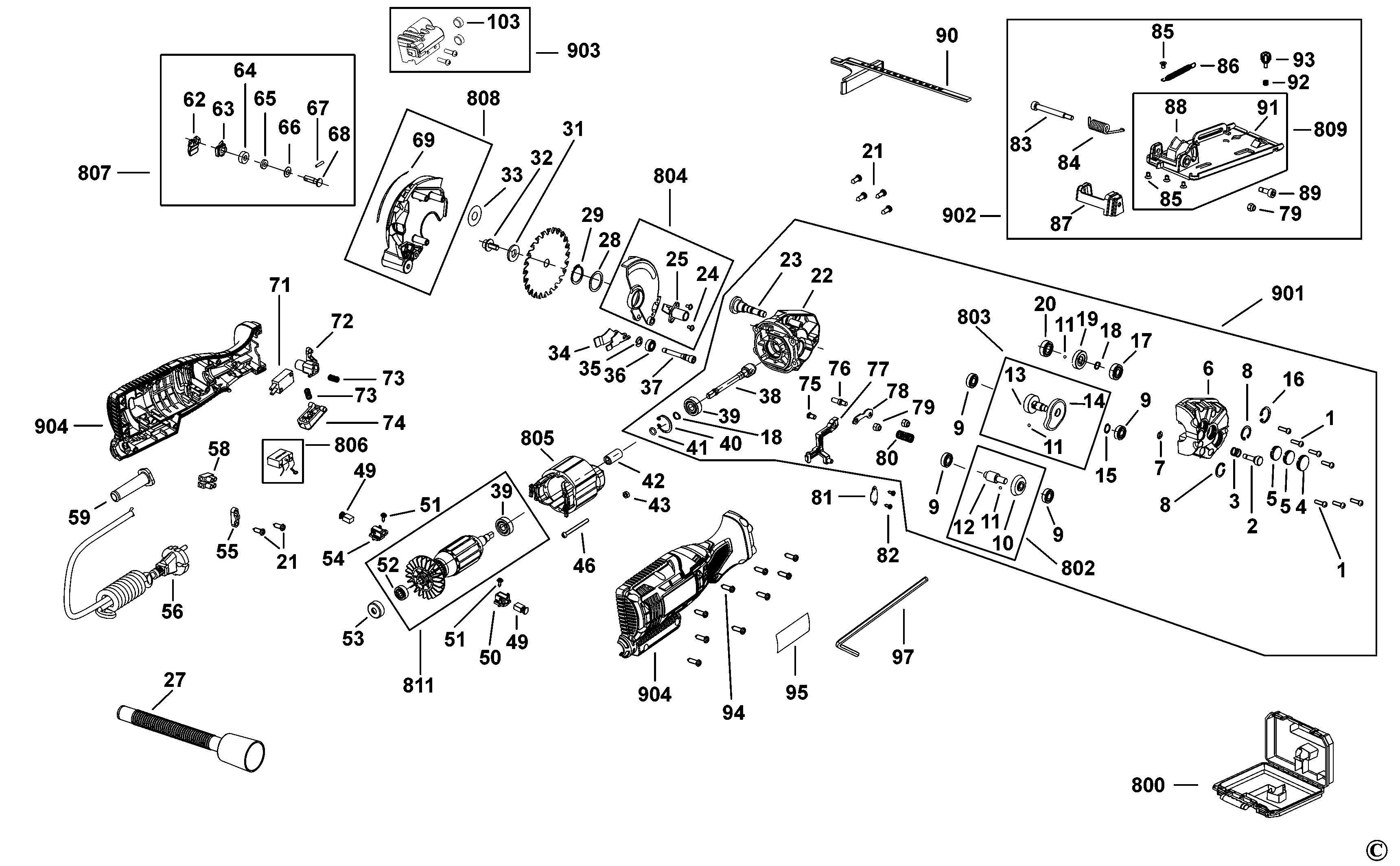

STANLEY SAW (Type 1)
SKU Produs: FME380 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004721-25 | 7 | SCREW | 4,57 Lei | |
| 2 | 1004721-26 | 1 | SPINDLE LOCK | 4,57 Lei | |
| 3 | 1004721-27 | 1 | SPRING | 4,57 Lei | |
| 4 | 1004721-28 | 1 | CAP | 4,57 Lei | |
| 5 | 1004721-29 | 2 | CAP | 4,57 Lei | |
| 6 | 1004721-30 | 1 | GEARCASE COVER | 30,87 Lei | |
| 7 | 1004721-31 | 1 | HALF WASHER | 4,57 Lei | |
| 8 | 1004721-32 | 2 | CIRCLIP | 4,57 Lei | |
| 9 | 1004721-33 | 4 | BEARING | 17,02 Lei | |
| 10 | 1004721-34 | 1 | BEVEL GEAR | 37,73 Lei | |
| 11 | 1004721-35 | 3 | BALL STEEL | 4,57 Lei | |
| 12 | 1004721-36 | 1 | GEARSHAFT | 30,87 Lei | |
| 13 | 1004721-37 | 1 | SHAFT | 41,93 Lei | |
| 14 | 1004721-38 | 1 | Gear | 34,05 Lei | |
| 15 | 1004721-39 | 1 | CIRCLIP | 4,57 Lei | |
| 16 | 1004721-40 | 1 | CIRCLIP | 4,57 Lei | |
| 17 | 1004721-41 | 1 | BEARING | 13,85 Lei | |
| 18 | 1004721-42 | 2 | CIRCLIP | 4,57 Lei | |
| 19 | 1004721-43 | 1 | Gear | 30,87 Lei | |
| 20 | 1004721-44 | 1 | BEARING | 17,02 Lei | |
| 21 | 1004721-45 | 6 | SCREW | 4,57 Lei | |
| 22 | 1004721-46 | 1 | GEARBOX | 57,81 Lei | |
| 23 | 1004721-47 | 1 | SPINDLE | 25,54 Lei | |
| 24 | 1004721-48 | 2 | SCREW | 4,57 Lei | |
| 25 | 1004721-49 | 1 | ADAPTOR | 4,57 Lei | |
| 27 | 1004721-50 | 1 | PIPE | 8,64 Lei | |
| 28 | 1004721-51 | 1 | WASHER | 4,57 Lei | |
| 29 | 1004721-52 | 1 | CIRCLIP | 4,57 Lei | |
| 31 | 1004721-54 | 1 | OUTER FLANGE | 8,64 Lei | |
| 32 | 1004721-55 | 1 | LOCK SCREW | 4,57 Lei | |
| 33 | 1004721-56 | 1 | WASHER | 4,57 Lei | |
| 34 | 1004721-57 | 1 | BAFFLE | 6,23 Lei | |
| 35 | 1004721-58 | 1 | HALF WASHER | 4,57 Lei | |
| 36 | 1004721-59 | 1 | BEARING | 15,12 Lei | |
| 37 | 1004721-60 | 1 | SCREW | 12,71 Lei | |
| 38 | 1004721-61 | 1 | CONNECTING ROD | 34,05 Lei | |
| 39 | 1004721-62 | 2 | BEARING | 13,85 Lei | |
| 40 | 1004721-63 | 1 | CIRCLIP | 4,57 Lei | |
| 41 | 1004721-64 | 1 | O RING | 4,57 Lei | |
| 42 | 1004721-65 | 1 | SLEEVE | 21,85 Lei | |
| 43 | 1004721-66 | 1 | NUT | 4,57 Lei | |
| 46 | 1004721-69 | 1 | SCREW | 4,57 Lei | |
| 49 | 1004721-72 | 1 | BRUSH PAIR SA | 15,12 Lei | |
| 50 | 1004721-73 | 1 | HOLDER | 12,71 Lei | |
| 51 | 1004721-74 | 2 | SCREW | 4,57 Lei | |
| 52 | 1004721-75 | 1 | BEARING | 13,85 Lei | |
| 53 | 1004721-76 | 1 | SLEEVE | 4,57 Lei | |
| 54 | 1004721-77 | 1 | HOLDER | 12,71 Lei | |
| 55 | 1004721-78 | 1 | CORD CLAMP | 4,57 Lei | |
| 56 | 1004721-79 | 1 | CORDSET | 70,39 Lei | |
| 58 | 1004721-82 | 1 | CONNECTOR | 4,57 Lei | |
| 59 | 1004721-83 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 62 | 1004721-86 | 1 | LOCK KNOB | 4,57 Lei | |
| 63 | 1004721-87 | 1 | INDICATOR | 4,57 Lei | |
| 64 | 1004721-88 | 1 | GUIDE BLOCK | 4,57 Lei | |
| 65 | 1004721-89 | 1 | LINER | 4,57 Lei | |
| 66 | 1004721-90 | 1 | WASHER | 4,57 Lei | |
| 67 | 1004721-91 | 1 | PIN | 4,57 Lei | |
| 68 | 1004721-92 | 1 | LOCK PIN | 8,64 Lei | |
| 69 | 1004721-93 | 1 | GAUGE | 4,57 Lei | |
| 71 | 1004721-94 | 1 | SWITCH | 30,87 Lei | |
| 72 | 1004721-95 | 1 | LEVER | 4,57 Lei | |
| 73 | 1004721-96 | 2 | SPRING | 4,57 Lei | |
| 74 | 1004721-97 | 1 | TRIGGER | 4,57 Lei | |
| 75 | 1004721-98 | 1 | SCREW | 4,57 Lei | |
| 76 | 1004722-00 | 1 | PIN | 7,37 Lei | |
| 77 | 1004722-01 | 1 | LINK | 4,57 Lei | |
| 78 | 1004722-02 | 1 | CONNECTOR | 15,12 Lei | |
| 79 | 1004722-03 | 3 | NUT | 4,57 Lei | |
| 80 | 1004722-04 | 1 | SPRING | 4,57 Lei | |
| 81 | 1004722-05 | 1 | CLAMP | 5,21 Lei | |
| 82 | 1004722-06 | 1 | SCREW | 4,57 Lei | |
| 83 | 1004722-07 | 1 | SCREW | 4,57 Lei | |
| 84 | 1004722-08 | 1 | SPRING TORSION | 6,23 Lei | |
| 85 | 1004722-09 | 4 | SCREW | 4,57 Lei | |
| 86 | 1004722-10 | 1 | SPRING | 5,21 Lei | |
| 87 | 1004722-11 | 1 | COVER | 4,57 Lei | |
| 88 | 1004722-12 | 1 | BLOCK | 15,12 Lei | |
| 89 | 1004722-13 | 1 | SCREW | 4,57 Lei | |
| 90 | 1004722-14 | 1 | GUIDE | 13,85 Lei | |
| 91 | 1004722-15 | 1 | BASE PLATE | 37,73 Lei | |
| 92 | 1004722-16 | 1 | SPRING | 4,57 Lei | |
| 93 | 1004722-17 | 1 | PLATE LOCK | 4,57 Lei | |
| 94 | 1004722-18 | 9 | SCREW | 4,57 Lei | |
| 95 | 1004722-19 | 1 | RATING PLATE | 4,57 Lei | |
| 97 | 1004722-21 | 1 | HEX KEY | 5,21 Lei | |
| 103 | 1004722-22 | 2 | BATTERY CELL | 4,57 Lei | |
| 800 | 1004760-64 | 1 | KITBOX | 96,56 Lei | |
| 802 | 1004722-24 | 1 | GEAR SA | 70,39 Lei | |
| 803 | 1004722-25 | 1 | GEAR SA | 70,39 Lei | |
| 804 | 1004722-26 | 1 | GUARD SA | 41,93 Lei | |
| 805 | 1004722-27 | 1 | FIELD SA | 130,35 Lei | |
| 806 | 1004722-28 | 1 | CAPACITOR SA | 7,37 Lei | |
| 807 | 1004722-29 | 1 | GAUGE | 15,12 Lei | |
| 808 | 1004722-30 | 1 | GUARD | 41,93 Lei | |
| 809 | 1004722-31 | 1 | BASEPLATE SA | 52,22 Lei | |
| 811 | 1004722-32 | 1 | ARMATURE SA | 145,09 Lei | |
| 901 | 1004722-33 | 1 | GEARBOX SA | 361,33 Lei | |
| 902 | 1004722-34 | 1 | SHOE SA | 70,39 Lei | |
| 903 | 1004722-35 | 1 | LASER | 57,81 Lei | |
| 904 | 1004722-36 | 1 | CLAMSHELL PAIR | 181,55 Lei |
