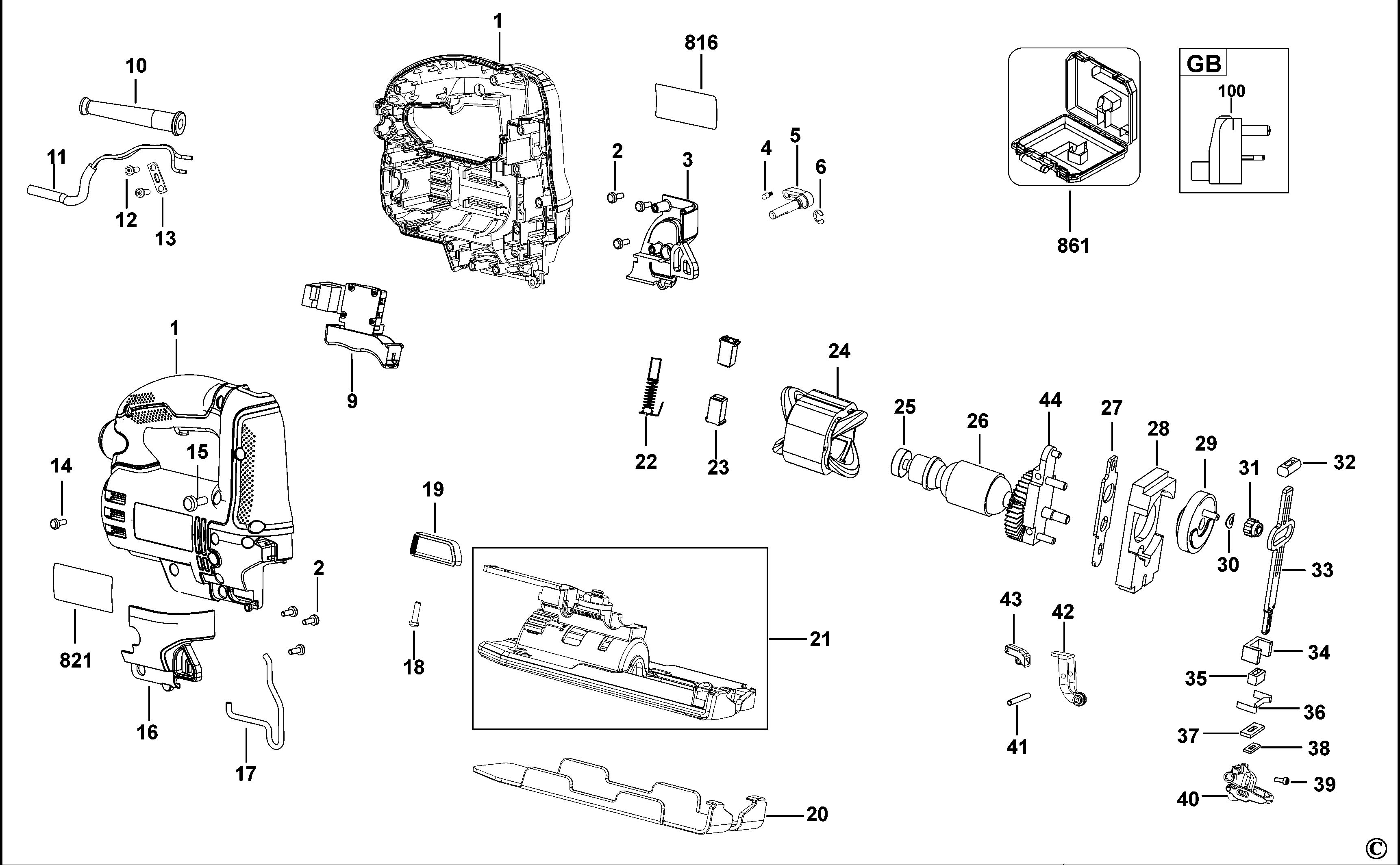

STANLEY JIGSAW (Type 2)
SKU Produs: FME340 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 90619126 | 1 | CLAMSHELL | 157,92 Lei | |
| 2 | 330045-05 | 6 | SCREW.TEMP | 4,57 Lei | |
| 3 | 90575444 | 1 | COVER LH | 21,85 Lei | |
| 4 | N403227 | 1 | INDEXING BOLT | 4,57 Lei | |
| 5 | 90542575 | 1 | SPEED REGULATOR | 7,37 Lei | |
| 6 | 90544008 | 1 | RETAINER | 4,57 Lei | |
| 9 | 90618916 | 1 | SWITCH SA | 52,22 Lei | |
| 10 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 11 | 90578995-55 | 1 | CORDSET | 41,93 Lei | |
| 12 | 370748 | 2 | SCREW | 4,57 Lei | |
| 13 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 14 | 330019-13 | 9 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 15 | 330019-16 | 2 | SCREW, PLASTIC THD FORM, M4*38 T20 | 4,57 Lei | |
| 16 | 90575447 | 1 | COVER RH | 21,85 Lei | |
| 17 | 90542586 | 2 | GUARD | 5,21 Lei | |
| 18 | 330019-28 | 2 | SCREW | 4,57 Lei | |
| 19 | 90582476 | 1 | HANDLE | 4,57 Lei | |
| 20 | 90542992 | 1 | SOLE PLATE | 13,85 Lei | |
| 21 | 90544022 | 1 | SHOE SA | 57,81 Lei | |
| 22 | 90521673 | 2 | BRUSH AND SPRING | 12,71 Lei | |
| 23 | 582696-00 | 2 | BRUSHBOX | 4,57 Lei | |
| 24 | 90619123 | 1 | FIELD SA | 57,81 Lei | |
| 25 | 574853-08 | 1 | BEARING | 7,37 Lei | |
| 26 | 90619124 | 1 | ARMATURE SA | 120,82 Lei | |
| 27 | 90542634 | 1 | FORK | 7,37 Lei | |
| 28 | 90516114 | 1 | BALANCE WEIGHT | 25,54 Lei | |
| 29 | 90583669 | 1 | GEAR SA | 41,93 Lei | |
| 30 | 823954 | 1 | SPRING WASHER | 4,57 Lei | |
| 31 | 90542604 | 1 | DRIVE ROLLER | 6,23 Lei | |
| 32 | 810893 | 1 | BEARING | 4,57 Lei | |
| 33 | 90516206 | 1 | SHAFT SA | 17,02 Lei | |
| 34 | 795645 | 1 | BEARING CARRIER | 8,64 Lei | |
| 35 | 582719-00 | 1 | BEARING | 4,57 Lei | |
| 36 | 582720-00 | 1 | SPRING | 4,57 Lei | |
| 37 | 582948-00 | 1 | PLATE | 4,57 Lei | |
| 38 | 90532150 | 1 | FELT SEAL | 4,57 Lei | |
| 39 | 583173-00 | 1 | SCREW | 4,57 Lei | |
| 40 | 90563039 | 1 | BLADE CLAMP | 41,93 Lei | |
| 41 | 90542862 | 1 | PIN | 4,57 Lei | |
| 42 | 90578033 | 1 | BLADE SUPPORT SA | 19,95 Lei | |
| 43 | 90542580 | 1 | DUST PORT | 4,57 Lei | |
| 44 | 90517317 | 1 | PLATE SA | 21,85 Lei | |
| 816 | 90607343 | 1 | BRAND LABEL | 4,57 Lei | |
| 821 | 90619114 | 1 | RATING LABEL | 4,57 Lei | |
| 861 | 90580769-01 | 1 | KIT BOX | 120,82 Lei |
