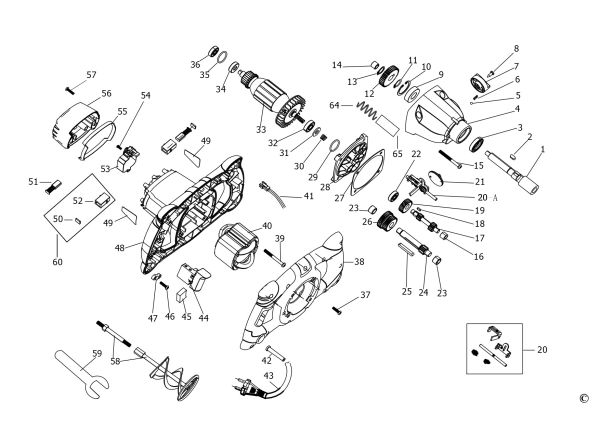

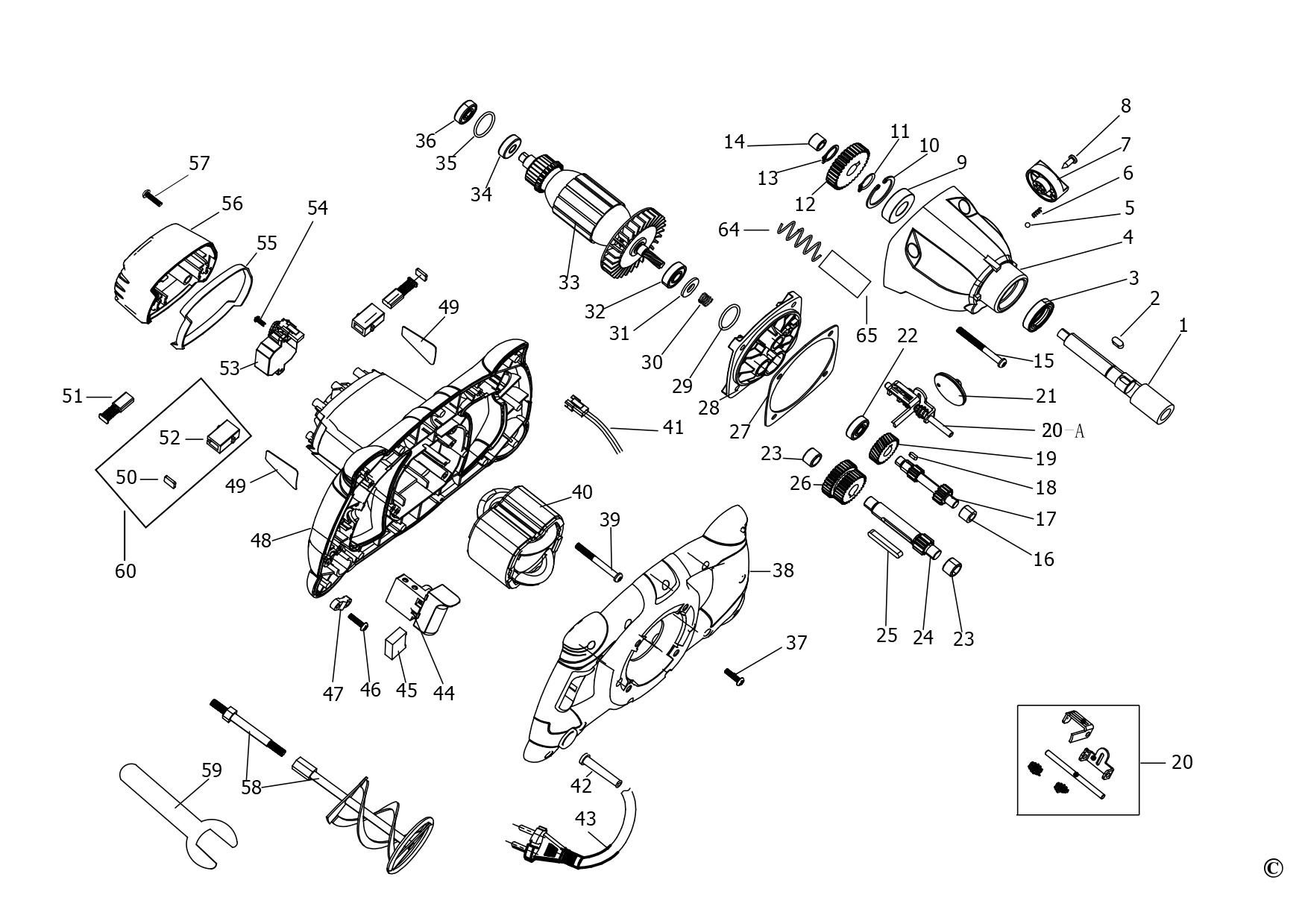

STANLEY MIXER (Type 1)
SKU Produs: FME190 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004699-72 | 1 | OUTPUT SHAFT | 19,95 Lei | |
| 2 | 1004699-73 | 1 | KEY | 5,21 Lei | |
| 3 | 1004699-74 | 1 | SEAL | 5,21 Lei | |
| 4 | 1004699-75 | 1 | HOUSING | 34,05 Lei | |
| 5 | 1004699-76 | 1 | BEARING,BALL | 5,21 Lei | |
| 6 | 1004699-77 | 1 | SPRING | 5,21 Lei | |
| 7 | 1004699-78 | 1 | KNOB | 5,21 Lei | |
| 8 | 1004699-79 | 1 | SCREW | 5,21 Lei | |
| 9 | 1004699-80 | 1 | BEARING | 8,64 Lei | |
| 10 | 1004699-81 | 1 | CIRCLIP | 5,21 Lei | |
| 11 | 1004699-82 | 1 | CIRCLIP | 5,21 Lei | |
| 12 | 1004699-83 | 1 | Gear | 12,71 Lei | |
| 13 | 1004699-84 | 1 | CIRCLIP | 5,21 Lei | |
| 14 | 1004699-85 | 1 | BEARING,NEEDLE | 8,64 Lei | |
| 15 | 1004699-86 | 1 | SCREW | 5,21 Lei | |
| 16 | 1004699-85 | 1 | BEARING,NEEDLE | 8,64 Lei | |
| 17 | 1004699-88 | 1 | SHAFT SA | 13,85 Lei | |
| 18 | 1004699-89 | 1 | KEY | 5,21 Lei | |
| 19 | 1004699-90 | 1 | Gear | 8,64 Lei | |
| 20 | 1004700-34 | 1 | FORK | 5,21 Lei | |
| 20 | 1004700-40 | 1 | CORDSET | 33,2 Lei | |
| 20 | 1004700-59 | 1 | CORDSET | 33,2 Lei | |
| 21 | 1004699-91 | 1 | PLATE | 5,21 Lei | |
| 22 | 1004699-92 | 1 | BEARING 608 | 6,23 Lei | |
| 23 | 1004699-93 | 1 | BEARING NEEDLE | 10,29 Lei | |
| 24 | 1004699-94 | 1 | SHAFT SA | 10,29 Lei | |
| 25 | 1004699-95 | 1 | KEY | 5,21 Lei | |
| 26 | 1004699-96 | 1 | Gear | 19,95 Lei | |
| 27 | 1004699-97 | 1 | WASHER | 5,21 Lei | |
| 28 | 1004699-98 | 1 | COVER | 17,02 Lei | |
| 29 | 1004700-00 | 1 | O RING | 5,21 Lei | |
| 30 | 1004700-01 | 1 | SPRING | 5,21 Lei | |
| 31 | 1004700-02 | 1 | PAD | 5,21 Lei | |
| 32 | 1004700-03 | 1 | BEARING | 10,29 Lei | |
| 33 | 1004700-04 | 1 | ARMATURE AND FAN | 96,56 Lei | |
| 34 | 1004700-05 | 1 | MAGNET | 5,21 Lei | |
| 35 | 1004700-06 | 1 | SEAL | 5,21 Lei | |
| 36 | 1004700-07 | 1 | BEARING | 7,37 Lei | |
| 37 | 1004700-08 | 1 | SCREW | 5,21 Lei | |
| 38 | 1004700-09 | 1 | HANDLE COVER | 37,73 Lei | |
| 39 | 1004700-10 | 1 | SCREW | 5,21 Lei | |
| 40 | 1004700-11 | 1 | STATOR SA | 70,39 Lei | |
| 41 | 1004700-12 | 1 | WIRE | 5,21 Lei | |
| 42 | 1004700-13 | 1 | SLEEVE | 5,21 Lei | |
| 43 | 1004700-30 | 1 | CORDSET | 41,93 Lei | |
| 44 | 1004700-14 | 1 | SWITCH SA | 21,85 Lei | |
| 45 | 1004700-15 | 1 | CAPACITOR | 5,21 Lei | |
| 46 | 1004700-16 | 1 | SCREW | 5,21 Lei | |
| 47 | 1004700-17 | 1 | CABLE CLAMP | 5,21 Lei | |
| 48 | 1004700-18 | 1 | HOUSING | 70,39 Lei | |
| 49 | 1004700-19 | 1 | BRAND LABEL | 5,21 Lei | |
| 51 | 1004700-22 | 1 | BRUSH PAIR | 10,29 Lei | |
| 52 | 1004736-02 | 1 | BRUSH HOLDER SA | 13,85 Lei | |
| 53 | 1004700-23 | 1 | CLUTCH MODULE | 80,04 Lei | |
| 54 | 1004700-24 | 1 | SCREW | 5,21 Lei | |
| 55 | 1004700-25 | 1 | RING | 5,21 Lei | |
| 56 | 1004700-26 | 1 | COVER REAR | 7,37 Lei | |
| 57 | 1004700-08 | 1 | SCREW | 5,21 Lei | |
| 58 | 1004700-28 | 1 | PADDLE | 52,22 Lei | |
| 59 | 1004700-29 | 1 | SPANNER | 5,21 Lei | |
| 60 | 1004736-02 | 1 | BRUSH HOLDER SA | 13,85 Lei | |
| 64 | 1004785-79 | 1 | SPRING | 4,57 Lei | |
| 65 | 1004785-80 | 1 | PIPE | 17,02 Lei |
