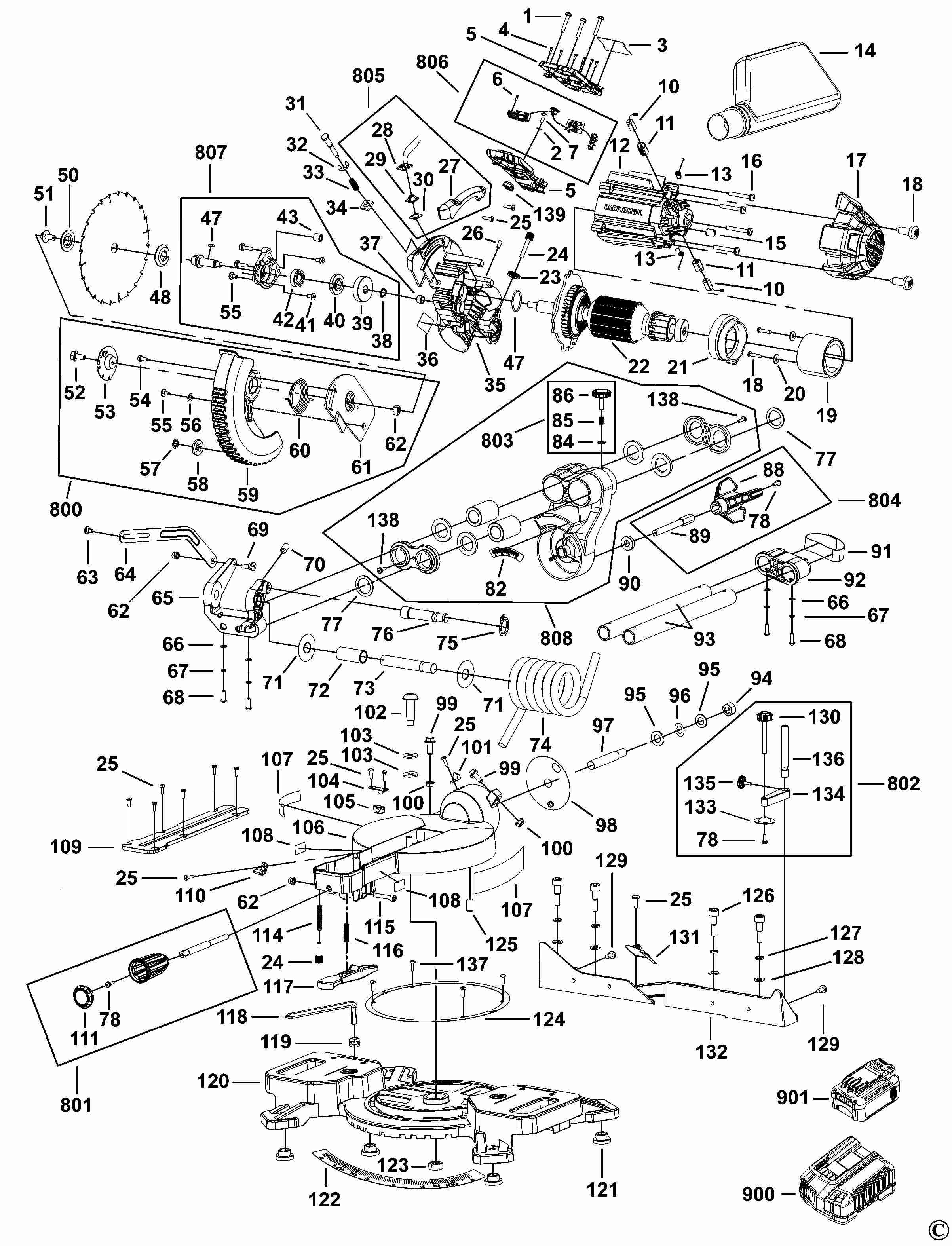

STANLEY MITRE SAW (Type H1)
SKU Produs: FMCS701 /Type: H1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004750-25 | 3 | SCREW | 4,31 Lei | |
| 2 | 1004750-50 | 1 | WASHER | 4,57 Lei | |
| 3 | 1004750-23 | 1 | LABEL | 3,78 Lei | |
| 4 | 1004750-26 | 6 | SCREW | 4,31 Lei | |
| 5 | 1004749-83 | 1 | HANDLE | 119,91 Lei | |
| 6 | 1004754-53 | 1 | SCREW | 4,57 Lei | |
| 7 | 1004750-28 | 1 | SCREW | 3,78 Lei | |
| 10 | N527163 | 1 | BRUSH PAIR | 43,16 Lei | |
| 11 | 90595882 | 2 | HOLDER | 4,57 Lei | |
| 12 | 1004749-84 | 1 | HOUSING | 47,78 Lei | |
| 13 | 90619719 | 2 | SPRING BRUSH | 5,21 Lei | |
| 14 | 1004749-71 | 1 | BAG | 37,73 Lei | |
| 15 | 90621610 | 1 | PLUG | 4,57 Lei | |
| 16 | 1004750-32 | 4 | SCREW | 6,09 Lei | |
| 17 | 1004749-85 | 1 | END CAP | 14,07 Lei | |
| 18 | 1004750-33 | 4 | SCREW | 3,78 Lei | |
| 19 | 90641168 | 1 | FIELD | 107,73 Lei | |
| 20 | 1004750-49 | 2 | WASHER | 3,78 Lei | |
| 21 | 1004749-86 | 1 | BAFFLE | 5,15 Lei | |
| 22 | N579877 | 1 | ARMATURE SA | 228,8 Lei | |
| 23 | 1004750-09 | 1 | NUT | 11,45 Lei | |
| 24 | 1004749-94 | 1 | ADJUSTER DEPTH | 8,64 Lei | |
| 25 | 1004750-34 | 11 | SCREW | 8,51 Lei | |
| 26 | 1004750-35 | 1 | SCREW | 3,78 Lei | |
| 27 | 1004750-63 | 1 | COVER | 4,31 Lei | |
| 28 | 1004750-64 | 1 | LED | 43,16 Lei | |
| 29 | 1004750-65 | 1 | LAMP | 3,78 Lei | |
| 30 | 1004750-66 | 1 | COVER | 3,78 Lei | |
| 31 | 1004750-05 | 1 | LOCK PIN | 12,5 Lei | |
| 32 | 1004750-36 | 1 | CIRCLIP | 3,78 Lei | |
| 33 | 1004749-98 | 1 | SPRING | 3,78 Lei | |
| 34 | 1004749-87 | 1 | HOLDER | 3,78 Lei | |
| 35 | 1004749-76 | 1 | GUARD UPPER | 139,97 Lei | |
| 36 | 1004750-24 | 1 | LABEL | 5,15 Lei | |
| 37 | 1004750-02 | 1 | BEARING NEEDLE | 12,5 Lei | |
| 38 | 1004754-54 | 1 | CIRCLIP | 4,57 Lei | |
| 39 | 1004754-55 | 1 | Gear | 41,93 Lei | |
| 40 | 1004754-56 | 1 | WHEEL LOCK | 15,12 Lei | |
| 41 | 1004754-57 | 1 | SCREW | 4,57 Lei | |
| 42 | 1004754-58 | 1 | BEARING | 17,02 Lei | |
| 43 | 1004754-59 | 1 | SLEEVE | 10,29 Lei | |
| 47 | 1004750-67 | 1 | WASHER | 3,78 Lei | |
| 48 | 5140228-72 | 1 | INNER FLANGE | 10,5 Lei | |
| 50 | 5140228-73 | 1 | OUTER FLANGE | 10,5 Lei | |
| 51 | 5140228-74 | 1 | BLADE BOLT | 10,5 Lei | |
| 52 | 1004750-68 | 1 | BOLT | 3,78 Lei | |
| 53 | 1004750-69 | 1 | COVER | 12,5 Lei | |
| 54 | 1004750-70 | 1 | SCREW | 3,78 Lei | |
| 55 | 1004750-71 | 1 | SCREW | 3,78 Lei | |
| 56 | 1004750-72 | 1 | WASHER SPRING | 3,78 Lei | |
| 57 | 1004750-73 | 1 | WASHER | 3,78 Lei | |
| 58 | 1004750-74 | 1 | WHEEL | 5,15 Lei | |
| 59 | 1004750-75 | 1 | GUARD | 58,17 Lei | |
| 60 | 1004750-76 | 1 | SPRING | 6,09 Lei | |
| 61 | 1004750-77 | 1 | GUARD PLATE | 16,49 Lei | |
| 62 | 1004750-31 | 3 | LOCK NUT | 4,57 Lei | |
| 63 | 1004750-40 | 1 | SCREW | 4,57 Lei | |
| 64 | 1004750-11 | 1 | LINK | 21,85 Lei | |
| 65 | 1004749-80 | 1 | BRACKET | 130,52 Lei | |
| 66 | 1004750-53 | 4 | WASHER | 3,78 Lei | |
| 67 | 1004750-54 | 4 | WASHER SPRING | 3,78 Lei | |
| 68 | 1004750-41 | 4 | SCREW | 7,14 Lei | |
| 69 | 1004750-55 | 1 | SCREW | 5,21 Lei | |
| 70 | 1004750-42 | 1 | INSERT | 5,15 Lei | |
| 71 | 1004750-14 | 2 | WASHER | 11,45 Lei | |
| 72 | 1004749-96 | 1 | SLEEVE | 3,78 Lei | |
| 73 | 1004750-06 | 1 | PIVOT SHAFT | 18,06 Lei | |
| 74 | 1004749-99 | 1 | SPRING TORSION | 34,65 Lei | |
| 75 | 1004750-45 | 1 | CIRCLIP | 3,78 Lei | |
| 76 | 1004750-07 | 1 | PIN | 14,07 Lei | |
| 77 | 1004749-95 | 2 | RING | 4,31 Lei | |
| 78 | 1004750-81 | 3 | SCREW | 3,78 Lei | |
| 82 | 1004750-20 | 1 | BEVEL SCALE | 5,15 Lei | |
| 84 | 1004750-78 | 1 | WASHER | 4,57 Lei | |
| 85 | 1004750-79 | 1 | SPRING | 3,78 Lei | |
| 86 | 1004750-80 | 1 | LOCK KNOB | 5,15 Lei | |
| 88 | 1004750-82 | 1 | LOCK | 18,06 Lei | |
| 89 | 1004750-83 | 1 | WING NUT | 16,49 Lei | |
| 90 | 5140228-80 | 1 | WASHER | 3,78 Lei | |
| 91 | 1004750-18 | 1 | HOOK | 11,45 Lei | |
| 92 | 1004749-90 | 1 | END CAP | 11,45 Lei | |
| 93 | 1004750-04 | 1 | BAR | 176,19 Lei | |
| 94 | 1004750-30 | 1 | LOCK NUT | 4,31 Lei | |
| 95 | 1004750-43 | 2 | WASHER | 3,78 Lei | |
| 96 | 1004750-48 | 1 | WASHER | 3,78 Lei | |
| 97 | 1004750-08 | 1 | SHAFT | 21,11 Lei | |
| 98 | 1004750-13 | 1 | WASHER | 11,45 Lei | |
| 99 | 1004750-56 | 2 | BOLT | 3,78 Lei | |
| 100 | 1004750-57 | 2 | NUT | 3,78 Lei | |
| 101 | 1004749-93 | 1 | BEVEL SCALE | 5,15 Lei | |
| 102 | 1004750-44 | 1 | BOLT | 5,15 Lei | |
| 103 | 1004750-16 | 2 | WASHER | 14,07 Lei | |
| 104 | 1004750-12 | 1 | PLATE LOCK | 6,09 Lei | |
| 105 | 1004750-10 | 1 | SUPPORT | 18,06 Lei | |
| 106 | 1004749-77 | 1 | TABLE TURN | 161,18 Lei | |
| 107 | 1004750-21 | 1 | WARNING LABEL | 8,51 Lei | |
| 108 | 1004750-22 | 1 | WARNING LABEL | 8,51 Lei | |
| 109 | 1004749-73 | 1 | PLATE | 16,49 Lei | |
| 110 | 1004749-92 | 1 | INDICATOR | 5,15 Lei | |
| 111 | 1004750-89 | 1 | END CAP | 3,78 Lei | |
| 114 | 1004750-00 | 1 | SPRING | 4,57 Lei | |
| 115 | 1004750-58 | 1 | SCREW | 4,57 Lei | |
| 116 | 1004750-01 | 1 | SPRING | 4,57 Lei | |
| 117 | 1004749-91 | 1 | LEVER RELEASE | 15,12 Lei | |
| 118 | 5140228-82 | 1 | KEY | 10,5 Lei | |
| 119 | 5140228-83 | 1 | HOLDER,RUBBER | 5,15 Lei | |
| 120 | 1004749-78 | 1 | BASE | 263,03 Lei | |
| 121 | 5140228-84 | 4 | FEET | 5,15 Lei | |
| 122 | 1004750-19 | 1 | SCALE | 11,45 Lei | |
| 123 | 1004750-29 | 1 | LOCK NUT | 3,78 Lei | |
| 124 | 1004750-15 | 2 | GLIDE STRIP | 21,11 Lei | |
| 125 | 1004750-37 | 1 | NUT | 3,78 Lei | |
| 126 | 1004750-38 | 4 | SCREW | 16,49 Lei | |
| 127 | 1004750-51 | 4 | WASHER SPRING | 3,78 Lei | |
| 128 | 1004750-52 | 4 | WASHER | 3,78 Lei | |
| 129 | 1004750-39 | 2 | SCREW | 3,78 Lei | |
| 130 | 1004750-84 | 1 | KNOB | 14,07 Lei | |
| 131 | 1004749-74 | 1 | TIP | 10,5 Lei | |
| 132 | 1004749-75 | 1 | FENCE | 181,55 Lei | |
| 133 | 1004750-88 | 1 | CLAMPS | 16,49 Lei | |
| 134 | 1004750-87 | 1 | ARM | 5,15 Lei | |
| 135 | 1004750-85 | 1 | KNOB | 6,09 Lei | |
| 136 | 1004750-86 | 1 | SHAFT | 14,07 Lei | |
| 137 | 1004750-46 | 4 | SCREW | 3,78 Lei | |
| 138 | 1004750-47 | 2 | SCREW | 3,78 Lei | |
| 139 | 1004749-97 | 1 | PAD | 7,14 Lei | |
| 800 | 5140228-75 | 1 | LOWER GUARD SA | 119,91 Lei | |
| 801 | 5140228-76 | 1 | LOCKING KNOB | 31,19 Lei | |
| 802 | 5140228-77 | 1 | CLAMP SA | 43,16 Lei | |
| 803 | 5140228-78 | 1 | KNOB | 6,09 Lei | |
| 804 | 5140228-79 | 1 | LOCK KNOB | 31,19 Lei | |
| 805 | 1004749-70 | 1 | LED KIT | 47,78 Lei | |
| 806 | 1004749-69 | 1 | SWITCH SA | 358,05 Lei | |
| 807 | 1004749-72 | 1 | OUTPUT SHAFT SA | 99,86 Lei | |
| 808 | 1004750-92 | 1 | ROLLER HEAD SA | 570,96 Lei |
