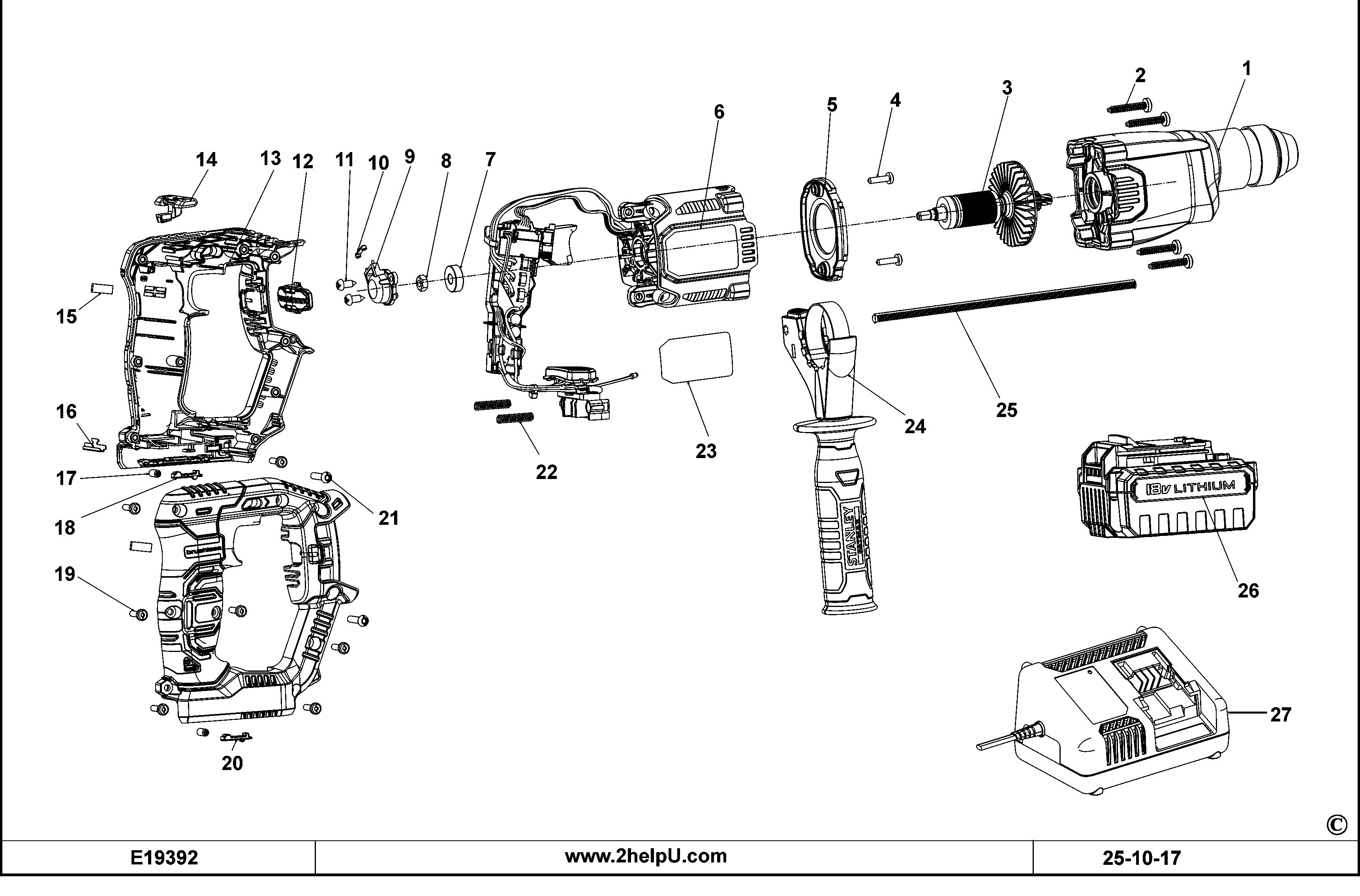

STANLEY HAMMER (Type 1)
SKU Produs: FMC900M2T /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N510830 | 1 | GEARCASE | 472,24 Lei | |
| 2 | 330065-13 | 4 | SCREW PLASTIC 4 X 30FORM 4X 30 | 4,57 Lei | |
| 3 | N566480 | 1 | ARMATURE SA | 145,09 Lei | |
| 4 | 330065-07 | 2 | SCREW | 4,57 Lei | |
| 5 | N498027 | 1 | BAFFLE | 7,37 Lei | |
| 6 | N547851 | 1 | MODULE | 543 Lei | |
| 7 | 1005895-00 | 1 | CE BEARING | 12,71 Lei | |
| 8 | N467767 | 1 | NUT HEX M6 LH | 4,57 Lei | |
| 9 | N467131 | 1 | HU BEARING CAP | 4,57 Lei | |
| 10 | N261987 | 1 | CAP | 4,57 Lei | |
| 11 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 12 | N519419 | 1 | INSERT | 5,21 Lei | |
| 13 | N494962 | 1 | HOUSING HANDLE | 80,04 Lei | |
| 14 | N496122 | 1 | SWITCH | 4,7 Lei | |
| 15 | N328740 | 2 | RUBBER FOR MODULE HEAT SINK | 4,57 Lei | |
| 16 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 17 | N487311 | 2 | RUBBER PIN | 4,57 Lei | |
| 18 | N517456 | 1 | RAIL | 4,57 Lei | |
| 19 | 330065-07 | 7 | SCREW | 4,57 Lei | |
| 20 | N517458 | 1 | COVER | 4,57 Lei | |
| 21 | 330065-09 | 2 | SCREW PLSTC THD FORM M4X25 T20 | 4,57 Lei | |
| 22 | 90516498 | 2 | SPRING | 4,57 Lei | |
| 23 | N608423 | 1 | RATING LABEL | 4,57 Lei | |
| 24 | N510476 | 1 | HANDLE SIDE SA | 41,93 Lei | |
| 25 | N510648 | 1 | STOP | 5,21 Lei |
