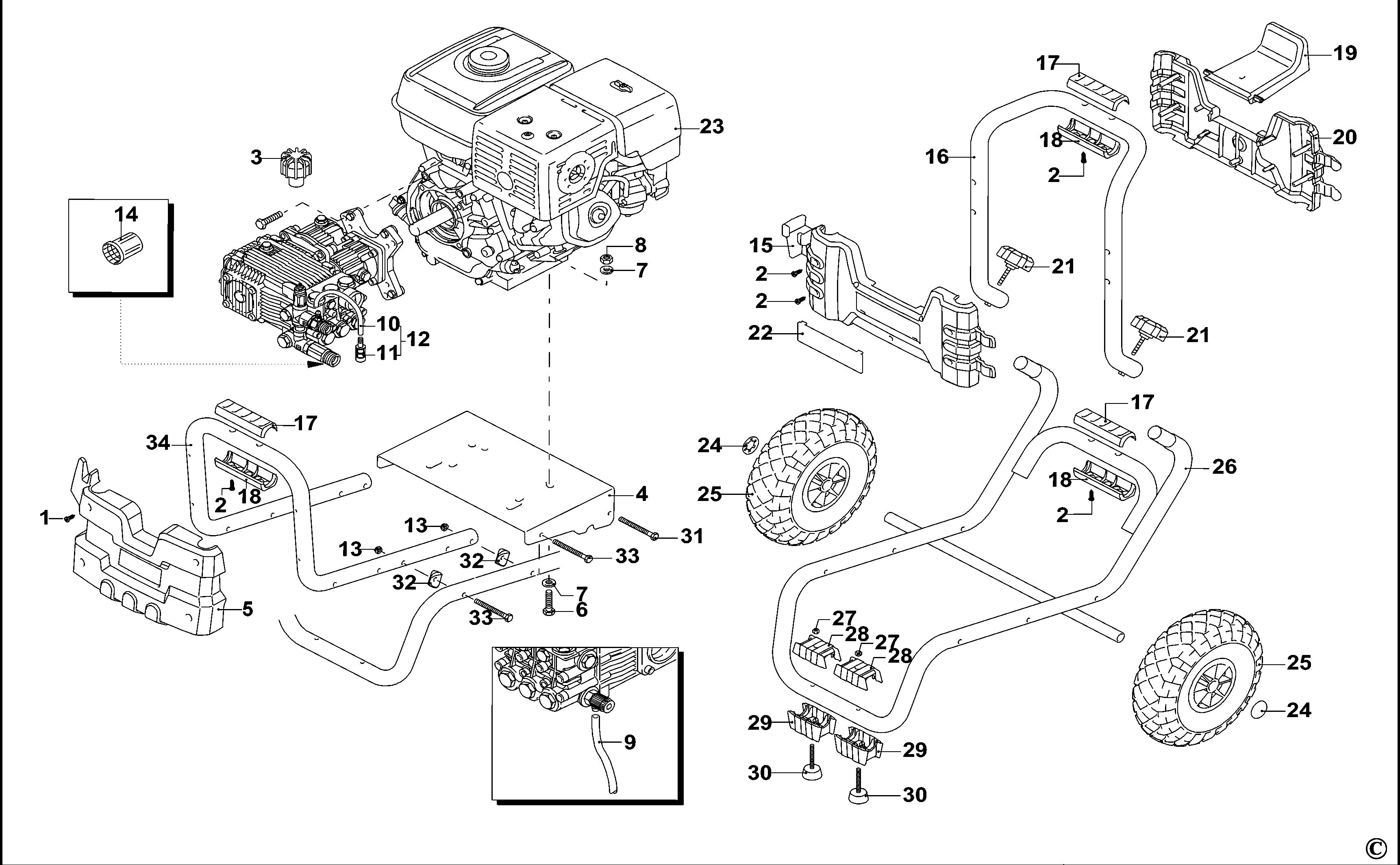

DEWALT PRESSURE WASHER (Type 1)
SKU Produs: DXPW010E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004712-12 | 4 | SCREW | 5,21 Lei | |
| 2 | 1004712-13 | 13 | SCREW | 5,21 Lei | |
| 3 | 1004712-40 | 1 | KNOB | 25,54 Lei | |
| 4 | 1004713-86 | 1 | SUPPORT | 252,58 Lei | |
| 5 | 1004713-78 | 1 | GUARD | 130,35 Lei | |
| 6 | 1004709-62 | 4 | SCREW | 5,21 Lei | |
| 7 | 1004709-65 | 8 | WASHER | 5,21 Lei | |
| 8 | 1004712-19 | 4 | NUT | 8,64 Lei | |
| 9 | 1004712-15 | 1 | HOSE | 5,21 Lei | |
| 10 | 1004710-70 | 1 | HOSE | 19,95 Lei | |
| 11 | 1004710-89 | 1 | FILTER | 70,39 Lei | |
| 12 | 1004710-68 | 1 | HOSE SA | 52,22 Lei | |
| 13 | 1004712-94 | 1 | NUT | 5,21 Lei | |
| 14 | 1004710-83 | 1 | FILTER | 10,29 Lei | |
| 15 | 1004713-77 | 1 | GUARD | 130,35 Lei | |
| 16 | 1004713-75 | 1 | HANDLE | 264,01 Lei | |
| 17 | 1004713-64 | 3 | GUARD | 21,85 Lei | |
| 18 | 1004713-65 | 3 | GUARD | 21,85 Lei | |
| 19 | 1004713-85 | 1 | CARRIER | 70,39 Lei | |
| 20 | 1004713-76 | 1 | GUARD | 120,82 Lei | |
| 21 | 1004714-12 | 2 | KNOB | 70,39 Lei | |
| 22 | 1004714-01 | 1 | GUARD | 70,39 Lei | |
| 23 | 1004709-01 | 1 | MOTOR SA | 4617,12 Lei | |
| 24 | 1004709-52 | 2 | CAP | 30,87 Lei | |
| 25 | 1004713-89 | 2 | WHEEL | 375,31 Lei | |
| 26 | 1004713-87 | 1 | FRAME | 667,9 Lei | |
| 27 | 1004710-34 | 2 | NUT | 5,21 Lei | |
| 28 | 1004713-80 | 2 | GUARD | 34,05 Lei | |
| 29 | 1004713-79 | 2 | GUARD | 41,93 Lei | |
| 30 | 1004713-81 | 2 | DAMPER | 106,98 Lei | |
| 31 | 1004709-68 | 2 | SCREW | 6,23 Lei | |
| 32 | 1004713-90 | 4 | SPACER | 19,95 Lei | |
| 33 | 1004709-66 | 4 | SCREW | 10,29 Lei | |
| 34 | 1004713-88 | 1 | FRAME | 213,19 Lei | |
| 35 | 1004710-22 | 6 | O RING | 5,21 Lei | |
| 36 | 1004710-24 | 6 | PLUG | 80,04 Lei | |
| 37 | 1004710-19 | 6 | VALVE | 30,87 Lei | |
| 38 | 1004710-15 | 6 | O RING | 5,21 Lei | |
| 39 | 1004710-14 | 1 | PLUG | 17,02 Lei | |
| 40 | 1004710-05 | 1 | O RING | 5,21 Lei | |
| 41 | 1004710-21 | 3 | RING | 13,85 Lei | |
| 42 | 1004711-38 | 3 | SEAL | 106,98 Lei | |
| 43 | 1004711-25 | 3 | GUIDE | 52,22 Lei | |
| 44 | 1004710-25 | 3 | O RING | 30,87 Lei | |
| 45 | 1004710-13 | 3 | SEAL | 52,22 Lei | |
| 46 | 1004711-42 | 3 | RING | 37,73 Lei | |
| 47 | 1004710-06 | 8 | SCREW | 5,21 Lei | |
| 48 | 1004711-23 | 1 | SUPPORT | 88,55 Lei | |
| 49 | 1004709-84 | 2 | O RING | 5,21 Lei | |
| 50 | 1004712-28 | 1 | BEARING | 130,35 Lei | |
| 51 | 1004711-39 | 1 | PUMP SA | 750,36 Lei | |
| 52 | 1004710-10 | 1 | PLUG | 34,05 Lei | |
| 53 | 1004710-32 | 3 | NUT | 10,29 Lei | |
| 54 | 1004710-31 | 3 | WASHER | 5,21 Lei | |
| 55 | 1004711-31 | 3 | PISTON | 157,92 Lei | |
| 56 | 1004711-32 | 3 | PLATE | 5,21 Lei | |
| 57 | 1004709-81 | 3 | O RING | 5,21 Lei | |
| 58 | 1004711-30 | 3 | PISTON | 130,35 Lei | |
| 59 | 1004711-24 | 3 | PIN | 12,71 Lei | |
| 60 | 1004711-41 | 3 | CON ROD | 157,92 Lei | |
| 61 | 1004710-41 | 3 | RING | 5,21 Lei | |
| 62 | 1004711-35 | 8 | WASHER | 5,21 Lei | |
| 63 | 1004711-82 | 1 | O RING | 6,23 Lei | |
| 64 | 1004711-85 | 1 | COVER | 145,09 Lei | |
| 65 | 1004710-97 | 6 | SCREW | 5,21 Lei | |
| 66 | 1004712-27 | 1 | CRANKSHAFT | 570,96 Lei | |
| 67 | 1004711-28 | 1 | KEY | 5,21 Lei | |
| 68 | 1004709-61 | 1 | RING | 34,05 Lei | |
| 69 | 1004711-26 | 1 | SHIM | 15,12 Lei | |
| 69 | 1004711-27 | 1 | SHIM | 5,21 Lei | |
| 69 | 1004711-29 | 1 | SHIM | 10,29 Lei | |
| 69 | 1004711-40 | 1 | SHIM | 5,21 Lei | |
| 70 | 1004711-22 | 1 | SUPPORT | 96,56 Lei | |
| 71 | 1004709-90 | 3 | O RING | 5,21 Lei | |
| 72 | 1004711-91 | 2 | PLUG | 15,12 Lei | |
| 73 | 1004713-98 | 1 | COUPLING | 52,22 Lei | |
| 74 | 1004709-60 | 1 | O RING | 5,21 Lei | |
| 75 | 1004712-29 | 1 | HEAD SA | 1262,37 Lei | |
| 76 | 1004710-02 | 8 | SCREW | 6,23 Lei | |
| 77 | 1004711-43 | 1 | BEARING | 80,04 Lei | |
| 78 | 1004712-30 | 1 | HEAD SA | 2561,46 Lei | |
| 79 | 1004711-34 | 1 | PRESSURE GAUGE | 200,99 Lei | |
| 80 | 1004709-53 | 1 | VALVE | 252,58 Lei | |
| 81 | 1004709-11 | 1 | PUMP SA | 1783,53 Lei | |
| 82 | 1004709-55 | 1 | VALVE | 307,21 Lei | |
| 83 | 1004708-95 | 1 | VALVE KIT | 106,98 Lei | |
| 84 | 1004708-94 | 1 | PISTON KIT | 1472,26 Lei | |
| 85 | 1004708-83 | 1 | SEALS KIT | 200,99 Lei | |
| 86 | 1004708-84 | 1 | SEALS KIT | 361,33 Lei | |
| 87 | 1004708-82 | 1 | RING SA | 41,93 Lei | |
| 89 | 1004710-23 | 1 | KEY | 10,29 Lei | |
| 90 | 1004710-29 | 1 | RING | 41,93 Lei | |
| 91 | 1004710-28 | 1 | CIRCLIP | 12,71 Lei | |
| 92 | 1004709-64 | 1 | RING | 7,37 Lei | |
| 93 | 1004710-27 | 1 | BEARING | 120,82 Lei | |
| 94 | 1004711-37 | 1 | SEAL | 30,87 Lei | |
| 95 | 1004711-36 | 1 | PINION | 570,96 Lei | |
| 96 | 1004710-46 | 1 | PLUG | 34,05 Lei | |
| 97 | 1004710-74 | 1 | GEARBOX | 289,04 Lei | |
| 98 | 1004710-18 | 4 | SCREW | 19,95 Lei | |
| 99 | 1004711-88 | 1 | GAUGE | 21,85 Lei | |
| 100 | 1004709-90 | 2 | O RING | 5,21 Lei | |
| 101 | 1004711-91 | 2 | PLUG | 15,12 Lei | |
| 102 | 1004709-58 | 4 | SCREW | 7,37 Lei | |
| 103 | 1004710-12 | 1 | SCREW | 5,21 Lei | |
| 104 | 1004711-59 | 1 | O RING | 5,21 Lei | |
| 105 | 1004709-95 | 1 | WASHER | 7,37 Lei | |
| 106 | 1004710-78 | 1 | Gear | 713,77 Lei | |
| 107 | 1004710-75 | 1 | FLANGE | 213,19 Lei | |
| 108 | 1004709-84 | 1 | O RING | 5,21 Lei | |
| 109 | 1004709-72 | 4 | SCREW | 6,23 Lei | |
| 110 | 1004710-52 | 4 | WASHER | 5,21 Lei | |
| 111 | 1004710-76 | 1 | FLANGE | 195,02 Lei | |
| 112 | 1004710-26 | 4 | SPACER | 17,02 Lei | |
| 113 | 1004710-30 | 4 | SCREW | 7,37 Lei | |
| 114 | 1004708-79 | 1 | GEARBOX SA | 2055,16 Lei | |
| 115 | 1004708-89 | 1 | SEALS KIT | 80,04 Lei | |
| 116 | 1004709-10 | 1 | VALVE | 850,09 Lei | |
| 117 | 1004712-72 | 1 | SCREW | 5,21 Lei | |
| 118 | 1004710-34 | 1 | NUT | 5,21 Lei | |
| 119 | 1004713-51 | 1 | PLUG | 70,39 Lei | |
| 120 | 1004712-45 | 1 | INSERT | 96,56 Lei | |
| 121 | 1004712-46 | 1 | PIN | 5,21 Lei | |
| 122 | 1004711-87 | 2 | PLATE | 5,21 Lei | |
| 123 | 1004712-59 | 1 | SPRING | 19,95 Lei | |
| 124 | 1004712-58 | 1 | PISTON | 70,39 Lei | |
| 125 | 1004712-21 | 1 | O RING | 7,37 Lei | |
| 126 | 1004709-88 | 1 | O RING | 5,21 Lei | |
| 127 | 1004712-52 | 1 | RING | 10,29 Lei | |
| 128 | 1004712-60 | 1 | GUIDE | 120,82 Lei | |
| 129 | 1004710-49 | 1 | O RING | 5,21 Lei | |
| 130 | 1004709-75 | 5 | O RING | 5,21 Lei | |
| 131 | 1004712-20 | 1 | SHUTTER | 96,56 Lei | |
| 132 | 1004712-62 | 1 | SEAT | 52,22 Lei | |
| 133 | 1004709-91 | 1 | O RING | 5,21 Lei | |
| 134 | 1004712-61 | 1 | RING | 7,37 Lei | |
| 135 | 1004709-69 | 2 | O RING | 5,21 Lei | |
| 136 | 1004711-61 | 1 | SCREW | 7,37 Lei | |
| 137 | 1004711-96 | 1 | COUPLING | 12,71 Lei | |
| 138 | 1004709-78 | 1 | O RING | 5,21 Lei | |
| 139 | 1004710-50 | 1 | BALL | 5,21 Lei | |
| 140 | 1004711-70 | 1 | SPRING | 5,21 Lei | |
| 141 | 1004712-22 | 1 | O RING | 5,21 Lei | |
| 142 | 1004713-47 | 1 | VALVE BODY | 252,58 Lei | |
| 143 | 1004709-81 | 1 | O RING | 5,21 Lei | |
| 144 | 1004711-65 | 1 | O RING | 5,21 Lei | |
| 145 | 1004713-48 | 1 | BODY | 106,98 Lei | |
| 146 | 1004710-11 | 1 | O RING | 5,21 Lei | |
| 147 | 1004712-23 | 1 | SCREW | 37,73 Lei | |
| 148 | 1004712-14 | 1 | O RING | 5,21 Lei | |
| 149 | 1004712-50 | 1 | SHUTTER | 88,55 Lei | |
| 150 | 1004712-51 | 1 | SPRING | 5,21 Lei | |
| 151 | 1004712-49 | 1 | INSERT | 19,95 Lei | |
| 152 | 1004711-57 | 1 | O RING | 5,21 Lei | |
| 153 | 1004712-56 | 1 | O RING | 5,21 Lei | |
| 154 | 1004712-54 | 1 | COUPLING | 70,39 Lei | |
| 155 | 1004709-77 | 1 | O RING | 5,21 Lei | |
| 156 | 1004713-46 | 1 | COUPLING | 120,82 Lei | |
| 157 | 1004710-45 | 1 | COUPLING | 34,05 Lei | |
| 158 | 1004709-40 | 1 | GASKET SET | 106,98 Lei | |
| 159 | 1004709-17 | 1 | HANDLE SA | 331,47 Lei | |
| 160 | 1004772-35 | 1 | EXTENSION | 225,26 Lei | |
| 161 | 1004712-02 | 2 | O RING | 10,29 Lei | |
| 162 | 1004714-11 | 1 | HOSE | 980,83 Lei | |
| 163 | 1004709-73 | 1 | O RING | 5,21 Lei | |
| 164 | 1004708-96 | 1 | NOZZLE | 145,09 Lei | |
| 305 | 1004719-43 | 1 | EXTENSION | 530,69 Lei | |
| 307 | 1004719-45 | 1 | EXTENSION | 819,98 Lei | |
| 308 | 1004719-46 | 1 | EXTENSION | 375,31 Lei | |
| 311 | 1004719-49 | 1 | EXTENSION | 1158,31 Lei | |
| 312 | 1004719-50 | 1 | NOZZLE | 145,09 Lei | |
| 315 | 1004719-53 | 1 | NOZZLE | 120,82 Lei | |
| 319 | 1004719-57 | 1 | BRUSH | 667,9 Lei | |
| 323 | 1004719-61 | 1 | HOSE | 289,04 Lei | |
| 325 | 1004719-63 | 1 | COUPLING | 289,04 Lei | |
| 326 | 1004719-64 | 1 | COUPLING | 613,14 Lei | |
| 327 | 1004719-65 | 1 | EXTENSION | 157,92 Lei | |
| 328 | 1004719-66 | 1 | EXTENSION | 195,02 Lei | |
| 329 | 1004719-67 | 1 | EXTENSION | 307,21 Lei | |
| 330 | 1004719-68 | 1 | EXTENSION | 252,58 Lei | |
| 331 | 1004719-69 | 1 | EXTENSION | 289,04 Lei | |
| 332 | 1004719-70 | 1 | HANDLE SA | 1737,66 Lei | |
| 334 | 1004719-72 | 1 | HOSE | 1472,26 Lei |
