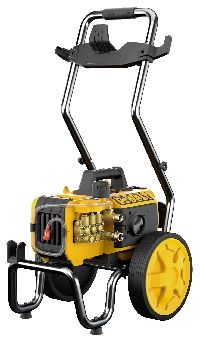

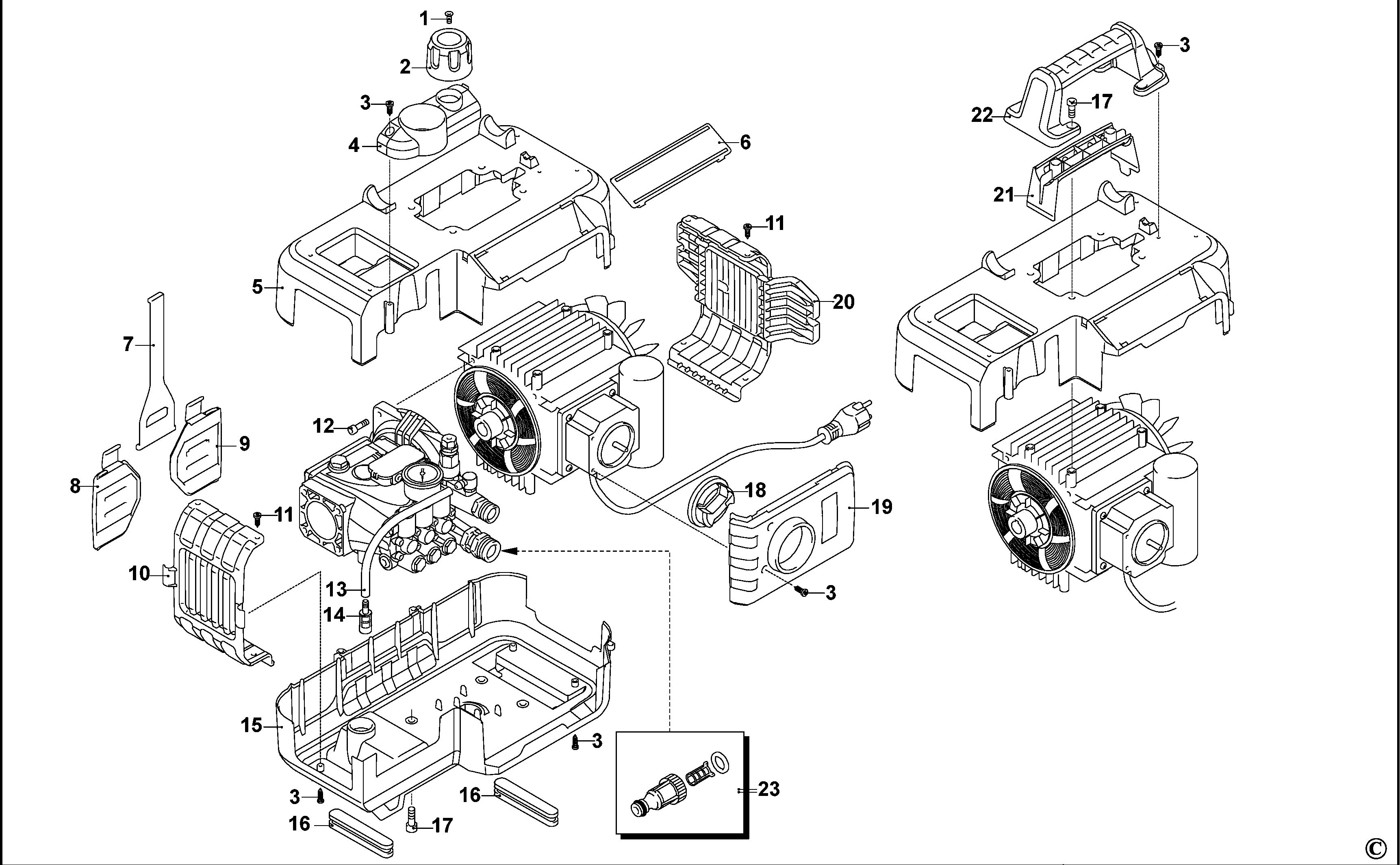

DEWALT PRESSURE WASHER (Type 1)
SKU Produs: DXPW003CE /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004743-72 | 1 | SCREW | 5,21 Lei | |
| 2 | 1004743-85 | 1 | KNOB | 34,05 Lei | |
| 3 | 1004712-13 | 11 | SCREW | 5,21 Lei | |
| 4 | 1004743-86 | 1 | GUARD | 52,22 Lei | |
| 5 | 1004743-75 | 1 | COVER-TOP | 145,09 Lei | |
| 6 | 1004714-01 | 1 | GUARD | 70,39 Lei | |
| 7 | 1004743-84 | 1 | CLAMP | 52,22 Lei | |
| 8 | 1004743-77 | 1 | SUPPORT | 37,73 Lei | |
| 9 | 1004743-83 | 1 | SUPPORT | 37,73 Lei | |
| 10 | 1004743-81 | 1 | GUARD | 70,39 Lei | |
| 11 | 1004714-17 | 4 | SCREW | 5,21 Lei | |
| 12 | 1004710-60 | 4 | SCREW | 5,21 Lei | |
| 13 | 1004710-70 | 1 | HOSE | 19,95 Lei | |
| 14 | 1004710-89 | 1 | FILTER | 70,39 Lei | |
| 15 | 1004743-76 | 1 | BASE SA | 145,09 Lei | |
| 16 | 1004714-16 | 2 | FOOT | 37,73 Lei | |
| 17 | 1004712-24 | 1 | SPRING | 5,21 Lei | |
| 18 | 1004713-73 | 1 | KNOB | 30,87 Lei | |
| 19 | 1004743-78 | 1 | GUARD | 57,81 Lei | |
| 20 | 1004743-82 | 1 | GUARD | 70,39 Lei | |
| 21 | 1004743-80 | 1 | GUARD | 52,22 Lei | |
| 22 | 1004743-79 | 1 | HANDLE | 57,81 Lei | |
| 23 | 1004700-77 | 1 | COUPLING SA | 34,8 Lei | |
| 24 | 41851 | 1 | PRESSURE GAUGE | 145,09 Lei | |
| 25 | 1004744-22 | 1 | PLUG | 195,02 Lei | |
| 26 | 1004743-73 | 1 | SCREW | 30,87 Lei | |
| 27 | 1004711-87 | 1 | PLATE | 5,21 Lei | |
| 28 | 1004744-07 | 1 | SPRING | 7,37 Lei | |
| 29 | 1004743-98 | 1 | PISTON | 41,93 Lei | |
| 30 | 1004712-21 | 1 | O RING | 7,37 Lei | |
| 31 | 1004709-88 | 1 | O RING | 5,21 Lei | |
| 32 | 1004712-52 | 1 | RING | 10,29 Lei | |
| 33 | 1004743-74 | 1 | GUIDE | 120,82 Lei | |
| 34 | 1004709-00 | 1 | PRESSURE GAUGE | 120,82 Lei | |
| 35 | 1004710-05 | 1 | O RING | 5,21 Lei | |
| 36 | 1004743-70 | 1 | PISTON | 34,05 Lei | |
| 37 | 1004744-35 | 1 | SEAT | 15,12 Lei | |
| 38 | 1004711-57 | 2 | O RING | 5,21 Lei | |
| 39 | 1004712-33 | 1 | CONNECTOR | 8,64 Lei | |
| 40 | 1004709-78 | 1 | O RING | 5,21 Lei | |
| 41 | 1004710-50 | 1 | BALL | 5,21 Lei | |
| 42 | 1004711-70 | 1 | SPRING | 5,21 Lei | |
| 43 | 1004743-66 | 1 | COUPLING | 120,82 Lei | |
| 44 | 1004712-56 | 1 | O RING | 5,21 Lei | |
| 45 | 1004709-75 | 1 | O RING | 5,21 Lei | |
| 46 | 1004712-55 | 1 | INSERT | 41,93 Lei | |
| 47 | 1004712-51 | 1 | SPRING | 5,21 Lei | |
| 48 | 1004744-23 | 1 | SHUTTER | 70,39 Lei | |
| 49 | 1004712-14 | 1 | O RING | 5,21 Lei | |
| 50 | 1004711-14 | 8 | SCREW | 5,21 Lei | |
| 51 | 1004743-96 | 8 | WASHER | 5,21 Lei | |
| 52 | 1004743-88 | 1 | HEAD | 667,9 Lei | |
| 53 | 1004744-30 | 1 | NUT | 30,87 Lei | |
| 54 | 1004743-71 | 1 | SCREW | 5,21 Lei | |
| 55 | 1004712-46 | 1 | PIN | 5,21 Lei | |
| 56 | 1004744-34 | 2 | PLUG | 19,95 Lei | |
| 57 | 1004712-65 | 6 | PLUG | 21,85 Lei | |
| 58 | 2849051 | 1 | VALVE | 80,04 Lei | |
| 59 | 2841520 | 6 | O RING | 5,21 Lei | |
| 60 | 1004712-18 | 6 | SEAL | 7,37 Lei | |
| 61 | 1004710-12 | 4 | SCREW | 5,21 Lei | |
| 62 | 1004712-69 | 3 | BUSHING | 41,93 Lei | |
| 63 | 1004709-93 | 3 | O RING | 5,21 Lei | |
| 64 | 1004743-67 | 3 | BUSH | 5,21 Lei | |
| 65 | 1004744-43 | 3 | O RING | 5,21 Lei | |
| 66 | 1004743-68 | 1 | PLUG | 37,73 Lei | |
| 67 | 1004711-74 | 3 | SEAL | 8,64 Lei | |
| 68 | 1004743-87 | 1 | PUMP SA | 331,47 Lei | |
| 69 | 1004743-97 | 1 | COVER | 30,87 Lei | |
| 70 | 1004744-04 | 2 | RING | 5,21 Lei | |
| 71 | 1004744-06 | 1 | COUPLING | 88,55 Lei | |
| 72 | 1004743-95 | 1 | BEARING | 70,39 Lei | |
| 73 | 4140210 | 1 | PLUG | 37,73 Lei | |
| 74 | 1004743-90 | 3 | PISTON | 130,35 Lei | |
| 75 | 1004743-91 | 3 | PIN | 6,23 Lei | |
| 76 | 1004743-92 | 3 | CON ROD | 88,55 Lei | |
| 77 | 1004743-93 | 1 | O RING | 6,23 Lei | |
| 78 | 1004744-01 | 4 | SCREW | 5,21 Lei | |
| 79 | 1004743-89 | 1 | COVER | 70,39 Lei | |
| 80 | 1004744-02 | 1 | SHAFT SA | 331,47 Lei | |
| 81 | 1004743-94 | 1 | BEARING | 70,39 Lei | |
| 82 | 1004743-99 | 1 | RING | 52,22 Lei | |
| 83 | 1004744-00 | 1 | SEAL | 34,05 Lei | |
| 84 | 1004711-28 | 1 | KEY | 5,21 Lei | |
| 85 | 46066 | 1 | HEAD SA | 1262,37 Lei | |
| 86 | 1004710-44 | 1 | O RING | 5,21 Lei | |
| 87 | 1004709-81 | 1 | O RING | 5,21 Lei | |
| 88 | 1004744-08 | 1 | PLUG | 37,73 Lei | |
| 89 | 1004743-68 | 1 | PLUG | 37,73 Lei | |
| 90 | 1004744-05 | 1 | PIN | 30,87 Lei | |
| 91 | 1004712-06 | 1 | WASHER | 5,21 Lei | |
| 92 | 1004710-62 | 1 | O RING | 5,21 Lei | |
| 93 | 1004713-50 | 1 | RING | 21,85 Lei | |
| 94 | 1004709-79 | 1 | O RING | 5,21 Lei | |
| 95 | 1004711-02 | 1 | CONNECTOR | 70,39 Lei | |
| 96 | 1004743-57 | 1 | PUMP SA | 1850,48 Lei | |
| 97 | 1004743-69 | 1 | FLANGE | 157,92 Lei | |
| 98 | 1004712-24 | 1 | SPRING | 5,21 Lei | |
| 99 | 1004744-27 | 1 | VALVES AND SEALS KIT | 52,22 Lei | |
| 100 | 1004744-15 | 1 | PISTON KIT | 331,47 Lei | |
| 101 | 1004743-59 | 1 | SEALS KIT | 70,39 Lei | |
| 102 | 1004744-26 | 1 | SEALS KIT | 52,22 Lei | |
| 103 | 1004744-28 | 1 | GASKET SET | 37,73 Lei | |
| 104 | 1004710-55 | 1 | FAN | 34,05 Lei | |
| 105 | 1004710-85 | 1 | SEAL | 17,02 Lei | |
| 106 | 1004711-14 | 4 | SCREW | 5,21 Lei | |
| 107 | 1004711-12 | 1 | SHIELD | 106,98 Lei | |
| 108 | 1004710-84 | 1 | BEARING | 37,73 Lei | |
| 109 | 1004710-67 | 1 | CLAMP | 57,81 Lei | |
| 110 | 1004710-86 | 1 | GASKET | 12,71 Lei | |
| 111 | 1004712-01 | 2 | SCREW | 5,21 Lei | |
| 112 | 1004712-80 | 1 | SWITCH | 68,7 Lei | |
| 113 | 1004713-52 | 1 | BOX | 34,05 Lei | |
| 114 | 1004710-64 | 4 | SCREW | 5,21 Lei | |
| 115 | 1004711-95 | 1 | CAPACITOR | 120,82 Lei | |
| 116 | 1004711-97 | 1 | CLAMP | 10,29 Lei | |
| 117 | 1004712-04 | 2 | GLAND | 17,02 Lei | |
| 118 | 1004743-65 | 1 | BOX | 145,09 Lei | |
| 119 | 1004744-38 | 1 | FORK | 5,21 Lei | |
| 120 | 1004714-18 | 1 | CORDSET | 145,09 Lei | |
| 121 | 1004743-64 | 1 | MOTOR SA | 2561,46 Lei | |
| 122 | 1004711-55 | 1 | GLAND | 5,21 Lei | |
| 123 | 1004709-16 | 1 | HANDLE SA | 225,26 Lei | |
| 124 | 1004743-62 | 1 | NOZZLE | 200,99 Lei | |
| 125 | 1004712-02 | 2 | O RING | 10,29 Lei | |
| 126 | 1004714-04 | 1 | HOSE | 399,45 Lei | |
| 127 | 1004709-73 | 1 | O RING | 5,21 Lei |
