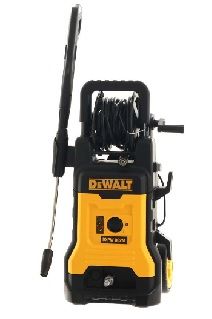

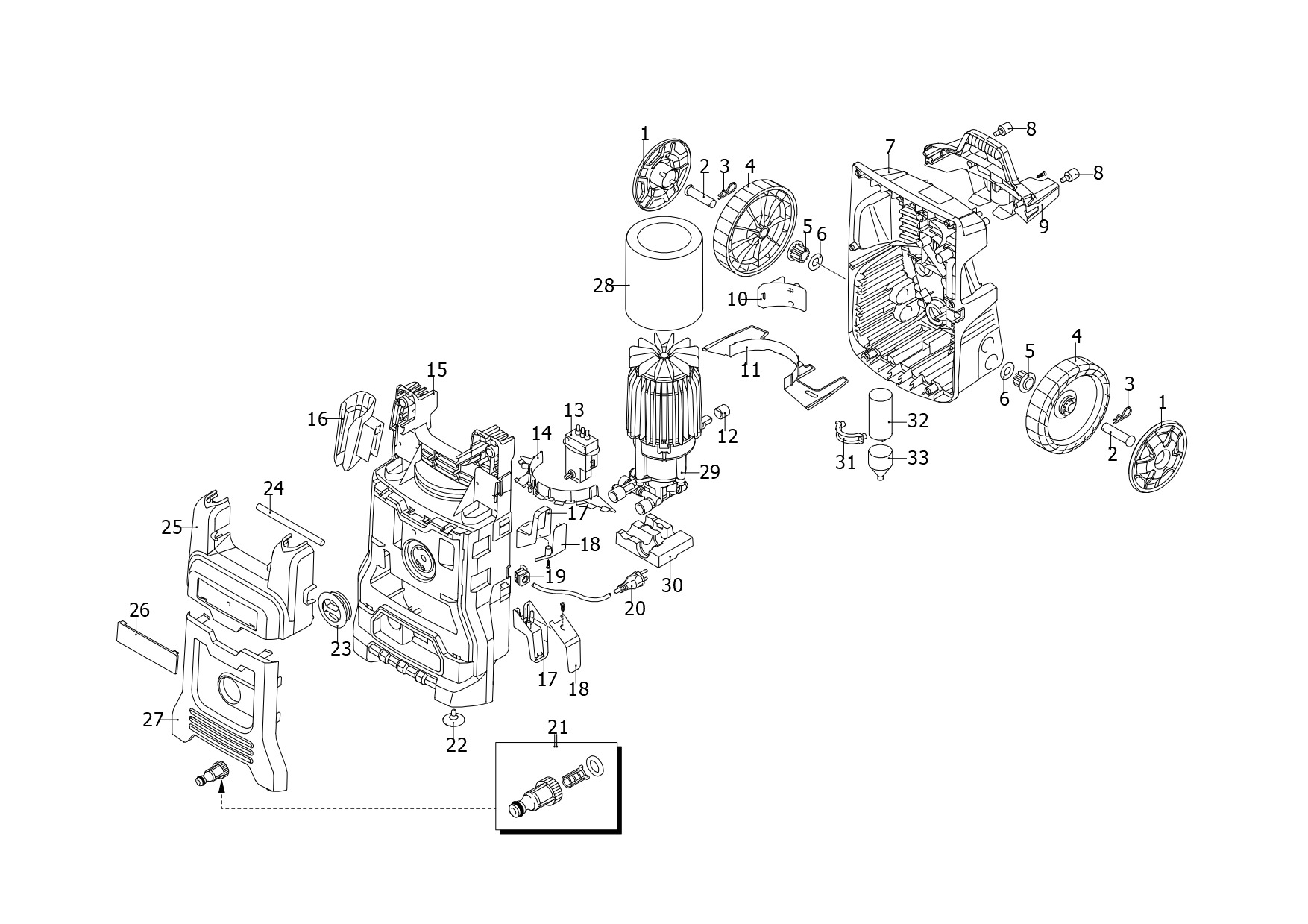

DEWALT PRESSURE WASHER (Type 1)
SKU Produs: DXPW002ME /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 5160070 | 2 | GUARD | 88,55 Lei | |
| 2 | 5160110 | 2 | PIN | 145,09 Lei | |
| 3 | 5160330 | 2 | PIN | 10,29 Lei | |
| 4 | 5160360 | 2 | WHEEL | 252,58 Lei | |
| 5 | 5160100 | 2 | FITTING | 12,71 Lei | |
| 6 | 5160340 | 2 | WASHER | 6,23 Lei | |
| 7 | 4380491 | 1 | BASE SA | 157,92 Lei | |
| 8 | 1004712-16 | 2 | FOOT | 25,54 Lei | |
| 9 | 4380990 | 1 | CARRIER SA | 68,7 Lei | |
| 10 | 4380800 | 1 | GUARD | 81,9 Lei | |
| 11 | 4381880 | 1 | GUARD | 34,8 Lei | |
| 12 | 1004744-82 | 2 | PUMP SA | 3612,67 Lei | |
| 13 | 4381740 | 1 | SWITCHBOX | 90,6 Lei | |
| 14 | 5160160 | 1 | GUARD | 25,54 Lei | |
| 15 | 5160020 | 1 | CASING SA | 145,09 Lei | |
| 16 | 4580590 | 1 | CARRIER | 41,93 Lei | |
| 17 | 4720520 | 2 | CARRIER | 88,55 Lei | |
| 18 | 4720510 | 2 | GUARD | 70,39 Lei | |
| 19 | 3440370 | 1 | FAN | 7,5 Lei | |
| 20 | 3441120 | 1 | CABLE | 200,99 Lei | |
| 22 | 4381640 | 1 | FOOT | 10,29 Lei | |
| 23 | 5160090 | 1 | KNOB | 10,29 Lei | |
| 24 | 5160080 | 1 | GUIDE | 25,54 Lei | |
| 25 | 5160030 | 1 | BASE | 80,04 Lei | |
| 26 | 1004714-01 | 1 | GUARD | 70,39 Lei | |
| 27 | 5160040 | 1 | GUARD | 80,04 Lei | |
| 28 | 4382990 | 1 | FAN COVER | 195,02 Lei | |
| 29 | 5160320 | 1 | PUMP SA | 3011,72 Lei | |
| 30 | 5160140 | 1 | BASE BRACKET | 52,22 Lei | |
| 31 | 4101060 | 1 | KNOB | 52,22 Lei | |
| 32 | 4383260 | 1 | CAPACITOR | 145,09 Lei | |
| 33 | 4101080 | 1 | CONNECTOR | 8,8 Lei | |
| 34 | 4820410 | 1 | CABLE AND CAPACITOR | 19,95 Lei | |
| 35 | 4720160 | 1 | BRACKET | 52,22 Lei | |
| 36 | 4101710 | 2 | RING | 13,85 Lei | |
| 37 | 4101760 | 1 | COUPLING | 120,82 Lei | |
| 38 | 4101520 | 1 | FORK | 4,7 Lei | |
| 39 | 1004744-79 | 2 | O RING | 5,21 Lei | |
| 40 | 4381240 | 1 | HOSE | 173,3 Lei | |
| 41 | 4101690 | 1 | FITTING | 145,09 Lei | |
| 42 | 4101770 | 1 | PLATE | 57,81 Lei | |
| 43 | 4101730 | 2 | SUPPORT | 25,54 Lei | |
| 44 | 4101680 | 1 | PLATE | 80,04 Lei | |
| 45 | 4720150 | 1 | BRACKET | 52,22 Lei | |
| 46 | 4101750 | 1 | PIN | 17,02 Lei | |
| 47 | 4101660 | 1 | LEVER | 25,54 Lei | |
| 48 | 5160170 | 1 | KNOB | 19,95 Lei | |
| 49 | 5160470 | 1 | HANDLE SA | 213,19 Lei | |
| 50 | 5160470 | 1 | HANDLE SA | 213,19 Lei | |
| 51 | 5160120 | 2 | PIPE | 70,39 Lei | |
| 52 | 4720120 | 2 | GUIDE | 120,82 Lei | |
| 53 | 4720100 | 1 | HOOK | 88,55 Lei | |
| 54 | 4821020 | 1 | SPRING | 6,23 Lei | |
| 55 | 3720730 | 1 | PLUG | 57,81 Lei | |
| 56 | 3400980 | 1 | HEAD SA | 1673,25 Lei | |
| 57 | 1004709-97 | 3 | SCREW | 7,37 Lei | |
| 58 | 5160130 | 1 | COUPLING | 213,19 Lei | |
| 59 | 1004712-69 | 3 | BUSHING | 41,93 Lei | |
| 60 | 1004743-67 | 3 | BUSH | 5,21 Lei | |
| 61 | 1004713-41 | 1 | GUIDE | 96,56 Lei | |
| 62 | 1004712-65 | 3 | PLUG | 21,85 Lei | |
| 63 | 1682800 | 1 | O RING | 5,21 Lei | |
| 64 | 1004744-68 | 1 | SPRING | 130,35 Lei | |
| 65 | 1004712-77 | 1 | FITTING | 70,39 Lei | |
| 66 | 1004712-85 | 1 | SHUTTER | 19,95 Lei | |
| 67 | 1004710-37 | 1 | SPRING | 12,71 Lei | |
| 68 | 3401100 | 1 | VALVE | 34,05 Lei | |
| 69 | 1004713-92 | 1 | PLUG | 106,98 Lei | |
| 70 | 3081750 | 1 | WASHER | 4,7 Lei | |
| 71 | 4382090 | 1 | PLATE | 148,5 Lei | |
| 72 | 4389412 | 1 | PUMP SA | 1087,42 Lei | |
| 73 | 1004744-71 | 1 | PISTONS AND SEALS KIT | 145,09 Lei | |
| 74 | 1004744-72 | 1 | VALVES AND SEALS KIT | 70,39 Lei | |
| 75 | 1004709-82 | 1 | PLUG | 7,37 Lei | |
| 76 | 1004744-74 | 1 | BEARING | 57,81 Lei | |
| 77 | 3960430 | 1 | COUPLING | 130,35 Lei | |
| 78 | 4240270 | 1 | FORK | 30,87 Lei | |
| 79 | 1004744-77 | 2 | O RING | 5,21 Lei | |
| 80 | 1004709-90 | 1 | O RING | 5,21 Lei | |
| 83 | 1004712-09 | 1 | FORK | 12,71 Lei | |
| 83 | 1004712-10 | 1 | BOX | 154,1 Lei | |
| 84 | 46954 | 1 | BOX | 200,99 Lei | |
| 86 | 3440370 | 1 | FAN | 7,5 Lei | |
| 87 | 5160380 | 1 | MOTOR SA | 1378,75 Lei | |
| 88 | 4383511 | 1 | HANDLE | 240,38 Lei | |
| 89 | 5160290 | 1 | EXTENSION | 200,99 Lei | |
| 90 | 5160250 | 1 | TANK | 120,82 Lei | |
| 91 | 5160240 | 1 | HOSE SA, REINFORCED | 276,84 Lei | |
| 92 | 1004709-73 | 1 | O RING | 5,21 Lei | |
| 93 | 3083400 | 1 | O RING | 4,7 Lei |
