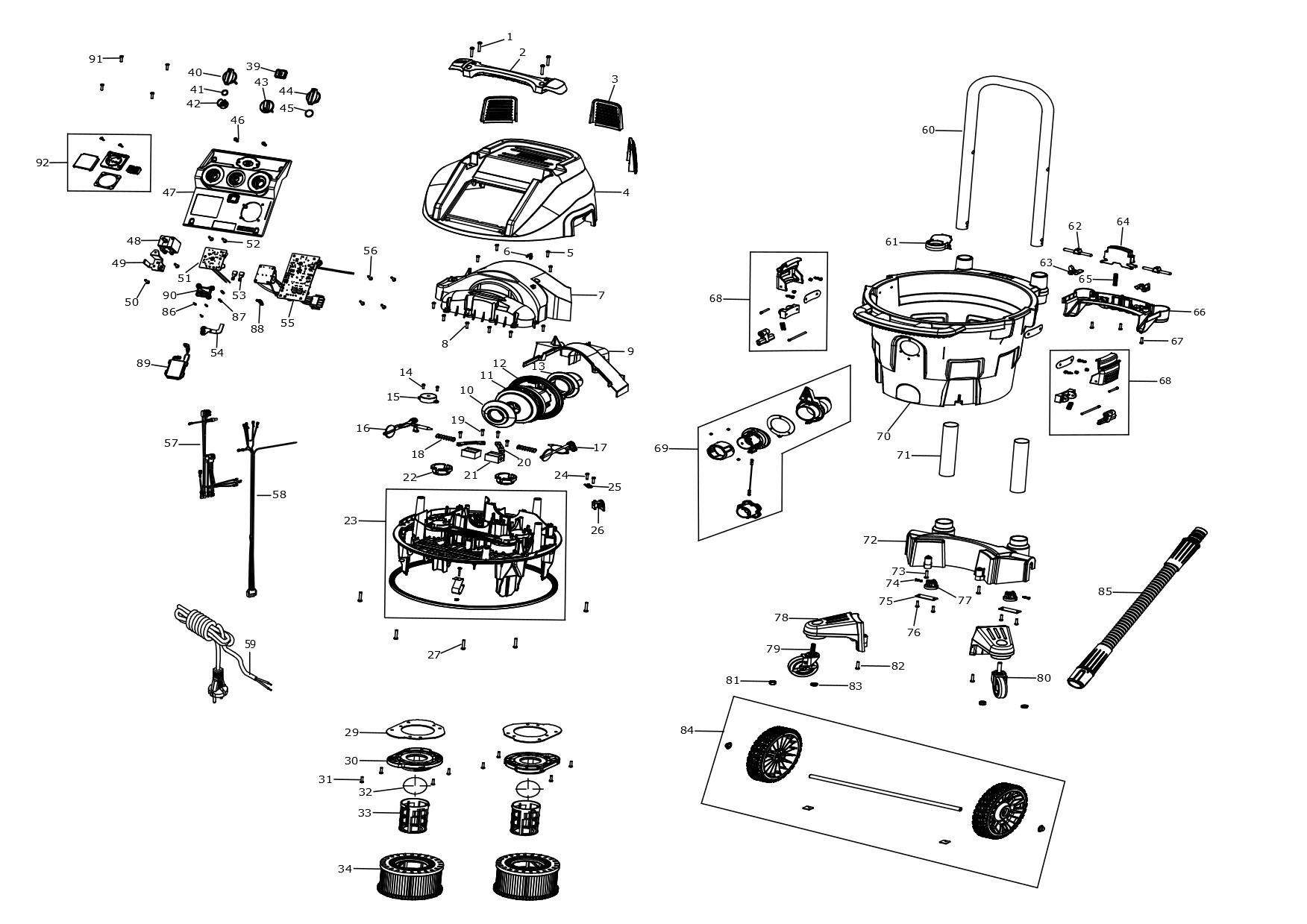

DEWALT DUST EXTRACTOR (Type 2)
SKU Produs: DWV905M /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 330019-21 | 4 | SCREW.PLSTC THD FORM, M5X32 T25 | 4,57 Lei | |
| 2 | N135179 | 1 | HANDLE | 21,85 Lei | |
| 3 | NA036361 | 3 | VENT | 18,06 Lei | |
| 4 | N316266 | 1 | HEAD | 181,55 Lei | |
| 5 | 330019-13 | 4 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 6 | N149299 | 1 | CONNECTOR | 5,21 Lei | |
| 7 | NA085229 | 1 | COVER | 119,91 Lei | |
| 8 | 330019-13 | 6 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 9 | N395655 | 1 | MOTOR COVER | 21,85 Lei | |
| 10 | NA019410 | 1 | GASKET | 66,15 Lei | |
| 11 | NA071448 | 1 | MOTOR | 411,39 Lei | |
| 12 | NA018715 | 1 | BRAKE ADAPTER | 58,17 Lei | |
| 13 | NA045230 | 1 | PIPE | 14,07 Lei | |
| 14 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 15 | N139903 | 1 | SIREN | 25,54 Lei | |
| 16 | NA020057 | 1 | VALVE | 21,11 Lei | |
| 17 | NA020056 | 1 | VALVE | 21,11 Lei | |
| 18 | N362634 | 2 | SPRING | 4,57 Lei | |
| 19 | 330019-13 | 4 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 20 | N395762 | 2 | STRAP | 4,57 Lei | |
| 21 | N378200 | 2 | SOLENOID ASSEMBLY | 80,04 Lei | |
| 22 | N927431 | 2 | SEAL SA | 34,65 Lei | |
| 23 | NA278021 | 1 | PLATE SA | 471,87 Lei | |
| 24 | 330019-13 | 2 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 25 | 450877-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 26 | N135151 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 27 | 330019-21 | 5 | SCREW.PLSTC THD FORM, M5X32 T25 | 4,57 Lei | |
| 29 | N146653 | 2 | GASKET | 4,57 Lei | |
| 30 | N294525 | 2 | MOUNT | 21,85 Lei | |
| 31 | 330019-13 | 8 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 32 | N206771 | 2 | VALVE FLOATING | 25,54 Lei | |
| 33 | N265199 | 2 | CAGE | 10,29 Lei | |
| 34 | NA097668 | 2 | FILTER SA | 263,03 Lei | |
| 39 | NA006491 | 1 | BUTTON | 14,07 Lei | |
| 40 | N135047 | 1 | KNOB | 7,14 Lei | |
| 41 | N141736 | 1 | O RING | 3,78 Lei | |
| 42 | N179801 | 1 | DETENT | 6,09 Lei | |
| 43 | N170226 | 1 | KNOB | 6,09 Lei | |
| 44 | NA014751 | 1 | BUTTON | 7,14 Lei | |
| 45 | N141737 | 1 | RING | 3,78 Lei | |
| 46 | 330065-01 | 2 | SCREW | 4,57 Lei | |
| 47 | NA002099 | 1 | COVER | 47,78 Lei | |
| 48 | N148620 | 1 | SWITCH SA | 176,19 Lei | |
| 49 | NA007452 | 1 | CLAMP | 6,09 Lei | |
| 50 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 51 | NA018343 | 1 | PCB SA | 176,19 Lei | |
| 52 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 53 | N880063 | 1 | SOCKET | 16,49 Lei | |
| 54 | NA007225 | 1 | HOLDER | 3,78 Lei | |
| 55 | NA073915 | 1 | CONTROL MODULE SA | 1,7 Lei | |
| 56 | 330019-02 | 4 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 57 | NA157818 | 1 | CABLE SA | 166,11 Lei | |
| 58 | NA134394 | 1 | CABLE | 150,05 Lei | |
| 59 | N303979 | 1 | CORDSET (EURO) | 157,92 Lei | |
| 60 | N138912 | 1 | HANDLE UPPER | 96,56 Lei | |
| 61 | N147540 | 1 | CLAMP | 8,64 Lei | |
| 62 | N137872 | 2 | LOCK PIN | 7,37 Lei | |
| 63 | N139136 | 2 | LEVER | 6,23 Lei | |
| 64 | N137721 | 1 | BUTTON | 13,85 Lei | |
| 65 | N142180 | 1 | SPRING | 4,57 Lei | |
| 66 | N133363 | 1 | COVER | 25,54 Lei | |
| 67 | 330019-13 | 3 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 68 | NA278023 | 2 | LATCH | 79,8 Lei | |
| 69 | NA278029 | 1 | INLET | 166,11 Lei | |
| 70 | N116019 | 1 | TANK | 451,79 Lei | |
| 71 | N139272 | 2 | TUBE | 37,73 Lei | |
| 72 | N118223 | 1 | MOUNTING BRACKET | 88,55 Lei | |
| 73 | 330019-20 | 2 | SCREW | 4,57 Lei | |
| 74 | N147400 | 2 | SCREW | 4,57 Lei | |
| 75 | N134941 | 2 | PLATE | 7,37 Lei | |
| 76 | 330019-13 | 4 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 77 | N137054 | 2 | BUNG | 6,23 Lei | |
| 78 | N395145 | 2 | MOUNTING BRACKET | 30,87 Lei | |
| 79 | N380031 | 1 | CASTOR | 70,39 Lei | |
| 80 | N289839 | 1 | CASTOR | 70,39 Lei | |
| 81 | N371459 | 2 | NUT | 4,57 Lei | |
| 82 | 330019-20 | 2 | SCREW | 4,57 Lei | |
| 83 | N371460 | 2 | WASHER LOCK | 4,57 Lei | |
| 84 | NA278030 | 1 | WHEEL SA | 150,05 Lei | |
| 85 | NA253668 | 1 | PIPE | 390,29 Lei | |
| 86 | N529622 | 3 | SCREW | 4,57 Lei | |
| 87 | NA065074 | 2 | SPRING | 6,09 Lei | |
| 88 | NA006746 | 1 | GUIDE | 4,31 Lei | |
| 89 | NA030210 | 1 | EXTRACTOR | 186,17 Lei | |
| 90 | N452979 | 1 | MODULE | 79,8 Lei | |
| 91 | 330019-13 | 4 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 92 | NA278026 | 1 | SERVICE KIT | 310,17 Lei | |
| 94 | N629965 | 1 | HOSE | 330,12 Lei | |
| 95 | N145597 | 1 | HOSE PLATE | 25,54 Lei | |
| 96 | N071898 | 1 | CONNECTOR | 57,81 Lei | |
| 800 | N547456 | 1 | REMOTE CONTROL | 288,54 Lei |
