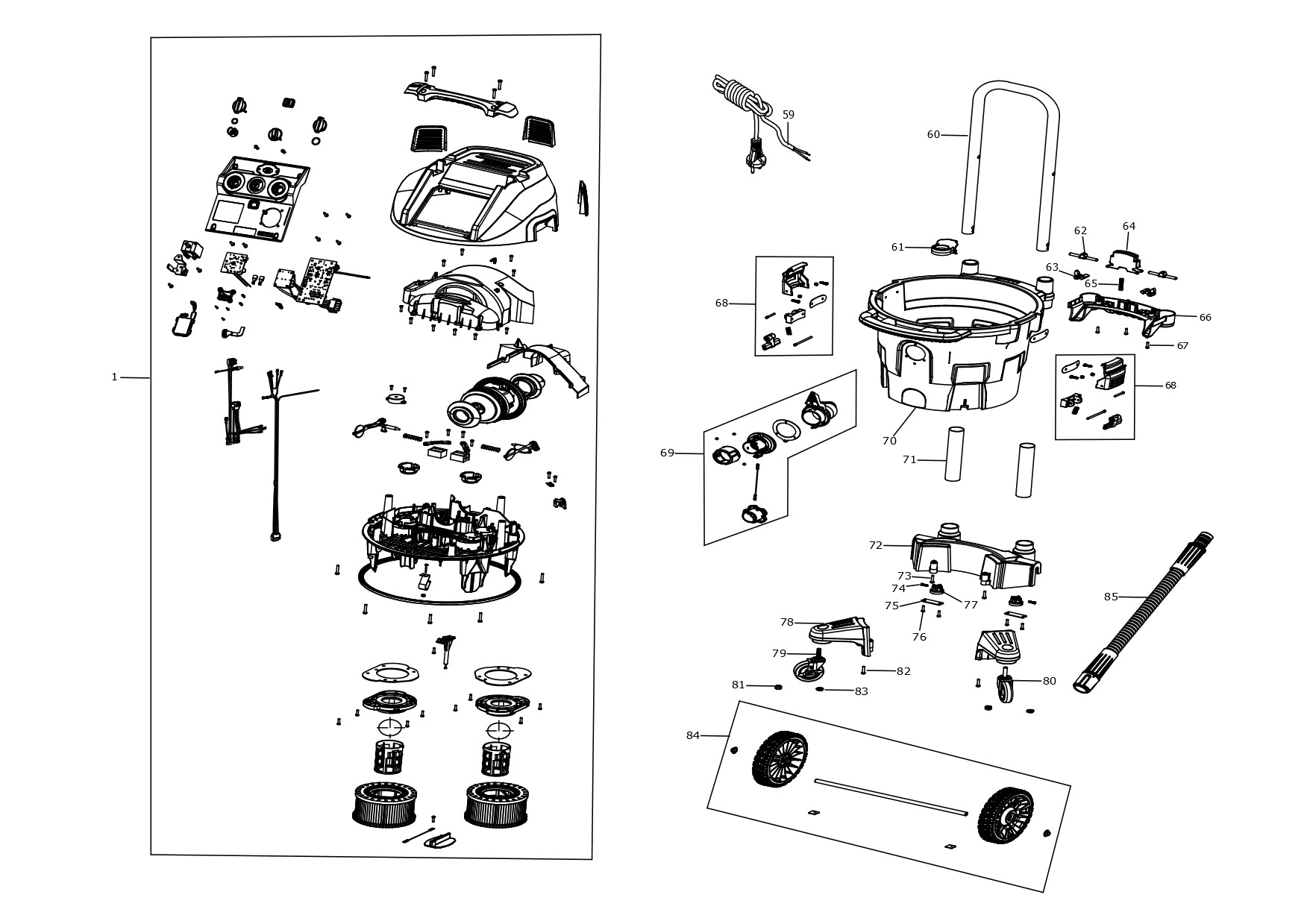

DEWALT DUST EXTRACTOR (Type 2)
SKU Produs: DWV905H /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA364693 | 1 | HEAD SA | 3,11 Lei | |
| 2 | N629965 | 1 | HOSE | 330,12 Lei | |
| 3 | N145597 | 1 | HOSE PLATE | 25,54 Lei | |
| 4 | N071898 | 1 | CONNECTOR | 57,81 Lei | |
| 59 | N303979 | 1 | CORDSET (EURO) | 157,92 Lei | |
| 60 | N138912 | 1 | HANDLE UPPER | 96,56 Lei | |
| 61 | N147540 | 1 | CLAMP | 8,64 Lei | |
| 62 | N137872 | 2 | LOCK PIN | 7,37 Lei | |
| 63 | N139136 | 2 | LEVER | 6,23 Lei | |
| 64 | N137721 | 1 | BUTTON | 13,85 Lei | |
| 65 | N142180 | 1 | SPRING | 4,57 Lei | |
| 66 | N133363 | 1 | COVER | 25,54 Lei | |
| 67 | 330019-13 | 3 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 68 | NA278028 | 2 | LATCH | 79,8 Lei | |
| 69 | NA278029 | 1 | INLET | 166,11 Lei | |
| 70 | N116019 | 1 | TANK | 451,79 Lei | |
| 71 | N139272 | 2 | TUBE | 37,73 Lei | |
| 72 | N118223 | 1 | MOUNTING BRACKET | 88,55 Lei | |
| 73 | 330019-20 | 2 | SCREW | 4,57 Lei | |
| 74 | N147400 | 2 | SCREW | 4,57 Lei | |
| 75 | N134941 | 2 | PLATE | 7,37 Lei | |
| 76 | 330019-13 | 4 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 77 | N137054 | 2 | BUNG | 6,23 Lei | |
| 78 | N395145 | 2 | MOUNTING BRACKET | 30,87 Lei | |
| 79 | N380031 | 1 | CASTOR | 70,39 Lei | |
| 80 | N289839 | 1 | CASTOR | 70,39 Lei | |
| 81 | N371459 | 2 | NUT | 4,57 Lei | |
| 82 | 330019-20 | 2 | SCREW | 4,57 Lei | |
| 83 | N371460 | 2 | WASHER LOCK | 4,57 Lei | |
| 84 | NA278030 | 1 | WHEEL SA | 150,05 Lei | |
| 85 | NA253668 | 1 | PIPE | 390,29 Lei | |
| 800 | N547456 | 1 | REMOTE CONTROL | 288,54 Lei | |
| 900 | NA021806 | 1 | WARNING LABEL | 18,06 Lei |
