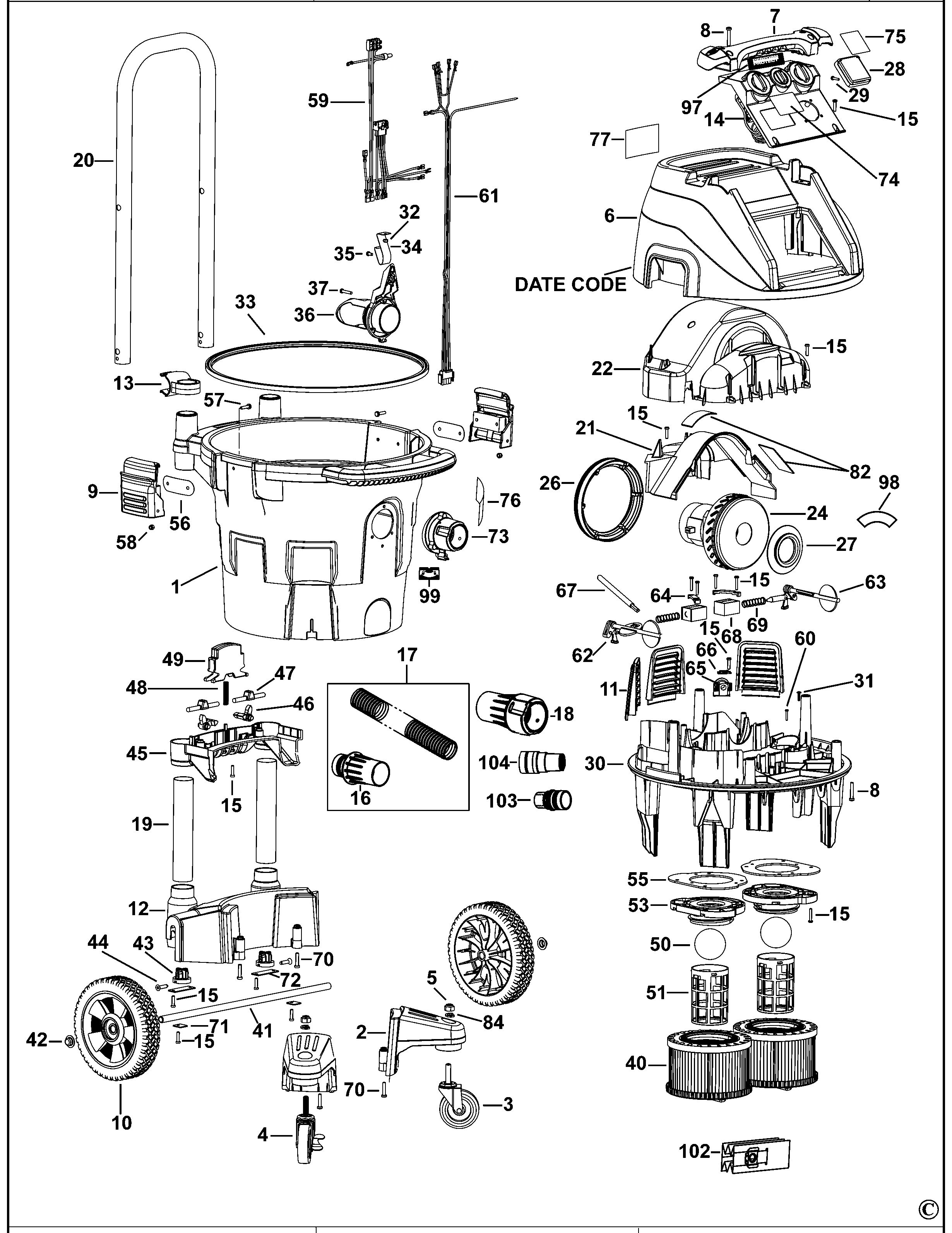

DEWALT DUST EXTRACTOR (Type 13)
SKU Produs: DWV902L /Type: 13
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N116019 | 1 | TANK | 451,79 Lei | |
| 2 | N395145 | 2 | MOUNTING BRACKET | 30,87 Lei | |
| 3 | N289839 | 1 | CASTOR | 70,39 Lei | |
| 4 | N380031 | 1 | CASTOR | 70,39 Lei | |
| 5 | N371459 | 2 | NUT | 4,57 Lei | |
| 6 | N316266 | 1 | HEAD | 181,55 Lei | |
| 7 | N135179 | 1 | HANDLE | 21,85 Lei | |
| 8 | 330019-21 | 9 | SCREW.PLSTC THD FORM, M5X32 T25 | 4,57 Lei | |
| 9 | 1004771-97 | 2 | LATCH | 25,54 Lei | |
| 10 | N417079 | 2 | WHEEL REAR | 70,39 Lei | |
| 11 | N135170 | 3 | VENT | 12,71 Lei | |
| 12 | N118223 | 1 | MOUNTING BRACKET | 88,55 Lei | |
| 13 | N147540 | 1 | CLAMP | 8,64 Lei | |
| 14 | 1004771-98 | 1 | CONTROL PANEL | 1087,42 Lei | |
| 15 | 330019-13 | 37 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 16 | N145597 | 1 | HOSE PLATE | 25,54 Lei | |
| 17 | N208032 | 1 | HOSE SA | 264,01 Lei | |
| 18 | N071898 | 1 | CONNECTOR | 57,81 Lei | |
| 19 | N139272 | 2 | TUBE | 37,73 Lei | |
| 20 | N138912 | 1 | HANDLE UPPER | 96,56 Lei | |
| 21 | N395655 | 1 | MOTOR COVER | 21,85 Lei | |
| 22 | N135152 | 1 | COVER | 57,81 Lei | |
| 24 | 1004772-00 | 1 | MOTOR SA 230V | 307,21 Lei | |
| 26 | N250119 | 1 | RING,GASKET | 8,64 Lei | |
| 27 | N137847 | 1 | GASKET | 15,12 Lei | |
| 28 | N135489 | 1 | OUTLET | 96,56 Lei | |
| 29 | 330019-03 | 2 | Screw M3.5X16 T15 | 4,57 Lei | |
| 30 | 1004772-03 | 1 | MOUNT SA | 300,47 Lei | |
| 31 | N142836 | 1 | SCREW | 4,57 Lei | |
| 32 | N142838 | 1 | LOCK NUT | 4,57 Lei | |
| 33 | N124753 | 1 | GASKET | 57,81 Lei | |
| 34 | N137853 | 1 | PLATE | 12,71 Lei | |
| 35 | N142827 | 1 | SCREW | 6,23 Lei | |
| 36 | N468428 | 1 | INLET | 41,93 Lei | |
| 37 | 330019-14 | 3 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 40 | 1004772-04 | 2 | FILTER SA | 181,55 Lei | |
| 41 | N118225 | 1 | AXLE | 19,95 Lei | |
| 42 | N118234 | 2 | RETAINER | 4,57 Lei | |
| 43 | N137054 | 2 | BUNG | 6,23 Lei | |
| 44 | N147400 | 2 | SCREW | 4,57 Lei | |
| 45 | N133363 | 1 | COVER | 25,54 Lei | |
| 46 | N139136 | 2 | LEVER | 6,23 Lei | |
| 47 | N137872 | 2 | LOCK PIN | 7,37 Lei | |
| 48 | N142180 | 1 | SPRING | 4,57 Lei | |
| 49 | N137721 | 1 | BUTTON | 13,85 Lei | |
| 50 | N206771 | 2 | VALVE FLOATING | 25,54 Lei | |
| 51 | N265199 | 2 | CAGE | 10,29 Lei | |
| 53 | N294525 | 2 | MOUNT | 21,85 Lei | |
| 55 | N146653 | 2 | GASKET | 4,57 Lei | |
| 56 | N146843 | 2 | PLATE | 7,37 Lei | |
| 57 | 330045-15 | 4 | Screw Metal | 4,57 Lei | |
| 58 | 148641-00 | 4 | LOCK NUT | 4,57 Lei | |
| 59 | N166678 | 1 | LEAD SA | 120,82 Lei | |
| 60 | 330019-24 | 1 | SCREW, PLSTC THD FORM, M3*19, T10 | 4,57 Lei | |
| 61 | N397036 | 1 | LEAD SA | 88,55 Lei | |
| 62 | 1004772-06 | 1 | VALVE | 19,95 Lei | |
| 63 | 1004772-07 | 1 | VALVE | 19,95 Lei | |
| 64 | N395762 | 2 | STRAP | 4,57 Lei | |
| 65 | N135151 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 66 | 450877-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 67 | N303979 | 1 | CORDSET (EURO) | 157,92 Lei | |
| 68 | N378200 | 1 | SOLENOID ASSEMBLY | 80,04 Lei | |
| 69 | N362634 | 2 | SPRING | 4,57 Lei | |
| 70 | 330019-20 | 4 | SCREW | 4,57 Lei | |
| 71 | N118226 | 2 | PLATE | 7,37 Lei | |
| 72 | N134941 | 2 | PLATE | 7,37 Lei | |
| 73 | N150546 | 1 | INLET | 41,93 Lei | |
| 74 | 1004772-08 | 1 | RATING PLATE | 4,57 Lei | |
| 76 | N405022 | 1 | BRAND LABEL | 5,21 Lei | |
| 77 | N147781 | 1 | WARNING LABEL | 7,37 Lei | |
| 82 | N177921 | 1 | FOAM | 12,71 Lei | |
| 84 | N371460 | 2 | WASHER LOCK | 4,57 Lei | |
| 97 | N177322 | 1 | LABEL | 4,57 Lei | |
| 98 | N183923 | 1 | LABEL | 4,57 Lei | |
| 99 | N199361 | 1 | LABEL | 4,57 Lei | |
| 102 | 1004772-10 | 1 | DUST BAG SA | 57,81 Lei | |
| 103 | N070902 | 1 | ADAPTER 35MM TO 35MM W/ STANDARD | 25,54 Lei | |
| 104 | 1004772-11 | 1 | CONNECTOR | 37,73 Lei |
