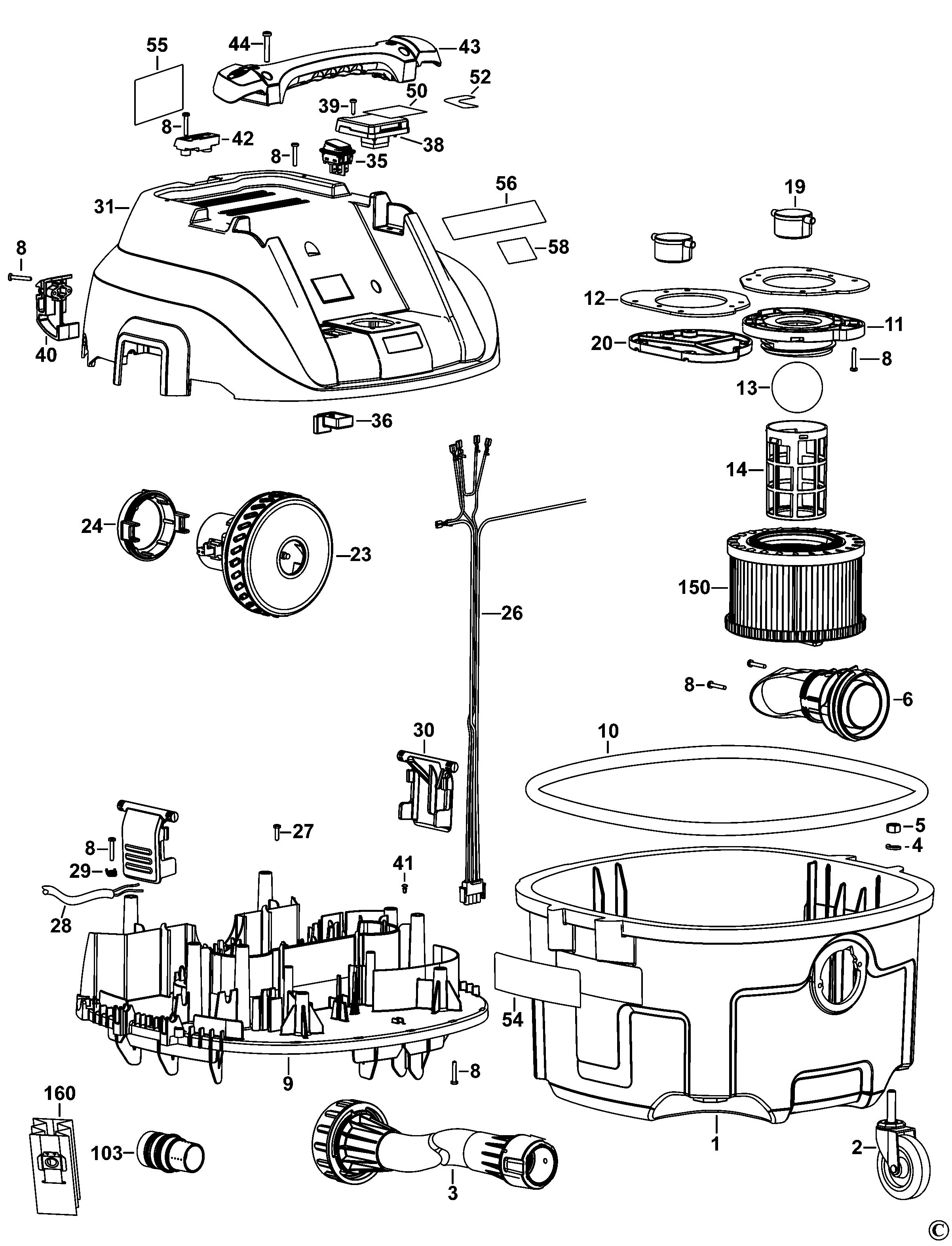

DEWALT VACUUM EXTRACTOR (Type 1)
SKU Produs: DWV900L /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N291160 | 1 | TANK | 200,99 Lei | |
| 2 | N289839 | 4 | CASTOR | 70,39 Lei | |
| 3 | N410324 | 1 | HOSE SA | 200,99 Lei | |
| 4 | N371460 | 4 | WASHER LOCK | 4,57 Lei | |
| 5 | N371459 | 4 | NUT | 4,57 Lei | |
| 6 | N376640 | 1 | INLET | 17,02 Lei | |
| 8 | 330019-14 | 30 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 9 | N289899 | 1 | HOUSING | 181,55 Lei | |
| 10 | N395128 | 1 | GASKET | 25,54 Lei | |
| 11 | N294525 | 1 | MOUNT | 21,85 Lei | |
| 12 | N146653 | 2 | GASKET | 4,57 Lei | |
| 13 | N206771 | 1 | VALVE FLOATING | 25,54 Lei | |
| 14 | N265199 | 1 | CAGE | 10,29 Lei | |
| 19 | N360964 | 2 | PLUG | 6,23 Lei | |
| 20 | N360965 | 1 | COVERPLATE | 13,85 Lei | |
| 23 | N376955 | 1 | MOTOR SA | 195,02 Lei | |
| 24 | N310440 | 1 | HOUSING MOTOR | 13,85 Lei | |
| 26 | N374379 | 1 | LEAD SA | 96,56 Lei | |
| 27 | 330019-24 | 1 | SCREW, PLSTC THD FORM, M3*19, T10 | 4,57 Lei | |
| 28 | N383944 | 1 | CORDSET (EURO) | 106,98 Lei | |
| 29 | 450877-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 30 | N294563 | 2 | LATCH | 7,37 Lei | |
| 31 | N364444 | 1 | HOUSING TOP | 169,36 Lei | |
| 35 | N296522 | 1 | SWITCH | 37,73 Lei | |
| 36 | N373779 | 1 | BOOT | 6,23 Lei | |
| 38 | N135489 | 1 | OUTLET | 96,56 Lei | |
| 39 | 330019-03 | 2 | Screw M3.5X16 T15 | 4,57 Lei | |
| 40 | N378329 | 1 | HOOK | 7,37 Lei | |
| 41 | N394693 | 1 | FASTENER | 4,57 Lei | |
| 42 | N378050 | 1 | CLAMP | 5,21 Lei | |
| 43 | N135179 | 1 | HANDLE | 21,85 Lei | |
| 44 | 330019-21 | 4 | SCREW.PLSTC THD FORM, M5X32 T25 | 4,57 Lei | |
| 50 | N155016 | 1 | WARNING LABEL | 4,57 Lei | |
| 52 | N404196 | 1 | LABEL | 4,57 Lei | |
| 54 | N405022 | 2 | BRAND LABEL | 5,21 Lei | |
| 55 | N383461 | 1 | RATING PLATE | 4,57 Lei | |
| 56 | N147781 | 1 | WARNING LABEL | 7,37 Lei | |
| 58 | N409727 | 1 | BRAND LABEL | 4,57 Lei | |
| 103 | N070902 | 1 | ADAPTER 35MM TO 35MM W/ STANDARD | 25,54 Lei | |
| 150 | 1004772-04 | 1 | FILTER SA | 181,55 Lei | |
| 160 | 1004772-10 | 1 | DUST BAG SA | 57,81 Lei |
