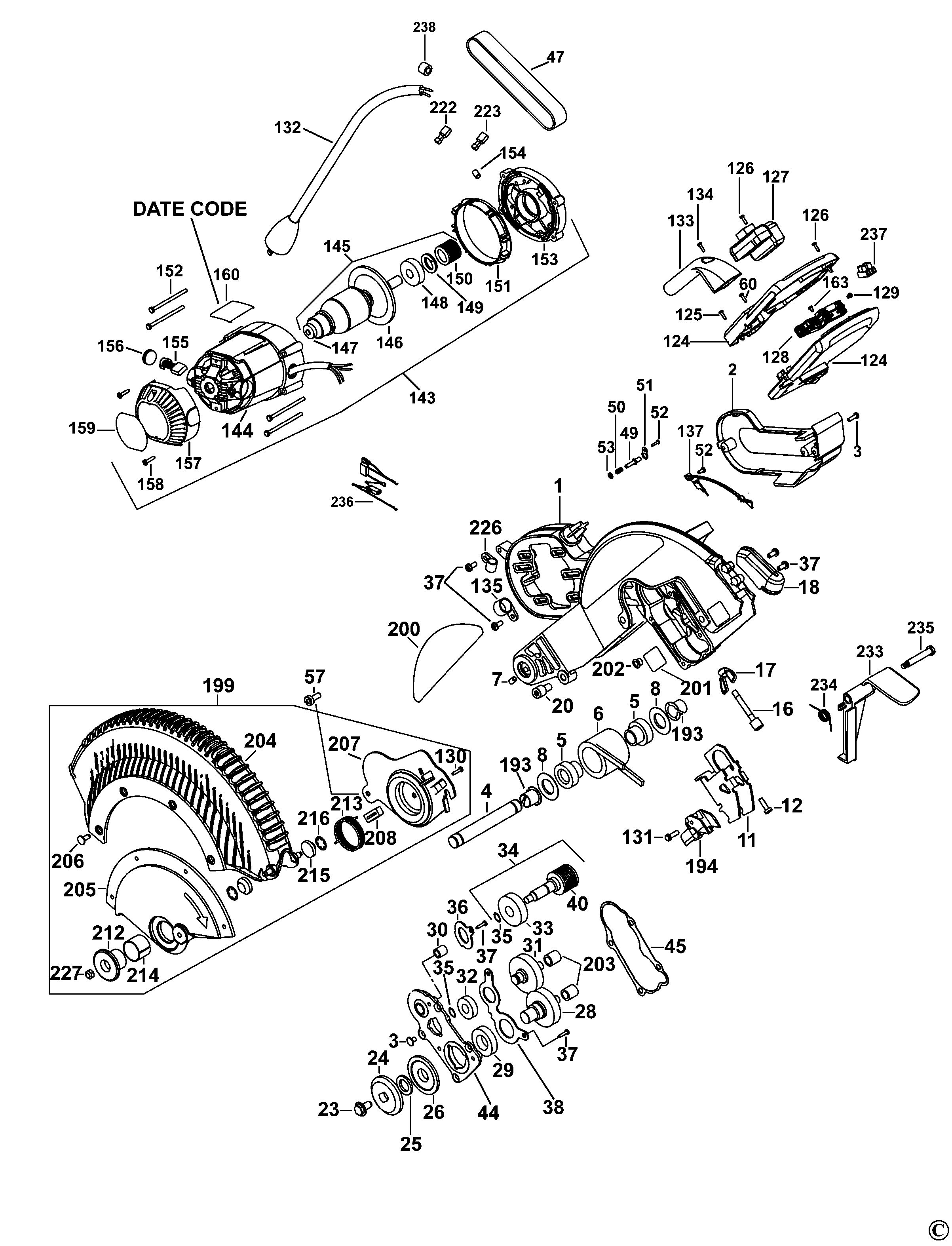

DEWALT MITRE SAW (Type 20)
SKU Produs: DWS780 /Type: 20
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 618193-00 | 1 | BELT COVER | 52,22 Lei | |
| 3 | 330045-14 | 5 | SCREW M5X16 T25 | 4,57 Lei | |
| 4 | 146751-00 | 1 | SHAFT,PIVOT | 17,02 Lei | |
| 5 | 146732-00 | 2 | SPACER | 5,21 Lei | |
| 6 | N039404 | 1 | SPRING | 70,39 Lei | |
| 7 | 150075-00 | 2 | SCREW | 5,21 Lei | |
| 8 | 148296-00 | 2 | PLASTIC WASHER | 5,21 Lei | |
| 9 | 387130-00 | 1 | PIN, LOCKING | 17,02 Lei | |
| 10 | 34158-00 | 1 | GASKET | 4,57 Lei | |
| 11 | N058304 | 1 | GUARD REAR | 21,85 Lei | |
| 12 | 330045-23 | 7 | SCREW | 4,57 Lei | |
| 13 | 153603-01 | 1 | STOP, PAWL | 7,37 Lei | |
| 14 | 153639-00 | 5 | SHOULDER SCREW | 4,57 Lei | |
| 15 | 153655-00 | 4 | WAVY WASHER | 4,57 Lei | |
| 17 | 150718-00 | 1 | NUT WING | 4,57 Lei | |
| 20 | 618198-00 | 1 | SCREW | 6,23 Lei | |
| 29 | 330003-66 | 1 | BEARING,BALL | 41,93 Lei | |
| 30 | 391616-00 | 1 | BEARING NEEDLE | 15,12 Lei | |
| 33 | 605040-33 | 1 | BEARING | 21,85 Lei | |
| 37 | 330045-49 | 12 | SCREW | 4,57 Lei | |
| 38 | 391310-00 | 1 | BEARING PLATE | 10,29 Lei | |
| 44 | N272402 | 1 | GEARCASE COVER SA | 133,4 Lei | |
| 45 | 391315-00 | 1 | GASKET | 12,71 Lei | |
| 49 | 153561-00 | 1 | LOCKING PIN | 7,37 Lei | |
| 50 | 448176-00 | 1 | SPRING | 4,57 Lei | |
| 51 | 393071-00 | 1 | PLATE | 4,57 Lei | |
| 52 | 330045-45 | 4 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 53 | 153559-00 | 1 | WASHER | 4,57 Lei | |
| 56 | 146740-00 | 2 | SLEEVE | 4,57 Lei | |
| 60 | 330045-15 | 5 | Screw Metal | 4,57 Lei | |
| 62 | N080677 | 1 | KNOB | 15,12 Lei | |
| 68 | N058308 | 1 | BEVEL POINTER, RIGHT | 6,23 Lei | |
| 69 | N058309 | 1 | BEVEL POINTER, LEFT | 6,23 Lei | |
| 70 | N080199 | 1 | KNOB | 8,64 Lei | |
| 72 | 060325-01 | 1 | RING, RET. EXT | 4,57 Lei | |
| 74 | 330045-06 | 7 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 76 | N090294 | 1 | BEVEL SCALE DWS780 | 34,05 Lei | |
| 80 | N043045 | 1 | PAWL | 12,71 Lei | |
| 83 | N049689 | 1 | PLATE STOP RH | 5,21 Lei | |
| 85 | N051519 | 1 | PLATE STOP LH | 7,37 Lei | |
| 91 | 860083-14 | 1 | NUT,HEX MEAN M.8 UNI5588 ZINC | 4,57 Lei | |
| 92 | N058312 | 2 | SCREW | 5,21 Lei | |
| 94 | N528183 | 1 | PLATE | 25,54 Lei | |
| 95 | N544383 | 1 | PLATE | 34,05 Lei | |
| 97 | N401778 | 1 | COVER | 21,85 Lei | |
| 99 | 49787-00 | 1 | RING | 4,57 Lei | |
| 100 | N058318 | 1 | SCREW M8X1,25 L.27,5 DWS780 | 5,21 Lei | |
| 102 | 153792-00 | 2 | LAP WASHER | 4,57 Lei | |
| 103 | N059784 | 1 | DETENT PLATE | 106,98 Lei | |
| 104 | 604410-00 | 4 | SCREW | 4,57 Lei | |
| 107 | N057963 | 1 | POINTER, MITER | 7,37 Lei | |
| 108 | N050755 | 1 | ACTUATOR, DETENT SPRING | 21,85 Lei | |
| 109 | N066280 | 2 | PLATE, CLAMP | 4,57 Lei | |
| 112 | N488468 | 1 | DETENT | 169,36 Lei | |
| 113 | 618176-00 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 114 | 093128-00 | 2 | NEEDLE BEARING | 7,37 Lei | |
| 115 | 618254-00 | 1 | RETAINER | 8,64 Lei | |
| 116 | N082785 | 1 | LEVER, MITER LOCK | 25,54 Lei | |
| 117 | N057386 | 1 | PIN | 13,85 Lei | |
| 118 | 624460-00 | 1 | PIN | 6,23 Lei | |
| 119 | 624461-00 | 1 | SLEEVE | 6,23 Lei | |
| 120 | 618186-00 | 1 | ROD | 13,85 Lei | |
| 121 | 618185-00 | 1 | BLOCK | 37,73 Lei | |
| 122 | 385915-03 | 1 | SCREW | 7,37 Lei | |
| 123 | 618253-00 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 125 | 330045-18 | 4 | SCREW | 4,57 Lei | |
| 126 | 330019-32 | 5 | SCREW,PLASTITE | 4,57 Lei | |
| 128 | N548978V | 1 | SWITCH BGV1115 | 80,04 Lei | |
| 129 | 384127-01 | 4 | SCREW, MACHINE PAN HD | 4,57 Lei | |
| 130 | 330045-25 | 3 | SCREW.TEMP | 4,57 Lei | |
| 131 | 330019-12 | 2 | SCREW | 4,57 Lei | |
| 133 | N083060 | 1 | HANDLE | 25,54 Lei | |
| 135 | 398443-00 | 1 | CABLE CLAMP | 4,57 Lei | |
| 137 | N030322 | 1 | COVER | 5,21 Lei | |
| 147 | 330003-60 | 1 | BEARING BALL | 17,02 Lei | |
| 148 | 605040-32 | 1 | BEARING | 25,54 Lei | |
| 149 | 144803-00 | 1 | SEAL RING | 4,57 Lei | |
| 151 | 614366-00 | 1 | BAFFLE FAN | 19,95 Lei | |
| 152 | 614375-00 | 4 | SCREW | 7,37 Lei | |
| 154 | 394034-00 | 1 | SCREW | 6,23 Lei | |
| 156 | 614368-00 | 2 | BRUSH CAP | 6,23 Lei | |
| 158 | 330019-11 | 4 | SCREW PLSTC THD FORM M4.55X13 T20 | 4,57 Lei | |
| 163 | 330019-12 | 1 | SCREW | 4,57 Lei | |
| 171 | 603390-00 | 8 | SCREW | 4,57 Lei | |
| 172 | 628591-00 | 2 | WEAR GUIDE | 17,02 Lei | |
| 173 | 153576-04 | 1 | SCREW M8X10 | 13,85 Lei | |
| 174 | 613497-00 | 1 | FRICTION DISC | 4,57 Lei | |
| 175 | N058314 | 4 | SCREW SHOULDER M5X12 | 6,23 Lei | |
| 177 | N051244 | 2 | RUBBER WASHER | 4,57 Lei | |
| 178 | 659919-00 | 1 | SPRING | 6,23 Lei | |
| 179 | 612008-00 | 1 | SCREW | 7,37 Lei | |
| 180 | N056883 | 1 | HANDLE, BEVEL TIGHTENING | 37,73 Lei | |
| 181 | 330016-04 | 1 | WASHER, PLAIN, STEEL,10 * 20 * 2.0 THIC | 4,57 Lei | |
| 183 | N095579 | 1 | SA SLIDE STOP LEVER | 19,95 Lei | |
| 184 | 167785-00 | 1 | SPRING | 4,57 Lei | |
| 185 | N834068 | 1 | PIN | 17,02 Lei | |
| 188 | N058315 | 2 | SHOULDER SCREW M6 | 5,21 Lei | |
| 190 | N043046 | 1 | PAWL | 15,12 Lei | |
| 192 | 153797-04 | 2 | SCREW M8X25 | 6,23 Lei | |
| 193 | N377514 | 2 | BUSHING | 13,85 Lei | |
| 195 | 153451-00 | 1 | BEARING THRUST | 5,21 Lei | |
| 203 | 386780-00 | 2 | BEARING | 13,85 Lei | |
| 204 | N599317 | 1 | GUARD LOWER | 104,4 Lei | |
| 205 | N020822 | 1 | PLATE | 41,93 Lei | |
| 206 | 385915-01 | 8 | SCREW | 4,57 Lei | |
| 208 | 146768-00 | 1 | BUMPER | 4,57 Lei | |
| 212 | N390418 | 1 | KIT GUARD HUB+SCREW ,SERVICE | 34,05 Lei | |
| 214 | 148295-00 | 1 | SLEEVE | 7,37 Lei | |
| 215 | 625825-00 | 2 | ROLLER | 5,21 Lei | |
| 216 | 142273-00 | 2 | RING | 4,57 Lei | |
| 218 | 146760-02 | 1 | STUD | 7,37 Lei | |
| 219 | 153666-00 | 2 | SCREW | 4,57 Lei | |
| 232 | 330019-14 | 1 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 234 | 386196-00 | 1 | SPRING | 7,37 Lei | |
| 235 | 152852-00 | 1 | UNLOCKING LEVER SCREW | 7,37 Lei | |
| 237 | 393520-00 | 1 | BLOCK, TERMINAL | 19,95 Lei | |
| 238 | 388414-01 | 1 | FERRITE BEAD | 10,29 Lei | |
| 239 | N126162 | 1 | DUST BAG | 41,93 Lei | |
| 241 | N482412 | 1 | BLADE COVER, EURO | 14,2 Lei | |
| 800 | 429698-00 | 1 | GREASE | 819,98 Lei | |
| 800 | 93488-00 | 1 | GREASE DW704 TYPE 3 | 96,56 Lei | |
| 837 | 559626-99 | 1 | SERVICE TOOL | 526,5 Lei | |
| 837 | 559627-99 | 1 | SERVICE TOOL | 105,8 Lei | |
| 856 | N114019 | 1 | SCREW KIT | 106,98 Lei | |
| 857 | N813146 | 1 | SERVICE KIT | 59,2 Lei |
