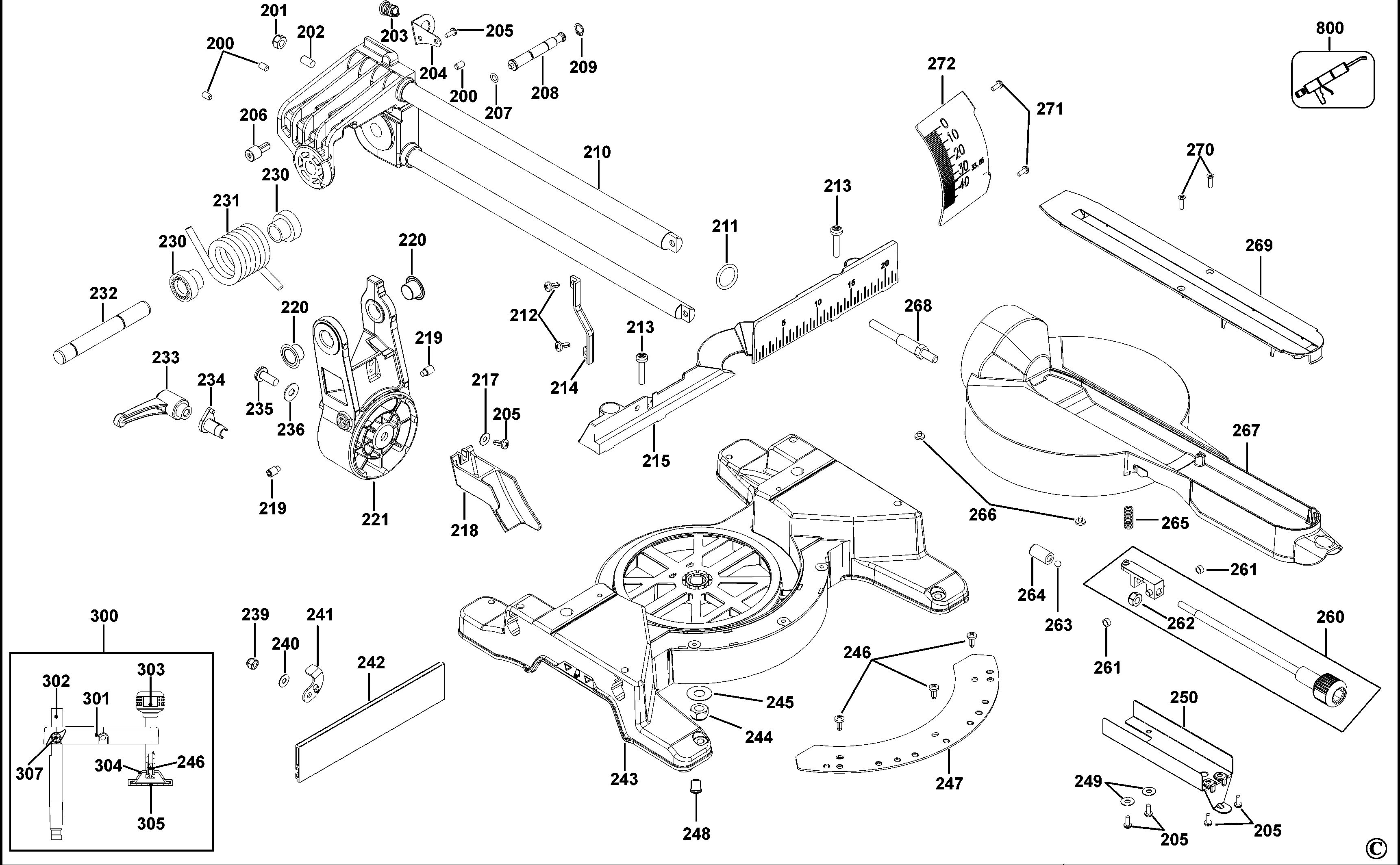

DEWALT MITRE SAW (Type 1)
SKU Produs: DWS778 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N233136 | 1 | CABLE H05RN-F 2X1 M.3 DWS778-QS | 109,5 Lei | |
| 3 | 868520-00 | 1 | CORD PROTECTOR | 5,3 Lei | |
| 4 | 860843-01 | 1 | STRAP,CABLE N5 5/16 NYLON | 4,7 Lei | |
| 5 | 330045-05 | 3 | SCREW.TEMP | 4,7 Lei | |
| 6 | N075468 | 1 | SA SUPPLY, POWER,WRKLITE/LASR | 177,2 Lei | |
| 8 | N110339 | 1 | SA LEVER DWS778 | 42,9 Lei | |
| 9 | 939625-00 | 1 | WASHER | 4,7 Lei | |
| 10 | 930076-01 | 1 | VITE TCB 4,2X16 B 6954 | 4,7 Lei | |
| 11 | N464700 | 1 | LEVER DCS778 | 20,4 Lei | |
| 13 | 869295-00 | 1 | BUSHING X LEVER D.6 DW777 | 4,7 Lei | |
| 14 | 869156-00 | 1 | PIN DW777 | 6,4 Lei | |
| 15 | 869192-00 | 1 | BUSHING DW777 | 4,7 Lei | |
| 16 | N466267 | 1 | HANDLE SIDE MOTOR DWS778 | 90,6 Lei | |
| 17 | 384127-01 | 2 | SCREW, MACHINE PAN HD | 4,7 Lei | |
| 18 | 394375-02P | 1 | SWITCH 1269.3211 | 59,2 Lei | |
| 19 | 330065-06 | 1 | SCREW PLSTC THD FROM M4X12 T20 | 4,7 Lei | |
| 20 | 658093-00 | 1 | CONNECTOR | 14,2 Lei | |
| 21 | 760296-01 | 1 | PIVOT | 4,7 Lei | |
| 30 | N131928 | 1 | S/A CAPACITOR 230V. DWS778 | 56,4 Lei | |
| 31 | N210177 | 1 | INTERMEDIATE HARNESS XPS DW778 | 22,4 Lei | |
| 32 | N456928 | 1 | SCREW PLASTIC 3.9X22 T20 | 10,5 Lei | |
| 32 | N456938 | 1 | PERFORM AND PROTECT 2-SP LOGO LABEL MCN | 7,2 Lei | |
| 33 | N231737 | 1 | LED LIGHT DWS778, SERVICE | 270,1 Lei | |
| 34 | N137473 | 1 | S/A CABLE WORK LIGHT DWS778 | 38,6 Lei | |
| 35 | N130455 | 1 | DEFLECTOR,DUST DWS778 | 20,4 Lei | |
| 36 | 860077-01 | 5 | RING,SPRING S.LOCK D.4 | 4,7 Lei | |
| 37 | N715069 | 1 | COVER,MOT.HOUSING DWS778 | 109,5 Lei | |
| 38 | 330045-05 | 3 | SCREW.TEMP | 4,7 Lei | |
| 39 | N456928 | 10 | SCREW PLASTIC 3.9X22 T20 | 10,5 Lei | |
| 39 | N456938 | 10 | PERFORM AND PROTECT 2-SP LOGO LABEL MCN | 7,2 Lei | |
| 40 | N136987 | 1 | RATING PLATE DWS778-QS | 13,5 Lei | |
| 41 | N168410 | 1 | SPRING DWS778 | 5,3 Lei | |
| 42 | 860073-00 | 2 | WASHER,FLAT 4.3X9 UNI 6592 | 4,7 Lei | |
| 43 | 860084-20 | 1 | SCREW,PAN PHAB 3.9X9,5UNI6954 | 4,7 Lei | |
| 44 | 761306-00 | 1 | BUMPER | 5,3 Lei | |
| 45 | 949896-13 | 1 | SELF TAPPING SCREW | 4,7 Lei | |
| 46 | 943022-01 | 1 | SCREW 3,5x10 UNI8112 | 4,7 Lei | |
| 47 | 941633-00 | 1 | WASHER | 4,7 Lei | |
| 48 | N110318 | 1 | SA MOVEABLE GUARD DWS778 | 148,5 Lei | |
| 49 | 760298-01 | 6 | PAD, WEAR | 4,7 Lei | |
| 50 | 146774-00 | 1 | ROLLER | 7,5 Lei | |
| 51 | N486097 | 1 | UPPER GUARD DCS778 MCHD | 133,4 Lei | |
| 60 | N142857 | 1 | RING,SPRING SHAFT D40 | 5,3 Lei | |
| 62 | N106551 | 1 | BLADE WASHER INNER DWS778 | 59,2 Lei | |
| 63 | N106550 | 1 | BLADE WASHER OUTER DWS778 | 42,9 Lei | |
| 64 | 869245-00 | 1 | SCREW | 31,6 Lei | |
| 65 | N106424 | 1 | BELT 11 RIBS DWS778 | 53,4 Lei | |
| 66 | 760219-00 | 2 | SOCKET HEAD SCREW | 4,7 Lei | |
| 67 | 760241-01 | 1 | WASHER(174930434) | 4,7 Lei | |
| 67 | 860075-00 | 2 | WASHER,FLAT SPEC. 6.4X16X1.5 | 4,7 Lei | |
| 68 | N106421 | 1 | DRIVEN PULLEY 11 RIBS DWS778 | 72 Lei | |
| 69 | 861721-13 | 2 | BEARING 6201 2RS ISB | 22,4 Lei | |
| 70 | N116864 | 2 | KEY 3X3X10 | 6,4 Lei | |
| 80 | N231745 | 1 | INTERMEDIATE SHAFT DWS778, SERVICE | 90,6 Lei | |
| 81 | 605040-59 | 2 | BEARING | 15,5 Lei | |
| 82 | 930122-00 | 2 | ANELLO ELA.27,8X21X0,3 | 4,7 Lei | |
| 83 | 946874-00 | 1 | ADJUSTER | 4,7 Lei | |
| 84 | 949729-03 | 1 | RETAINING RING D.35 | 4,7 Lei | |
| 85 | N231744 | 1 | BLADE AXIS DWS778, SERVICE | 148,5 Lei | |
| 86 | 861721-10 | 1 | BEARING 6003 2RS ISB | 15,5 Lei | |
| 87 | 949886-26 | 1 | SCREW | 5,3 Lei | |
| 88 | N106420 | 1 | DRIVE PULLEY 11 RIBS DWS778 | 22,4 Lei | |
| 89 | 949729-02 | 1 | STOP RING | 4,7 Lei | |
| 91 | 860083-03 | 1 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 93 | 869166-00 | 1 | PLATE DW777 | 5,3 Lei | |
| 94 | N119659 | 1 | DEFLECTOR DWS778 | 4,7 Lei | |
| 95 | 330019-19 | 2 | SCREW, PLASTITE | 5,3 Lei | |
| 96 | 869441-00 | 1 | KIT FIELD 240V. DWS778, SERVICE | 357,2 Lei | |
| 96 | N231738 | 1 | FIELD 240V. DWS778, SERVICE | 307,5 Lei | |
| 97 | 659512-00 | 1 | BRUSH PAIR SA | 59,2 Lei | |
| 98 | 605155-00 | 1 | RELIEF, STRAIN HEYCO SR7P-2 | 4,7 Lei | |
| 99 | 98094-55 | 4 | SCREW | 4,7 Lei | |
| 100 | 330019-13 | 4 | SCREW,PLSTC THD FORM M4X19 T20 | 4,7 Lei | |
| 101 | 145312-00 | 1 | RUBBER PLUG | 4,7 Lei | |
| 110 | N187409 | 1 | SA END CAP + LABEL | 22,4 Lei | |
| 113 | 391317-00 | 1 | FIELDCASE | 59,2 Lei | |
| 114 | N231746 | 1 | ARMATURE 240V. DWS778, SERVICE | 443,3 Lei | |
| 115 | 389512-08 | 1 | SA BRUSH HOLDER DW777 | 98,8 Lei | |
| 116 | N110359 | 1 | BALL BEARING | 8,8 Lei | |
| 118 | 869140-00 | 1 | LOCKING KNOB | 7,5 Lei | |
| 119 | 868082-00 | 1 | SPRING | 4,7 Lei | |
| 121 | 330045-10 | 1 | SCREW,PAN PH/TT M.4X35 | 59,2 Lei | |
| 122 | N106479 | 1 | COVER BELT DWS778 | 20,4 Lei | |
| 123 | N115190 | 1 | BELT 16 RIBS DWS778 | 72 Lei | |
| 124 | 860083-17 | 1 | NUT,HEX THIN M.12 UNI5589 | 4,7 Lei | |
| 125 | 869246-00 | 1 | SPRING DW743N | 4,7 Lei | |
| 126 | N115189 | 1 | DRIVEN PULLEY 16 RIBS DWS778 | 72 Lei | |
| 127 | 860074-05 | 1 | WASHER,SPRING CON.12.2X28X1.5 | 4,7 Lei | |
| 129 | N115188 | 1 | DRIVE PULLEY 16 RIBS DWS778 | 26,1 Lei | |
| 130 | N231743 | 1 | SA CARRIER DWS778, SERVICE | 683,4 Lei | |
| 130 | N394543 | 1 | TROLLEY DWS778, SERVICE | 483,2 Lei | |
| 131 | 868682-00 | 1 | WRENCH | 6,4 Lei | |
| 144 | N106542 | 1 | MOVEABLE GUARD DWS778 | 123,6 Lei | |
| 200 | 150075-00 | 1 | SCREW | 5,3 Lei | |
| 201 | 860083-14 | 1 | NUT,HEX MEAN M.8 UNI5588 ZINC | 4,7 Lei | |
| 202 | 760242-00 | 1 | SCREW | 4,7 Lei | |
| 203 | N137454 | 1 | INSULATED BUSHING DWS778 | 7,5 Lei | |
| 204 | N137455 | 1 | BRACKET | 7,5 Lei | |
| 205 | 330045-05 | 1 | SCREW.TEMP | 4,7 Lei | |
| 206 | 618198-00 | 1 | SCREW | 6,4 Lei | |
| 207 | 943030-00 | 1 | O RING | 4,7 Lei | |
| 208 | N129820 | 1 | PIN DWS778 | 53,4 Lei | |
| 209 | 860079-02 | 1 | RING,SPRING SHAFT D10 UNI7435 | 4,7 Lei | |
| 210 | N231740 | 1 | SA RAILS DWS778, SERVICE | 730,3 Lei | |
| 211 | 869141-00 | 1 | OR 4075 D.18,64 d.3,53 | 4,7 Lei | |
| 212 | 949609-03 | 2 | SCREW | 4,7 Lei | |
| 213 | 330045-26 | 2 | SCREW | 6,4 Lei | |
| 214 | 947613-00 | 1 | CROSS | 13 Lei | |
| 215 | N783370 | 1 | FENCE | 199,6 Lei | |
| 217 | 941633-00 | 2 | WASHER | 4,7 Lei | |
| 218 | N150087 | 1 | DUST CONVEYOR DWS778 | 7,5 Lei | |
| 219 | 949743-02 | 2 | SCREW | 4,7 Lei | |
| 220 | N083191 | 2 | BUSHING NYLINER | 5,3 Lei | |
| 221 | N106395 | 1 | SEGMENT DWS778 MCHD | 199,6 Lei | |
| 230 | 146732-00 | 2 | SPACER | 5,3 Lei | |
| 231 | N136651 | 1 | SPRING | 42,9 Lei | |
| 232 | N231736 | 1 | PIN DWS778, SERVICE | 81,9 Lei | |
| 233 | 861840-03 | 1 | LEVER SC | 20,4 Lei | |
| 234 | 868680-00 | 1 | BEVEL CLAMP DW777 | 14,2 Lei | |
| 235 | 612008-00 | 1 | SCREW | 7,5 Lei | |
| 236 | 933168-00 | 1 | WASHER | 5,3 Lei | |
| 239 | 860092-02 | 1 | NUT,ELAST.STOP M.6 UNI 7473 | 4,7 Lei | |
| 240 | 860075-00 | 1 | WASHER,FLAT SPEC. 6.4X16X1.5 | 4,7 Lei | |
| 241 | N128350 | 1 | LEVER LOCK DWS778 | 7,5 Lei | |
| 242 | N497434 | 1 | SA SLIDING FENCE DWS778, SERVICE | 148,5 Lei | |
| 243 | 869313-00 | 1 | BASE DW777, SERVICE | 462,3 Lei | |
| 244 | 860092-07 | 1 | NUT,LOCKING M12X1,25 | 4,7 Lei | |
| 245 | 949705-01 | 1 | WASHER | 4,7 Lei | |
| 246 | 330045-49 | 4 | SCREW | 4,7 Lei | |
| 247 | 868677-00 | 1 | SCALE | 53,4 Lei | |
| 248 | 868777-00 | 4 | FOOT | 4,7 Lei | |
| 249 | 860074-00 | 2 | WASHER,SPRING CON.D4.2X10X0.6 | 4,7 Lei | |
| 250 | N483511 | 1 | COVER | 26,1 Lei | |
| 260 | N109532 | 1 | SA TABLE LOCKING DWS778 | 59,2 Lei | |
| 261 | N299799 | 2 | BUSHING | 4,7 Lei | |
| 262 | 860092-05 | 1 | NUT,SELF LOCKING M.8 | 4,7 Lei | |
| 263 | 868708-00 | 1 | BALL 6,3 mm | 4,7 Lei | |
| 264 | 868707-01 | 1 | SPACER FOR LOCKING SYSTEM DW777 | 4,7 Lei | |
| 265 | 868778-00 | 1 | SPRING | 4,7 Lei | |
| 266 | 760298-01 | 3 | PAD, WEAR | 4,7 Lei | |
| 267 | N717633 | 1 | TABLE DWS778 IEC (SERVICE) | 543 Lei | |
| 268 | N115187 | 1 | SHAFT, BEVEL DWS778 | 26,1 Lei | |
| 269 | N106478 | 1 | TABLE INSERT | 26,1 Lei | |
| 270 | 860205-08 | 2 | SCREW,PAN PH/TT M.4X14 UNI8112 | 4,7 Lei | |
| 271 | 949894-12 | 2 | SCREW | 4,7 Lei | |
| 272 | N131182 | 1 | SCALE BEVEL DWS778 | 17,4 Lei | |
| 300 | N171682 | 1 | CLAMP SA,PACKED | 98,8 Lei | |
| 301 | 869306-00 | 1 | CLAMP,MACHINED DW777 | 31,6 Lei | |
| 302 | N168123 | 1 | CLAMP BAR DWS778 | 34,8 Lei | |
| 303 | 869308-00 | 1 | SCREW+KNOB,CLAMP DW777 | 13 Lei | |
| 304 | 630068-00 | 1 | PAD,CLAMP DW777 | 15,5 Lei | |
| 305 | 630085-00 | 1 | CLAMP,CAP DW777 | 6,4 Lei | |
| 307 | 326573-01 | 1 | SCREW, WING M6*17 BLACK | 5,3 Lei | |
| 800 | 93488-00 | 1 | GREASE DW704 TYPE 3 | 98,8 Lei |
