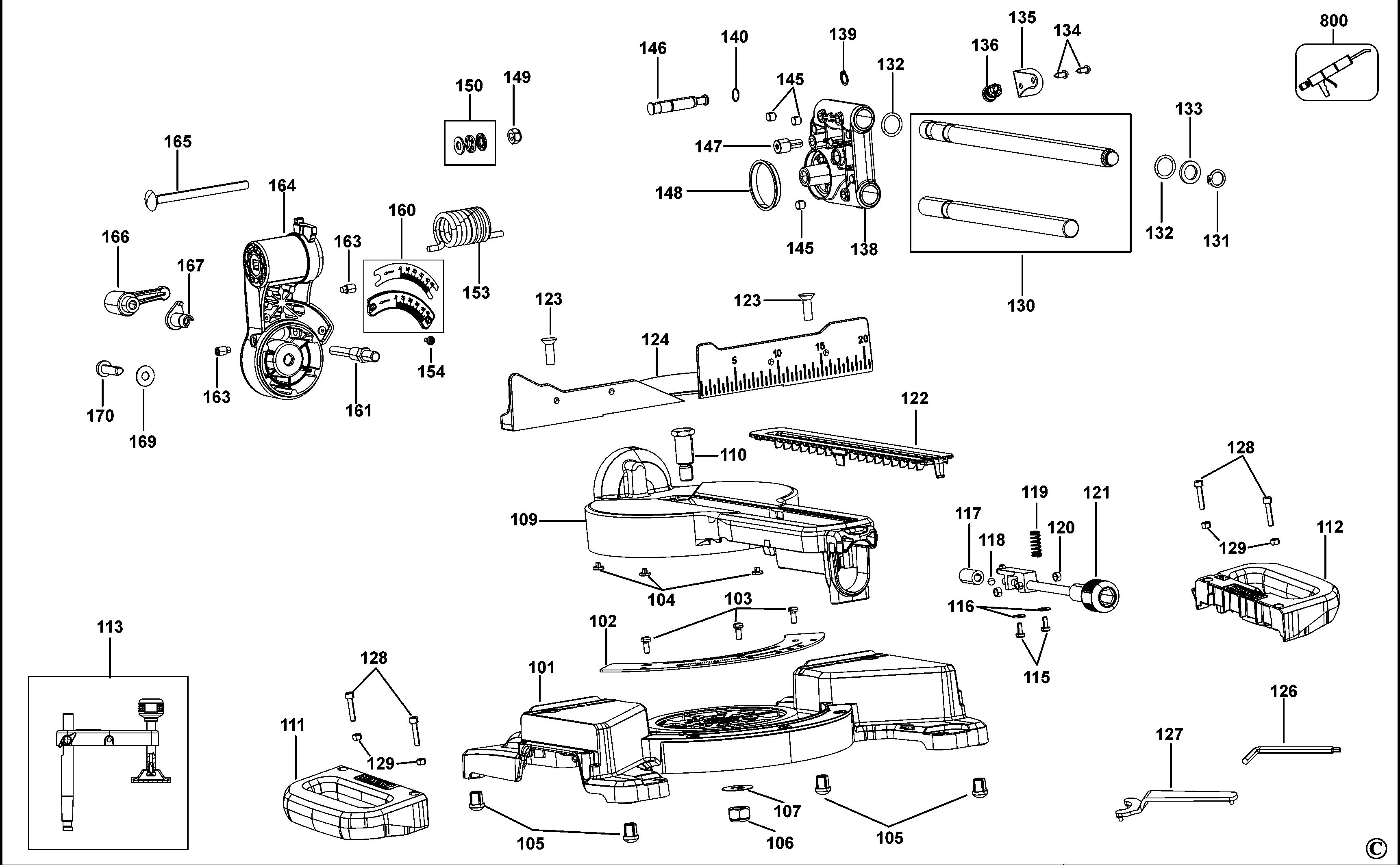

DEWALT MITRE SAW (Type 1)
SKU Produs: DWS773 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N443398 | 1 | SA ARMATURE+BEARIN 230V. DWS774, SERVIC | 398,3 Lei | |
| 2 | N447750 | 1 | Ball Brg 6001 ZZ C3 LHT23 | 14,2 Lei | |
| 3 | N110359 | 1 | BALL BEARING | 8,8 Lei | |
| 4 | N415295 | 1 | FAN BAFFLE DWS774 | 5,3 Lei | |
| 5 | N432834 | 2 | SCREW THREADFORM D4,8x45 | 4,7 Lei | |
| 6 | N443396 | 1 | FIELD 230V. DWS774, SERVICE | 205,7 Lei | |
| 7 | N413672 | 1 | FIELD CASE DWS774 | 42,9 Lei | |
| 7 | N785405 | 1 | FIELD CASE DWS774 | 53,4 Lei | |
| 8 | 98094-55 | 4 | SCREW | 4,7 Lei | |
| 9 | N443400 | 1 | KIT BRUSHES DWS774, SERVICE | 59,2 Lei | |
| 10 | N452335 | 1 | COVER FOR LENS DWS773 | 4,7 Lei | |
| 11 | N452336 | 1 | COVER FOR SWITCH DWS773 | 4,7 Lei | |
| 15 | N442752 | 2 | BRUSHES LEAD WIRE | 7,5 Lei | |
| 16 | N413668 | 1 | END CAP DWS774 | 8,8 Lei | |
| 18 | 330019-13 | 2 | SCREW,PLSTC THD FORM M4X19 T20 | 4,7 Lei | |
| 19 | 869156-00 | 1 | PIN DW777 | 6,4 Lei | |
| 20 | 869295-00 | 1 | BUSHING X LEVER D.6 DW777 | 4,7 Lei | |
| 21 | 860077-01 | 1 | RING,SPRING S.LOCK D.4 | 4,7 Lei | |
| 22 | N417784 | 1 | LEVER, MOVEABLE GUARD DWS774 | 17,4 Lei | |
| 23 | 760296-01 | 1 | PIVOT | 4,7 Lei | |
| 24 | 930076-01 | 1 | VITE TCB 4,2X16 B 6954 | 4,7 Lei | |
| 30 | 384127-01 | 2 | SCREW, MACHINE PAN HD | 4,7 Lei | |
| 31 | N394413 | 1 | SA LEVER DWS774 | 8,8 Lei | |
| 32 | 869192-00 | 1 | BUSHING DW777 | 4,7 Lei | |
| 33 | 949743-02 | 2 | SCREW | 4,7 Lei | |
| 34 | N454710 | 1 | SA MOTOR CABLE+CAPACITOR DWS773 | 53,4 Lei | |
| 35 | N092201V | 1 | SWITCH | 42,9 Lei | |
| 36 | 869277-00 | 1 | CABLE DW777 | 8,8 Lei | |
| 37 | N433608 | 1 | RELIEF, STRAIN HEYCO SR 7K-2 | 5,3 Lei | |
| 38 | N416554 | 1 | HANDLE COVER RH DWS774 | 72 Lei | |
| 39 | N543840 | 1 | SA CARRIER DWS774, SERVICE | 246 Lei | |
| 45 | 860075-00 | 1 | WASHER,FLAT SPEC. 6.4X16X1.5 | 4,7 Lei | |
| 46 | 860083-12 | 1 | NUT M6 | 4,7 Lei | |
| 47 | 868082-00 | 1 | SPRING | 4,7 Lei | |
| 48 | 869140-00 | 1 | LOCKING KNOB | 7,5 Lei | |
| 49 | 860468-00 | 1 | CONNECTOR,BOX 3 POLES 4 SQMM | 8,8 Lei | |
| 50 | N433044 | 1 | SA POWER CORD AND ACCESSORIES DWS774 QS | 90,6 Lei | |
| 51 | 868520-00 | 1 | CORD PROTECTOR | 5,3 Lei | |
| 52 | N456928 | 12 | SCREW PLASTIC 3.9X22 T20 | 10,5 Lei | |
| 52 | N456938 | 12 | PERFORM AND PROTECT 2-SP LOGO LABEL MCN | 7,2 Lei | |
| 53 | N443393 | 1 | SA SPINDLE DWS774 SERVICE | 230,5 Lei | |
| 54 | 946874-00 | 1 | ADJUSTER | 4,7 Lei | |
| 60 | 760298-01 | 1 | PAD, WEAR | 4,7 Lei | |
| 61 | 330045-05 | 3 | SCREW.TEMP | 4,7 Lei | |
| 62 | N566679 | 1 | SA HANDLE COVER SX AND LEVER | 90,6 Lei | |
| 63 | 330045-07 | 3 | SCREW | 4,7 Lei | |
| 64 | 947067-00 | 1 | PLUG | 6,4 Lei | |
| 65 | N402337 | 1 | SPRING | 4,7 Lei | |
| 66 | N546966 | 1 | SA KIT GUARDS DWS773, SERVICE | 133,4 Lei | |
| 67 | 146774-00 | 1 | ROLLER | 7,5 Lei | |
| 68 | 604728-00 | 1 | SEAL RING | 4,7 Lei | |
| 69 | N437811 | 1 | RETAINING RING D.32 | 5,3 Lei | |
| 70 | N482904 | 1 | BLADE WASHER INNER DWS774 | 22,4 Lei | |
| 70 | N482986 | 1 | RATING LABEL DCS331-XE03 | 10 Lei | |
| 71 | N380081 | 1 | BLADE WASHER OUTER | 14,2 Lei | |
| 72 | 869245-00 | 1 | SCREW | 31,6 Lei | |
| 73 | N437182 | 1 | DEFLECTOR,DUST DWS774 | 17,4 Lei | |
| 74 | 860077-01 | 3 | RING,SPRING S.LOCK D.4 | 4,7 Lei | |
| 76 | N437704 | 1 | LABEL DEWALT DWS774 | 5,3 Lei | |
| 77 | N546966 | 1 | SA KIT GUARDS DWS773, SERVICE | 133,4 Lei | |
| 101 | N443388 | 1 | BASE DWS774, SERVICE | 408,7 Lei | |
| 102 | N493151 | 1 | MITER SCALE DWS774 | 31,6 Lei | |
| 103 | 330045-49 | 3 | SCREW | 4,7 Lei | |
| 104 | 760298-01 | 1 | PAD, WEAR | 4,7 Lei | |
| 105 | 868777-00 | 4 | FOOT | 4,7 Lei | |
| 106 | 860092-07 | 1 | NUT,LOCKING M12X1,25 | 4,7 Lei | |
| 107 | 949705-01 | 1 | WASHER | 4,7 Lei | |
| 109 | N493430 | 1 | TABLE DWS774, SERVICE | 392,6 Lei | |
| 110 | N312779 | 1 | TABLE PIN DWS774 | 26,1 Lei | |
| 111 | N381932 | 1 | TOP TABLE EXTENSION DWS774 | 31,6 Lei | |
| 112 | N412530 | 1 | TOP TABLE EXTENSION RH DWS774 | 31,6 Lei | |
| 113 | N294299 | 1 | CLAMP DW770 | 81,9 Lei | |
| 115 | 330045-05 | 2 | SCREW.TEMP | 4,7 Lei | |
| 116 | 860074-01 | 2 | WASHER,SPRING CON.D5.2X12X0.8 | 4,7 Lei | |
| 117 | 868707-01 | 1 | SPACER FOR LOCKING SYSTEM DW777 | 4,7 Lei | |
| 118 | 868708-00 | 1 | BALL 6,3 mm | 4,7 Lei | |
| 119 | 868778-00 | 1 | SPRING | 4,7 Lei | |
| 120 | N299799 | 2 | BUSHING | 4,7 Lei | |
| 121 | N315680 | 1 | SA TABLE LOCKING DW777 | 53,4 Lei | |
| 122 | N380813 | 1 | KERF PLATE DWS774 | 8,8 Lei | |
| 124 | N368581 | 1 | FIX FENCE MACH SC | 98,8 Lei | |
| 126 | 868682-00 | 1 | WRENCH | 6,4 Lei | |
| 127 | N427024 | 1 | WRENCH | 10,5 Lei | |
| 128 | 860093-08 | 4 | SCREW,SOCKET M.5X25 UNI 5931 | 4,7 Lei | |
| 129 | 860083-02 | 4 | NUT,HEX THICK M.5 UNI 5587 | 4,7 Lei | |
| 130 | N443391 | 1 | SA RAILS DWS774, SERVICE | 283,3 Lei | |
| 131 | N430464 | 1 | SEEGER SHAFT D.14 | 4,7 Lei | |
| 132 | N430472 | 1 | O-RING | 4,7 Lei | |
| 133 | N430463 | 1 | Washer D14 d22 s.3 | 4,7 Lei | |
| 134 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,7 Lei | |
| 135 | N137455 | 1 | BRACKET | 7,5 Lei | |
| 136 | N137454 | 1 | INSULATED BUSHING DWS778 | 7,5 Lei | |
| 138 | N443390 | 1 | SUPPORT RAILS DWS774, SERVICE | 173,3 Lei | |
| 139 | 860079-02 | 1 | RING,SPRING SHAFT D10 UNI7435 | 4,7 Lei | |
| 140 | 943030-00 | 1 | O RING | 4,7 Lei | |
| 145 | 153666-00 | 3 | SCREW | 4,7 Lei | |
| 146 | N401760 | 1 | SHAFT | 20,4 Lei | |
| 147 | 618198-00 | 1 | SCREW | 6,4 Lei | |
| 148 | N422257 | 1 | PIVOT BUSH DWS774 | 10,5 Lei | |
| 149 | 860092-05 | 1 | NUT,SELF LOCKING M.8 | 4,7 Lei | |
| 150 | 861475-00 | 1 | BEARING | 17,4 Lei | |
| 153 | N402913 | 1 | TORSION HEAD SPRING DWS774 | 34,8 Lei | |
| 154 | 949894-12 | 2 | SCREW | 4,7 Lei | |
| 160 | N437177 | 1 | BEVEL SCALE AND LABEL DWS774 | 7,5 Lei | |
| 161 | N395328 | 1 | SHAFT, BEVEL | 22,4 Lei | |
| 163 | 153666-00 | 2 | SCREW | 4,7 Lei | |
| 164 | N368598 | 1 | SEGMENT MACH DWS774 | 123,6 Lei | |
| 165 | N447409 | 1 | SCREW,CUP SQUARE M8X110 | 7,5 Lei | |
| 166 | 861840-03 | 1 | LEVER SC | 20,4 Lei | |
| 167 | 868680-00 | 1 | BEVEL CLAMP DW777 | 14,2 Lei | |
| 169 | 933168-00 | 1 | WASHER | 5,3 Lei | |
| 170 | 612008-00 | 1 | SCREW | 7,5 Lei | |
| 800 | 93488-00 | 1 | GREASE DW704 TYPE 3 | 98,8 Lei | |
| 821 | N439995 | 1 | RATING PLATE DWS773-QS | 6,1 Lei |
