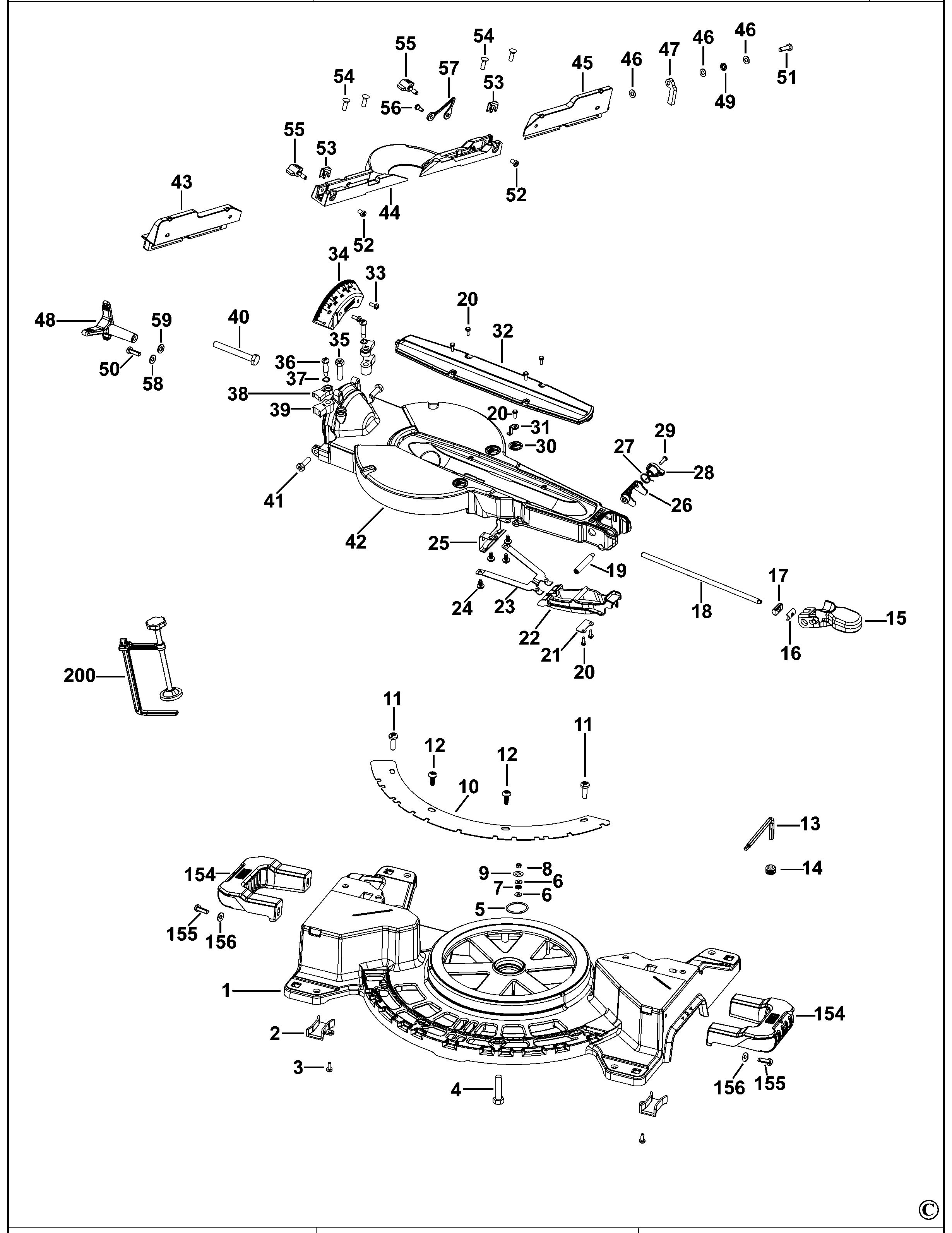

DEWALT MITRE SAW (Type 1)
SKU Produs: DWS727 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N747692 | 1 | BASE DWS727, SERVICE | 776,53 Lei | |
| 2 | N542847 | 2 | CLAMP, HOLDER DWS727 | 4,57 Lei | |
| 3 | 330045-05 | 2 | SCREW.TEMP | 4,57 Lei | |
| 4 | 98025-35 | 1 | SCREW TE M8X35 | 5,1 Lei | |
| 5 | 49787-00 | 1 | RING | 4,57 Lei | |
| 6 | 153792-00 | 2 | LAP WASHER | 4,57 Lei | |
| 7 | 153451-00 | 1 | BEARING THRUST | 5,21 Lei | |
| 8 | N074448 | 1 | NUT | 4,57 Lei | |
| 9 | N556926 | 1 | DUST CAP | 4,57 Lei | |
| 10 | N690033 | 1 | SCALE | 130,35 Lei | |
| 11 | 604410-00 | 2 | SCREW | 4,57 Lei | |
| 12 | 330045-23 | 2 | SCREW | 4,57 Lei | |
| 13 | N767631 | 1 | WRENCH | 13,85 Lei | |
| 14 | N592585 | 1 | RUBBER DWS727 | 4,57 Lei | |
| 15 | N540765 | 1 | LEVER, MITER LOCK | 15,12 Lei | |
| 16 | N419627 | 1 | NUT | 5,21 Lei | |
| 17 | 621322-00 | 1 | NUT MITER LOCK | 8,64 Lei | |
| 18 | N577744 | 1 | LOCK BAR | 19,95 Lei | |
| 19 | N597803 | 1 | PIN | 13,85 Lei | |
| 20 | 330045-45 | 5 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 21 | 641448-00 | 1 | RETAINER | 5,21 Lei | |
| 22 | N704030 | 1 | ACTUATOR | 15,12 Lei | |
| 23 | 397070-00 | 1 | BLOCK SPRING | 21,85 Lei | |
| 24 | 330045-55 | 5 | SCREW | 4,57 Lei | |
| 25 | 397062-00 | 1 | LOCK PLATE | 17,02 Lei | |
| 26 | N655907 | 1 | MITER OVERRIDE DWS727 | 5,21 Lei | |
| 29 | 330019-12 | 1 | SCREW | 4,57 Lei | |
| 30 | 610707-00 | 2 | WARNING LABEL | 4,57 Lei | |
| 31 | 397048-00 | 1 | MITER POINTER | 7,37 Lei | |
| 32 | N540767 | 1 | PLATE | 25,54 Lei | |
| 33 | 330045-49 | 6 | SCREW | 4,57 Lei | |
| 34 | N090294 | 1 | BEVEL SCALE DWS780 | 34,05 Lei | |
| 35 | N600059 | 1 | SCREW M8X35 | 7,37 Lei | |
| 36 | N058315 | 1 | SHOULDER SCREW M6 | 5,21 Lei | |
| 37 | 385946-00 | 2 | WASHER SPRING MBR100 TYPE 2 | 4,57 Lei | |
| 38 | N043045 | 2 | PAWL | 12,71 Lei | |
| 39 | N043046 | 2 | PAWL | 15,12 Lei | |
| 40 | N536137 | 1 | SCREW,HEX 10x80 DIN 933 | 10,29 Lei | |
| 41 | N600034 | 1 | SCREW | 6,23 Lei | |
| 42 | N747695 | 1 | TABLE DWS727, SERVICE | 750,36 Lei | |
| 43 | N540749 | 1 | Fence, Left, Mach DWS727 | 157,92 Lei | |
| 44 | N540748 | 1 | FENCE | 252,58 Lei | |
| 45 | N540750 | 1 | Fence, right, Mach DWS727 | 157,92 Lei | |
| 46 | 613270-00 | 3 | WASHER | 5,21 Lei | |
| 47 | N638426 | 1 | FLIP DOWN STOP | 13,85 Lei | |
| 48 | N056883 | 1 | HANDLE, BEVEL TIGHTENING | 37,73 Lei | |
| 49 | N463949 | 1 | BEARING CAGE AND BALLS, THRUST | 12,71 Lei | |
| 50 | 612008-00 | 1 | SCREW | 7,37 Lei | |
| 51 | 612008-00 | 1 | SCREW | 7,37 Lei | |
| 52 | N769115 | 2 | SCREW M8x12 - NARROW HD - PLASTIC | 4,57 Lei | |
| 53 | N583687 | 2 | FENCE KNOB RETENTION | 4,57 Lei | |
| 55 | 147107-07 | 2 | SA BEVEL KNOB | 8,64 Lei | |
| 56 | 153639-00 | 1 | SHOULDER SCREW | 4,57 Lei | |
| 57 | N587154 | 1 | CORD LANYARD | 4,57 Lei | |
| 58 | 153792-00 | 1 | LAP WASHER | 4,57 Lei | |
| 59 | 330016-04 | 1 | WASHER, PLAIN, STEEL,10 * 20 * 2.0 THIC | 4,57 Lei | |
| 60 | N747696 | 1 | SA SUPP.HOUSING DWS727, SERVICE | 2055,16 Lei | |
| 61 | 153576-04 | 1 | SCREW M8X10 | 13,85 Lei | |
| 62 | N080677 | 1 | KNOB | 15,12 Lei | |
| 63 | 659919-00 | 1 | SPRING | 6,23 Lei | |
| 64 | N083191 | 2 | BUSHING NYLINER | 5,21 Lei | |
| 65 | 153639-00 | 1 | SHOULDER SCREW | 4,57 Lei | |
| 66 | 153655-00 | 2 | WAVY WASHER | 4,57 Lei | |
| 67 | 153603-01 | 1 | STOP, PAWL | 7,37 Lei | |
| 68 | 153666-00 | 2 | SCREW | 4,57 Lei | |
| 70 | 387130-00 | 1 | PIN, LOCKING | 17,02 Lei | |
| 71 | N654500 | 1 | KNOB - HEAD DOWN LOCK PIN | 5,21 Lei | |
| 73 | N058308 | 1 | BEVEL POINTER, RIGHT | 6,23 Lei | |
| 74 | N058314 | 2 | SCREW SHOULDER M5X12 | 6,23 Lei | |
| 75 | N058312 | 2 | SCREW | 5,21 Lei | |
| 76 | N058309 | 1 | BEVEL POINTER, LEFT | 6,23 Lei | |
| 78 | 167785-00 | 1 | SPRING | 4,57 Lei | |
| 79 | N049689 | 1 | PLATE STOP RH | 5,21 Lei | |
| 81 | N051519 | 1 | PLATE STOP LH | 7,37 Lei | |
| 82 | 153655-00 | 4 | WAVY WASHER | 4,57 Lei | |
| 83 | 153639-00 | 5 | SHOULDER SCREW | 4,57 Lei | |
| 86 | N834068 | 1 | PIN | 17,02 Lei | |
| 87 | N080199 | 1 | KNOB | 8,64 Lei | |
| 88 | 060325-01 | 1 | RING, RET. EXT | 4,57 Lei | |
| 91 | N095579 | 1 | SA SLIDE STOP LEVER | 19,95 Lei | |
| 92 | N592588 | 1 | Duct Dust | 57,81 Lei | |
| 93 | 330019-05 | 1 | SCREW PLASTITE M3.5X25 | 4,57 Lei | |
| 95 | N751540 | 1 | KIT FLAPPER DWS727, SERVICE | 30,87 Lei | |
| 96 | 146751-00 | 1 | SHAFT,PIVOT | 17,02 Lei | |
| 97 | 146732-00 | 2 | SPACER | 5,21 Lei | |
| 98 | N039404 | 1 | SPRING | 70,39 Lei | |
| 99 | 150075-00 | 2 | SCREW | 5,21 Lei | |
| 100 | 641436-00 | 1 | LINK | 19,95 Lei | |
| 101 | 146740-00 | 2 | SLEEVE | 4,57 Lei | |
| 102 | 604770-00 | 1 | ADAPTOR | 17,02 Lei | |
| 103 | N460123 | 1 | SCREW | 10,29 Lei | |
| 104 | N600011 | 1 | SCREW | 8,64 Lei | |
| 105 | N542995 | 1 | CLAMP,OUTER | 41,93 Lei | |
| 106 | N913382 | 1 | WASHER INNER CLAMP | 17,02 Lei | |
| 109 | 330019-76 | 1 | SCREW | 4,57 Lei | |
| 110 | N703990 | 1 | HANDLE CARRYING | 17,02 Lei | |
| 111 | N592587 | 1 | CABLE CLAMP | 4,57 Lei | |
| 112 | N502785 | 1 | HANDLE ASSY HALF | 34,05 Lei | |
| 113 | N502786 | 1 | HANDLE ASSY COVER | 34,8 Lei | |
| 114 | N655904 | 1 | BELT COVER | 57,81 Lei | |
| 116 | 330045-18 | 4 | SCREW | 4,57 Lei | |
| 117 | 330019-32 | 5 | SCREW,PLASTITE | 4,57 Lei | |
| 118 | 330045-49 | 2 | SCREW | 4,57 Lei | |
| 119 | 330045-45 | 2 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 120 | N589571 | 1 | COVER | 4,57 Lei | |
| 125 | N515802 | 1 | LED AND POWER SUPPLY KIT | 375,31 Lei | |
| 126 | 34158-00 | 1 | GASKET | 4,57 Lei | |
| 127 | 330019-12 | 1 | SCREW | 4,57 Lei | |
| 129 | 384127-01 | 4 | SCREW, MACHINE PAN HD | 4,57 Lei | |
| 130 | 641495-00 | 1 | GEARCASE COVER SA | 389,28 Lei | |
| 131 | 391616-00 | 1 | BEARING NEEDLE | 15,12 Lei | |
| 132 | 641459-00 | 1 | GASKET | 15,12 Lei | |
| 133 | 330003-66 | 1 | BEARING,BALL | 41,93 Lei | |
| 134 | 385915-04 | 2 | SCREW S | 4,57 Lei | |
| 135 | 641465-00 | 1 | GEAR AND SPINDLE SA | 240,38 Lei | |
| 137 | 330045-14 | 8 | SCREW M5X16 T25 | 4,57 Lei | |
| 138 | 605040-69 | 1 | BEARING | 25,54 Lei | |
| 139 | 153752-00 | 1 | RING,RET.EXT | 4,57 Lei | |
| 140 | 330019-05 | 2 | SCREW PLASTITE M3.5X25 | 4,57 Lei | |
| 141 | N185664 | 1 | SCREW | 15,12 Lei | |
| 142 | 150718-00 | 1 | NUT WING | 4,57 Lei | |
| 143 | N066269 | 1 | SHAFT SA | 195,02 Lei | |
| 145 | N571290 | 1 | SA ARM DWS727 | 383,69 Lei | |
| 146 | 386780-00 | 1 | BEARING | 13,85 Lei | |
| 147 | 153559-00 | 1 | WASHER | 4,57 Lei | |
| 148 | 448176-00 | 1 | SPRING | 4,57 Lei | |
| 149 | 153561-00 | 1 | LOCKING PIN | 7,37 Lei | |
| 150 | 393071-00 | 1 | PLATE | 4,57 Lei | |
| 151 | 330045-45 | 1 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 152 | 330045-15 | 1 | Screw Metal | 4,57 Lei | |
| 153 | N767583 | 1 | BELT | 80,04 Lei | |
| 154 | N779654 | 1 | TOP TABLE EXTENSION DWS727,PAIR | 200,99 Lei | |
| 155 | 330045-23 | 4 | SCREW | 4,57 Lei | |
| 156 | N611941 | 4 | WASHER | 4,57 Lei | |
| 157 | 330045-23 | 3 | SCREW | 4,57 Lei | |
| 158 | N041974 | 1 | Pivot Plate Euro | 21,85 Lei | |
| 159 | 146768-00 | 1 | BUMPER | 4,57 Lei | |
| 160 | 661454-00 | 1 | SPRING | 8,64 Lei | |
| 161 | 148295-00 | 1 | SLEEVE | 7,37 Lei | |
| 162 | N540770 | 1 | GUARD LOWER | 96,56 Lei | |
| 163 | N592582 | 1 | PLATE | 52,22 Lei | |
| 165 | 146750-03 | 1 | RETAINING PLATE | 13,85 Lei | |
| 166 | 142273-00 | 2 | RING | 4,57 Lei | |
| 167 | 625825-00 | 2 | ROLLER | 5,21 Lei | |
| 168 | 330045-55 | 3 | SCREW | 4,57 Lei | |
| 200 | N753539 | 1 | CLAMP SA | 96,56 Lei | |
| 210 | N655905 | 1 | SA END CAP + LABEL | 13,85 Lei | |
| 212 | 330019-13 | 4 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 213 | N620527 | 1 | NAMEPLATE DWS727 QS | 25,54 Lei | |
| 214 | 330120-23 | 1 | CORDSET (EURO) | 145,09 Lei | |
| 215 | N458818 | 1 | MOTOR CABLE | 52,22 Lei | |
| 216 | 98094-55 | 4 | SCREW | 4,57 Lei | |
| 217 | 145312-00 | 1 | RUBBER PLUG | 4,57 Lei | |
| 218 | 682149-00 | 1 | BUSHING STR.RLF | 13,85 Lei | |
| 219 | 391317-00 | 1 | FIELDCASE | 57,81 Lei | |
| 220 | 381028-08 | 2 | BRUSH AND LEAD (single unit) | 57,81 Lei | |
| 221 | N458123 | 1 | SA BRUSH HOLDER DW777 | 88,55 Lei | |
| 222 | N503672 | 1 | FIELD 240V. DW717, SERVICE | 213,19 Lei | |
| 223 | 330019-19 | 2 | SCREW, PLASTITE | 5,21 Lei | |
| 224 | 394034-00 | 1 | SCREW | 6,23 Lei | |
| 225 | N284339 | 1 | SA ARMATURE 230V.,SERVICE | 613,14 Lei | |
| 226 | 930098-00 | 1 | RING,SPRING SHAFT D15 UNI7435 | 4,57 Lei | |
| 227 | 605040-32 | 1 | BEARING | 25,54 Lei | |
| 228 | 391375-00 | 1 | BAFFLE | 12,71 Lei | |
| 229 | 394036-00 | 1 | PLATE | 70,39 Lei | |
| 230 | N004510 | 1 | DRIVE PULLEY | 41,93 Lei | |
| 231 | 450212-00 | 1 | TERMINAL | 7,37 Lei | |
| 232 | 145332-00 | 4 | CONTACT | 4,57 Lei | |
| 233 | 395716-00 | 3 | TERMINAL | 4,57 Lei | |
| 234 | 394034-00 | 1 | SCREW | 6,23 Lei | |
| 235 | 153783-00 | 1 | O RING | 4,57 Lei | |
| 236 | 618159-01 | 1 | LEAD SA | 57,81 Lei | |
| 237 | N482050 | 1 | LEAD SA | 52,22 Lei | |
| 238 | N548978V | 1 | SWITCH BGV1115 | 80,04 Lei | |
| 239 | 656549-00 | 1 | TERMINAL BLOCK | 8,64 Lei |
