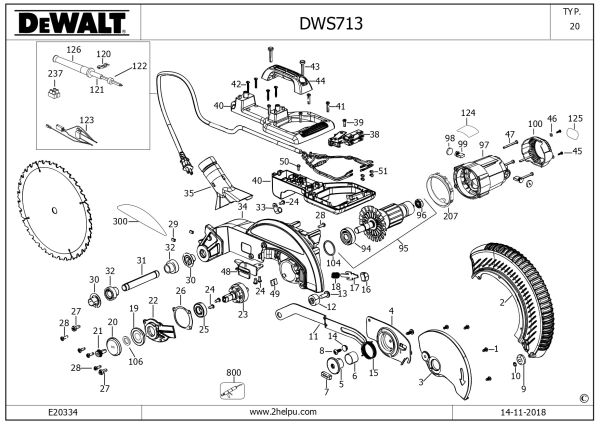

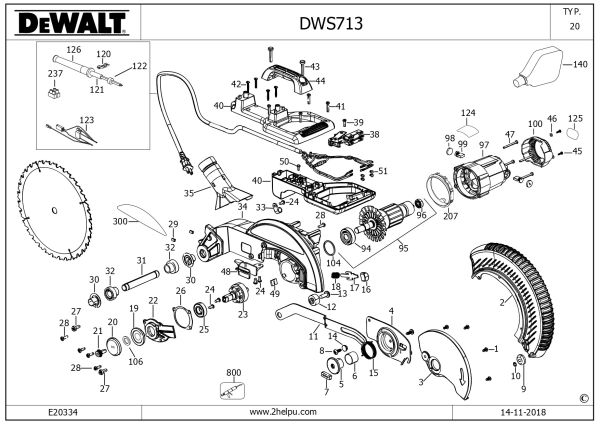

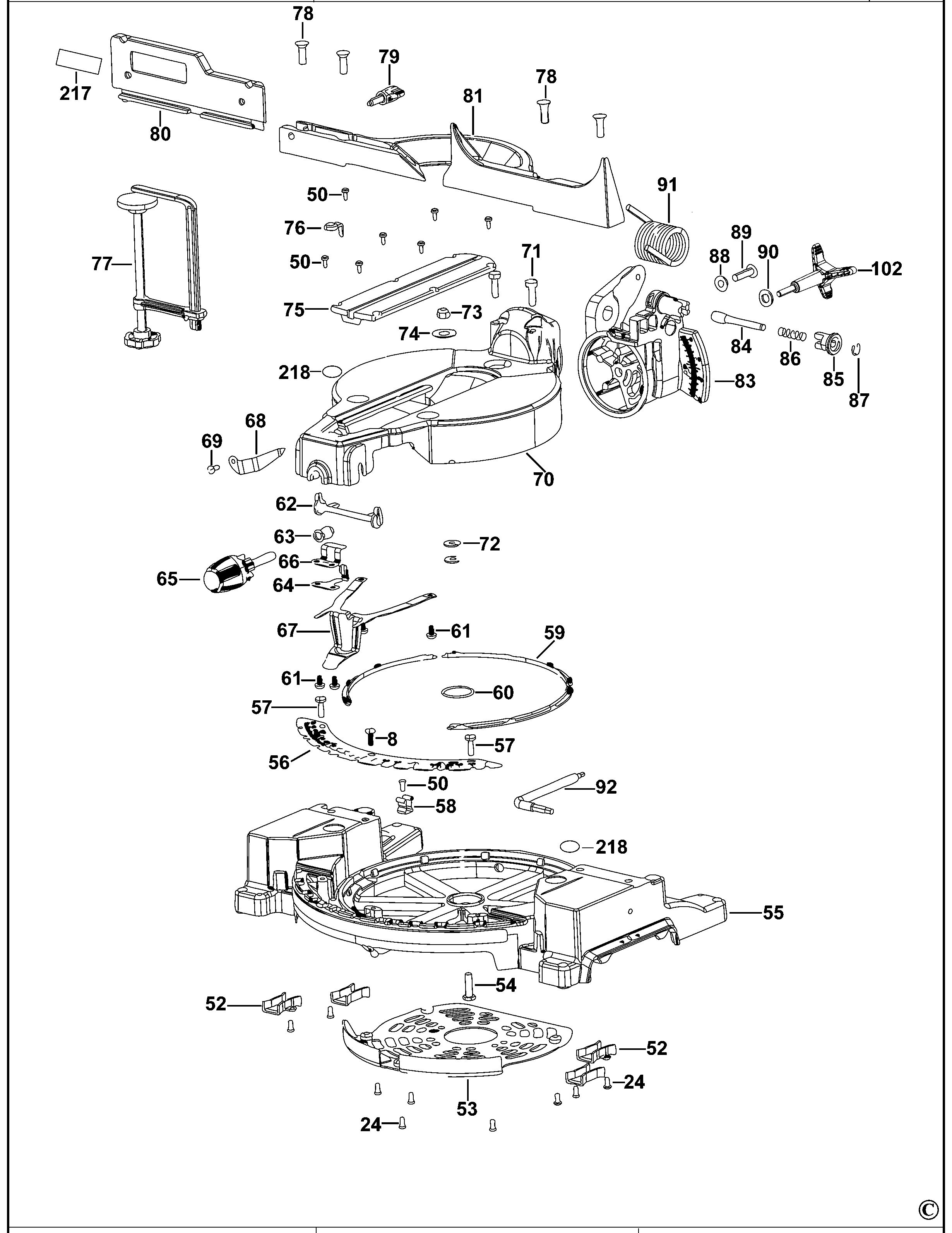

DEWALT MITRE SAW (Type 20)
SKU Produs: DWS713 /Type: 20
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N298367 | 4 | SCREW | 4,7 Lei | |
| 3 | N126157 | 1 | GUARD PLATE | 120,82 Lei | |
| 4 | N041989 | 1 | PLATE | 80,04 Lei | |
| 5 | 146750-01 | 1 | RETAINING PLATE | 34,05 Lei | |
| 6 | 148295-00 | 1 | SLEEVE | 7,37 Lei | |
| 7 | 146768-00 | 1 | BUMPER | 4,57 Lei | |
| 8 | 330045-23 | 3 | SCREW | 4,57 Lei | |
| 9 | 146774-00 | 1 | ROLLER | 7,37 Lei | |
| 10 | 603232-00 | 1 | CIRCLIP | 4,57 Lei | |
| 11 | 391630-00 | 1 | LINK | 57,81 Lei | |
| 12 | 399042-00 | 1 | BUSHING | 17,02 Lei | |
| 13 | 330045-32 | 1 | SCREW | 5,21 Lei | |
| 14 | 146740-01 | 1 | BUSH | 30,87 Lei | |
| 16 | 145350-03 | 1 | BUTTON | 6,23 Lei | |
| 17 | 146714-00 | 1 | LOCK | 8,64 Lei | |
| 18 | 398736-00 | 1 | SPRING | 4,57 Lei | |
| 19 | N542996 | 1 | BUSHING,ARBOR | 41,93 Lei | |
| 20 | N542995 | 1 | CLAMP,OUTER | 41,93 Lei | |
| 21 | N600011 | 1 | SCREW | 8,64 Lei | |
| 22 | 391573-00 | 1 | GEARCASE COVER | 34,05 Lei | |
| 23 | 392628-00 | 1 | SPINDLE AND GEAR | 157,92 Lei | |
| 24 | 330045-13 | 12 | SCREW | 4,57 Lei | |
| 25 | 330003-29 | 1 | BEARING,BALL | 41,93 Lei | |
| 26 | 391632-00 | 1 | GASKET | 5,21 Lei | |
| 27 | 394589-01 | 2 | SCREW | 5,21 Lei | |
| 28 | 330045-14 | 5 | SCREW M5X16 T25 | 4,57 Lei | |
| 29 | 150075-00 | 2 | SCREW | 5,21 Lei | |
| 30 | N377514 | 2 | BUSHING | 13,85 Lei | |
| 31 | N126153 | 1 | PIVOT SHAFT | 25,54 Lei | |
| 32 | 146732-00 | 2 | SPACER | 5,21 Lei | |
| 33 | 153669-00 | 1 | BUSH | 4,57 Lei | |
| 35 | N126158 | 1 | CHUTE | 10,29 Lei | |
| 39 | 330019-12 | 1 | SCREW | 4,57 Lei | |
| 40 | N555136 | 1 | HANDLE SA | 145,09 Lei | |
| 41 | 330019-32 | 4 | SCREW,PLASTITE | 4,57 Lei | |
| 42 | 330045-08 | 4 | SCREW | 4,57 Lei | |
| 43 | 330019-22 | 2 | SCREW (CARRY HANDLE) | 4,57 Lei | |
| 44 | 396375-01 | 1 | HANDLE | 17,02 Lei | |
| 45 | 330019-11 | 2 | SCREW PLSTC THD FORM M4.55X13 T20 | 4,57 Lei | |
| 46 | N448947 | 2 | WASHER | 4,57 Lei | |
| 47 | 614375-00 | 4 | SCREW | 7,37 Lei | |
| 48 | N543000 | 1 | GUARD REAR | 17,02 Lei | |
| 49 | 146710-00 | 1 | WIPER | 5,21 Lei | |
| 50 | 330045-05 | 9 | SCREW.TEMP | 4,57 Lei | |
| 51 | N458834 | 4 | SCREW | 4,57 Lei | |
| 52 | N542847 | 4 | CLAMP, HOLDER DWS727 | 4,57 Lei | |
| 53 | N542842 | 1 | GUARD | 19,95 Lei | |
| 54 | N058318 | 1 | SCREW M8X1,25 L.27,5 DWS780 | 5,21 Lei | |
| 55 | N540816 | 1 | BASE | 850,09 Lei | |
| 56 | N542798 | 1 | BEVEL SCALE | 145,09 Lei | |
| 57 | 604410-00 | 1 | SCREW | 4,57 Lei | |
| 58 | 391358-01 | 1 | HOLDER | 7,37 Lei | |
| 59 | N571400 | 1 | PLATE | 6,23 Lei | |
| 60 | 49787-00 | 1 | RING | 4,57 Lei | |
| 61 | 330045-22 | 4 | SCREW | 4,57 Lei | |
| 62 | N542735 | 1 | CAM | 15,12 Lei | |
| 63 | N366384 | 1 | BUSHING | 21,85 Lei | |
| 64 | N543960 | 1 | PLATE | 13,85 Lei | |
| 65 | N542431 | 1 | KNOB SA | 37,73 Lei | |
| 66 | N582377 | 1 | PLATE | 12,71 Lei | |
| 67 | N542736 | 1 | DETENT | 37,73 Lei | |
| 68 | 391631-00 | 1 | POINTER | 12,71 Lei | |
| 69 | 153460-00 | 1 | SCREW DW744 | 4,57 Lei | |
| 71 | N606924 | 2 | SCREW | 8,64 Lei | |
| 72 | 153792-00 | 2 | LAP WASHER | 4,57 Lei | |
| 73 | 330021-02 | 1 | Stop Nut M8 | 4,57 Lei | |
| 74 | N556926 | 1 | DUST CAP | 4,57 Lei | |
| 75 | N542862 | 1 | COVERPLATE | 34,05 Lei | |
| 76 | N542738 | 1 | POINTER | 6,23 Lei | |
| 81 | N542430 | 1 | FENCE | 300,47 Lei | |
| 83 | N542888 | 1 | TRUNNION | 300,47 Lei | |
| 84 | N562266 | 1 | PIN | 25,54 Lei | |
| 85 | N562268 | 1 | KNOB | 15,12 Lei | |
| 86 | N562267 | 1 | SPRING | 6,23 Lei | |
| 87 | 624038-00 | 1 | RETAINER | 4,57 Lei | |
| 89 | 612008-00 | 1 | SCREW | 7,37 Lei | |
| 90 | 330016-04 | 1 | WASHER, PLAIN, STEEL,10 * 20 * 2.0 THIC | 4,57 Lei | |
| 91 | N639012 | 1 | SPRING | 106,98 Lei | |
| 92 | N600007 | 1 | WRENCH | 17,02 Lei | |
| 94 | 330003-13 | 1 | BEARING BALL | 30,87 Lei | |
| 96 | 605040-06 | 1 | BEARING,BALL | 13,85 Lei | |
| 98 | 614368-00 | 2 | BRUSH CAP | 6,23 Lei | |
| 102 | N542863 | 1 | KNOB SA | 52,22 Lei | |
| 104 | 701297-00 | 1 | SEAL | 4,57 Lei | |
| 106 | 393868-00 | 1 | ADAPTOR | 21,85 Lei | |
| 120 | 003618-00 | 1 | CORD CLAMP | 8,64 Lei | |
| 122 | 388414-01 | 1 | FERRITE BEAD | 10,29 Lei | |
| 126 | 330005-02 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 140 | N126162 | 1 | DUST BAG | 41,93 Lei | |
| 207 | 614366-00 | 1 | BAFFLE FAN | 19,95 Lei | |
| 217 | N497365 | 1 | WARNING LABEL | 7,37 Lei | |
| 218 | 394976-00 | 4 | LABEL | 10,29 Lei | |
| 237 | 393520-00 | 1 | BLOCK, TERMINAL | 19,95 Lei | |
| 800 | 5140061-28 | 1 | GREASE | 169,36 Lei | |
| 800 | 93488-00 | 1 | GREASE DW704 TYPE 3 | 96,56 Lei |
