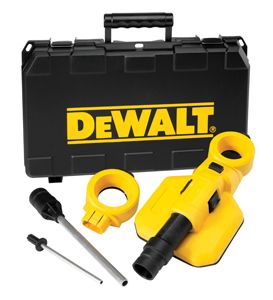

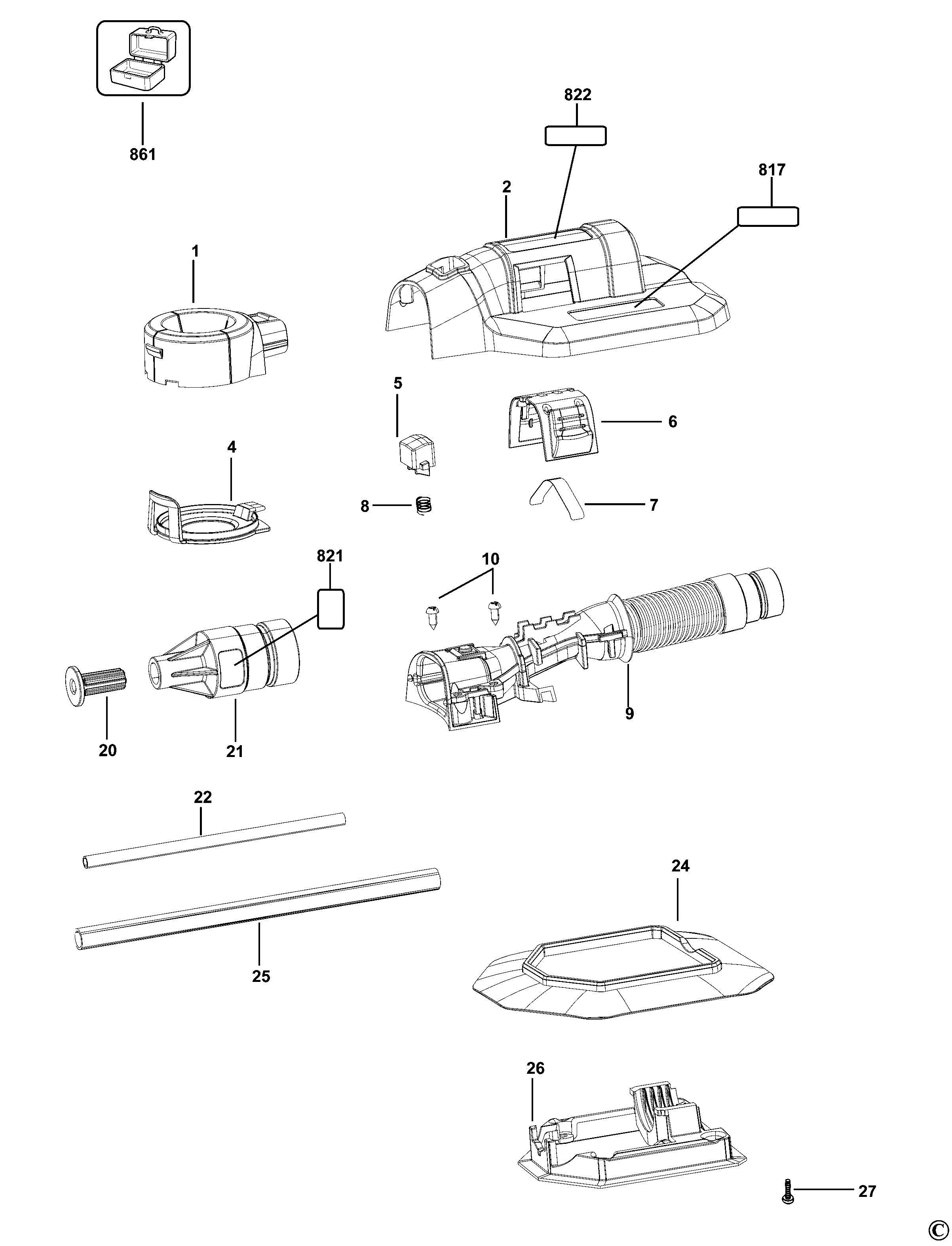

DEWALT EXTRACTOR KIT (Type 1)
SKU Produs: DWH050 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N072362 | 1 | DRILL HEAD 58MM (MOULD) | 57,81 Lei | |
| 1 | N080287 | 1 | DRILL HEAD 38MMN (MOULD) | 57,81 Lei | |
| 2 | N054228 | 1 | HOUSING DUST EXTRACTION (MOULD) | 52,22 Lei | |
| 4 | N072364 | 1 | COVER 58MM (MOULD) | 30,87 Lei | |
| 4 | N080290 | 1 | COVER 38MM (MOULD) | 30,87 Lei | |
| 5 | N072928 | 1 | SLIDER LOCKING (MOULD) | 8,64 Lei | |
| 6 | N060186 | 1 | VALVE | 15,12 Lei | |
| 7 | N060325 | 1 | SPRING BENDING | 17,02 Lei | |
| 8 | 395029-00 | 1 | SPRING, SPINDLE LOCK | 4,57 Lei | |
| 9 | N129910 | 1 | SA SERVICE KIT DWH050 (SERVICE) | 80,04 Lei | |
| 10 | 330065-06 | 4 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 20 | N069992 | 1 | RUBBER HOSE (MOULD) | 21,85 Lei | |
| 21 | N069988 | 1 | TUBE ADAPTOR DUST EXTR | 19,95 Lei | |
| 22 | N069989 | 1 | TUBE 8X1X180 | 52,22 Lei | |
| 24 | N054235 | 1 | SEAL GROUND | 25,54 Lei | |
| 25 | N069993 | 1 | TUBE 14X1.5X250 | 70,39 Lei | |
| 26 | N054232 | 1 | SEAL HOLDER (MOULD) | 34,05 Lei | |
| 27 | 330065-08 | 4 | SCREW M4X18 | 4,57 Lei | |
| 817 | N105538 | 1 | LABEL BRAND | 4,57 Lei | |
| 821 | N105539 | 1 | LABEL INFO DWH050-XJ01 | 7,37 Lei | |
| 822 | N105537 | 1 | LABEL INFO DWH050-XJ01 DRILLING | 7,37 Lei |
