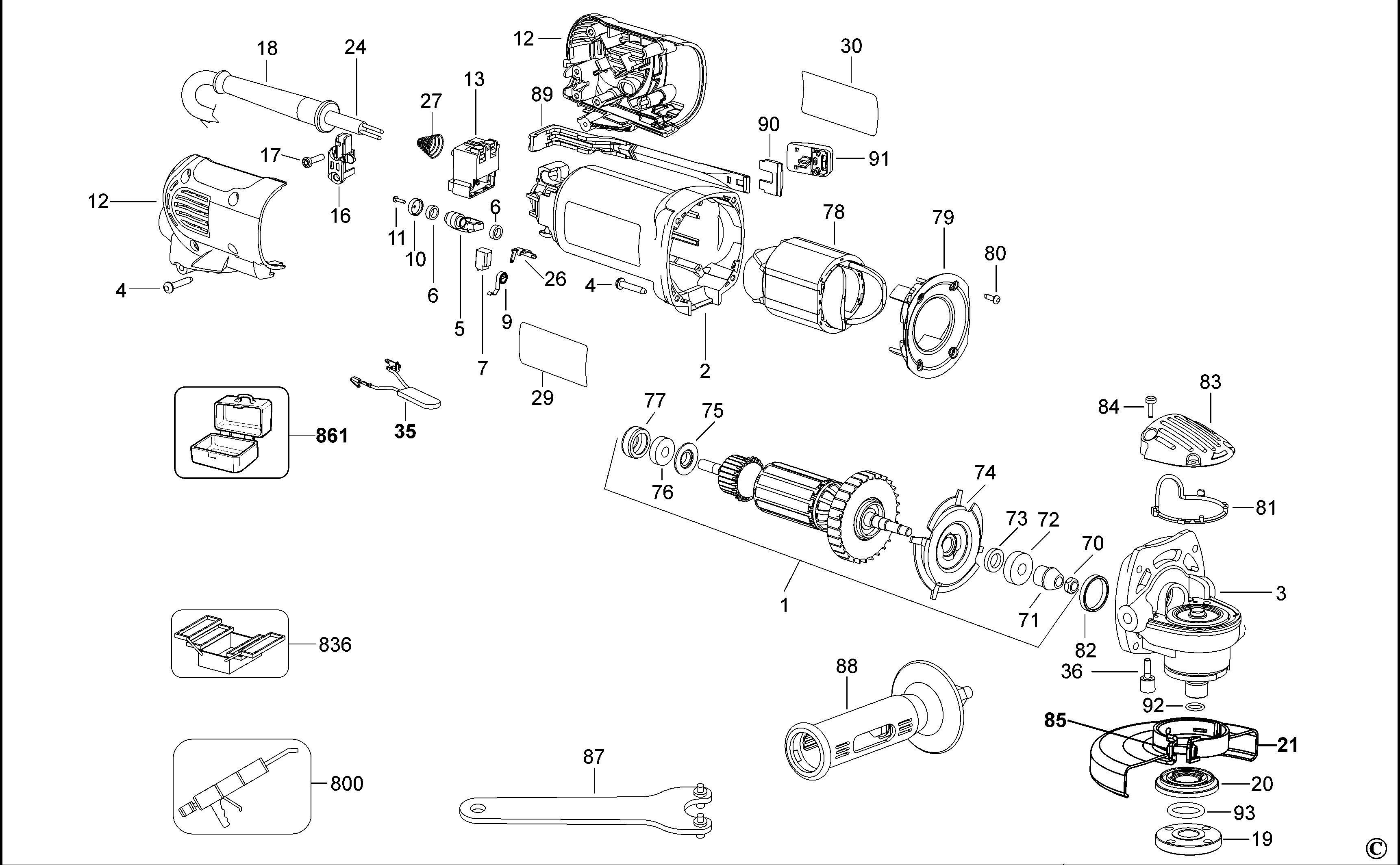

DEWALT SMALL ANGLE GRINDER (Type 1)
SKU Produs: DWEN201 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 650994-00 | 1 | FIELD CASE | 25,54 Lei | |
| 3 | N074217 | 1 | GEARCASE SA | 130,35 Lei | |
| 4 | 330065-31 | 8 | SCREW | 4,57 Lei | |
| 5 | 648743-00 | 2 | ARM | 10,29 Lei | |
| 6 | 623592-00 | 4 | SEAL | 4,57 Lei | |
| 7 | 1003860-00 | 1 | BRUSH PAIR 230V CUT OFF | 30,87 Lei | |
| 9 | 623589-00 | 2 | BRUSH SPRING | 4,57 Lei | |
| 10 | 623591-00 | 2 | CAP | 4,57 Lei | |
| 11 | 593685-00 | 2 | SCREW | 4,57 Lei | |
| 13 | 641889-01 | 1 | SWITCH SA | 25,54 Lei | |
| 16 | 636963-00 | 1 | CORD CLAMP | 4,7 Lei | |
| 17 | 330019-03 | 2 | Screw M3.5X16 T15 | 4,57 Lei | |
| 18 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 19 | 622613-02 | 1 | OUTER FLANGE | 15,12 Lei | |
| 20 | 633257-00SV | 1 | INNER FLANGE SA (SV) | 10,29 Lei | |
| 21 | N041731 | 1 | GUARD SA | 25,54 Lei | |
| 21 | N042080 | 1 | GUARD SA | 30,87 Lei | |
| 24 | 562226-59 | 1 | CORDSET (EURO) | 30,87 Lei | |
| 26 | 623593-00 | 2 | TERMINAL | 5,21 Lei | |
| 27 | 628396-00 | 1 | SPRING | 4,5 Lei | |
| 30 | 635892-00 | 1 | IDENTITY LABEL | 4,7 Lei | |
| 35 | 637543-00 | 1 | CHOKE SA | 15,5 Lei | |
| 36 | N033051 | 1 | SCREW STOP | 5,21 Lei | |
| 70 | 604484-00 | 1 | NUT M6 | 4,57 Lei | |
| 71 | 623564-00 | 1 | PINION | 34,05 Lei | |
| 72 | 605040-11 | 1 | BEARING,BALL | 13,85 Lei | |
| 73 | 623617-00 | 1 | FELT SEAL | 4,57 Lei | |
| 74 | N422242 | 1 | RETAINER | 7,5 Lei | |
| 75 | 623613-00 | 1 | WASHER | 4,7 Lei | |
| 76 | 605040-02 | 1 | BEARING | 12,71 Lei | |
| 77 | 641823-00 | 1 | BOOT, RUBBER | 4,57 Lei | |
| 79 | 650997-00 | 1 | BAFFLE FAN | 7,2 Lei | |
| 80 | 330065-25 | 4 | SCREW PLSTC THD FORM M3X9 T10 | 4,57 Lei | |
| 81 | 623618-00 | 1 | GASKET | 7,37 Lei | |
| 82 | 611492-00 | 1 | SLEEVE, RUBBER | 4,57 Lei | |
| 84 | 385676-01 | 4 | SCREW | 4,57 Lei | |
| 85 | 631609-03 | 1 | SCREW | 4,57 Lei | |
| 87 | 401680-00 | 1 | WRENCH DW831 | 17,02 Lei | |
| 88 | N401305 | 1 | SIDE HANDLE | 19,95 Lei | |
| 89 | 626999-00 | 1 | LINK | 7,37 Lei | |
| 90 | 644326-00 | 1 | BAR LOCKING | 4,57 Lei | |
| 91 | 623608-00 | 1 | BUTTON START | 5,21 Lei | |
| 92 | 633045-00 | 1 | O RING | 4,57 Lei | |
| 93 | 633043-00 | 1 | O RING | 5,21 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 836 | 233804-36 | 1 | DRIVER T6 | 173,3 Lei | |
| 861 | 638758-00 | 1 | KITBOX | 157,92 Lei |
