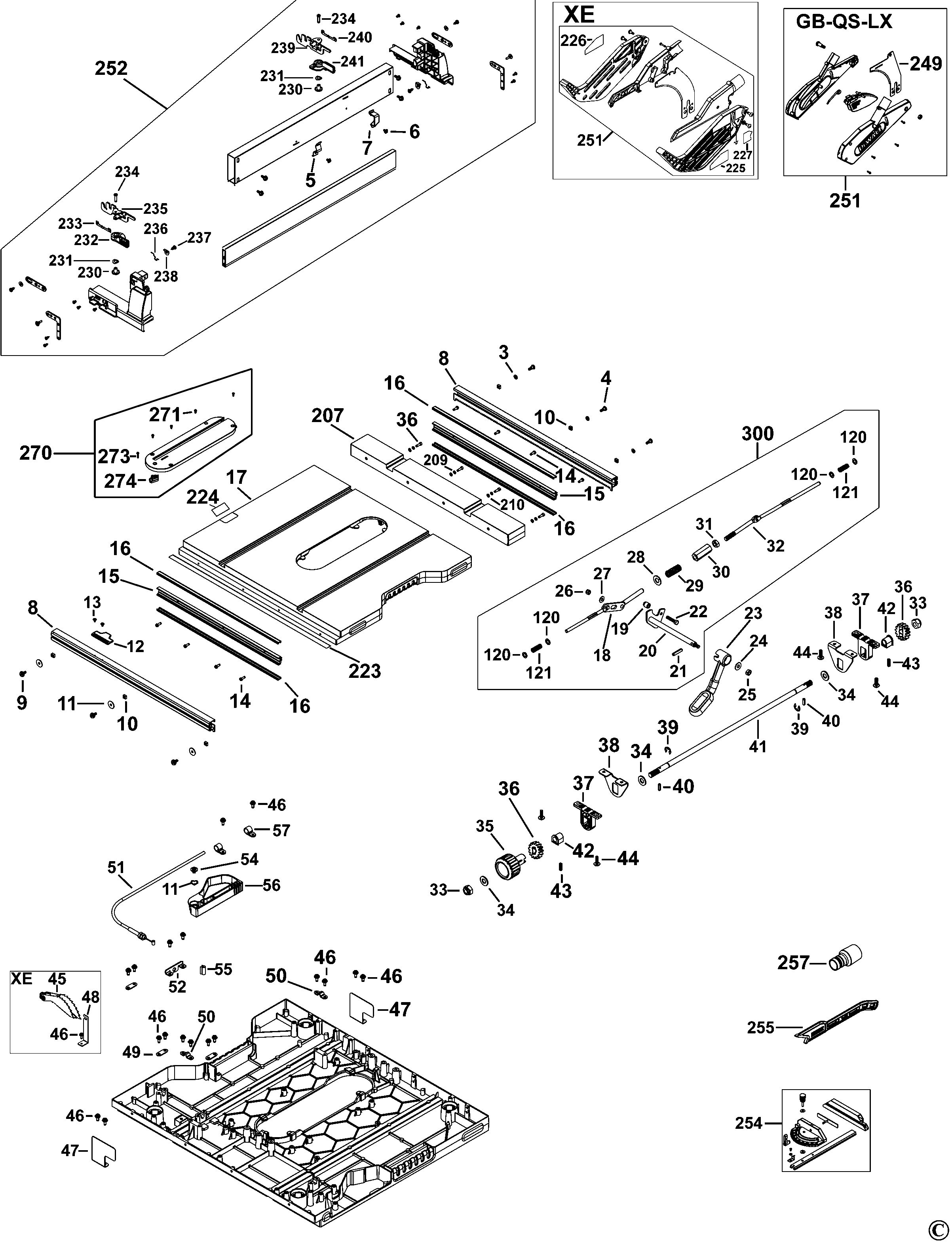

DEWALT TABLE SAW (Type 2)
SKU Produs: DWE7491 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 1004695-74 | 3 | WASHER | 4,57 Lei | |
| 4 | 1004695-73 | 3 | SCREW | 6,23 Lei | |
| 5 | 5140134-60 | 1 | CLIP | 6,23 Lei | |
| 6 | 5140134-61 | 2 | SCREW | 4,57 Lei | |
| 7 | 5140134-62 | 1 | STRAP | 5,21 Lei | |
| 8 | 5140134-63 | 2 | RAIL | 181,55 Lei | |
| 9 | 1004695-71 | 3 | SCREW | 8,64 Lei | |
| 10 | 5140032-03 | 6 | NUT M6 | 4,57 Lei | |
| 11 | 1004695-72 | 3 | WASHER | 4,57 Lei | |
| 12 | 5140134-65 | 1 | POINTER | 15,5 Lei | |
| 12 | N506804 | 1 | POINTER | 4,57 Lei | |
| 13 | 5140134-66 | 2 | SCREW.SPECIAL | 4,57 Lei | |
| 14 | 5140134-67 | 11 | SCREW.SPECIAL | 4,57 Lei | |
| 15 | 5140134-68 | 2 | RAIL | 90,6 Lei | |
| 16 | 5140134-69 | 4 | CAP | 13,85 Lei | |
| 18 | 1004705-43 | 1 | LOCKING DEVICE | 145,09 Lei | |
| 19 | 1004705-43 | 1 | LOCKING DEVICE | 145,09 Lei | |
| 20 | 1004705-43 | 1 | LOCKING DEVICE | 145,09 Lei | |
| 21 | 5140032-21 | 1 | PIN | 4,57 Lei | |
| 22 | 1004705-43 | 1 | LOCKING DEVICE | 145,09 Lei | |
| 23 | 5140032-23 | 1 | LEVER LOCK | 25,54 Lei | |
| 24 | 5140134-74 | 1 | WASHER | 4,57 Lei | |
| 25 | 5140032-25 | 1 | NUT M6 | 4,57 Lei | |
| 26 | 1004705-43 | 3 | LOCKING DEVICE | 145,09 Lei | |
| 27 | 1004705-43 | 1 | LOCKING DEVICE | 145,09 Lei | |
| 28 | 5140032-15 | 2 | WASHER M8 | 4,57 Lei | |
| 29 | 5140134-75 | 1 | SPRING | 8,64 Lei | |
| 30 | 5140032-17 | 1 | ADJUSTER | 15,12 Lei | |
| 31 | 5140134-76 | 1 | NUT M8 | 4,57 Lei | |
| 32 | 1004705-44 | 1 | REAR BRACKET | 57,81 Lei | |
| 33 | 5140134-78 | 2 | HEX NUT | 4,57 Lei | |
| 34 | 5140032-27 | 3 | WASHER M10 | 4,57 Lei | |
| 35 | 5140134-79 | 1 | KNOB | 13,85 Lei | |
| 36 | 5140032-29 | 5 | PINION GEAR | 13,85 Lei | |
| 37 | 5140134-80 | 2 | BRACKET | 7,37 Lei | |
| 38 | 5140134-81 | 2 | COVER | 19,95 Lei | |
| 39 | 5140032-33 | 4 | LOCKING RING | 4,57 Lei | |
| 40 | 5140032-34 | 2 | PIN | 4,57 Lei | |
| 41 | 1004695-76 | 1 | ROD | 70,39 Lei | |
| 42 | 5140032-36 | 2 | BEARING BLOCK | 6,23 Lei | |
| 43 | 5140032-37 | 2 | SPRING | 4,57 Lei | |
| 44 | 5140134-83 | 4 | SCREW.SPECIAL | 4,57 Lei | |
| 46 | 5140061-77 | 37 | SCREW.SPECIAL | 7,37 Lei | |
| 47 | 5140134-85 | 2 | GUARD | 13,85 Lei | |
| 49 | 5140032-77 | 3 | PLATE | 4,57 Lei | |
| 50 | 5140134-87 | 2 | PLATE | 4,57 Lei | |
| 51 | 5140134-88 | 1 | CABLE | 57,81 Lei | |
| 52 | 5140134-89 | 1 | BRACKET | 7,37 Lei | |
| 54 | 5140134-90 | 3 | SCREW.SPECIAL | 4,57 Lei | |
| 55 | 5140134-91 | 1 | BUSHING | 6,23 Lei | |
| 56 | 5140134-92 | 1 | HANDLE | 34,05 Lei | |
| 57 | 5140134-93 | 2 | CORD CLAMP | 4,57 Lei | |
| 58 | 5140134-94 | 1 | ARBOR | 157,92 Lei | |
| 59 | 5140134-95 | 1 | KEY | 7,37 Lei | |
| 60 | 5140033-10 | 1 | GEARCASE COVER | 30,87 Lei | |
| 61 | 5140033-11 | 1 | O RING | 7,37 Lei | |
| 62 | 1004695-91 | 1 | BEARING | 37,73 Lei | |
| 63 | 5140033-13 | 1 | RING | 4,57 Lei | |
| 64 | 5140010-11 | 1 | RETAINER | 5,21 Lei | |
| 65 | 1004695-96 | 1 | Gear | 106,98 Lei | |
| 66 | 1004695-92 | 1 | BEARING | 30,87 Lei | |
| 67 | 5140033-16 | 1 | O RING | 4,57 Lei | |
| 68 | 1004697-15 | 1 | GEARCASE SA | 264,01 Lei | |
| 69 | 5140033-18 | 1 | O RING | 4,57 Lei | |
| 70 | 1002805-00 | 2 | BRUSH 230V | 19,95 Lei | |
| 71 | 5140033-20 | 2 | BRUSH HOLDER | 30,87 Lei | |
| 72 | 5140033-21 | 2 | BRUSH CAP | 5,21 Lei | |
| 73 | 5140033-22 | 1 | FIELD CASE | 88,55 Lei | |
| 74 | 5140134-99 | 4 | SCREW.SPECIAL | 4,57 Lei | |
| 75 | 5140117-81 | 1 | BEARING | 30,87 Lei | |
| 76 | 1002807-00 | 1 | ARMATURE 220/240V | 889,22 Lei | |
| 77 | 1004695-97 | 1 | FIELD 220 / 240V | 383,69 Lei | |
| 78 | 5140135-02 | 2 | SCREW | 4,57 Lei | |
| 79 | 5140033-29 | 1 | BUFFER | 8,64 Lei | |
| 80 | 5140118-21 | 1 | BEARING | 25,54 Lei | |
| 81 | 429991-43 | 1 | GROMMET | 25,54 Lei | |
| 82 | 5140011-87 | 2 | SCREW | 4,57 Lei | |
| 83 | 1004696-74 | 1 | BRACKET | 7,37 Lei | |
| 84 | 5140033-39 | 4 | SCREW | 4,57 Lei | |
| 85 | 1004695-77 | 1 | RIVING KNIFE | 145,09 Lei | |
| 86 | 5140135-06 | 1 | SHAFT | 25,54 Lei | |
| 87 | 5140135-07 | 1 | PIN | 4,57 Lei | |
| 88 | 5140135-08 | 1 | SPRING | 8,64 Lei | |
| 89 | 5140135-09 | 1 | HOLDER | 12,71 Lei | |
| 90 | 5140135-10 | 1 | BUSHING | 13,85 Lei | |
| 91 | 5140135-11 | 3 | SCREW.SPECIAL | 4,57 Lei | |
| 92 | 5140135-12 | 1 | SPRING | 17,02 Lei | |
| 93 | 5140135-13 | 1 | WASHER | 4,57 Lei | |
| 94 | 5140135-14 | 1 | CLIP | 4,57 Lei | |
| 95 | 5140135-15 | 1 | MOUNT | 88,55 Lei | |
| 96 | 5140135-16 | 1 | SCREW.SPECIAL | 4,57 Lei | |
| 97 | 5140135-17 | 6 | SCREW | 4,57 Lei | |
| 98 | 5140135-18 | 1 | BRACKET | 10,29 Lei | |
| 99 | 5140135-19 | 2 | CLIP | 4,57 Lei | |
| 100 | 5140135-20 | 1 | SHAFT | 7,37 Lei | |
| 101 | 5140135-21 | 1 | LEVER | 15,12 Lei | |
| 102 | 1004697-12 | 1 | BLOCK | 15,5 Lei | |
| 103 | 5140135-23 | 1 | NUT M5 | 4,57 Lei | |
| 104 | 1004697-13 | 1 | SCREW | 4,57 Lei | |
| 105 | 5140135-25 | 1 | BRACKET SA | 80,04 Lei | |
| 106 | 5140033-40 | 2 | DOWEL | 4,57 Lei | |
| 107 | 5140135-26 | 16 | SCREW.SPECIAL | 4,57 Lei | |
| 108 | 5140135-27 | 1 | BRACKET | 21,85 Lei | |
| 109 | 5140135-28 | 1 | COVER | 13,85 Lei | |
| 110 | 5140135-29 | 4 | SCREW.SPECIAL | 5,21 Lei | |
| 111 | 5140135-30 | 1 | BRACKET SA | 80,04 Lei | |
| 112 | 5140135-31 | 4 | SCREW.SPECIAL | 5,21 Lei | |
| 113 | 5140034-65 | 1 | COVER | 21,85 Lei | |
| 114 | 5140135-32 | 1 | CASTING | 331,47 Lei | |
| 115 | 5140135-33 | 2 | SCREW.SPECIAL | 7,37 Lei | |
| 116 | 1004695-83 | 1 | WASHER OUTER CLAMP | 17,02 Lei | |
| 117 | 1004695-84 | 1 | LOCK-NUT | 25,54 Lei | |
| 118 | 5140135-34 | 1 | BRACKET | 88,55 Lei | |
| 119 | 5140135-35 | 1 | COVER | 80,04 Lei | |
| 120 | 5140135-36 | 4 | WASHER | 4,57 Lei | |
| 121 | 5140135-37 | 2 | SPRING | 4,57 Lei | |
| 122 | 5140135-38 | 1 | SHAFT | 70,39 Lei | |
| 123 | 5140135-39 | 1 | SHAFT | 70,39 Lei | |
| 124 | 5140118-05 | 1 | BEVEL GEAR | 15,12 Lei | |
| 125 | 5140135-40 | 1 | BRACKET | 30,87 Lei | |
| 126 | 5140135-41 | 2 | WASHER THRUST | 4,57 Lei | |
| 127 | 5140135-42 | 1 | CONTROL SCREW | 70,39 Lei | |
| 128 | 5140032-50 | 2 | KEY | 4,57 Lei | |
| 129 | 5140135-43 | 1 | BUSHING | 6,23 Lei | |
| 130 | 5140135-44 | 1 | WASHER SPECIAL | 4,57 Lei | |
| 131 | 5140135-45 | 1 | BRACKET | 7,37 Lei | |
| 132 | 5140135-46 | 1 | BRACKET | 21,85 Lei | |
| 133 | 5140135-47 | 1 | WASHER | 4,57 Lei | |
| 134 | N506939 | 1 | POINTER | 6,23 Lei | |
| 135 | 5140135-49 | 2 | SCREW | 4,57 Lei | |
| 136 | 5140135-50 | 1 | WASHER | 4,57 Lei | |
| 137 | 5140135-51 | 1 | HANDLE SA | 30,87 Lei | |
| 138 | 5140135-52 | 1 | WHEEL SA | 37,73 Lei | |
| 142 | 5140032-52 | 1 | RING | 4,57 Lei | |
| 143 | 5140135-54 | 1 | BUSHING | 6,23 Lei | |
| 144 | 5140135-55 | 1 | BRACKET | 41,93 Lei | |
| 145 | 5140135-56 | 2 | O RING | 4,57 Lei | |
| 146 | 5140135-57 | 1 | SCREW | 19,95 Lei | |
| 146 | 5140245-21 | 1 | SCREW | 21,85 Lei | |
| 147 | 5140135-58 | 2 | WASHER | 5,21 Lei | |
| 148 | 5140135-59 | 1 | LOCK NUT | 19,95 Lei | |
| 148 | 5140245-22 | 1 | LOCK NUT | 21,85 Lei | |
| 149 | 5140135-60 | 4 | SCREW.SPECIAL | 4,57 Lei | |
| 150 | 5140135-61 | 1 | LOCK NUT | 4,57 Lei | |
| 151 | 5140135-62 | 1 | SHAFT | 41,93 Lei | |
| 152 | 5140135-63 | 1 | FRAME | 613,14 Lei | |
| 153 | 5140135-64 | 16 | SCREW.SPECIAL | 4,57 Lei | |
| 154 | 5140095-74 | 16 | NUT M5 | 4,57 Lei | |
| 155 | 1004696-21 | 4 | FOOT SA | 52,22 Lei | |
| 156 | 5140135-66 | 1 | PLATE | 10,29 Lei | |
| 157 | 5140135-67 | 2 | SCREW | 4,57 Lei | |
| 158 | 5140135-68 | 1 | UPPER MOULDING | 52,22 Lei | |
| 159 | 5140135-69 | 1 | UPPER MOULDING | 52,22 Lei | |
| 160 | 5140061-66 | 1 | CORD CLAMP | 7,37 Lei | |
| 161 | 5140135-70 | 2 | SCREW.SPECIAL | 4,57 Lei | |
| 162 | 5140135-71 | 1 | PLATE | 12,71 Lei | |
| 163 | 5140135-72 | 1 | INSERT | 5,21 Lei | |
| 164 | 5140135-73 | 1 | SPRING | 4,57 Lei | |
| 165 | 5140135-74 | 4 | SCREW.SPECIAL | 4,57 Lei | |
| 166 | 5140135-75 | 4 | BUMPER | 6,4 Lei | |
| 167 | 5140135-76 | 4 | PLATE | 6,23 Lei | |
| 168 | 5140135-77 | 1 | HANDLE | 30,87 Lei | |
| 169 | 1004695-86 | 1 | PLATE | 25,54 Lei | |
| 170 | 5140135-79 | 4 | SCREW | 4,57 Lei | |
| 171 | 5140135-80 | 1 | KNOB | 7,37 Lei | |
| 172 | 5140135-81 | 1 | PIN | 8,64 Lei | |
| 173 | 5140135-82 | 1 | WASHER | 4,57 Lei | |
| 174 | 5140135-83 | 1 | PLATE | 17,02 Lei | |
| 175 | 5140135-84 | 1 | SHAFT | 12,71 Lei | |
| 176 | 5140135-85 | 1 | SPRING | 7,37 Lei | |
| 177 | 5140135-86 | 1 | BRACKET | 19,95 Lei | |
| 178 | 5140135-87 | 6 | SCREW | 4,57 Lei | |
| 179 | 5140135-88 | 1 | PANEL FRONT | 88,55 Lei | |
| 180 | 5140033-04 | 2 | WASHER | 5,21 Lei | |
| 181 | 5140135-89 | 3 | SCREW | 4,57 Lei | |
| 182 | 5140135-90 | 1 | PLATE | 34,05 Lei | |
| 183 | 5140135-91 | 2 | SCREW | 6,23 Lei | |
| 185 | 1004695-98 | 1 | PADDLE | 17,02 Lei | |
| 187 | 1004696-01 | 1 | SWITCH 240V | 157,92 Lei | |
| 188 | 5140135-95 | 1 | PIN | 12,71 Lei | |
| 189 | 1004696-02 | 1 | SWITCH COVER | 21,85 Lei | |
| 190 | 5140135-97 | 1 | SWITCHBOX | 41,93 Lei | |
| 191 | 1004696-04 | 4 | SCREW | 4,57 Lei | |
| 192 | 5140061-67 | 1 | SLEEVE | 15,12 Lei | |
| 193 | 1004695-87 | 1 | CORDSET (EURO) | 181,55 Lei | |
| 200 | 1004696-00 | 1 | SHAFT | 6,23 Lei | |
| 201 | 1004696-03 | 1 | PROTECTOR | 25,54 Lei | |
| 202 | 1004696-05 | 1 | PCB | 37,73 Lei | |
| 203 | 1004696-06 | 1 | LEADWIRE | 12,71 Lei | |
| 204 | 1004696-07 | 1 | LEADWIRE | 13,85 Lei | |
| 205 | 1004695-79 | 2 | SCREW | 6,23 Lei | |
| 206 | 1004695-80 | 2 | WASHER | 4,57 Lei | |
| 207 | 1004695-78 | 1 | EXTENSION | 412,91 Lei | |
| 209 | 1004695-81 | 4 | WASHER LOCK | 4,57 Lei | |
| 210 | 1004695-82 | 4 | WASHER | 4,57 Lei | |
| 220 | N406802 | 1 | RATING PLATE | 15,12 Lei | |
| 221 | N196813 | 1 | BRAND LABEL | 17,02 Lei | |
| 222 | N196812 | 1 | LABEL | 17,02 Lei | |
| 223 | N196912 | 1 | SCALE | 30,87 Lei | |
| 224 | 1004696-08 | 1 | LABEL | 6,23 Lei | |
| 230 | 1004696-09 | 2 | BUSHING | 4,57 Lei | |
| 231 | 1004696-10 | 2 | WASHER SPECIAL | 4,57 Lei | |
| 232 | 1004696-11 | 1 | LATCH | 10,29 Lei | |
| 233 | 1004696-12 | 1 | CLIP | 6,23 Lei | |
| 234 | 1004696-14 | 2 | SCREW | 4,57 Lei | |
| 235 | 1004696-13 | 1 | LATCH | 34,05 Lei | |
| 236 | 1004696-15 | 2 | SPRING | 6,23 Lei | |
| 237 | 1004696-16 | 4 | SCREW | 4,57 Lei | |
| 238 | 1004696-17 | 2 | WASHER | 7,37 Lei | |
| 239 | 1004696-18 | 1 | LATCH | 34,05 Lei | |
| 240 | 1004696-19 | 1 | CLIP | 6,23 Lei | |
| 241 | 1004696-20 | 1 | LATCH | 10,29 Lei | |
| 249 | 1004695-69 | 1 | RIVING KNIFE | 145,09 Lei | |
| 251 | 1004695-68 | 1 | GUARD SA | 264,01 Lei | |
| 252 | 1004695-70 | 1 | FENCE SA | 794,6 Lei | |
| 254 | 1004696-25 | 1 | MITRE FENCE | 195,02 Lei | |
| 255 | 5140033-44 | 1 | PUSHROD | 30,87 Lei | |
| 256 | 1004695-85 | 2 | WRENCH SPECIAL | 52,22 Lei | |
| 257 | 1004695-90 | 1 | DUST PORT | 21,85 Lei | |
| 270 | 5140034-46 | 1 | TABLE INSERT | 30,87 Lei | |
| 271 | 5140033-53 | 4 | SCREW | 4,57 Lei | |
| 273 | 5140033-54 | 1 | SCREW | 4,57 Lei | |
| 274 | 5140033-55 | 1 | CAM | 6,23 Lei | |
| 280 | 1004697-14 | 1 | PLATE | 6,23 Lei | |
| 281 | 5140033-39 | 1 | SCREW | 4,57 Lei | |
| 300 | 1004705-45 | 1 | LOCKING DEVICE | 213,19 Lei |
