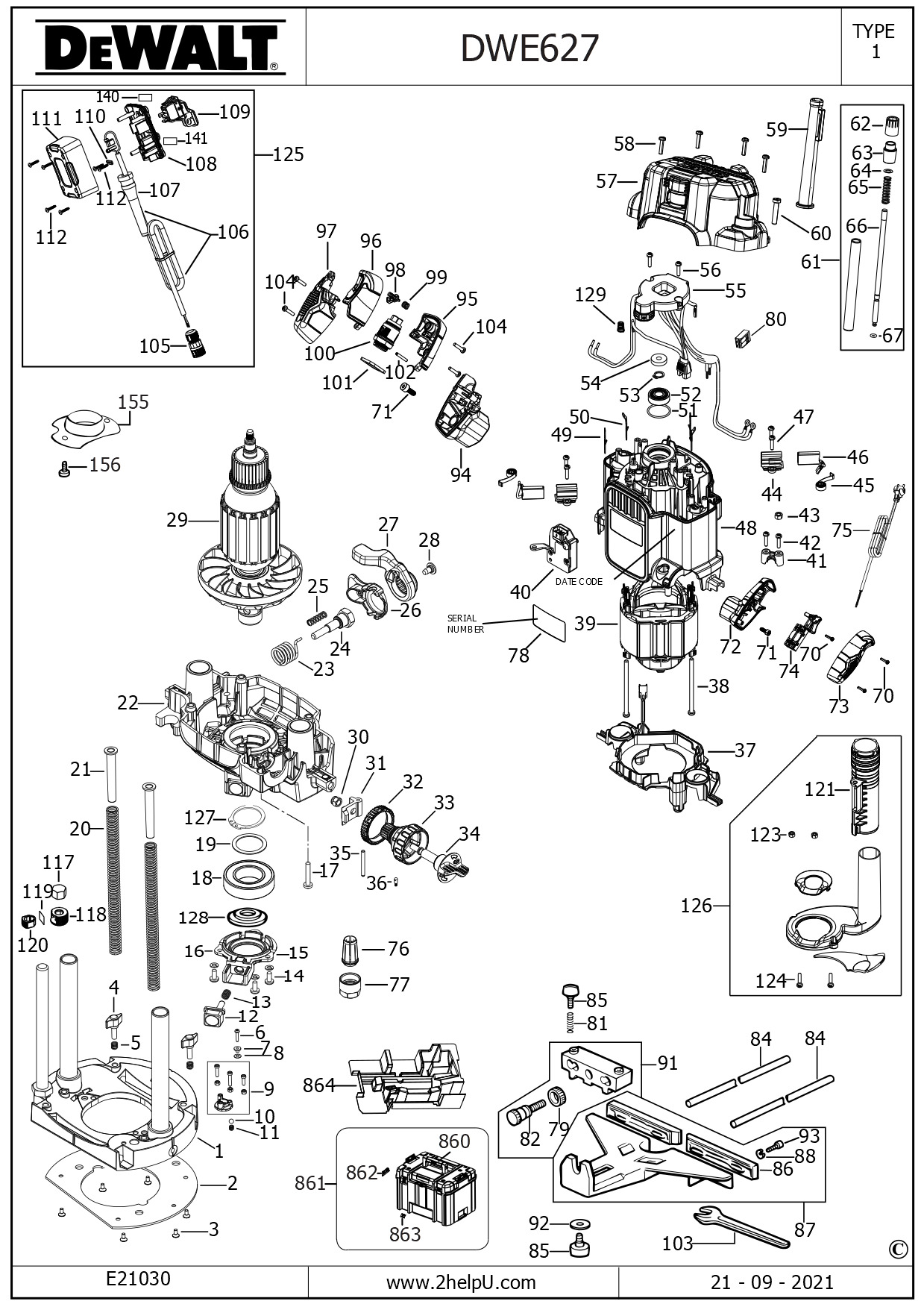

DEWALT PLUNGE ROUTER (Type 1)
SKU Produs: DWE627 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 328645-00 | 1 | PLATE,SLIDE | 57,81 Lei | |
| 3 | 860205-04 | 6 | SCREW M4X8 UNI8113 | 4,57 Lei | |
| 4 | 326573-01 | 2 | SCREW, WING M6*17 BLACK | 5,21 Lei | |
| 5 | 868082-00 | 2 | SPRING | 4,57 Lei | |
| 6 | 330045-07 | 1 | SCREW | 4,57 Lei | |
| 7 | 329836-00 | 1 | SLEEVE, | 5,21 Lei | |
| 8 | 385946-00 | 1 | WASHER SPRING MBR100 TYPE 2 | 4,57 Lei | |
| 10 | 720664-00 | 1 | BALL 8 MM | 4,57 Lei | |
| 11 | 868082-00 | 1 | SPRING | 4,57 Lei | |
| 12 | 942930-00 | 1 | SA BUTTON | 12,71 Lei | |
| 13 | 942904-00 | 1 | SPRING | 4,57 Lei | |
| 14 | N745981 | 3 | SCREW | 4,57 Lei | |
| 15 | 932839-00 | 3 | WASHER D.4,3 | 4,57 Lei | |
| 16 | 942900-03 | 1 | COVER | 52,22 Lei | |
| 17 | 330019-14 | 1 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 18 | 868132-03 | 1 | BEARING 60052RZTN9/C3VT162 | 88,55 Lei | |
| 19 | 868127-02 | 1 | SPACER RING, D31.6 S 1,3 | 5,21 Lei | |
| 21 | 868566-01 | 2 | RIVET | 4,57 Lei | |
| 23 | NA041400 | 1 | SPRING | 21,85 Lei | |
| 24 | NA041399 | 1 | BOLT | 30,87 Lei | |
| 25 | N844363 | 1 | SPRING | 6,23 Lei | |
| 26 | N786603 | 1 | LEVER LOCK | 5,21 Lei | |
| 27 | NA041372 | 1 | LEVER LOCK | 7,37 Lei | |
| 29 | NA089132 | 1 | ARMATURE SA | 613,14 Lei | |
| 30 | 860083-02 | 1 | NUT,HEX THICK M.5 UNI 5587 | 4,57 Lei | |
| 31 | N783360 | 1 | CLAMP | 25,54 Lei | |
| 32 | N860141 | 1 | SCALE | 7,37 Lei | |
| 33 | N860110 | 1 | ADJUSTER | 7,37 Lei | |
| 34 | N860112 | 1 | CLAMPWHEEL | 19,95 Lei | |
| 36 | N043924 | 1 | DETENT | 4,57 Lei | |
| 38 | 330019-33 | 2 | SCREW | 4,57 Lei | |
| 39 | NA089134 | 1 | FIELD SA | 240,38 Lei | |
| 40 | N920121 | 1 | GACC MODULE | 289,04 Lei | |
| 40 | N920125 | 1 | GACC MODULE | 200,99 Lei | |
| 41 | N763638 | 1 | CORD CLAMP | 4,57 Lei | |
| 42 | 330019-03 | 2 | Screw M3.5X16 T15 | 4,57 Lei | |
| 43 | 860083-02 | 2 | NUT,HEX THICK M.5 UNI 5587 | 4,57 Lei | |
| 44 | N794824 | 2 | BRUSHBOX SA | 17,02 Lei | |
| 44 | N794850 | 2 | MODE SELECT CAP RAPID CYCLE | 12,71 Lei | |
| 45 | NA025131 | 2 | BRUSH SPRING | 6,23 Lei | |
| 46 | NA089136 | 1 | BRUSH PAIR | 106,98 Lei | |
| 47 | 330019-03 | 4 | Screw M3.5X16 T15 | 4,57 Lei | |
| 49 | 477075-00 | 2 | CONNECTOR | 4,57 Lei | |
| 51 | N411414 | 1 | O RING | 4,57 Lei | |
| 52 | 577745-00 | 1 | BEARING 6000 T1XDDW | 25,54 Lei | |
| 53 | N863546 | 1 | CIRCLIP | 4,57 Lei | |
| 54 | 868141-00 | 1 | POLE PIECE | 25,54 Lei | |
| 56 | 330019-03 | 2 | Screw M3.5X16 T15 | 4,57 Lei | |
| 57 | N890155 | 1 | END CAP | 52,22 Lei | |
| 58 | 330019-03 | 4 | Screw M3.5X16 T15 | 4,57 Lei | |
| 59 | 942277-00 | 1 | SLEEVE D.12 | 17,02 Lei | |
| 60 | 949701-12 | 1 | RD.HD.SCREW M.5X25 | 4,57 Lei | |
| 62 | 326264-00 | 1 | KNOB | 4,57 Lei | |
| 63 | 326265-00 | 1 | WHEEL SCALE | 7,37 Lei | |
| 64 | 321118 | 1 | WASHER 6 .1 STEEL | 4,57 Lei | |
| 65 | 323395-14 | 1 | SPRING 9-33.49 - 33 . 4 | 4,57 Lei | |
| 66 | NA081911 | 1 | ROD SA | 30,87 Lei | |
| 66 | NA082267 | 1 | ADJUSTER SA | 127,2 Lei | |
| 67 | 750831 | 1 | O RING (SPINDLE LOCK) | 4,57 Lei | |
| 70 | 330019-03 | 5 | Screw M3.5X16 T15 | 4,57 Lei | |
| 74 | N873760 | 1 | SWITCH | 96,56 Lei | |
| 76 | 868116-00 | 1 | E40106 COLLET MM.12 | 130,35 Lei | |
| 77 | 942893-01 | 1 | NUT | 30,87 Lei | |
| 78 | N901262 | 1 | RATING PLATE | 12,71 Lei | |
| 79 | 942918-00 | 1 | INDEX, ADJ | 30,87 Lei | |
| 80 | N590957 | 2 | CONNECTOR | 10,29 Lei | |
| 81 | 868082-00 | 5 | SPRING | 4,57 Lei | |
| 82 | 942917-00 | 1 | SCREW | 80,04 Lei | |
| 84 | 326966-00 | 2 | ROD, GUIDE | 25,54 Lei | |
| 85 | 326573-01 | 5 | SCREW, WING M6*17 BLACK | 5,21 Lei | |
| 86 | 942915-00 | 2 | FENCE | 41,93 Lei | |
| 87 | 948581-01 | 1 | SIDE FENCE, MOF 177 | 130,35 Lei | |
| 88 | 860073-01 | 4 | WASHER,FLAT 5.3X10 UNI 6592 | 4,57 Lei | |
| 89 | 330065-09 | 2 | SCREW PLSTC THD FORM M4X25 T20 | 4,57 Lei | |
| 91 | 948582-01 | 1 | SA SIDE GUIDE REGULATION | 130,35 Lei | |
| 92 | 249221-00 | 1 | WASHER | 4,57 Lei | |
| 93 | 943023-00 | 5 | SCREW | 4,57 Lei | |
| 94 | N764323 | 1 | HANDLE | 21,85 Lei | |
| 95 | N802832 | 1 | HANDLE | 17,02 Lei | |
| 96 | N802834 | 1 | HANDLE | 17,02 Lei | |
| 97 | N771110 | 1 | HANDLE | 17,02 Lei | |
| 98 | N812430 | 1 | LOCK KNOB | 4,57 Lei | |
| 99 | 868082-00 | 1 | SPRING | 4,57 Lei | |
| 100 | N774171 | 1 | CONNECTOR | 106,98 Lei | |
| 101 | N792112 | 1 | MOUNT | 4,57 Lei | |
| 103 | 868111-00 | 1 | KEY SE 22 DIN 894 | 19,95 Lei | |
| 104 | 330019-13 | 4 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 105 | N774136 | 1 | CONNECTOR | 106,98 Lei | |
| 106 | N872143 | 1 | CORDSET | 157,92 Lei | |
| 107 | 770236 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 108 | N829820 | 1 | HOUSING | 19,95 Lei | |
| 109 | N608508 | 1 | SWITCH | 195,02 Lei | |
| 110 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 111 | N829743 | 1 | SWITCHBOX | 30,87 Lei | |
| 112 | 330065-08 | 4 | SCREW M4X18 | 4,57 Lei | |
| 117 | 868150-00 | 1 | NUT -M 12 HRECES DIN 91 | 10,29 Lei | |
| 118 | 942910-00 | 1 | ADJUSTER | 25,54 Lei | |
| 119 | 942912-00 | 1 | SPRING, LEAF | 4,57 Lei | |
| 120 | 942911-00 | 1 | BUTTON | 21,85 Lei | |
| 121 | N780084 | 1 | DUST PORT | 30,87 Lei | |
| 123 | 860083-02 | 2 | NUT,HEX THICK M.5 UNI 5587 | 4,57 Lei | |
| 124 | 869076-00 | 2 | SCREW | 4,57 Lei | |
| 127 | 941541-00 | 1 | RETAINING RING D.25 | 4,57 Lei | |
| 128 | N436230 | 1 | LOCK NUT | 30,87 Lei | |
| 129 | 869246-00 | 1 | SPRING DW743N | 4,57 Lei | |
| 140 | N907115 | 1 | BRAND LABEL | 8,64 Lei | |
| 141 | 632109-00 | 1 | LABEL | 4,57 Lei | |
| 150 | 650855-00 | 1 | FELT | 4,57 Lei | |
| 155 | 249098-00 | 1 | SLEEVE,GUIDE 30 | 52,22 Lei | |
| 156 | 249412-20 | 2 | SCREW M5X10 | 4,57 Lei | |
| 860 | H1400196008 | 1 | HANDLE | 24,9 Lei | |
| 860 | H1400198008 | 1 | HANDLE | 17,02 Lei | |
| 861 | N445186 | 1 | KITBOX | 307,21 Lei | |
| 862 | N409477 | 1 | LATCH | 8,64 Lei | |
| 863 | P910190 | 2 | LATCH (Better Latch - C) | 13,85 Lei | |
| 864 | NA076398 | 1 | PLASTIC INSERT | 181,55 Lei |
