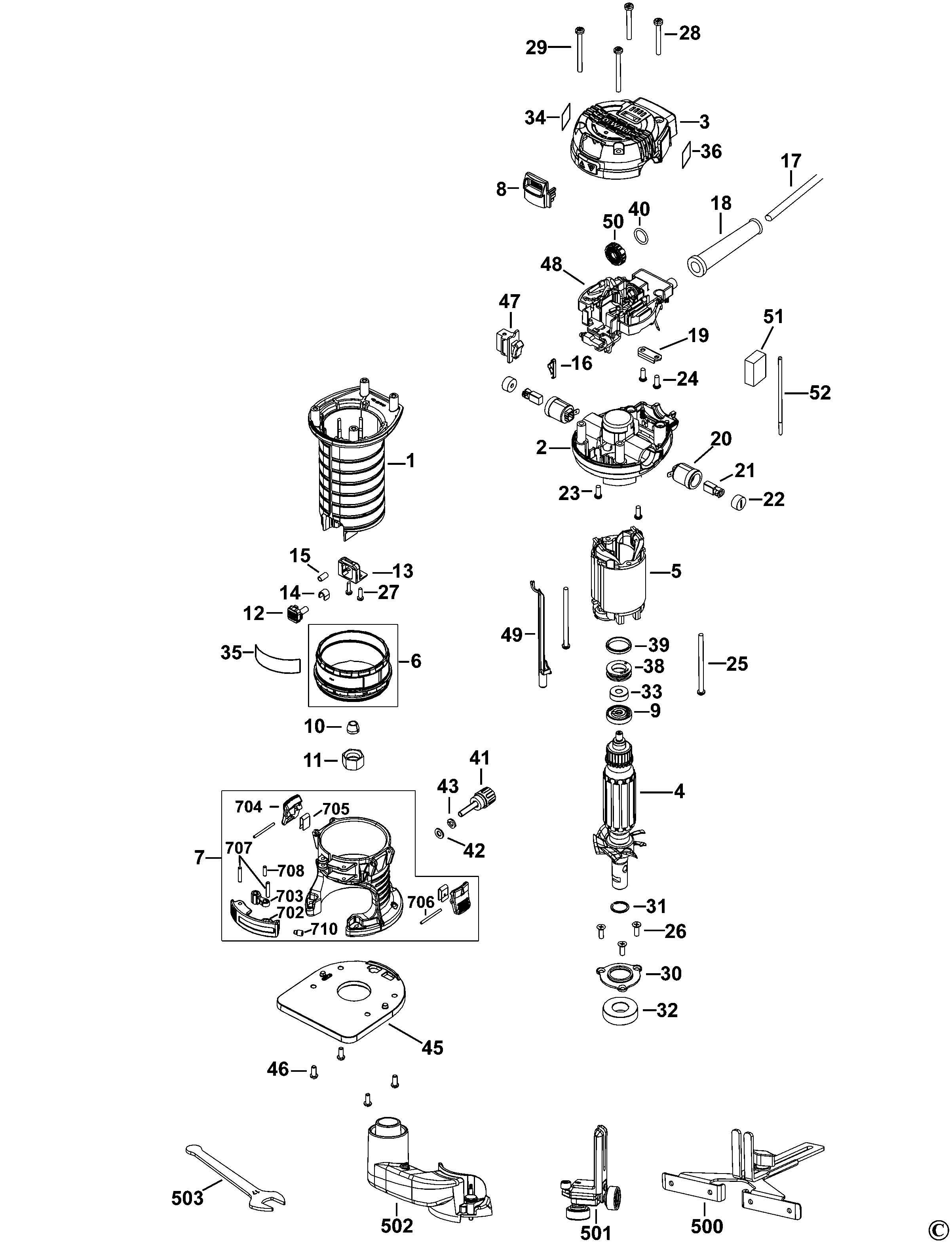

DEWALT LAMINATE TRIMMER (Type 1)
SKU Produs: DWE6005 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N381511 | 1 | HOUSING MOTOR | 96,56 Lei | |
| 2 | N381512 | 1 | HOUSING UPPER | 57,81 Lei | |
| 3 | N381888 | 1 | HOUSING TOP | 41,93 Lei | |
| 4 | N381862 | 1 | ARMATURE 220/240V | 399,45 Lei | |
| 5 | N381863 | 1 | FIELD 220/240V | 200,99 Lei | |
| 6 | N381737 | 1 | ADJUSTER DEPTH | 57,81 Lei | |
| 7 | N381528 | 1 | BASE SA | 225,26 Lei | |
| 8 | N381702 | 1 | BUTTON | 12,71 Lei | |
| 9 | N381769 | 1 | HOLDER SA | 37,73 Lei | |
| 10 | N381740 | 1 | COLLETT 6MM | 52,22 Lei | |
| 11 | N381503 | 1 | COLLET NUT | 70,39 Lei | |
| 12 | N381504 | 1 | SPINDLE LOCK | 15,12 Lei | |
| 13 | N381505 | 1 | INSERT | 8,64 Lei | |
| 14 | N381506 | 1 | PLATE | 12,71 Lei | |
| 15 | N381513 | 1 | SPRING | 5,21 Lei | |
| 16 | N381514 | 1 | SPRING | 17,02 Lei | |
| 17 | N381854 | 1 | CORDSET (EURO) | 106,98 Lei | |
| 18 | N381742 | 1 | CORD PROTECTOR | 15,12 Lei | |
| 19 | N381706 | 1 | CORD CLAMP | 6,23 Lei | |
| 20 | N381707 | 2 | BRUSH HOLDER | 19,95 Lei | |
| 21 | N381855 | 1 | BRUSH PAIR 230V | 57,81 Lei | |
| 22 | N381709 | 2 | BRUSH CAP | 12,71 Lei | |
| 23 | 860094-03 | 2 | SCREW,PAN PH/TT M.4X10UNI8112 | 4,57 Lei | |
| 24 | 860094-05 | 2 | SCREW,PAN PH/TT M.4X12UNI8112 | 4,57 Lei | |
| 25 | N381713 | 2 | SCREW | 7,37 Lei | |
| 26 | N381714 | 3 | SCREW | 4,57 Lei | |
| 27 | 330019-41 | 2 | VITE PLASTIC | 4,57 Lei | |
| 28 | N381716 | 2 | SCREW | 7,37 Lei | |
| 29 | 330019-50 | 2 | SCREW | 4,57 Lei | |
| 30 | N381718 | 1 | BEARING PLATE | 15,12 Lei | |
| 31 | N381719 | 1 | RETAINER | 15,12 Lei | |
| 32 | 605040-25 | 1 | BEARING, BALL CW MFG | 17,02 Lei | |
| 33 | 605040-65 | 1 | BEARING | 12,71 Lei | |
| 34 | N276088 | 1 | WARNING LABEL | 17,02 Lei | |
| 35 | N278600 | 2 | BRAND LABEL | 17,02 Lei | |
| 36 | N276083 | 1 | RATING PLATE | 13,85 Lei | |
| 38 | N381723 | 1 | BEARING HOLDER | 12,71 Lei | |
| 39 | N381724 | 1 | WASHER | 13,85 Lei | |
| 40 | N381755 | 1 | O RING | 7,37 Lei | |
| 41 | N381725 | 1 | KNOB | 13,85 Lei | |
| 42 | N381726 | 1 | WASHER M5 | 4,57 Lei | |
| 43 | N381727 | 1 | WASHER SPRING | 6,23 Lei | |
| 45 | N381728 | 1 | BASE PLATE | 37,73 Lei | |
| 46 | 949894-06 | 4 | FILLISTER HEAD SCREW | 4,57 Lei | |
| 47 | N381730 | 1 | SWITCH | 41,93 Lei | |
| 48 | N381865 | 1 | ELECTRONIC 230V | 375,31 Lei | |
| 49 | N381732 | 1 | LED LIGHT | 96,56 Lei | |
| 50 | N276101 | 1 | WHEEL SPEED | 30,87 Lei | |
| 51 | N381767 | 1 | CONDENSOR | 21,85 Lei | |
| 52 | N381768 | 1 | LEAD EARTH | 8,64 Lei | |
| 500 | N361320 | 1 | GUIDE SA | 181,55 Lei | |
| 501 | N361319 | 1 | WHEEL GUIDE | 213,19 Lei | |
| 502 | N361322 | 1 | DUST PORT | 120,82 Lei | |
| 503 | N361321 | 1 | SPANNER | 25,54 Lei | |
| 702 | N381520 | 1 | LEVER LOCK | 52,22 Lei | |
| 703 | N381521 | 1 | LINK | 13,85 Lei | |
| 704 | N381522 | 2 | BUTTON RELEASE | 10,29 Lei | |
| 705 | N381523 | 2 | SPRING | 13,85 Lei | |
| 706 | N381524 | 2 | PIN | 7,37 Lei | |
| 707 | N381525 | 2 | PIN | 7,37 Lei | |
| 708 | N381526 | 1 | PIN | 7,37 Lei | |
| 710 | N381527 | 1 | SCREW | 19,95 Lei |
