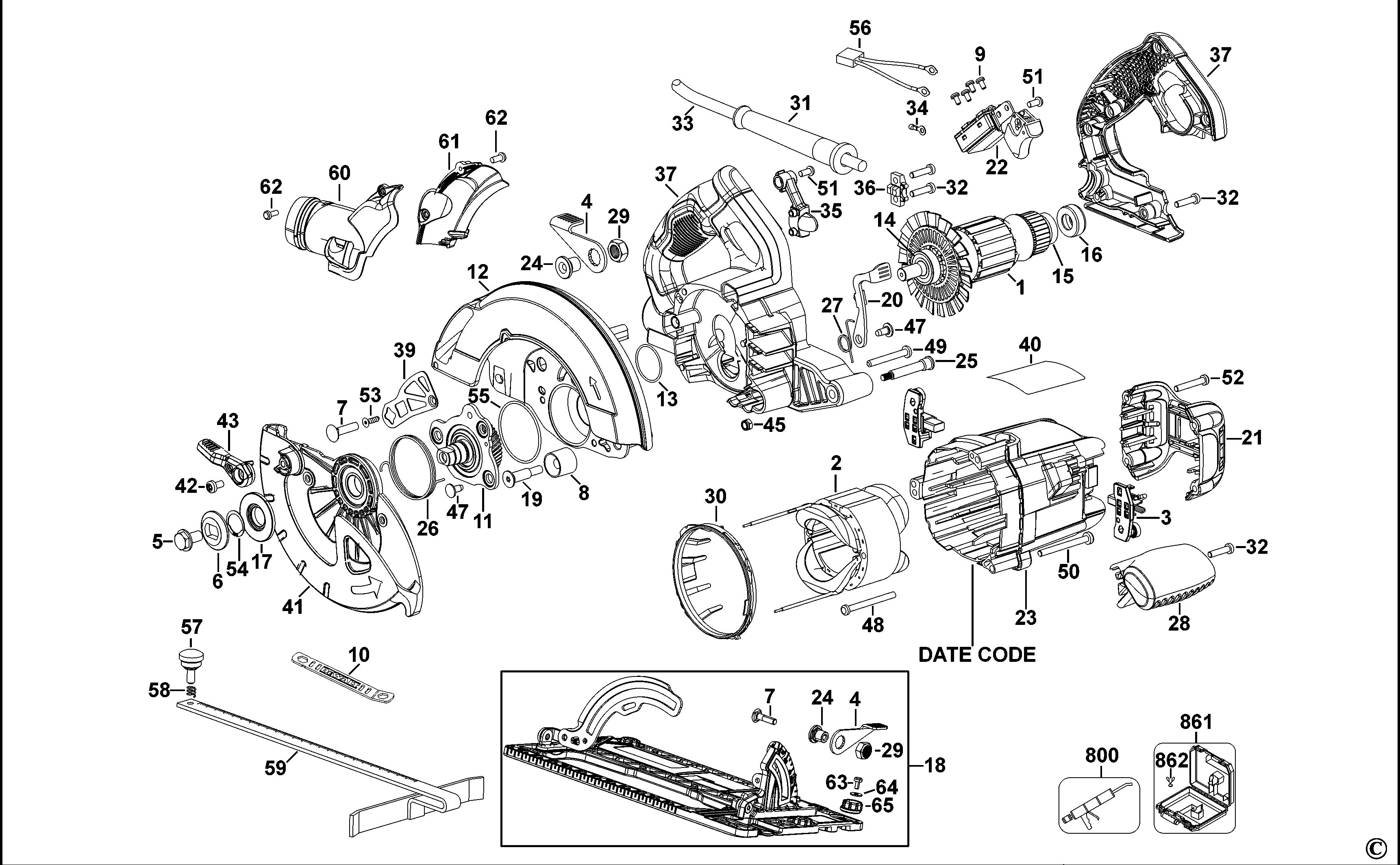

DEWALT CIRCULAR SAW (Type 1)
SKU Produs: DWE576 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N420172 | 1 | ARMATURE 230V | 289,04 Lei | |
| 2 | N225796 | 1 | FIELD SA 230V | 195,02 Lei | |
| 3 | N226137 | 1 | BRUSH HOLDER PAIR | 70,39 Lei | |
| 4 | 145347-00 | 1 | LEVER | 8,64 Lei | |
| 5 | 145344-00 | 1 | SCREW SPECIAL | 10,29 Lei | |
| 6 | N120428 | 1 | OUTER FLANGE | 12,71 Lei | |
| 7 | 098128-90 | 2 | CARRIAGE BOLT | 4,57 Lei | |
| 8 | 381066-00 | 1 | BUMPER | 4,57 Lei | |
| 9 | 384127-01 | 4 | SCREW, MACHINE PAN HD | 4,57 Lei | |
| 10 | N165861 | 1 | WRENCH SPECIAL | 10,5 Lei | |
| 11 | N219393 | 1 | SPINDLE SA | 96,56 Lei | |
| 12 | N237899 | 1 | GEARCASE SA | 120,82 Lei | |
| 13 | N100358 | 1 | O RING | 4,57 Lei | |
| 14 | 330003-25 | 1 | BEARING | 19,95 Lei | |
| 15 | N110359 | 1 | BALL BEARING | 8,64 Lei | |
| 16 | N136311 | 1 | RUBBER BOOT | 4,7 Lei | |
| 17 | N084137 | 1 | WASHER INNER CLAMP | 13,85 Lei | |
| 18 | N257219 | 1 | SHOE SA | 289,04 Lei | |
| 19 | N086135 | 1 | SCREW | 4,57 Lei | |
| 20 | N090570 | 1 | LEVER LOCK | 13,85 Lei | |
| 21 | N090678 | 1 | END CAP | 17,02 Lei | |
| 22 | N120421 | 1 | SWITCH SA | 57,81 Lei | |
| 23 | N168914 | 1 | FIELDCASE | 70,39 Lei | |
| 24 | N094731 | 1 | SCREW | 15,12 Lei | |
| 25 | N099101 | 1 | BOLT | 5,21 Lei | |
| 26 | N100006 | 1 | SPRING | 7,37 Lei | |
| 27 | N100123 | 1 | SPRING | 4,57 Lei | |
| 28 | N115554 | 1 | HANDLE | 15,12 Lei | |
| 29 | N117921 | 1 | STOP NUT | 4,57 Lei | |
| 30 | N287072 | 1 | BAFFLE FAN | 10,29 Lei | |
| 31 | 330005-02 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 32 | 330019-13 | 9 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 33 | N142457 | 1 | CORDSET (EURO) | 70,39 Lei | |
| 34 | 395716-00 | 2 | TERMINAL | 4,57 Lei | |
| 35 | N095539 | 1 | CORD CLAMP | 5,21 Lei | |
| 36 | N127730 | 1 | CORD CLAMP | 4,57 Lei | |
| 37 | N137320 | 1 | HANDLE SA | 106,98 Lei | |
| 39 | N135988 | 1 | STRAP | 5,21 Lei | |
| 40 | NA181106 | 1 | RATING LABEL | 7,37 Lei | |
| 41 | N378852 | 1 | GUARD LOWER | 96,56 Lei | |
| 42 | 098094-13 | 1 | SCREW M5x13 | 4,57 Lei | |
| 43 | N086628 | 1 | LEVER | 7,37 Lei | |
| 45 | N123103 | 1 | STOP NUT | 4,57 Lei | |
| 47 | 385915-04 | 4 | SCREW S | 4,57 Lei | |
| 48 | 330019-50 | 2 | SCREW | 4,57 Lei | |
| 49 | 330045-19 | 1 | SCREW TEMP | 4,57 Lei | |
| 50 | 330045-21 | 3 | SCREW | 4,57 Lei | |
| 51 | 330019-10 | 2 | SCREW | 4,57 Lei | |
| 52 | 330019-45 | 4 | SCREW | 4,57 Lei | |
| 53 | 593515-00 | 1 | SCREW | 4,57 Lei | |
| 54 | N120426 | 1 | RETAINER | 4,57 Lei | |
| 55 | N361499 | 1 | O RING | 4,57 Lei | |
| 56 | 632218-00 | 1 | SA CAPACITOR | 4,57 Lei | |
| 57 | N287119 | 1 | SCREW | 7,37 Lei | |
| 58 | 058287-00 | 1 | SPRING, CPRSN | 4,57 Lei | |
| 59 | N174703 | 1 | FENCE | 37,73 Lei | |
| 60 | N108974 | 1 | DUST PORT | 8,64 Lei | |
| 61 | N168420 | 1 | DUST PORT | 5,21 Lei | |
| 62 | 370748 | 2 | SCREW | 4,57 Lei | |
| 63 | 330045-44 | 4 | SCREW, METAL THD FORM, M4X8 T20 | 4,57 Lei | |
| 64 | N177561 | 4 | WASHER | 4,57 Lei | |
| 65 | N144477 | 4 | KNOB | 4,57 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 861 | 621123-00 | 1 | KITBOX | 169,36 Lei | |
| 862 | 605265-00 | 1 | spring clip from DC390KN-EC | 4,57 Lei |
