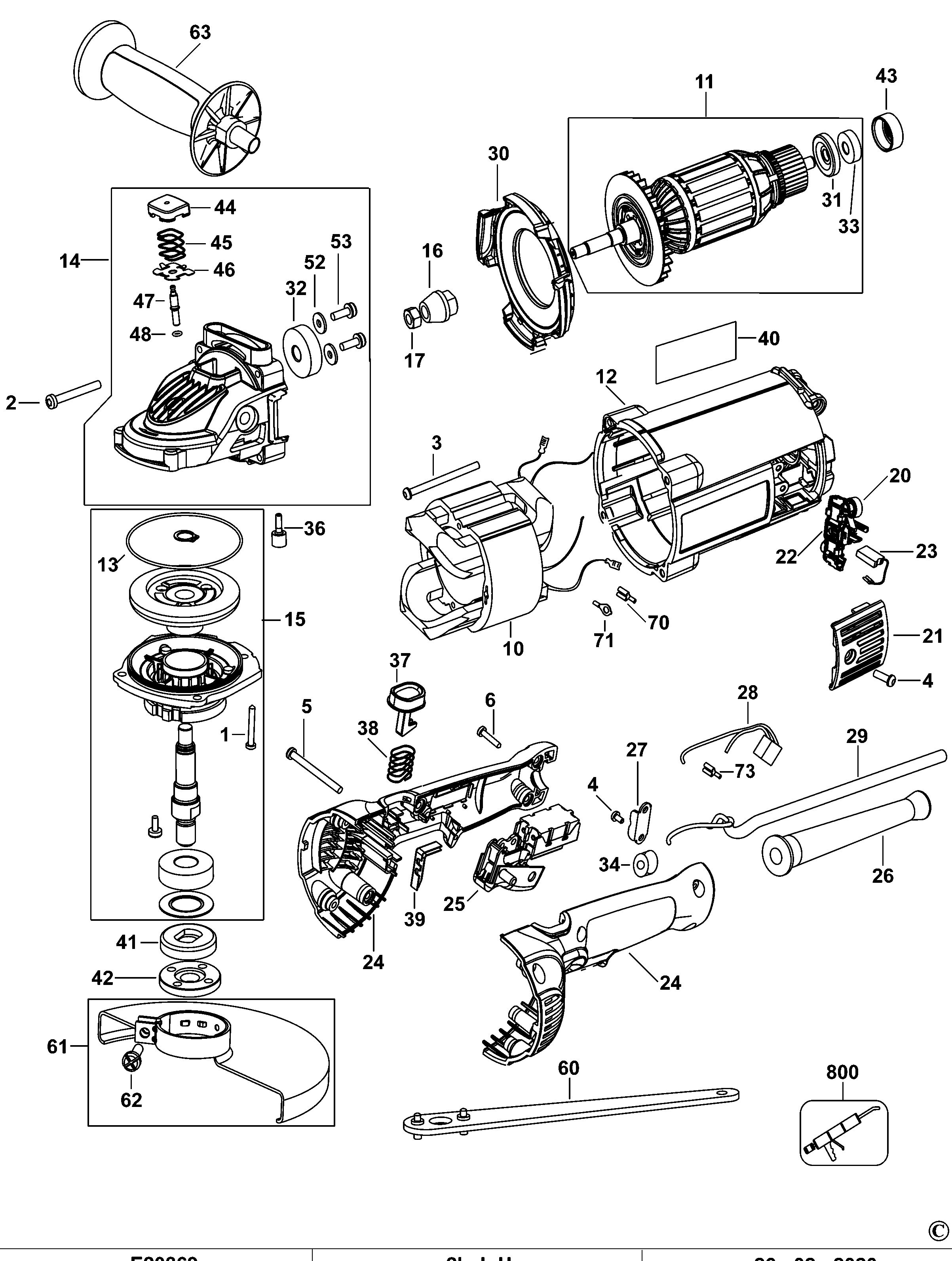

DEWALT ANGLE GRINDER (Type 1)
SKU Produs: DWE492GK /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 330045-14 | 4 | SCREW M5X16 T25 | 4,57 Lei | |
| 2 | 330019-26 | 4 | SCREW M5.28 X42 | 4,57 Lei | |
| 3 | 330019-19 | 2 | SCREW, PLASTITE | 5,21 Lei | |
| 4 | 330019-11 | 2 | SCREW PLSTC THD FORM M4.55X13 T20 | 4,57 Lei | |
| 5 | 330019-50 | 3 | SCREW | 4,57 Lei | |
| 6 | 330019-32 | 4 | SCREW,PLASTITE | 4,57 Lei | |
| 10 | N310019 | 1 | FIELD SA | 154,1 Lei | |
| 10 | N866738 | 1 | FIELD SA | 325,7 Lei | |
| 11 | N467980 | 1 | ARMATURE SA | 323,5 Lei | |
| 11 | N473954 | 1 | ARMATURE SA | 375,31 Lei | |
| 12 | 393239-01 | 1 | FIELD CASE | 80,04 Lei | |
| 13 | 397031-00 | 1 | O RING | 4,57 Lei | |
| 14 | N442319 | 1 | GEARCASE SA | 127,2 Lei | |
| 15 | N442320 | 1 | GEARCASE COVER SA | 154,1 Lei | |
| 16 | N407625 | 1 | 6K PINION | 30,87 Lei | |
| 17 | 330015-03 | 1 | NUT,HEX | 4,57 Lei | |
| 20 | 645650-00 | 2 | BRUSH SPRING | 5,21 Lei | |
| 21 | 394387-01 | 2 | DOOR, BRUSH | 12,71 Lei | |
| 22 | N410308 | 1 | BRUSH HLDR.ASSY | 17,02 Lei | |
| 23 | N404514 | 1 | BRUSH PAIR | 37,73 Lei | |
| 24 | 636499-01 | 1 | HANDLE AND COVER | 59,2 Lei | |
| 25 | N035342 | 1 | SWITCH SA | 57,81 Lei | |
| 26 | N219433 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 27 | 604119-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 28 | 632218-00 | 1 | SA CAPACITOR | 4,57 Lei | |
| 29 | 562226-81 | 1 | CORD POWER SUPPLY | 41,93 Lei | |
| 29 | 567146-01 | 1 | CLIP, HANGING, SDS PLUS, BLACK | 4,5 Lei | |
| 30 | 631350-00 | 1 | RADIAL FAN BAFFLE | 10,29 Lei | |
| 31 | 393238-00 | 1 | SHIELD DUST | 5,21 Lei | |
| 32 | N389509 | 1 | EARING, BALL, CW MFG | 19,95 Lei | |
| 33 | N110359 | 1 | BALL BEARING | 8,64 Lei | |
| 34 | N423473 | 1 | SUPPRESSOR | 17,02 Lei | |
| 36 | N033051 | 1 | SCREW STOP | 5,21 Lei | |
| 37 | 636503-00 | 1 | BUTTON LOCK-OFF | 4,57 Lei | |
| 38 | 636502-00 | 1 | PRING | 4,57 Lei | |
| 39 | N391190 | 1 | COVER | 4,57 Lei | |
| 40 | N427115 | 1 | RATING PLATE | 4,57 Lei | |
| 41 | 403150-01 | 1 | WASHER, CLAMP, INNER | 21,85 Lei | |
| 42 | 401678-05 | 1 | WASHER OUTER CLAMP PAINTED | 21,85 Lei | |
| 43 | 609970-00 | 1 | CUP, RUBBER | 4,57 Lei | |
| 44 | 630553-00 | 1 | SPINDLE LOCK BUTTON | 4,57 Lei | |
| 45 | 638328-00 | 1 | SPINDLE LOCK SPRING | 4,57 Lei | |
| 46 | 635908-00 | 1 | SPINDLE LOCK RETAINING PLATE | 4,57 Lei | |
| 47 | 634589-00 | 1 | SPINDLE LOCK PIN | 10,29 Lei | |
| 48 | 750831 | 1 | O RING (SPINDLE LOCK) | 4,57 Lei | |
| 52 | 640591-00 | 2 | WASHER PLAIN | 4,57 Lei | |
| 53 | 330045-67 | 2 | SCREW | 4,57 Lei | |
| 60 | 635261-00 | 1 | WRENCH PIN | 19,95 Lei | |
| 61 | N419366 | 1 | SA GUARD | 57,81 Lei | |
| 62 | N082712 | 1 | SCREW | 4,57 Lei | |
| 63 | 651858-01 | 1 | SA HANDLE SIDE | 25,54 Lei | |
| 70 | 612273-00 | 2 | TERMINAL | 4,57 Lei | |
| 71 | 610057-00 | 2 | TERMINAL | 4,57 Lei | |
| 73 | 053650-00 | 1 | TERMINAL | 4,57 Lei | |
| 101 | N645894 | 1 | DUST PORT | 25,54 Lei | |
| 102 | N657928 | 1 | COVER | 13,85 Lei | |
| 103 | N657926 | 1 | CLAMSHELL HALF | 96,56 Lei | |
| 104 | N657927 | 1 | CLAMSHELL HALF | 80,04 Lei | |
| 105 | N662825 | 1 | SPRING | 7,37 Lei | |
| 106 | N661802 | 1 | PIN | 15,12 Lei | |
| 107 | N743974 | 1 | WASHER | 4,57 Lei | |
| 108 | 098197-10 | 1 | WASHER LOCK | 4,57 Lei | |
| 109 | 153778-01 | 1 | Mach screw | 4,57 Lei | |
| 110 | N657950 | 1 | BACKPLATE | 21,85 Lei | |
| 111 | N657991 | 1 | CLAMPING INSERT | 57,81 Lei | |
| 112 | 330065-08 | 10 | SCREW M4X18 | 4,57 Lei | |
| 113 | N530541 | 5 | SCREW | 4,57 Lei | |
| 114 | N760652 | 8 | PLASTIC SCREW | 4,57 Lei | |
| 115 | 330019-04 | 2 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 116 | 330019-66 | 3 | SCREW | 4,57 Lei | |
| 117 | N661758 | 1 | GUARD LOWER | 41,93 Lei | |
| 118 | N657930 | 1 | GUARD LOWER | 57,81 Lei | |
| 119 | N657935 | 1 | WINDOW | 13,85 Lei | |
| 120 | N116219 | 2 | NUT | 4,57 Lei | |
| 121 | 478455-00 | 2 | SCREW | 4,57 Lei | |
| 122 | N646432 | 1 | PIN | 4,57 Lei | |
| 123 | N770509 | 1 | SPRING | 4,57 Lei | |
| 124 | N645897 | 1 | LOCK HOOK | 34,05 Lei | |
| 125 | N646434 | 1 | SPRING | 4,57 Lei | |
| 126 | N657920 | 1 | BUTTON | 5,21 Lei | |
| 127 | N657945 | 1 | STRAP | 34,05 Lei | |
| 128 | N661738 | 1 | SLIDER SA | 52,22 Lei | |
| 129 | N657932 | 1 | BRACKET | 8,64 Lei | |
| 130 | N646428 | 1 | KNOB | 5,21 Lei | |
| 131 | N657943 | 1 | SHOE | 52,22 Lei | |
| 133 | N703830 | 4 | WHEEL | 5,21 Lei | |
| 134 | N774538 | 4 | WASHER | 4,57 Lei | |
| 135 | N703811 | 2 | AXLE | 7,37 Lei | |
| 136 | N670342 | 1 | OUTER FLANGE | 25,54 Lei | |
| 137 | N670340 | 1 | Inner Flange | 30,87 Lei | |
| 139 | N776045 | 1 | LABEL | 4,57 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei |
