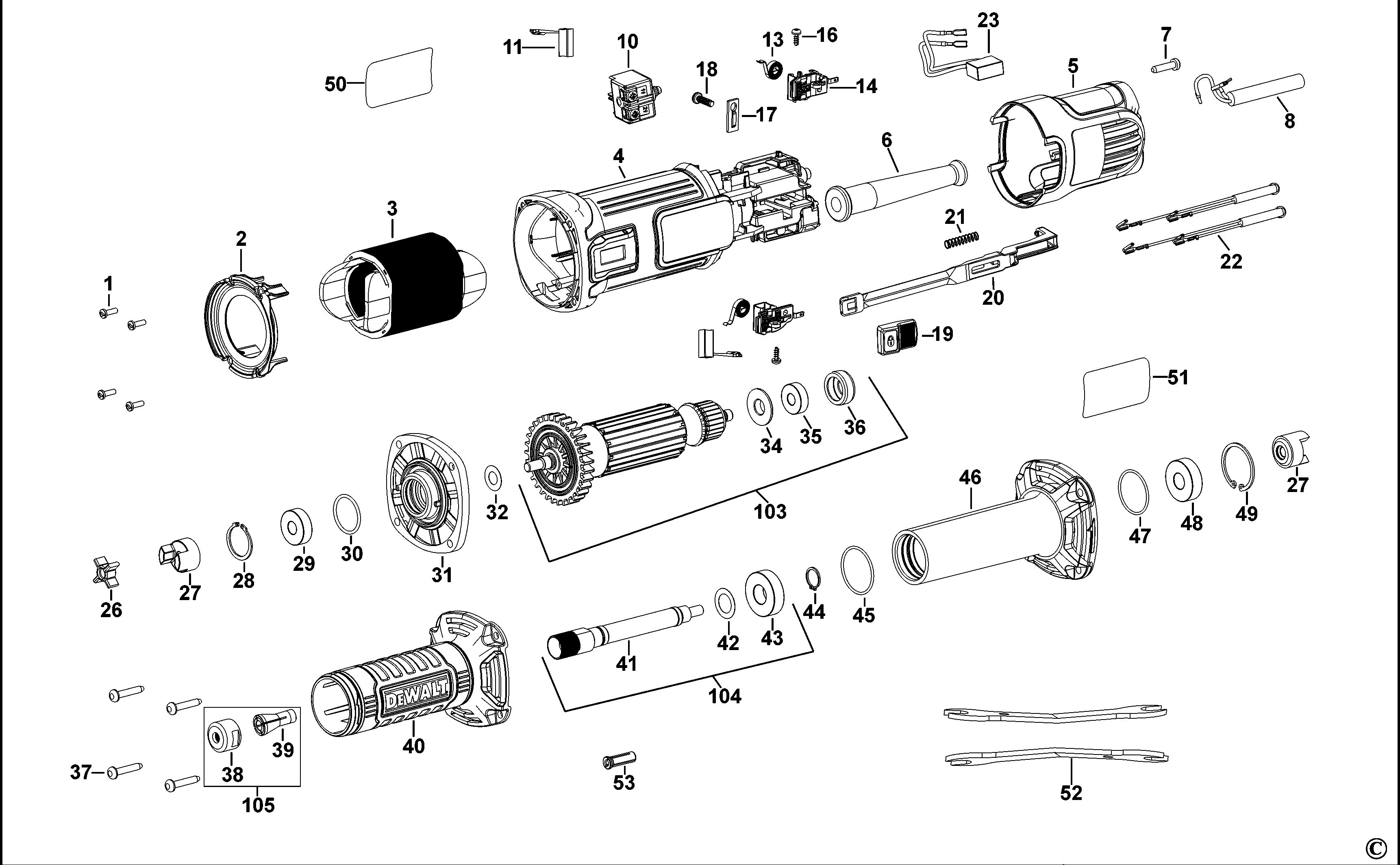

DEWALT DIE GRINDER (Type 1)
SKU Produs: DWE4884 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 330065-25 | 4 | SCREW PLSTC THD FORM M3X9 T10 | 4,57 Lei | |
| 2 | N132864 | 1 | BAFFLE | 5,21 Lei | |
| 3 | N386325 | 1 | FIELD SA | 127,2 Lei | |
| 4 | N115131 | 1 | FIELDCASE | 34,05 Lei | |
| 5 | N115132 | 1 | HOUSING | 17,02 Lei | |
| 6 | N447519 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 7 | N017839 | 1 | SCREW | 4,57 Lei | |
| 8 | N133090 | 1 | CORDSET (EURO) | 37,73 Lei | |
| 10 | N327459 | 1 | CPX CDO 80-01 SWITCH | 19,95 Lei | |
| 11 | N183725 | 1 | BRUSH PAIR | 40,9 Lei | |
| 11 | NA160502 | 1 | BRUSH PAIR | 41,93 Lei | |
| 13 | N097703 | 2 | SPRING | 4,57 Lei | |
| 14 | N097702 | 2 | BRUSH BOX | 7,37 Lei | |
| 16 | 593478-00 | 2 | SCREW OT M3X8 | 4,57 Lei | |
| 17 | 619328-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 18 | 562097-00 | 1 | Screw For Brush Holder Assy.(4.2 x 13) | 4,57 Lei | |
| 19 | N097844 | 1 | BUTTON | 4,57 Lei | |
| 20 | N117648 | 1 | LINK | 5,21 Lei | |
| 21 | N093410 | 1 | SPRING | 4,57 Lei | |
| 22 | N396060 | 2 | RESISTOR | 15,12 Lei | |
| 26 | N275347 | 1 | DRIVER | 4,57 Lei | |
| 27 | N275349 | 1 | COUPLING | 13,85 Lei | |
| 28 | N286522 | 1 | SNAP RING | 4,57 Lei | |
| 29 | N175104 | 1 | BEARING BALL | 13,85 Lei | |
| 30 | N119639 | 1 | O RING ,RUBBER | 4,57 Lei | |
| 31 | N283650 | 1 | STATOR AL | 25,54 Lei | |
| 32 | N213812 | 1 | WASHER | 4,57 Lei | |
| 34 | N101228 | 1 | WASHER | 4,57 Lei | |
| 35 | N130916 | 1 | BEARING | 10,29 Lei | |
| 36 | 641823-00 | 1 | BOOT, RUBBER | 4,57 Lei | |
| 37 | N354900 | 4 | SCREW, PLSTC THD FORM, M4X25 T15 | 4,57 Lei | |
| 38 | N382458 | 1 | NUT | 19,95 Lei | |
| 39 | N382457 | 1 | COLLECTOR | 52,22 Lei | |
| 40 | N287179 | 1 | NOSE PLASTIC | 25,54 Lei | |
| 41 | N275348 | 1 | OUTPUT SHAFT | 52,22 Lei | |
| 42 | 638229-00 | 1 | SLINGER | 4,57 Lei | |
| 43 | 605040-24 | 1 | BEARING | 13,85 Lei | |
| 44 | N027674 | 1 | RETAINER | 4,57 Lei | |
| 45 | N398026 | 1 | O RING 28MM | 5,21 Lei | |
| 46 | N275343 | 1 | NOSE MACHINING A | 57,81 Lei | |
| 47 | N308579 | 1 | O-RING 26MM | 4,57 Lei | |
| 48 | 605040-17 | 1 | BEARING, BALL, CW MFG | 37,73 Lei | |
| 49 | N184706 | 1 | RING, RETAINING, INTERNAL | 4,57 Lei | |
| 50 | NA130495 | 1 | RATING LABEL | 4,57 Lei | |
| 51 | N149175 | 1 | BRAND LABEL | 4,57 Lei | |
| 52 | N332459 | 2 | WRENCH | 17,02 Lei | |
| 53 | N382457 | 1 | COLLECTOR | 52,22 Lei | |
| 103 | N386326 | 1 | ARMATURE SA | 161,6 Lei | |
| 105 | N382456 | 1 | COLLECT AND NUT SA | 68,7 Lei |
