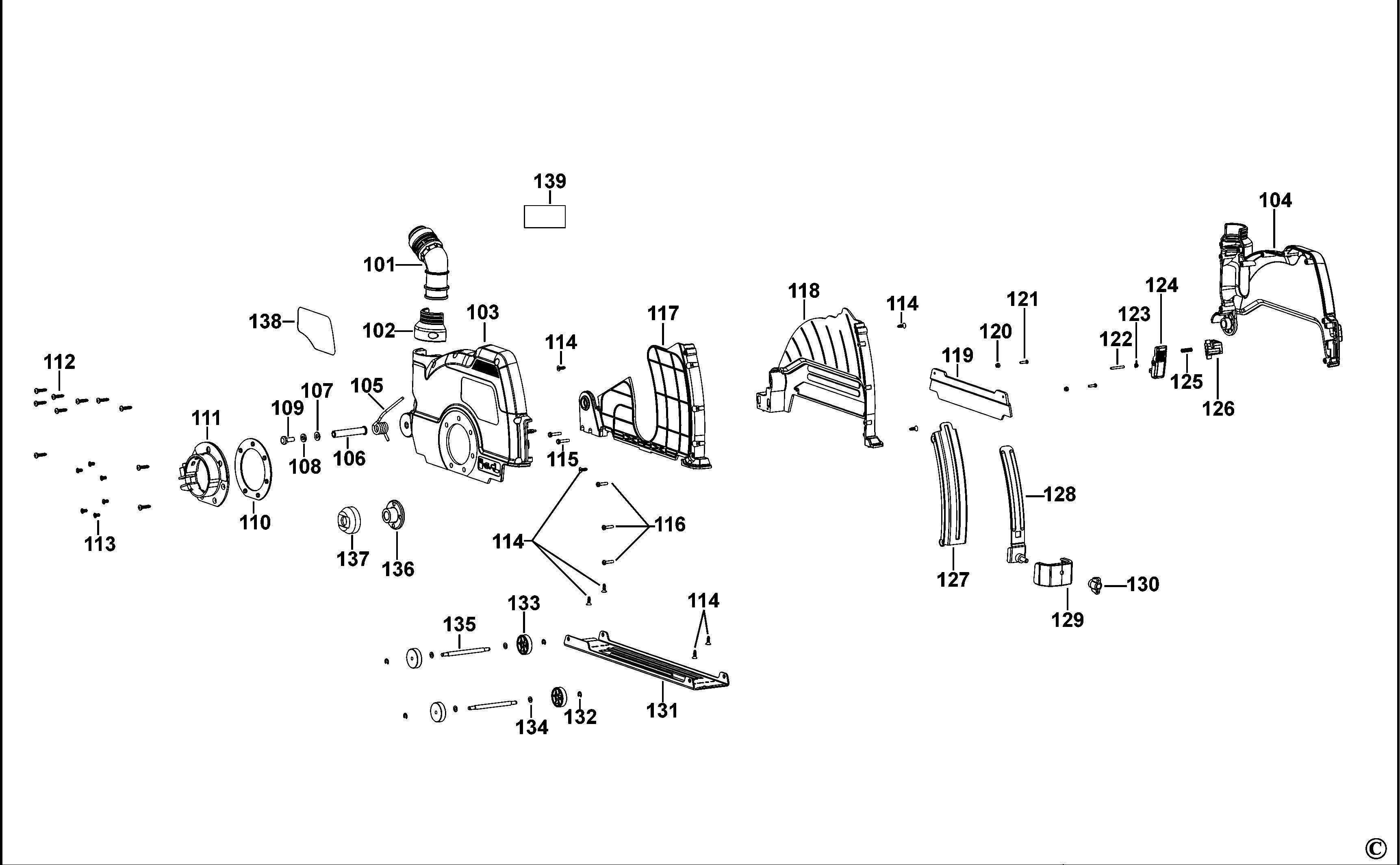

DEWALT DUST COLLECTOR (Type 1)
SKU Produs: DWE46229 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 101 | N645894 | 1 | DUST PORT | 25,54 Lei | |
| 102 | N657928 | 1 | COVER | 13,85 Lei | |
| 103 | N657926 | 1 | CLAMSHELL HALF | 96,56 Lei | |
| 104 | N657927 | 1 | CLAMSHELL HALF | 80,04 Lei | |
| 105 | N662825 | 1 | SPRING | 7,37 Lei | |
| 106 | N661802 | 1 | PIN | 15,12 Lei | |
| 107 | N743974 | 1 | WASHER | 4,57 Lei | |
| 108 | 098197-10 | 1 | WASHER LOCK | 4,57 Lei | |
| 109 | 153778-01 | 1 | Mach screw | 4,57 Lei | |
| 110 | N657950 | 1 | BACKPLATE | 21,85 Lei | |
| 111 | N657991 | 1 | CLAMPING INSERT | 57,81 Lei | |
| 112 | 330065-08 | 10 | SCREW M4X18 | 4,57 Lei | |
| 113 | N530541 | 5 | SCREW | 4,57 Lei | |
| 114 | N760652 | 8 | PLASTIC SCREW | 4,57 Lei | |
| 115 | 90611830 | 2 | SCREW | 4,57 Lei | |
| 116 | 330019-66 | 3 | SCREW | 4,57 Lei | |
| 117 | N661758 | 1 | GUARD LOWER | 41,93 Lei | |
| 118 | N657930 | 1 | GUARD LOWER | 57,81 Lei | |
| 119 | N657935 | 1 | WINDOW | 13,85 Lei | |
| 120 | N116219 | 2 | NUT | 4,57 Lei | |
| 121 | 478455-00 | 2 | SCREW | 4,57 Lei | |
| 122 | N646432 | 1 | PIN | 4,57 Lei | |
| 123 | N770509 | 1 | SPRING | 4,57 Lei | |
| 124 | N645897 | 1 | LOCK HOOK | 34,05 Lei | |
| 125 | N646434 | 1 | SPRING | 4,57 Lei | |
| 126 | N657920 | 1 | BUTTON | 5,21 Lei | |
| 127 | N657945 | 1 | STRAP | 34,05 Lei | |
| 128 | N661738 | 1 | SLIDER SA | 52,22 Lei | |
| 129 | N657932 | 1 | BRACKET | 8,64 Lei | |
| 130 | N646428 | 1 | KNOB | 5,21 Lei | |
| 131 | N657943 | 1 | SHOE | 52,22 Lei | |
| 133 | N703830 | 4 | WHEEL | 5,21 Lei | |
| 134 | N774538 | 4 | WASHER | 4,57 Lei | |
| 135 | N703811 | 2 | AXLE | 7,37 Lei | |
| 136 | N670342 | 1 | OUTER FLANGE | 25,54 Lei | |
| 137 | N670340 | 1 | Inner Flange | 30,87 Lei | |
| 139 | N776045 | 1 | LABEL | 4,57 Lei |
