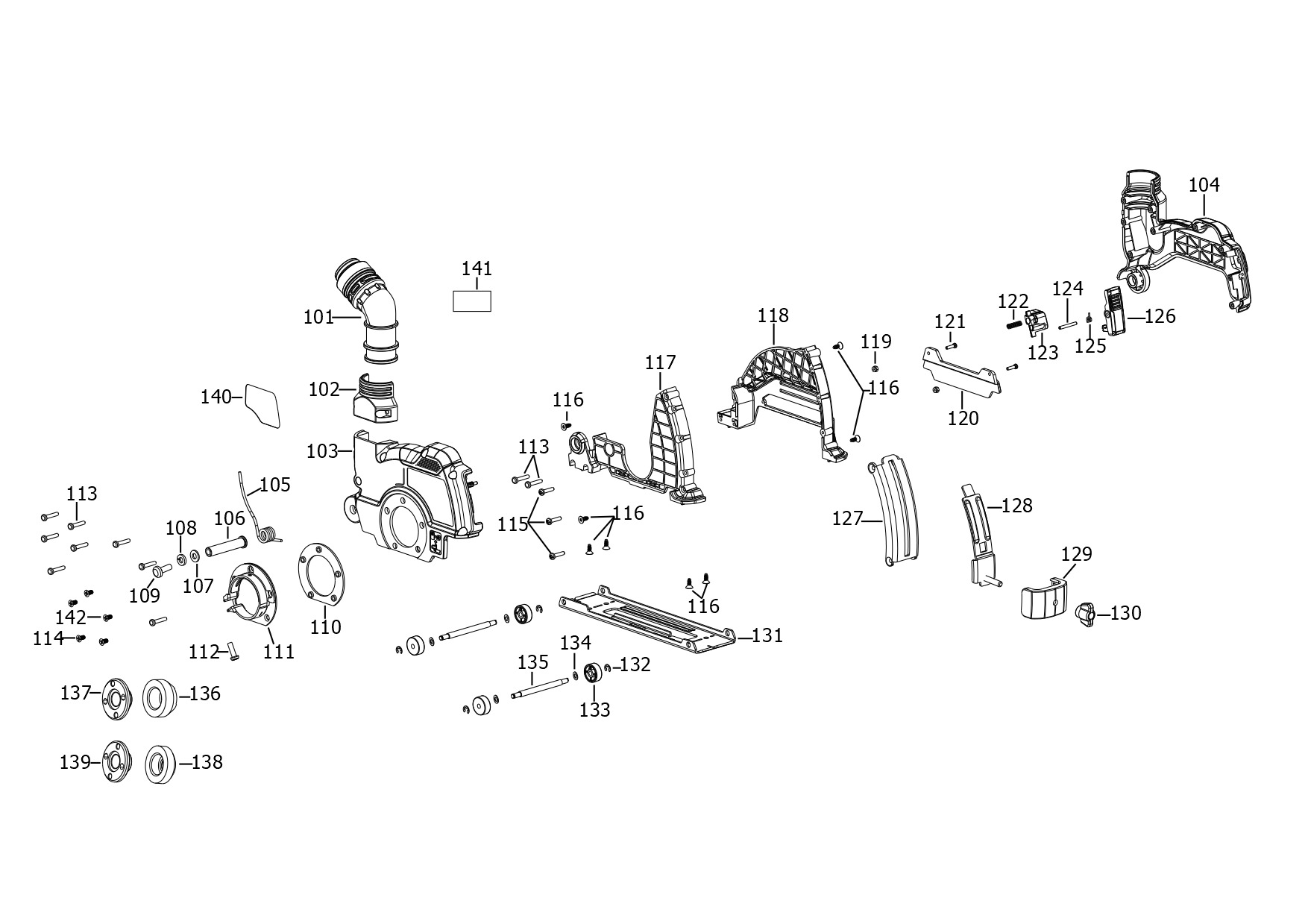

DEWALT DUST COLLECTOR (Type 1)
SKU Produs: DWE46225 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 101 | N645894 | 1 | DUST PORT | 25,54 Lei | |
| 102 | N651615 | 1 | COVER | 10,29 Lei | |
| 103 | N645891 | 1 | CLAMSHELL HALF | 52,22 Lei | |
| 104 | N645890 | 1 | CLAMSHELL HALF | 41,93 Lei | |
| 105 | N646433 | 1 | SPRING | 5,21 Lei | |
| 106 | N645896 | 1 | PIN | 15,12 Lei | |
| 107 | N743974 | 1 | WASHER | 4,57 Lei | |
| 108 | 098197-10 | 1 | WASHER LOCK | 4,57 Lei | |
| 109 | 153778-01 | 1 | Mach screw | 4,57 Lei | |
| 110 | N646437 | 1 | BACKPLATE | 19,95 Lei | |
| 111 | N646443 | 1 | STRAP | 34,05 Lei | |
| 112 | 631609-03 | 1 | SCREW | 4,57 Lei | |
| 113 | 90611830 | 10 | SCREW | 4,57 Lei | |
| 114 | N530541 | 2 | SCREW | 4,57 Lei | |
| 115 | 330019-66 | 3 | SCREW | 4,57 Lei | |
| 116 | N760650 | 8 | PLASTIC SCREW | 4,57 Lei | |
| 117 | N659081 | 1 | CLAMSHELL HALF | 25,54 Lei | |
| 118 | N645892 | 1 | CLAMSHELL HALF | 30,87 Lei | |
| 119 | N116219 | 2 | NUT | 4,57 Lei | |
| 120 | N647700 | 1 | WINDOW | 7,37 Lei | |
| 121 | 478455-00 | 2 | SCREW | 4,57 Lei | |
| 122 | N646434 | 1 | SPRING | 4,57 Lei | |
| 123 | N645899 | 1 | LATCH BUTTON | 5,21 Lei | |
| 124 | N646432 | 1 | PIN | 4,57 Lei | |
| 125 | N770509 | 1 | SPRING | 4,57 Lei | |
| 126 | N645897 | 1 | LOCK HOOK | 34,05 Lei | |
| 127 | N646427 | 1 | STRAP | 30,87 Lei | |
| 128 | N646444 | 1 | LATCH | 41,93 Lei | |
| 129 | N646430 | 1 | BRACKET | 7,37 Lei | |
| 130 | N646428 | 1 | KNOB | 5,21 Lei | |
| 131 | N645902 | 1 | SHOE | 34,05 Lei | |
| 131 | N645905 | 1 | RATING PLATE | 4,5 Lei | |
| 133 | N703486 | 4 | WHEEL | 5,21 Lei | |
| 134 | N774538 | 4 | WASHER | 4,57 Lei | |
| 135 | N703485 | 2 | AXLE | 7,37 Lei | |
| 136 | N654478 | 1 | Inner Flange | 25,54 Lei | |
| 137 | N666474 | 1 | OUTER FLANGE | 30,87 Lei | |
| 138 | N665586 | 1 | Inner Flange | 25,54 Lei | |
| 139 | N665610 | 1 | OUTER FLANGE | 25,54 Lei | |
| 140 | NA177560 | 1 | RATING LABEL | 5,21 Lei | |
| 141 | N456231 | 1 | LABEL | 4,57 Lei | |
| 142 | 388405-00 | 3 | SCREW | 4,57 Lei |
