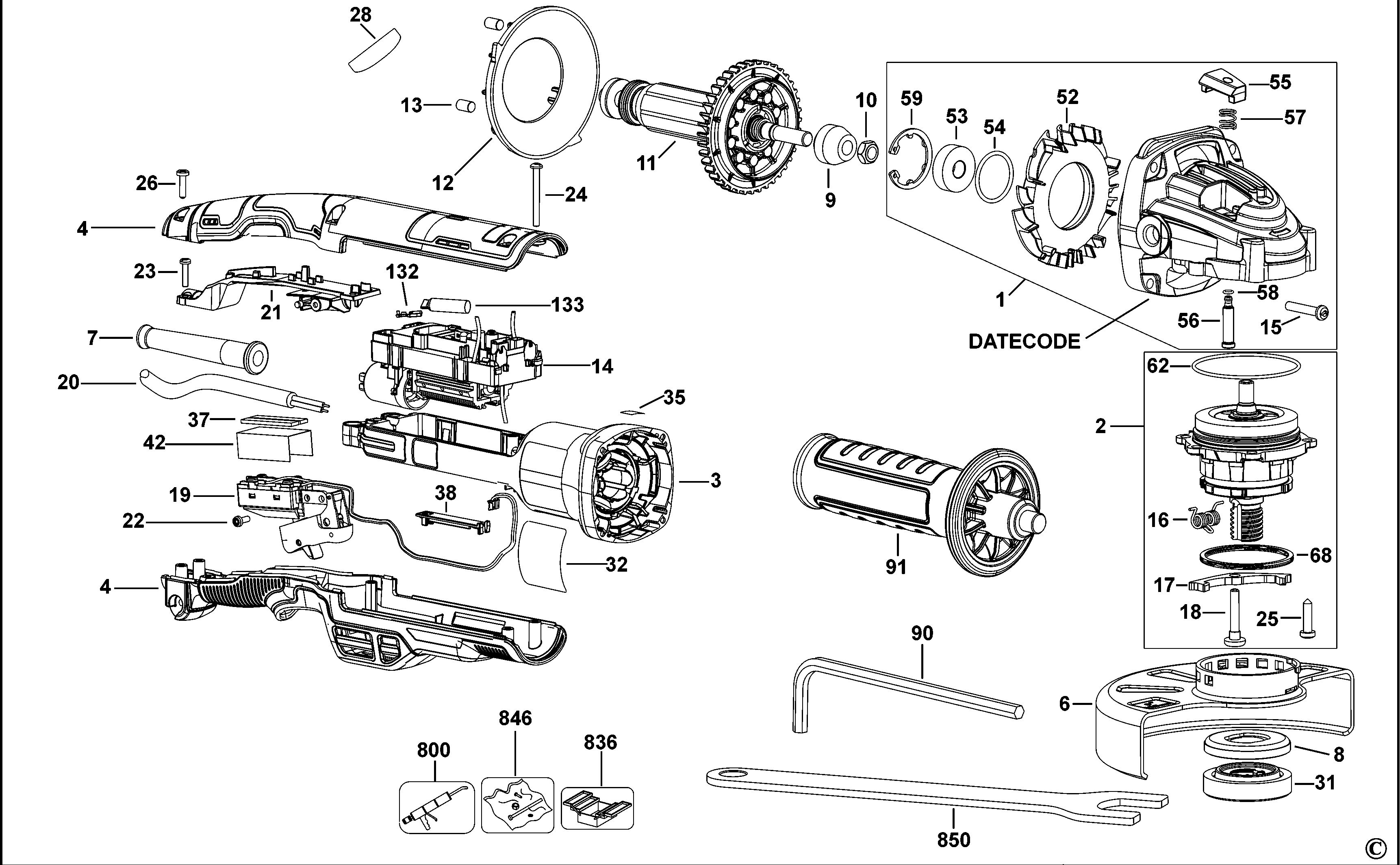

DEWALT SMALL ANGLE GRINDER (Type 1)
SKU Produs: DWE4377 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N545495 | 1 | GEARCASE SA | 88,55 Lei | |
| 2 | N545254 | 1 | GEARCASE COVER SA | 195,02 Lei | |
| 3 | N545810 | 1 | FIELDCASE SA | 300,47 Lei | |
| 4 | N545817 | 1 | HANDLE SA | 181,55 Lei | |
| 6 | N487790 | 1 | GUARD | 30,87 Lei | |
| 7 | N473096 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 8 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 8,64 Lei | |
| 9 | N442349 | 1 | PINION 5 37-12 | 30,87 Lei | |
| 10 | N372039 | 1 | NUT M7 | 4,57 Lei | |
| 11 | N545497 | 1 | ROTOR SA | 300,47 Lei | |
| 12 | N465425 | 1 | BAFFLE FAN | 5,21 Lei | |
| 13 | 949638-01 | 3 | PLUG | 4,57 Lei | |
| 14 | N545578 | 1 | CONTROL MODULE SA | 667,9 Lei | |
| 15 | N371839 | 4 | SCREW, PLSTC THD FORM, M4X22 T20 | 4,57 Lei | |
| 16 | N465886 | 1 | SPRING | 4,57 Lei | |
| 17 | N637725 | 1 | LEVER | 13,85 Lei | |
| 18 | N297219 | 1 | SCREW SHOULDER M4 | 4,57 Lei | |
| 18 | N297461 | 1 | RATING LABEL | 4,57 Lei | |
| 18 | N297482 | 1 | RATING LABEL | 4,57 Lei | |
| 19 | N563954 | 1 | SERVICE PART OF SA SWITCH RAT TAIL FOR | 88,55 Lei | |
| 20 | N545849 | 1 | CORDSET (EURO) | 80,04 Lei | |
| 21 | N484511 | 1 | SWITCH HOLDER RATTAIL | 7,37 Lei | |
| 22 | 330019-01 | 1 | Screw M3.5 X9.5 | 4,57 Lei | |
| 23 | 330019-03 | 4 | Screw M3.5X16 T15 | 4,57 Lei | |
| 24 | N389438 | 4 | SCREW PLSTC THD FORM | 4,57 Lei | |
| 25 | 330045-06 | 5 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 26 | 330065-07 | 2 | SCREW | 4,57 Lei | |
| 28 | N501633 | 1 | LABEL | 4,57 Lei | |
| 31 | N484250 | 1 | OUTER FLANGE | 57,81 Lei | |
| 32 | NA132264 | 1 | RATING LABEL | 4,57 Lei | |
| 35 | N456232 | 1 | LABEL | 4,57 Lei | |
| 37 | N498726 | 2 | ADHESIVE FOAM | 4,57 Lei | |
| 38 | N513183 | 1 | HEATSINK WIRE TRAP | 4,57 Lei | |
| 42 | N534049 | 1 | INSULATION PAPER | 4,57 Lei | |
| 52 | N401958 | 1 | DEFLECTOR | 5,21 Lei | |
| 53 | N175104 | 1 | BEARING BALL | 13,85 Lei | |
| 54 | N119639 | 1 | O RING ,RUBBER | 4,57 Lei | |
| 55 | N278899 | 1 | SPINDLE LOCK BUTTON | 4,57 Lei | |
| 56 | N481683 | 1 | LOCK PIN | 7,37 Lei | |
| 57 | N263579 | 1 | THOR SPINDLE LOCK SPRING | 4,57 Lei | |
| 58 | N263699 | 1 | THOR SPINDLE LOCK O-RING | 4,57 Lei | |
| 59 | N453031 | 1 | RET RING w FINGERS | 4,57 Lei | |
| 62 | N307625 | 1 | O RING 1.5X40 | 4,57 Lei | |
| 68 | N542715 | 1 | WASHER SPRING | 6,23 Lei | |
| 90 | N107295 | 1 | HEX KEY 6 MM | 6,23 Lei | |
| 91 | N382311 | 1 | SIDE HANDLE | 52,22 Lei | |
| 132 | N485055 | 3 | TERMINAL 110 IDC | 4,57 Lei | |
| 133 | N498727 | 3 | HEAT SHRINK BOOT | 4,57 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 836 | N536561 | 1 | S.T.SUPPORT JIG | 12,71 Lei | |
| 846 | N545570 | 1 | SERVICE PART OF GLUE FOR WOLVERINE | 37,73 Lei | |
| 850 | N541784 | 1 | WRENCH | 70,39 Lei |
