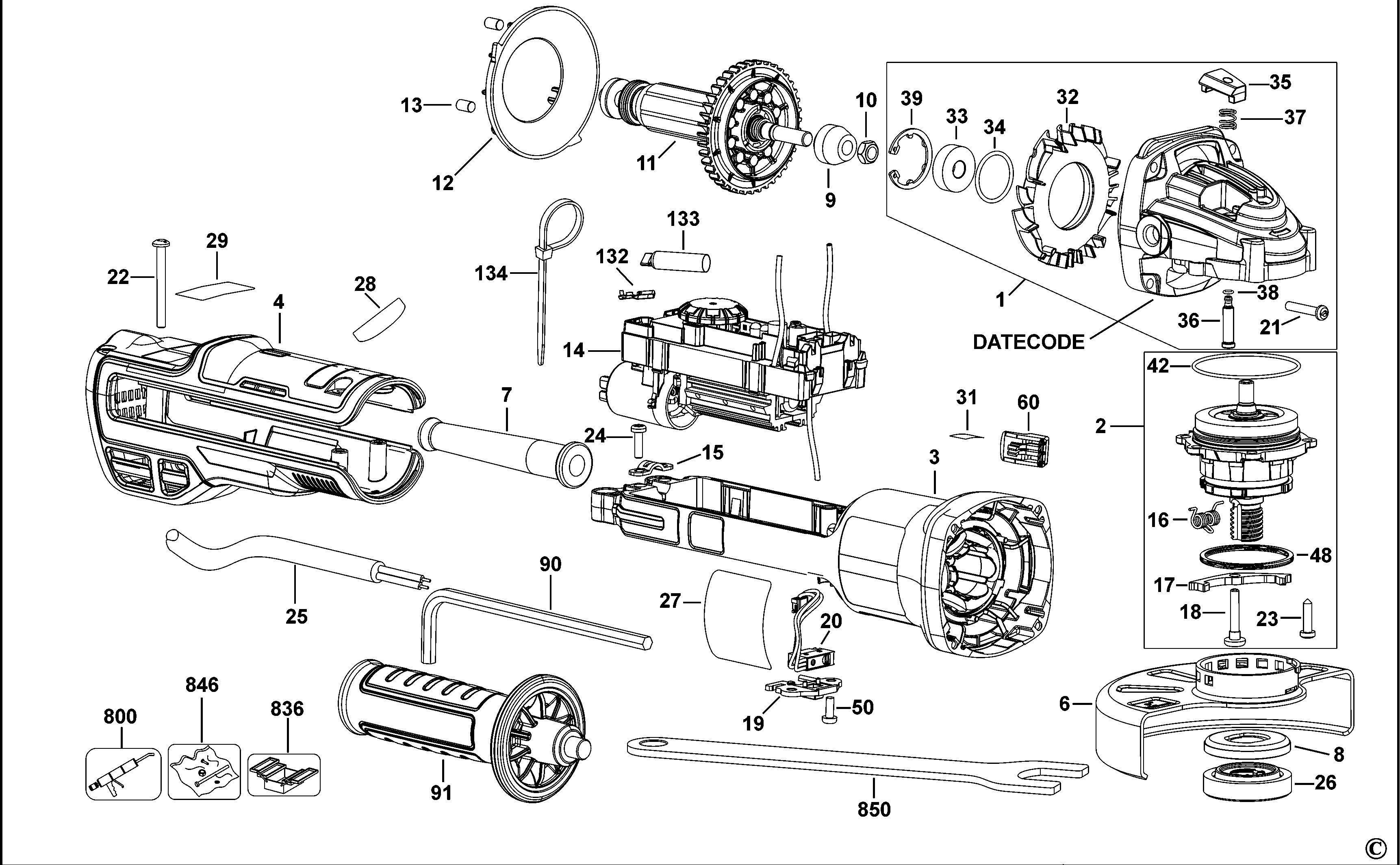

DEWALT SMALL ANGLE GRINDER (Type 1)
SKU Produs: DWE4367 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N545495 | 1 | GEARCASE SA | 88,55 Lei | |
| 2 | N545254 | 1 | GEARCASE COVER SA | 195,02 Lei | |
| 3 | N545775 | 1 | FIELDCASE SA | 307,21 Lei | |
| 4 | N563944 | 1 | HANDLE | 88,55 Lei | |
| 6 | N487790 | 1 | GUARD | 30,87 Lei | |
| 7 | N473096 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 8 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 8,64 Lei | |
| 9 | N423537 | 1 | PINION 38T/10T LONG | 25,54 Lei | |
| 10 | N372039 | 1 | NUT M7 | 4,57 Lei | |
| 11 | N545497 | 1 | ROTOR SA | 300,47 Lei | |
| 12 | N465425 | 1 | BAFFLE FAN | 5,21 Lei | |
| 13 | 949638-01 | 3 | PLUG | 4,57 Lei | |
| 14 | N545578 | 1 | CONTROL MODULE SA | 667,9 Lei | |
| 15 | 930103-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 16 | N465886 | 1 | SPRING | 4,57 Lei | |
| 17 | N637725 | 1 | LEVER | 13,85 Lei | |
| 18 | N297219 | 1 | SCREW SHOULDER M4 | 4,57 Lei | |
| 18 | N297461 | 1 | RATING LABEL | 4,57 Lei | |
| 18 | N297482 | 1 | RATING LABEL | 4,57 Lei | |
| 19 | N419615 | 1 | COVER MICRO SWITCH | 4,57 Lei | |
| 20 | N563931 | 1 | SWITCH | 34,05 Lei | |
| 21 | N371839 | 4 | SCREW, PLSTC THD FORM, M4X22 T20 | 4,57 Lei | |
| 22 | N389438 | 4 | SCREW PLSTC THD FORM | 4,57 Lei | |
| 23 | 330045-06 | 5 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 24 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 25 | N545846 | 1 | CORDSET (EURO) | 70,39 Lei | |
| 26 | N484250 | 1 | OUTER FLANGE | 57,81 Lei | |
| 27 | N501667 | 1 | RATING PLATE | 4,7 Lei | |
| 28 | N501633 | 1 | LABEL | 4,57 Lei | |
| 29 | N474285 | 1 | VARIABLE SPEED LABEL | 4,57 Lei | |
| 31 | N456232 | 1 | LABEL | 4,57 Lei | |
| 32 | N401958 | 1 | DEFLECTOR | 5,21 Lei | |
| 33 | N175104 | 1 | BEARING BALL | 13,85 Lei | |
| 34 | N119639 | 1 | O RING ,RUBBER | 4,57 Lei | |
| 35 | N278899 | 1 | SPINDLE LOCK BUTTON | 4,57 Lei | |
| 36 | N481683 | 1 | LOCK PIN | 7,37 Lei | |
| 37 | N263579 | 1 | THOR SPINDLE LOCK SPRING | 4,57 Lei | |
| 38 | N263699 | 1 | THOR SPINDLE LOCK O-RING | 4,57 Lei | |
| 39 | N453031 | 1 | RET RING w FINGERS | 4,57 Lei | |
| 42 | N307625 | 1 | O RING 1.5X40 | 4,57 Lei | |
| 48 | N542715 | 1 | WASHER SPRING | 6,23 Lei | |
| 50 | 330019-01 | 2 | Screw M3.5 X9.5 | 4,57 Lei | |
| 60 | N097844 | 1 | BUTTON | 4,57 Lei | |
| 90 | N107295 | 1 | HEX KEY 6 MM | 6,23 Lei | |
| 91 | N382311 | 1 | SIDE HANDLE | 52,22 Lei | |
| 132 | N485055 | 3 | TERMINAL 110 IDC | 4,57 Lei | |
| 133 | N498727 | 3 | HEAT SHRINK BOOT | 4,57 Lei | |
| 134 | 071025-04 | 1 | TIE | 4,57 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 836 | N536561 | 1 | S.T.SUPPORT JIG | 12,71 Lei | |
| 846 | N545570 | 1 | SERVICE PART OF GLUE FOR WOLVERINE | 37,73 Lei | |
| 850 | N541784 | 1 | WRENCH | 70,39 Lei |
