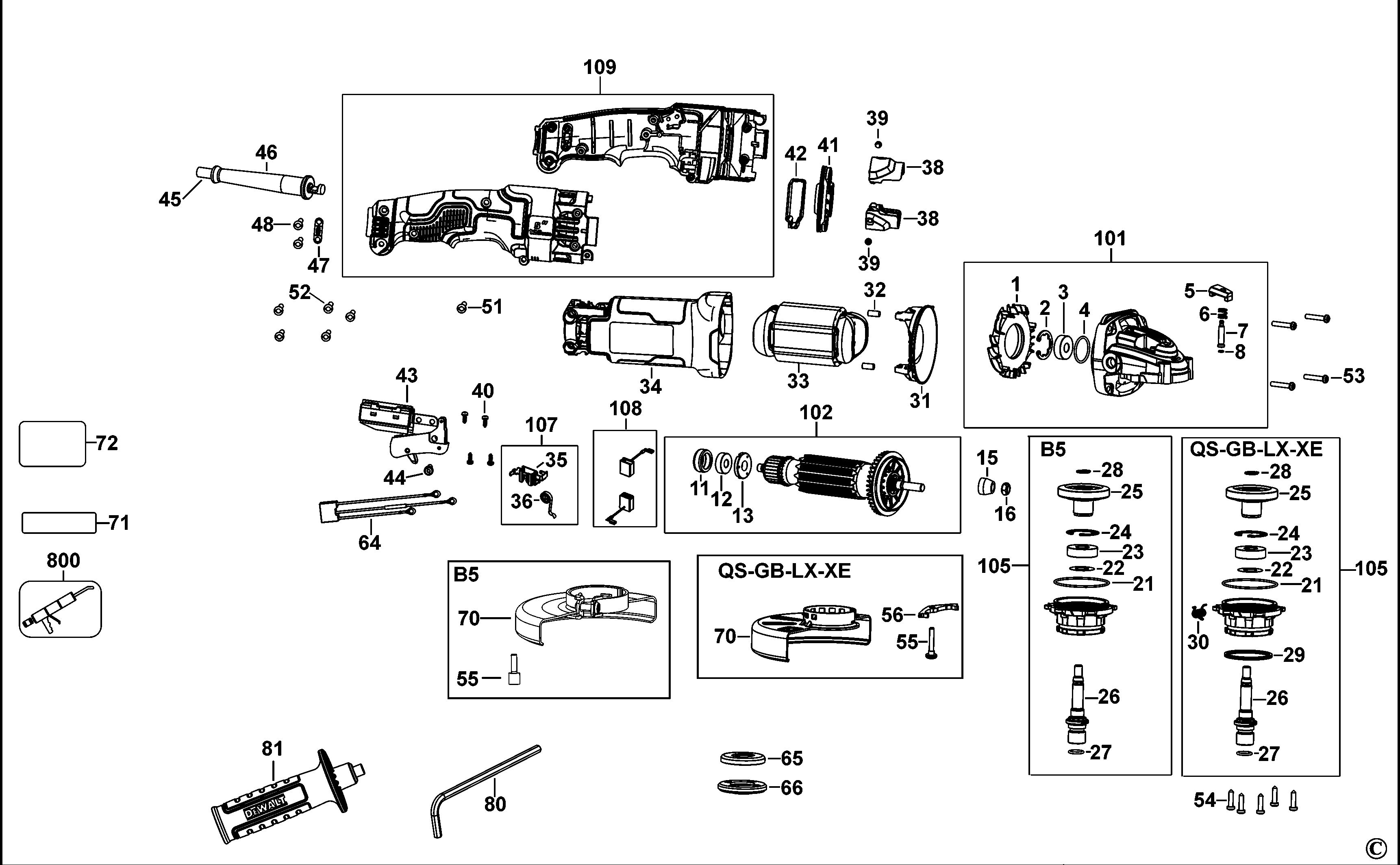

DEWALT ANGLE GRINDER (Type 1)
SKU Produs: DWE4277 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N401958 | 1 | DEFLECTOR | 5,21 Lei | |
| 2 | N453031 | 1 | RET RING w FINGERS | 4,57 Lei | |
| 3 | N175104 | 1 | BEARING BALL | 13,85 Lei | |
| 4 | N119639 | 1 | O RING ,RUBBER | 4,57 Lei | |
| 5 | N278899 | 1 | SPINDLE LOCK BUTTON | 4,57 Lei | |
| 6 | N263579 | 1 | THOR SPINDLE LOCK SPRING | 4,57 Lei | |
| 7 | N481683 | 1 | LOCK PIN | 7,37 Lei | |
| 8 | N263699 | 1 | THOR SPINDLE LOCK O-RING | 4,57 Lei | |
| 11 | 641823-00 | 1 | BOOT, RUBBER | 4,57 Lei | |
| 12 | N130916 | 1 | BEARING | 10,29 Lei | |
| 13 | N324400 | 1 | SLINGER THOR | 4,57 Lei | |
| 15 | N450872 | 1 | PINION | 30,87 Lei | |
| 16 | N372039 | 1 | NUT M7 | 4,57 Lei | |
| 21 | N307625 | 1 | O RING 1.5X40 | 4,57 Lei | |
| 22 | N400478 | 1 | SLINGER | 4,57 Lei | |
| 23 | 605040-24 | 1 | BEARING | 13,85 Lei | |
| 24 | N481950 | 1 | RETAINER RING | 4,57 Lei | |
| 25 | NA036398 | 1 | Gear | 70,39 Lei | |
| 26 | N163702 | 1 | SPINDLE M14 | 25,54 Lei | |
| 27 | N420261 | 1 | O RING | 4,57 Lei | |
| 28 | 444793-00 | 1 | RETAINING RING | 4,57 Lei | |
| 29 | N542715 | 1 | WASHER SPRING | 6,23 Lei | |
| 30 | N465886 | 1 | SPRING | 4,57 Lei | |
| 31 | N399419 | 1 | BAFFLE | 7,37 Lei | |
| 32 | 949638-02 | 2 | SMALL RUBBER | 4,57 Lei | |
| 33 | NA146668 | 1 | FIELD SA | 276,84 Lei | |
| 34 | N457469 | 1 | FIELDCASE | 25,54 Lei | |
| 35 | N335560 | 2 | SA BRUSH BOX, THOR | 7,37 Lei | |
| 36 | N273780 | 2 | SPRING, THOR BRUSH BOX | 4,57 Lei | |
| 36 | N274440 | 2 | RATING LABEL | 4,57 Lei | |
| 38 | N452111 | 2 | BRUSH CAP | 6,23 Lei | |
| 38 | N452134 | 2 | RATING PLATE | 4,57 Lei | |
| 39 | 648777-00 | 2 | SCREW | 4,57 Lei | |
| 40 | 593478-00 | 4 | SCREW OT M3X8 | 4,57 Lei | |
| 41 | N458066 | 1 | DUST PORT | 15,12 Lei | |
| 42 | N451017 | 1 | INSERT | 4,57 Lei | |
| 43 | N451610 | 1 | SWITCH | 70,39 Lei | |
| 44 | 330065-07 | 1 | SCREW | 4,57 Lei | |
| 45 | 562226-84 | 1 | CORDSET (EURO) | 96,56 Lei | |
| 46 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 47 | N174601 | 1 | CORD CLAMP | 4,57 Lei | |
| 48 | 330019-03 | 2 | Screw M3.5X16 T15 | 4,57 Lei | |
| 51 | N389438 | 2 | SCREW PLSTC THD FORM | 4,57 Lei | |
| 52 | 330065-08 | 5 | SCREW M4X18 | 4,57 Lei | |
| 53 | N371839 | 4 | SCREW, PLSTC THD FORM, M4X22 T20 | 4,57 Lei | |
| 54 | 330045-06 | 5 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 55 | N297219 | 1 | SCREW SHOULDER M4 | 4,57 Lei | |
| 55 | N297461 | 1 | RATING LABEL | 4,57 Lei | |
| 55 | N297482 | 1 | RATING LABEL | 4,57 Lei | |
| 56 | N637725 | 1 | LEVER | 13,85 Lei | |
| 64 | N482574 | 1 | CAPACITOR | 21,85 Lei | |
| 65 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 8,64 Lei | |
| 66 | N134466 | 1 | Outer Clamp Washer | 25,54 Lei | |
| 66 | N419748 | 1 | FLANGE,HEX HOLE,M14 NEW CHAMFER | 25,54 Lei | |
| 70 | N487790 | 1 | GUARD | 30,87 Lei | |
| 71 | N400392 | 1 | BRAND LABEL | 4,57 Lei | |
| 72 | N457475 | 1 | RATING PLATE | 4,57 Lei | |
| 72 | NA085691 | 1 | RATING PLATE | 4,57 Lei | |
| 80 | N107295 | 1 | HEX KEY 6 MM | 6,23 Lei | |
| 81 | N382311 | 1 | SIDE HANDLE | 52,22 Lei | |
| 101 | NA146577 | 1 | GEARCASE SA | 96,56 Lei | |
| 102 | NA146670 | 1 | ARMATURE SA | 300,47 Lei | |
| 105 | N474617 | 1 | GEARCASE COVER SA | 133,4 Lei | |
| 107 | N413349 | 2 | BRUSHBOX SA | 19,95 Lei | |
| 108 | NA143119 | 1 | BRUSH PAIR SA | 30,87 Lei | |
| 109 | N470890 | 1 | CLAMSHELL SET | 57,81 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei |
