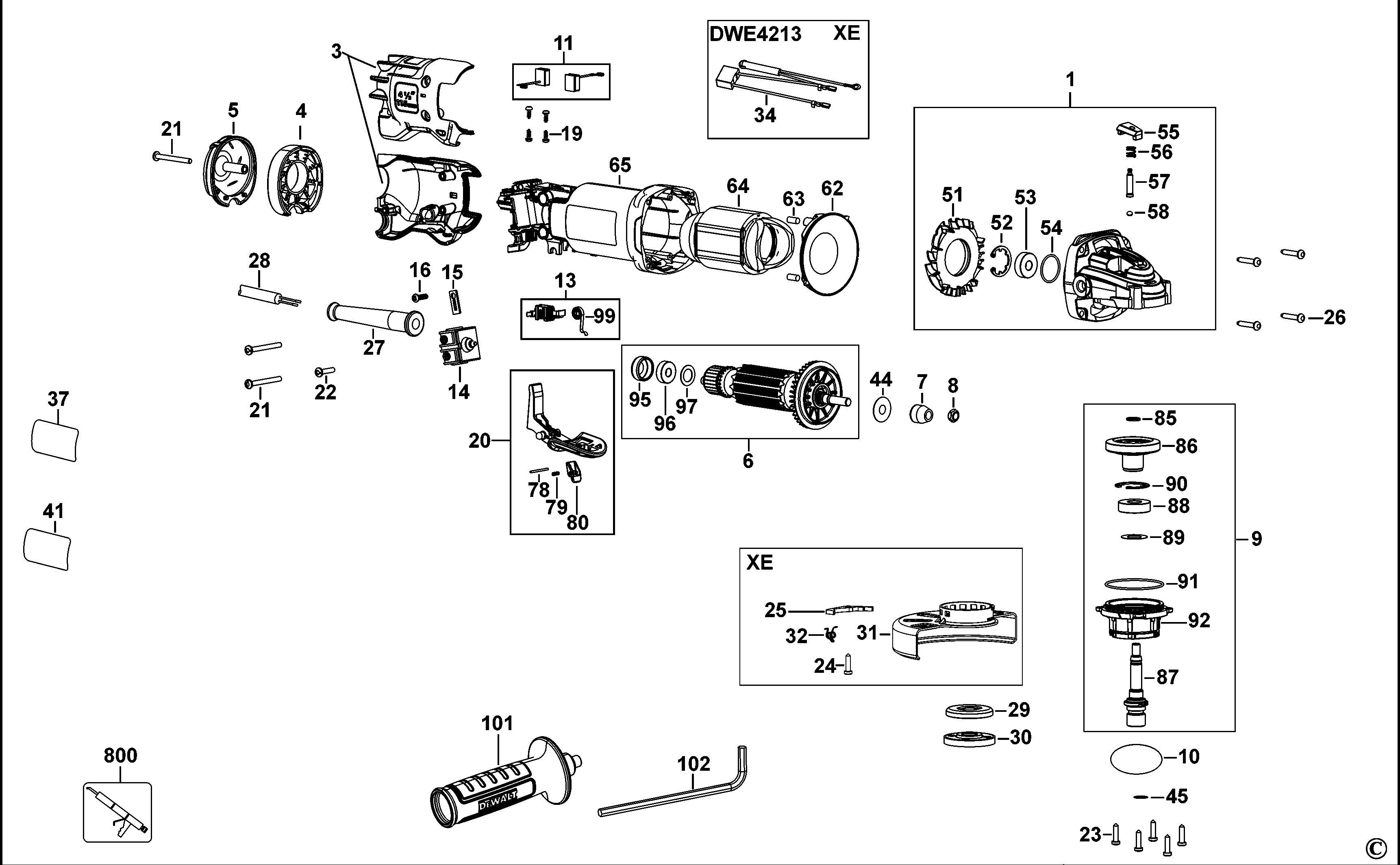

DEWALT SMALL ANGLE GRINDER (Type 1)
SKU Produs: DWE4213 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N413331 | 1 | GEARCASE SA | 90,6 Lei | |
| 5 | N400902 | 1 | END CAP | 8,64 Lei | |
| 7 | N375339 | 1 | PINION | 25,54 Lei | |
| 8 | N372039 | 1 | NUT M7 | 4,57 Lei | |
| 9 | N421526 | 1 | GEARCASE SA | 109,5 Lei | |
| 10 | N355619 | 1 | O RING | 4,57 Lei | |
| 13 | N413349 | 2 | BRUSHBOX SA | 19,95 Lei | |
| 14 | N396008 | 1 | SWITCH | 37,73 Lei | |
| 16 | 330065-06 | 1 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 19 | 593478-00 | 4 | SCREW OT M3X8 | 4,57 Lei | |
| 20 | N413352 | 1 | PADDLE | 41,93 Lei | |
| 21 | N389438 | 3 | SCREW PLSTC THD FORM | 4,57 Lei | |
| 22 | 330065-08 | 1 | SCREW M4X18 | 4,57 Lei | |
| 23 | 330045-06 | 5 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 24 | N297219 | 1 | SCREW SHOULDER M4 | 4,57 Lei | |
| 24 | N297461 | 1 | RATING LABEL | 4,57 Lei | |
| 24 | N297482 | 1 | RATING LABEL | 4,57 Lei | |
| 25 | N136731 | 1 | LEVER | 7,37 Lei | |
| 26 | N371839 | 4 | SCREW, PLSTC THD FORM, M4X22 T20 | 4,57 Lei | |
| 29 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 8,64 Lei | |
| 30 | N134466 | 1 | Outer Clamp Washer | 25,54 Lei | |
| 30 | N419748 | 1 | FLANGE,HEX HOLE,M14 NEW CHAMFER | 25,54 Lei | |
| 32 | N291619 | 1 | SPRING | 4,57 Lei | |
| 34 | N349959 | 1 | CAPACITOR | 17,02 Lei | |
| 37 | N400392 | 1 | BRAND LABEL | 4,57 Lei | |
| 44 | N213812 | 1 | WASHER | 4,57 Lei | |
| 45 | N420261 | 1 | O RING | 4,57 Lei | |
| 51 | N401958 | 1 | DEFLECTOR | 5,21 Lei | |
| 52 | N398877 | 1 | CIRCLIP | 4,57 Lei | |
| 53 | N175104 | 1 | BEARING BALL | 13,85 Lei | |
| 54 | N119639 | 1 | O RING ,RUBBER | 4,57 Lei | |
| 55 | N278899 | 1 | SPINDLE LOCK BUTTON | 4,57 Lei | |
| 56 | N263579 | 1 | THOR SPINDLE LOCK SPRING | 4,57 Lei | |
| 57 | N481683 | 1 | LOCK PIN | 7,37 Lei | |
| 58 | N263699 | 1 | THOR SPINDLE LOCK O-RING | 4,57 Lei | |
| 62 | N265479 | 1 | BAFFLE | 7,37 Lei | |
| 63 | 949638-02 | 2 | SMALL RUBBER | 4,57 Lei | |
| 65 | N369341 | 1 | FIELDCASE | 30,87 Lei | |
| 78 | 099204-14 | 1 | ROLL PIN | 4,57 Lei | |
| 79 | 150264-01 | 1 | SPRING | 4,57 Lei | |
| 80 | 397657-00 | 1 | LEVER LOCK-OFF | 5,21 Lei | |
| 85 | 444793-00 | 1 | RETAINING RING | 4,57 Lei | |
| 86 | N409481 | 1 | Gear | 57,81 Lei | |
| 86 | N887607 | 1 | Gear | 80,04 Lei | |
| 87 | N163702 | 1 | SPINDLE M14 | 25,54 Lei | |
| 88 | 605040-24 | 1 | BEARING | 13,85 Lei | |
| 89 | N400478 | 1 | SLINGER | 4,57 Lei | |
| 90 | N389985 | 1 | RING | 4,7 Lei | |
| 91 | N307625 | 1 | O RING 1.5X40 | 4,57 Lei | |
| 92 | N269901 | 1 | GEARCASE COVER | 30,87 Lei | |
| 95 | 641823-00 | 1 | BOOT, RUBBER | 4,57 Lei | |
| 96 | N130916 | 1 | BEARING | 10,29 Lei | |
| 97 | N324400 | 1 | SLINGER THOR | 4,57 Lei | |
| 99 | N273780 | 2 | SPRING, THOR BRUSH BOX | 4,57 Lei | |
| 99 | N274440 | 2 | RATING LABEL | 4,57 Lei | |
| 101 | N382311 | 1 | SIDE HANDLE | 52,22 Lei | |
| 102 | N107295 | 1 | HEX KEY 6 MM | 6,23 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei |
