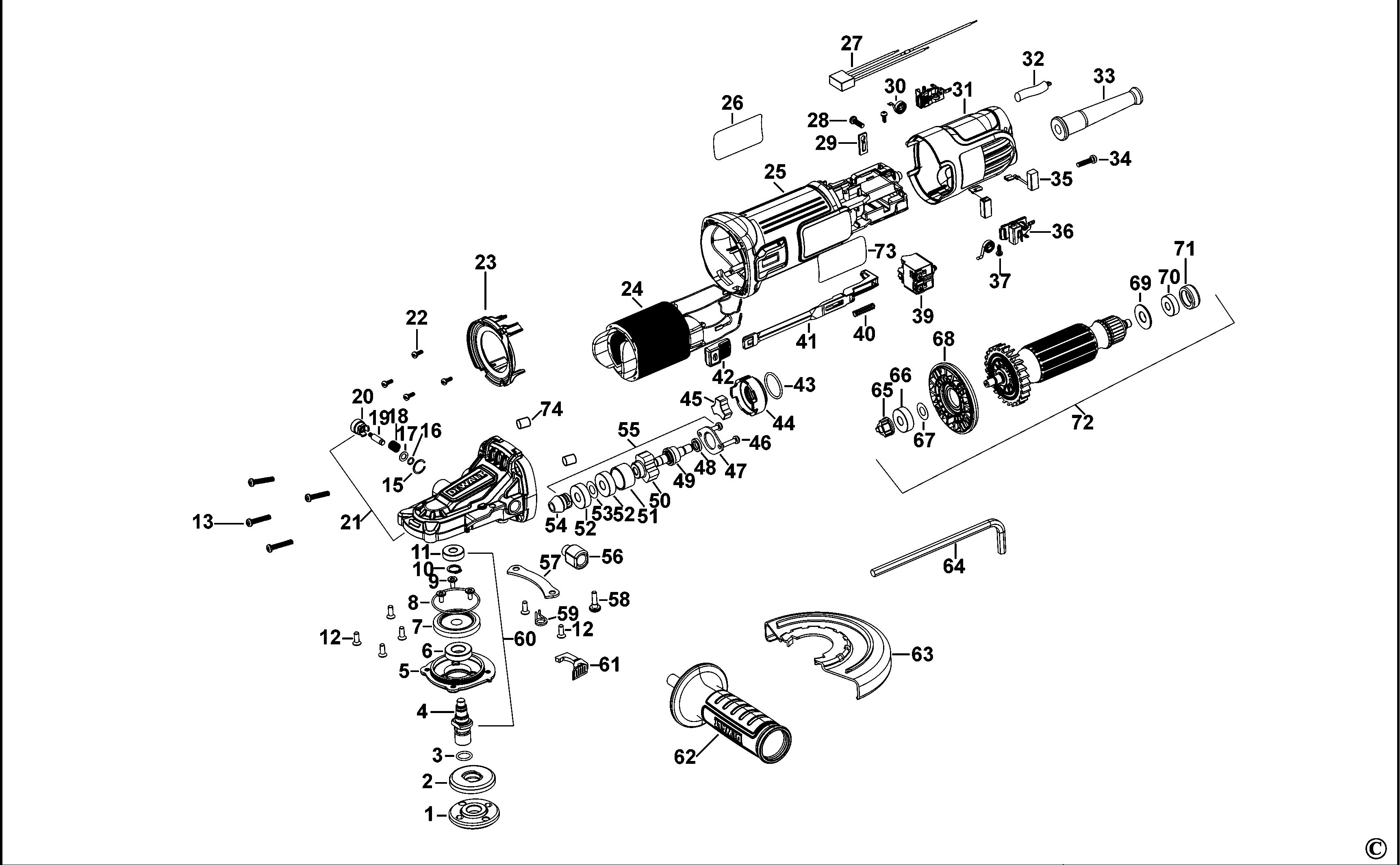

DEWALT ANGLE GRINDER (Type 1)
SKU Produs: DWE4157F /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N134466 | 1 | Outer Clamp Washer | 25,54 Lei | |
| 2 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 8,64 Lei | |
| 3 | 633044-00 | 1 | O RING | 4,57 Lei | |
| 4 | N517686 | 1 | SPINDLE | 25,54 Lei | |
| 5 | N494588 | 1 | GEARCASE COVER | 30,87 Lei | |
| 6 | 605040-72 | 1 | BEARING | 17,02 Lei | |
| 7 | N604798 | 1 | Gear | 37,73 Lei | |
| 8 | N307625 | 1 | O RING 1.5X40 | 4,57 Lei | |
| 9 | N514767 | 3 | SCREW | 4,57 Lei | |
| 10 | 444793-00 | 1 | RETAINING RING | 4,57 Lei | |
| 11 | 605040-03 | 1 | Ball Bearing. CW DW810 | 13,85 Lei | |
| 12 | N503419 | 6 | SCREW | 4,57 Lei | |
| 13 | N371839 | 4 | SCREW, PLSTC THD FORM, M4X22 T20 | 4,57 Lei | |
| 15 | N503684 | 1 | CIRCLIP | 4,57 Lei | |
| 16 | N094012 | 1 | O RING | 4,57 Lei | |
| 17 | N447838 | 1 | WASHER BEARING BLOCK | 4,57 Lei | |
| 18 | N092954 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 19 | N114592 | 1 | PIN SPINDLE LOCK | 5,21 Lei | |
| 20 | N497322 | 1 | SPINDLE LOCK | 4,57 Lei | |
| 21 | NA142327 | 1 | GEARCASE SA | 225,26 Lei | |
| 22 | 330065-25 | 4 | SCREW PLSTC THD FORM M3X9 T10 | 4,57 Lei | |
| 23 | N132864 | 1 | BAFFLE | 5,21 Lei | |
| 24 | N232482 | 1 | FIELD 230V | 123,6 Lei | |
| 25 | N115131 | 1 | FIELDCASE | 34,05 Lei | |
| 26 | N656212 | 1 | RATING PLATE | 4,57 Lei | |
| 27 | N442344 | 1 | CAPACITOR SA | 17,02 Lei | |
| 28 | 562097-00 | 1 | Screw For Brush Holder Assy.(4.2 x 13) | 4,57 Lei | |
| 29 | 619328-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 30 | N097703 | 1 | SPRING | 4,57 Lei | |
| 31 | N115132 | 1 | HOUSING | 17,02 Lei | |
| 32 | N133090 | 1 | CORDSET (EURO) | 37,73 Lei | |
| 33 | N447519 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 34 | N017839 | 1 | SCREW | 4,57 Lei | |
| 35 | N257700 | 1 | BRUSH PAIR 230V | 30,87 Lei | |
| 35 | NA160502 | 1 | BRUSH PAIR | 41,93 Lei | |
| 36 | N097702 | 2 | BRUSH BOX | 7,37 Lei | |
| 37 | 593478-00 | 2 | SCREW OT M3X8 | 4,57 Lei | |
| 39 | N442171 | 1 | SWITCH | 90,6 Lei | |
| 40 | N093410 | 1 | SPRING | 4,57 Lei | |
| 41 | N117648 | 1 | LINK | 5,21 Lei | |
| 42 | N097844 | 1 | BUTTON | 4,57 Lei | |
| 43 | N119639 | 1 | O RING ,RUBBER | 4,57 Lei | |
| 44 | N684358 | 1 | BUSHING | 25,54 Lei | |
| 45 | N618406 | 1 | COUPLING | 4,57 Lei | |
| 46 | 330045-45 | 2 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 49 | N491511 | 1 | SHAFT | 21,85 Lei | |
| 50 | N618689 | 1 | COUPLING | 21,85 Lei | |
| 51 | N491509 | 1 | SLEEVE | 12,71 Lei | |
| 52 | N175104 | 2 | BEARING BALL | 13,85 Lei | |
| 53 | N213812 | 1 | WASHER | 4,57 Lei | |
| 54 | N604853 | 1 | PINION | 25,54 Lei | |
| 55 | NA144260 | 1 | SHAFT SA | 195,02 Lei | |
| 56 | N496832 | 1 | ADAPTOR | 21,85 Lei | |
| 57 | N498478 | 1 | PLATE | 7,37 Lei | |
| 58 | N137733 | 1 | SCREW | 4,57 Lei | |
| 59 | N105579 | 1 | SPRING | 4,57 Lei | |
| 61 | N501337 | 1 | LEVER LOCK | 15,12 Lei | |
| 63 | N505139 | 1 | GUARD | 98,8 Lei | |
| 64 | N107295 | 1 | HEX KEY 6 MM | 6,23 Lei | |
| 65 | N617852 | 1 | COUPLING | 8,64 Lei | |
| 66 | N175104 | 1 | BEARING BALL | 13,85 Lei | |
| 67 | N213812 | 1 | WASHER | 4,57 Lei | |
| 68 | N575453 | 1 | FAN | 7,37 Lei | |
| 69 | N101228 | 1 | WASHER | 4,57 Lei | |
| 70 | N130916 | 1 | BEARING | 10,29 Lei | |
| 71 | 641823-00 | 1 | BOOT, RUBBER | 4,57 Lei | |
| 73 | N149175 | 1 | BRAND LABEL | 4,57 Lei | |
| 74 | N476768 | 2 | RUBBER PAD | 4,57 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei |
