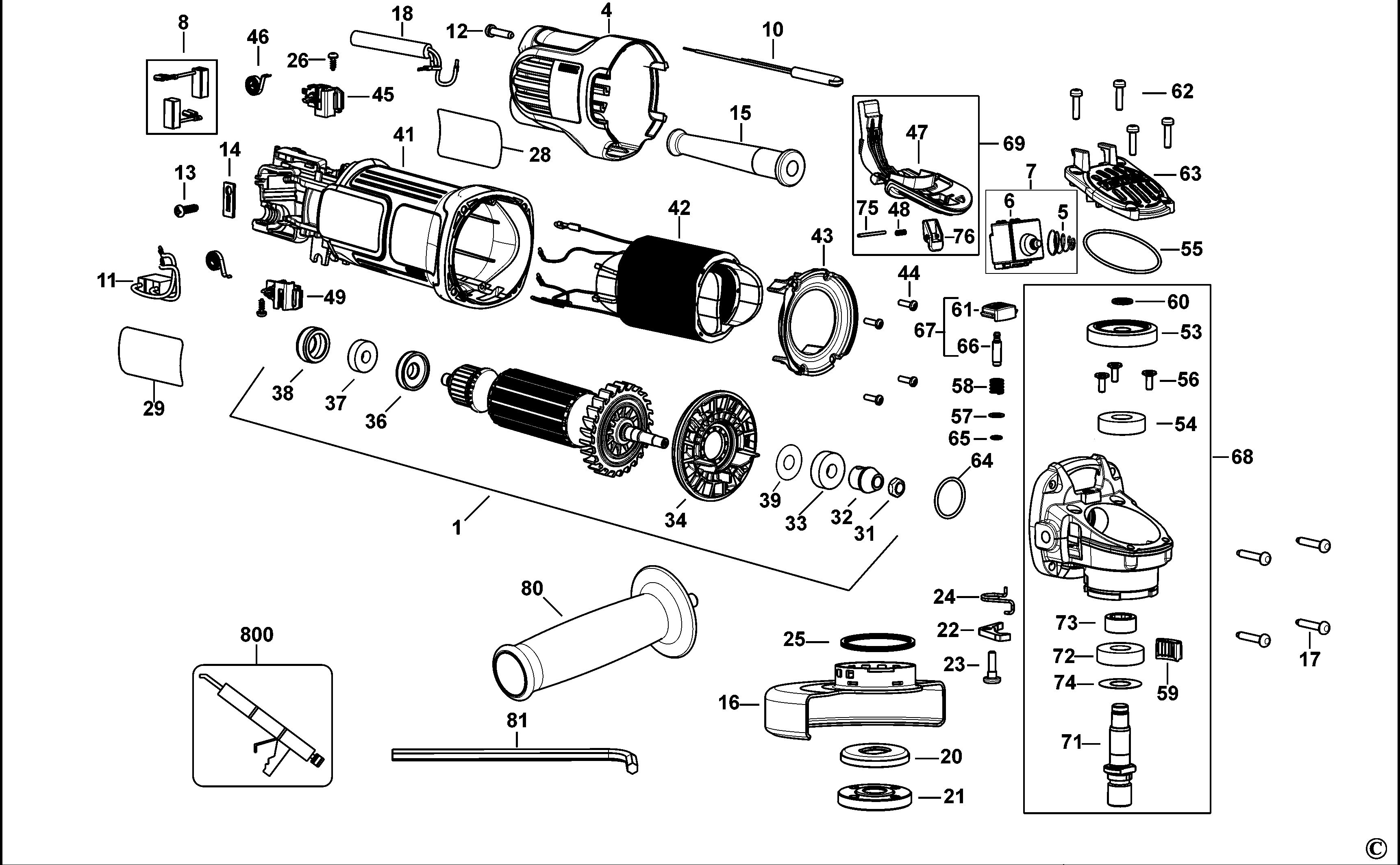

DEWALT SMALL ANGLE GRINDER (Type 1)
SKU Produs: DWE4121 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 5 | N260662 | 1 | SPRING | 4,57 Lei | |
| 6 | N167538 | 1 | SWITCH | 19,95 Lei | |
| 6 | N327459 | 1 | CPX CDO 80-01 SWITCH | 19,95 Lei | |
| 7 | N261500 | 1 | SWITCH SA | 21,3 Lei | |
| 12 | N017839 | 1 | SCREW | 4,57 Lei | |
| 13 | 562097-00 | 1 | Screw For Brush Holder Assy.(4.2 x 13) | 4,57 Lei | |
| 14 | 619328-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 15 | N447519 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 17 | 330065-31 | 4 | SCREW | 4,57 Lei | |
| 20 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 8,64 Lei | |
| 21 | N134466 | 1 | Outer Clamp Washer | 25,54 Lei | |
| 22 | N136731 | 1 | LEVER | 7,37 Lei | |
| 23 | N137733 | 1 | SCREW | 4,57 Lei | |
| 24 | N105579 | 1 | SPRING | 4,57 Lei | |
| 25 | N135116 | 1 | WASHER SPRING | 6,23 Lei | |
| 26 | 593478-00 | 2 | SCREW OT M3X8 | 4,57 Lei | |
| 28 | N149175 | 1 | BRAND LABEL | 4,57 Lei | |
| 31 | 604484-00 | 1 | NUT M6 | 4,57 Lei | |
| 32 | N153125 | 1 | PINION | 17,02 Lei | |
| 33 | N175104 | 1 | BEARING BALL | 13,85 Lei | |
| 34 | N132042 | 1 | BAFFLE | 6,23 Lei | |
| 34 | N132103 | 1 | HOUSING UPPER | 57,81 Lei | |
| 36 | N101228 | 1 | WASHER | 4,57 Lei | |
| 37 | N130916 | 1 | BEARING | 10,29 Lei | |
| 38 | 641823-00 | 1 | BOOT, RUBBER | 4,57 Lei | |
| 39 | N213812 | 1 | WASHER | 4,57 Lei | |
| 43 | N132864 | 1 | BAFFLE | 5,21 Lei | |
| 44 | 330065-25 | 4 | SCREW PLSTC THD FORM M3X9 T10 | 4,57 Lei | |
| 45 | N097702 | 1 | BRUSH BOX | 7,37 Lei | |
| 46 | N097703 | 2 | SPRING | 4,57 Lei | |
| 47 | N126770 | 1 | LEVER | 7,37 Lei | |
| 48 | 150264-01 | 1 | SPRING | 4,57 Lei | |
| 49 | N167600 | 1 | BRUSHBOX | 15,12 Lei | |
| 53 | N153126 | 1 | Gear | 25,54 Lei | |
| 54 | N150961 | 1 | BEARING | 15,12 Lei | |
| 55 | N094024 | 1 | O RING | 4,57 Lei | |
| 56 | N118088 | 1 | SCREW , SHOULDER M3X0,5 | 4,57 Lei | |
| 57 | N447838 | 1 | WASHER BEARING BLOCK | 4,57 Lei | |
| 58 | N092954 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 59 | N126708 | 1 | PLUG, RUBBER | 4,57 Lei | |
| 60 | 444793-00 | 1 | RETAINING RING | 4,57 Lei | |
| 61 | N126105 | 1 | BUTTON | 4,57 Lei | |
| 62 | N122904 | 4 | SCREW M3 5X0,6 | 4,57 Lei | |
| 63 | N116180 | 1 | GEARCASE COVER | 5,21 Lei | |
| 64 | N119639 | 1 | O RING ,RUBBER | 4,57 Lei | |
| 65 | N094012 | 1 | O RING | 4,57 Lei | |
| 66 | N114592 | 1 | PIN SPINDLE LOCK | 5,21 Lei | |
| 67 | N181767 | 1 | SPINDLE LOCK | 15,12 Lei | |
| 68 | N232479 | 1 | GEARCASE SA | 141,6 Lei | |
| 69 | N126769 | 1 | PADDLE | 34,05 Lei | |
| 69 | N232486 | 1 | PADDLE | 24,9 Lei | |
| 71 | N110057 | 1 | SPINDLE M14 | 25,54 Lei | |
| 72 | N150961 | 1 | BEARING | 15,12 Lei | |
| 73 | N095815 | 1 | SLEEVE | 5,21 Lei | |
| 74 | 638229-00 | 1 | SLINGER | 4,57 Lei | |
| 75 | 099204-14 | 1 | ROLL PIN | 4,57 Lei | |
| 76 | 397657-00 | 1 | LEVER LOCK-OFF | 5,21 Lei | |
| 80 | 562211-00 | 1 | Handle Side(945597-00) DW803/801 | 17,02 Lei | |
| 81 | N107295 | 1 | HEX KEY 6 MM | 6,23 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei |
