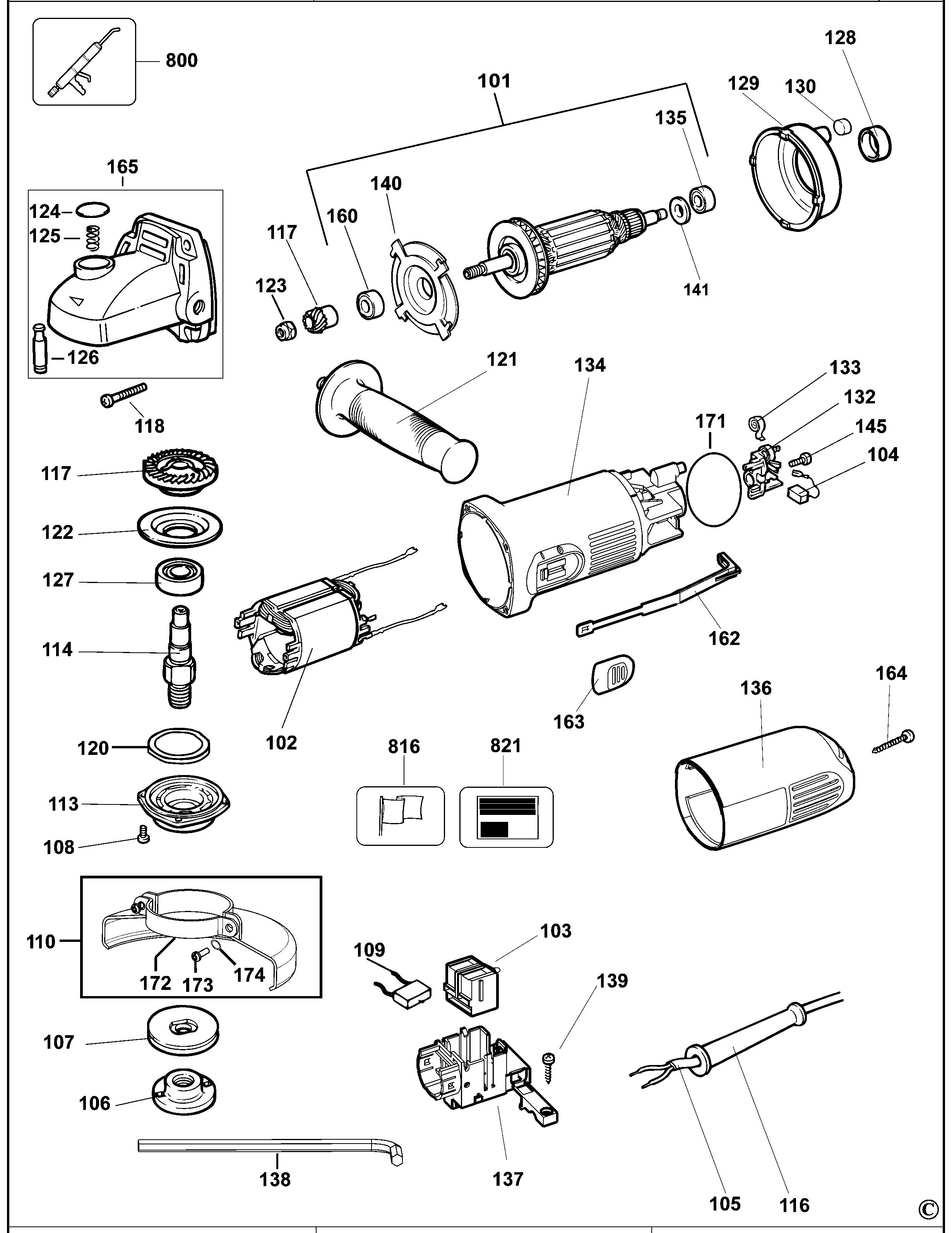

DEWALT SMALL ANGLE GRINDER (Type 1)
SKU Produs: DWE4016 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 101 | N358499 | 1 | ARMATURE DW810 Ty8 | 177,2 Lei | |
| 101 | N431841 | 1 | SA ARM WITH BRNG AND PACK | 157,92 Lei | |
| 102 | N446377 | 1 | FIELD 230V | 88,55 Lei | |
| 103 | N442171 | 1 | SWITCH | 90,6 Lei | |
| 104 | 1003859-00 | 1 | BRUSH PAIR 230V CUT OFF | 34,05 Lei | |
| 105 | N336999 | 1 | CORDSET | 31,6 Lei | |
| 105 | N338233 | 1 | RATING LABEL | 4,57 Lei | |
| 106 | N134466 | 1 | Outer Clamp Washer | 25,54 Lei | |
| 107 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 8,64 Lei | |
| 108 | 330045-46 | 4 | SCREW | 4,57 Lei | |
| 109 | N446378 | 1 | CAPACITOR | 10,29 Lei | |
| 110 | N309548 | 1 | GUARD SA | 21,85 Lei | |
| 113 | N308541 | 1 | GEARCASE COVER | 19,95 Lei | |
| 114 | N318739 | 1 | SPINDLE | 21,85 Lei | |
| 116 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 117 | 661244-00 | 1 | GEAR AND PINION | 41,93 Lei | |
| 118 | 562097-01 | 4 | SCREW | 4,57 Lei | |
| 120 | 641893-00 | 1 | Seal Felt washer DW801 | 4,57 Lei | |
| 121 | 562211-00 | 1 | Handle Side(945597-00) DW803/801 | 17,02 Lei | |
| 122 | 945299-00 | 1 | Gear Flange | 5,21 Lei | |
| 123 | 945292-00 | 1 | Nut (Pinion fixing) | 4,57 Lei | |
| 124 | 944575-00 | 1 | LOCK BUTTON | 4,57 Lei | |
| 125 | 562210-00 | 1 | SPRING | 4,57 Lei | |
| 126 | 944571-00 | 1 | LOCK PIN | 7,37 Lei | |
| 127 | 605040-22 | 1 | Bearing DW801 | 17,02 Lei | |
| 128 | 641823-00 | 1 | BOOT, RUBBER | 4,57 Lei | |
| 129 | 401623-00 | 1 | BAFFLE | 5,21 Lei | |
| 130 | 949638-01 | 2 | PLUG | 4,57 Lei | |
| 132 | 606574-01 | 2 | BRUSH HOLDER | 12,71 Lei | |
| 133 | 562204-00 | 2 | TORSION SPRING | 4,57 Lei | |
| 134 | 609299-01 | 1 | CASE FIELD (W/O CAD) | 37,73 Lei | |
| 135 | 605040-03 | 1 | Ball Bearing. CW DW810 | 13,85 Lei | |
| 137 | N438051 | 1 | SWITCH SUPPORT | 7,37 Lei | |
| 138 | N107295 | 1 | HEX KEY 6 MM | 6,23 Lei | |
| 139 | 562097-05 | 1 | Screw DW201,171 | 4,57 Lei | |
| 140 | 401622-01 | 1 | Fan Flange | 7,37 Lei | |
| 141 | 398906-00 | 1 | SPACER INSULATING | 4,57 Lei | |
| 145 | 562097-00 | 2 | Screw For Brush Holder Assy.(4.2 x 13) | 4,57 Lei | |
| 160 | N110359 | 1 | BALL BEARING | 8,64 Lei | |
| 162 | 611737-01 | 1 | LINK | 5,21 Lei | |
| 163 | 569624-01 | 1 | BUTTON | 5,21 Lei | |
| 164 | 562097-13 | 1 | SCREW | 4,57 Lei | |
| 165 | N358559 | 1 | GEARCASE SA | 57,81 Lei | |
| 171 | 393799-00 | 1 | O RING | 4,57 Lei | |
| 172 | N288581 | 1 | STRAP | 4,57 Lei | |
| 174 | 569639-00 | 2 | WASHER | 4,57 Lei | |
| 800 | 286436-00 | 1 | RHEOLUBE 380 | 776,53 Lei | |
| 816 | 946194-00 | 1 | Logo Label DW801 | 4,57 Lei | |
| 821 | N452531 | 1 | RATING PLATE | 4,57 Lei |
