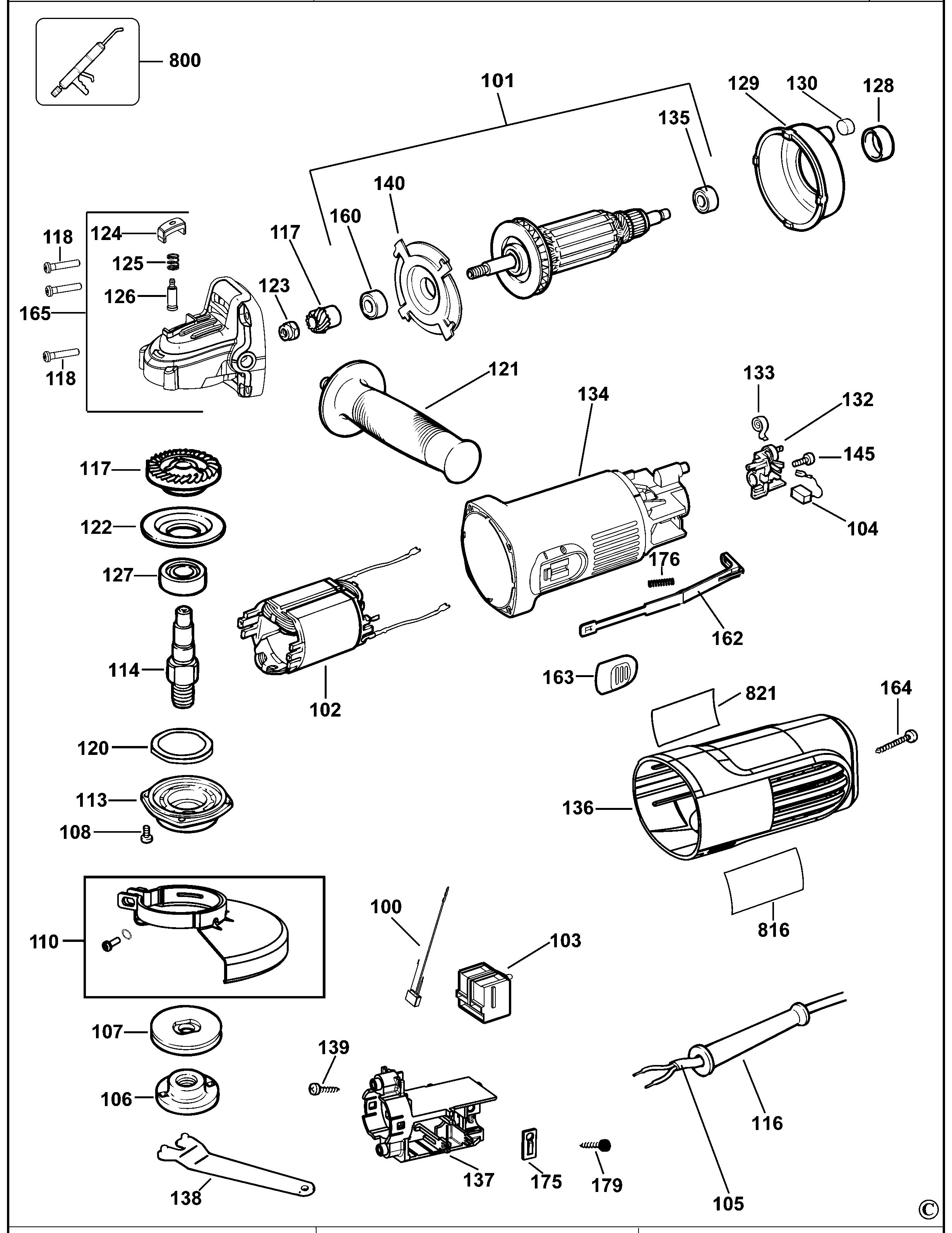

DEWALT SMALL ANGLE GRINDER (Type 15)
SKU Produs: DWE4015 /Type: 15
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 106 | 401678-05 | 1 | WASHER OUTER CLAMP PAINTED | 22,4 Lei | |
| 107 | 391969-00 | 1 | WASHER, INNER CLAMP M14 | 14,2 Lei | |
| 108 | 330045-46 | 4 | SCREW | 4,7 Lei | |
| 113 | N499484 | 1 | GEARCASE COVER | 15,5 Lei | |
| 114 | N318739 | 1 | SPINDLE | 22,4 Lei | |
| 116 | N918736 | 1 | CORD PROTECTOR | 5,3 Lei | |
| 117 | N490505 | 1 | GEAR AND PINION | 90,6 Lei | |
| 118 | 562097-03 | 4 | SCREW | 4,7 Lei | |
| 120 | 641893-00 | 1 | Seal Felt washer DW801 | 4,7 Lei | |
| 121 | 562211-00 | 1 | Handle Side(945597-00) DW803/801 | 17,4 Lei | |
| 122 | 945299-00 | 1 | Gear Flange | 5,3 Lei | |
| 123 | 945292-00 | 1 | Nut (Pinion fixing) | 4,7 Lei | |
| 124 | N499496 | 1 | BUTTON | 4,7 Lei | |
| 125 | 562210-00 | 1 | SPRING | 4,7 Lei | |
| 126 | N499495 | 1 | SPINDLE LOCK | 5,3 Lei | |
| 127 | 605040-22 | 1 | Bearing DW801 | 17,4 Lei | |
| 128 | 930275-00 | 1 | SLEEVE BEARING | 4,7 Lei | |
| 129 | 401623-00 | 1 | BAFFLE | 5,3 Lei | |
| 130 | 949638-01 | 1 | PLUG | 4,7 Lei | |
| 132 | N616539 | 2 | BRUSH HOLDER SA | 7,5 Lei | |
| 133 | 562204-00 | 2 | TORSION SPRING | 4,7 Lei | |
| 135 | 605040-03 | 1 | Ball Bearing. CW DW810 | 14,2 Lei | |
| 137 | N513692 | 1 | SWITCH SUPPORT | 20,4 Lei | |
| 138 | 401680-00 | 1 | WRENCH DW831 | 17,4 Lei | |
| 139 | 562097-05 | 2 | Screw DW201,171 | 4,7 Lei | |
| 145 | 562097-00 | 2 | Screw For Brush Holder Assy.(4.2 x 13) | 4,7 Lei | |
| 160 | N110359 | 1 | BALL BEARING | 8,8 Lei | |
| 162 | N510166 | 1 | LINK | 7,5 Lei | |
| 163 | N519344 | 1 | BUTTON | 4,7 Lei | |
| 164 | 562097-05 | 1 | Screw DW201,171 | 4,7 Lei | |
| 175 | N525990 | 1 | CORD CLAMP | 4,7 Lei | |
| 179 | 562097-05 | 1 | Screw DW201,171 | 4,7 Lei | |
| 800 | 286436-00 | 1 | RHEOLUBE 380 | 794,6 Lei |
